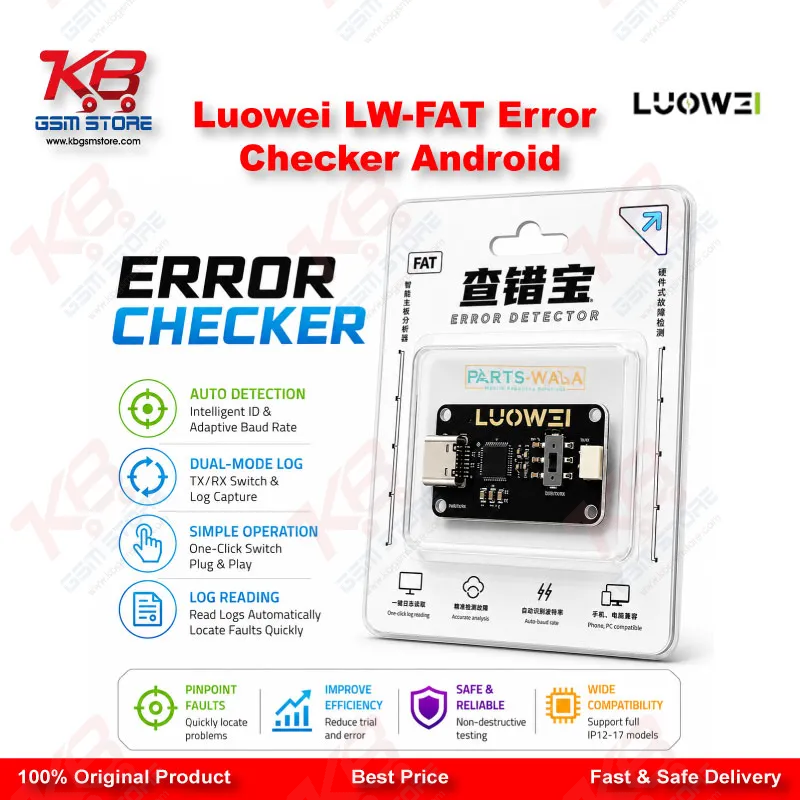

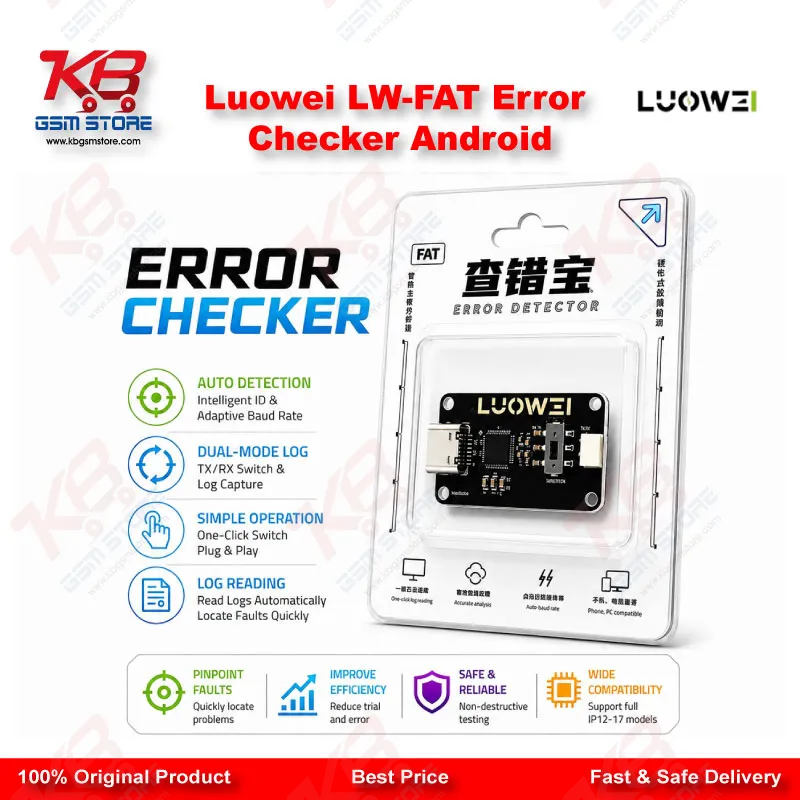

Luowei LW-FAT Error Checker – AI Motherboard Fault Analyzer for Android Phone Repair

Dead-after-flash boards, hang-on-logo units, and no-power phones eat up bench time when you're chasing the fault by swapping ICs and re-testing voltages one at a time. The Luowei LW-FAT Error Checker cuts that guesswork out. It taps directly into the motherboard's UART TX and GND lines and captures the raw boot log the second power hits the board — before Android ever loads. That log carries the actual sequence of hardware initialization failures, which is exactly the information a technician needs to stop guessing and start replacing the right part.
You solder two fine wires from the board's TX and GND test pads to the FAT box, connect the unit to your PC over Type-C, open the dedicated FAT web interface, and set the baud rate to 115200. Power the board using the included power-on cable, and the tool starts streaming the low-level serial log live to your screen. From there, the data goes to Luowei's cloud AI diagnostic platform, which has been trained against a database of more than a million documented repair cases. The engine cross-references your board's log pattern against that dataset and returns a structured report identifying where the fault sits — power rail, communication line, or a specific IC — instead of leaving you to interpret raw log text yourself.
This matters most on jobs where symptoms lie. A board stuck at hang on logo could be a corrupted eMMC, a bad PMIC, or a cracked solder joint on the CPU — and standard voltage-point testing won't always tell you which. Because the LW-FAT reads what the processor is actually reporting during boot, it narrows that list down to the real cause in one session, which means you're not reballing an IC that was never the problem. For dead phone cases where the board shows no obvious short and no visible damage, the boot log often reveals a communication failure between chipsets that a multimeter simply can't catch.

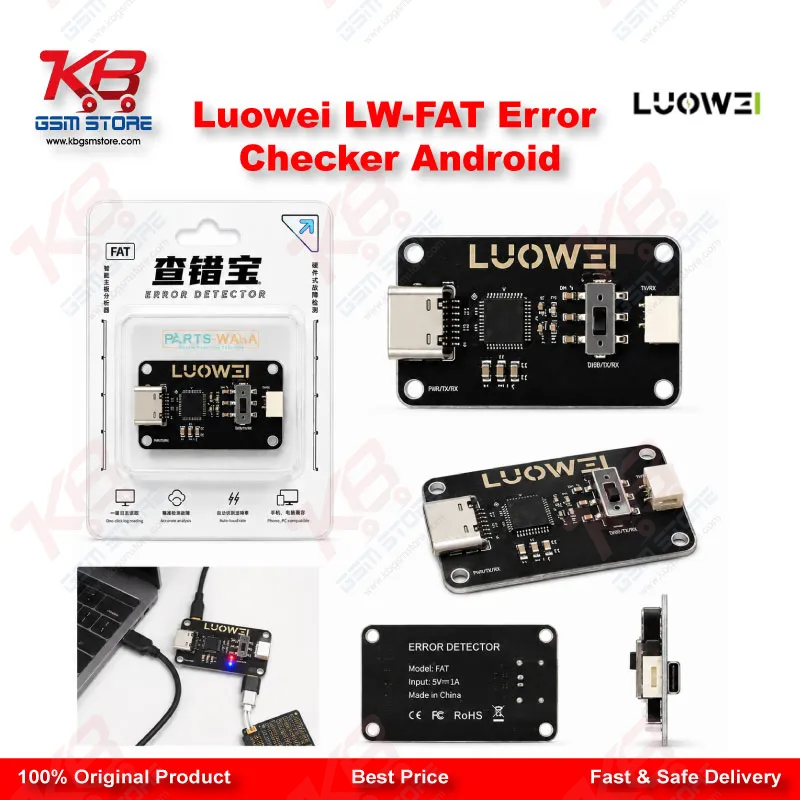

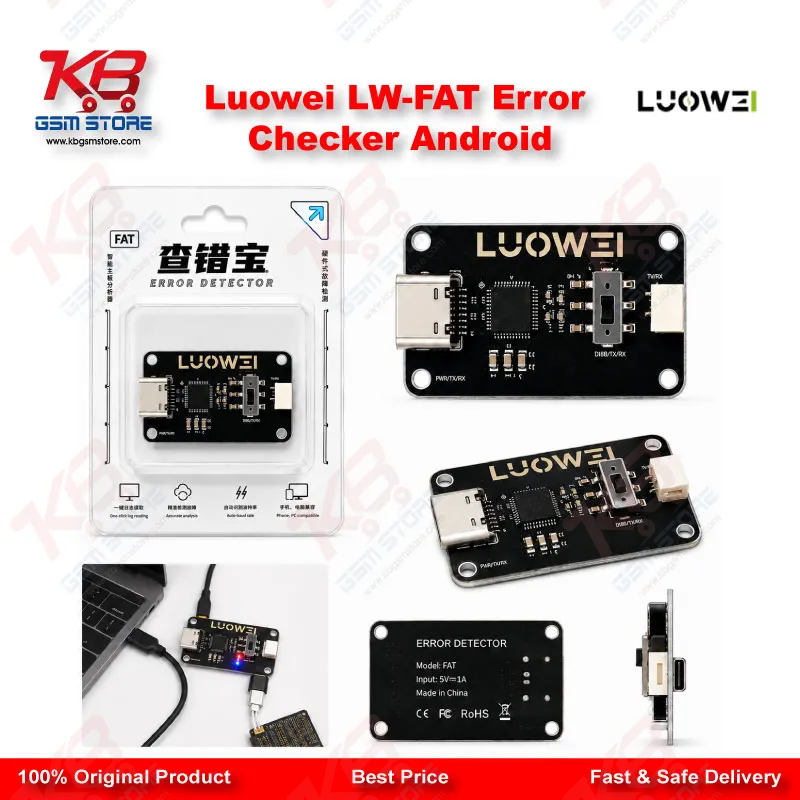

The unit itself is built for daily workshop use rather than a lab bench. At 125mm x 98mm, it sits comfortably next to your soldering station without eating up desk space, and the plastic housing keeps it light enough to move around during multi-board sessions. Internally, Luowei uses surface-mount assembly with industrial-grade capacitors and resistors, which keeps solder joints from cracking under the vibration and heat cycling that comes with constant use in a repair shop — a common failure point on cheaper diagnostic boxes. The Type-C port itself is rated for durability under repeated plug cycles, so it holds a stable connection even after months of daily use.
Access to the cloud diagnostic engine runs on a query-based system. The LW-FAT unit is available on its own for technicians who already hold query credits, or bundled with a 100-query recharge card for shops running it as a primary diagnostic step on every board that comes in dead or unstable. Each query covers one full log analysis and report, so a single card gives a small-to-mid volume shop enough coverage for weeks of intake without needing to interpret logs manually.
Where this tool earns its place on the bench is workflow speed. Instead of running through IC change, jumper lagana, and re-flash cycles hoping something sticks, you get a starting point from the first power-on. That's a meaningful shift for shops charging by the job rather than by the hour, since every disassembly cycle you skip is time back in your day. It also helps less experienced technicians catch faults that would normally need years of pattern recognition to spot by eye, since the AI layer is doing that pattern-matching against a case history no single technician builds up alone.
Setup takes minutes once the TX/GND points are soldered, and there's no driver installation beyond a standard USB-to-serial connection recognized by Windows out of the box. For a repair shop handling steady Android intake — whether that's dead phone diagnostics, boot loop troubleshooting, or pre-repair fault confirmation before ordering parts — the LW-FAT slots into the existing bench workflow as a first diagnostic pass rather than replacing your existing tools.
