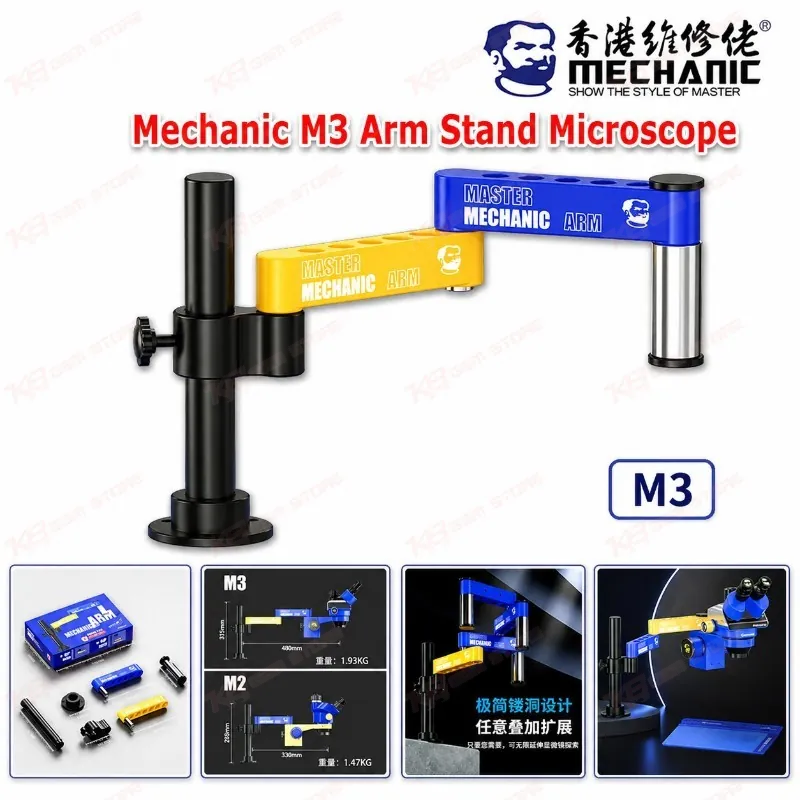

Mechanic M3 Arm Stand Microscope

The Mechanic M3 Arm Stand Microscope solves a problem every board-level technician in Pakistan knows well: a fixed pillar stand locks your microscope in one spot, and the moment you need to move a large motherboard, a tablet logic board, or a hot air nozzle into position, the column gets in your way. This swing arm bracket replaces that rigid pillar with a folding, articulated arm that lifts the microscope head away from the base and lets you sweep it left, right, forward, and back across your repair bench. Mechanic builds the arm from thickened aluminum alloy, so it stays light enough to reposition with one hand while holding the head steady during long sessions. The design works on a simple lever principle: two swing arms pivot on a column, and precision steel cylindrical bearings at the joints let the head glide through a full 360° rotation without jerks or stutter. That smooth motion matters more than it sounds. When you trace a short around the PMIC on a dead phone, or align a jumper wire on a broken track, a sudden jump in head position throws your focus off and costs you time. With the M3, you rotate the arm, settle it, and the image stays where you put it. The bracket gives you a maximum reach of roughly 48 cm and stands about 26 cm high, which leaves enough free space under the optics to work with a hot air station, a soldering station handpiece, and a PCB holder at the same time. The mounting point accepts stereo microscope heads with a standard 32 mm diameter mounting hole, a common fitting among binocular and trinocular repair microscope heads. Check your head's mounting diameter before you order, because a head with a different fitting needs an adapter. The chassis screws to your workbench, and that fixed mounting gives the arm its stability; a loose base can tip when the arm reaches full extension with a heavy trinocular head and camera on top, while a screwed-down chassis keeps the load balanced. The open, hollowed-out frame keeps the arm light and lets you extend the setup by adding arm sections if your bench layout demands more reach. In daily shop use, the M3 earns its place during CPU and IC change jobs. You heat the board under hot air, lift the chip, clean the pads with wick, apply fresh solder paste through a reballing stencil, and place the new IC, all while the microscope sits above you at the exact angle you need, then swings fully out of the way when you pull the board for a power supply test or a check with a multimeter. Technicians who handle charging issue repairs, network issue faults traced to RF ICs, display problem diagnosis on FPC connectors, and hang on logo cases that need eMMC or UFS work all benefit from this freedom. When you open a board for ISP pinout work with an eMMC programmer or a UFS adapter, the arm lets you hover the optics over tiny test points while you solder fine wires, then move the head clear so you can connect your box and start flashing. The aluminum finish resists oxidation and rust, which helps in humid workshops in Karachi and Lahore, and flux residue wipes off easily. The package includes two swing arms, a column, a chassis, a fixing knob, a bearing, three screws, two small screws, and a hex wrench, so you can assemble it on your bench straight out of the box. Keep in mind that this product is the arm stand bracket only; it does not include a microscope head, eyepieces, LED ring light, or camera. If you plan to upgrade from a basic pillar stand, pair the Mechanic M3 with a trinocular stereo head from our Microscopes category, then complete your bench with Hot Air Stations, Soldering Stations, Reballing Kits, and PCB Holders for a full board repair workstation that serves both new technicians and established service centers.
