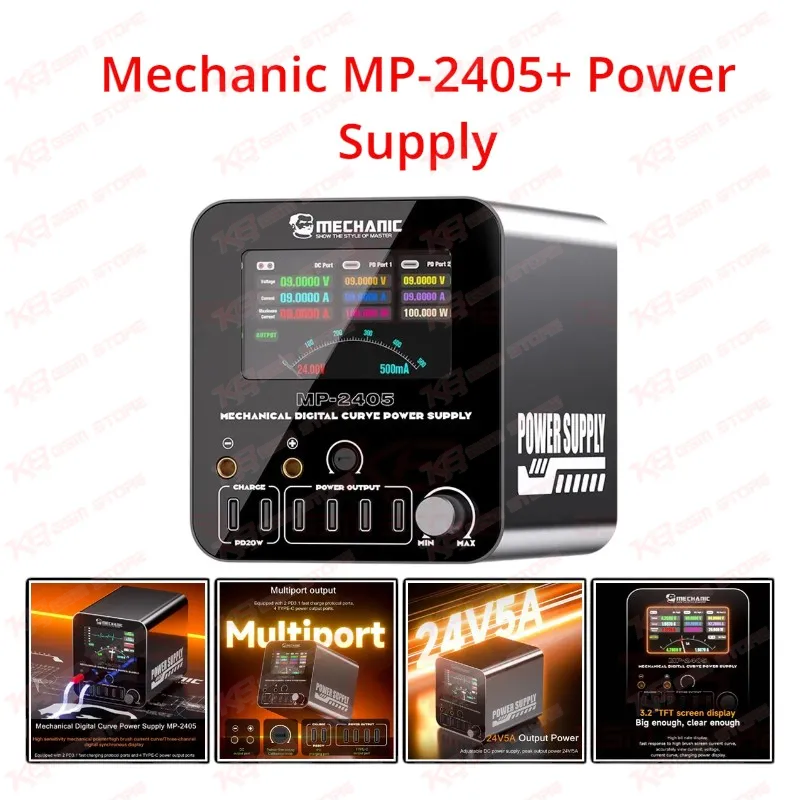

Mechanic MP-2405+ Power Supply

Mechanic MP-2405+ Power Supply

Rs.16,000.00 PKR
Rs.16,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

The Mechanic MP-2405+ is a professional-grade linear DC power supply built for mobile repair technicians and electronics enthusiasts. It combines a high-sensitivity mechanical pointer, a 3.2-inch TFT current curve display, and three-channel digital readouts — all in a compact, thermally managed unit. Whether you're diagnosing short circuits or testing boards, this supply gives you real-time precision where it matters most.

⚖️ Weight: 1.3 kg

MST-POWER-SUPPLY-CHARGER-13

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

Diagnosing a faulty motherboard or charging circuit requires more than just stable voltage — you need visibility into exactly what's happening at every millisecond. That's where the Mechanic MP-2405+ separates itself from ordinary bench supplies.

At its core, this is a three-channel, digitally adjustable linear DC power supply with a peak output of 24V at 5A. But the real story is in the details. The integrated 3.2-inch TFT screen doesn't just show your current and voltage readings — it captures and displays a live 25-second current curve. For repair technicians, this is invaluable: you can visually track power-draw behavior during boot sequences, identify abnormal spikes, and pinpoint faults with far more confidence than a static digital readout allows.

The pointer meter system adds another layer of precision. Unlike purely digital displays that can lag or misrepresent fast transients, the high-sensitivity mechanical pointer responds immediately, automatically toggling between a 500mA and 5A range depending on your load. This combination of analog feedback and digital accuracy is a deliberate design choice — not a compromise.

Connectivity is well thought-out for modern repair work. The unit includes two PD3.1 fast-charge protocol ports and four Type-C output ports, making it compatible with the latest smartphones and tablets without adapters or workarounds.

Thermal management is handled through an intelligent system that monitors internal temperature and activates the fan only when necessary. The all-metal housing draws heat away passively during lighter loads, reducing fan noise and extending component life. Under sustained high-power operation, active cooling kicks in automatically.

Safety-wise, the MP-2405+ includes built-in overcurrent, overvoltage, and short-circuit protection. If something unexpected happens on your load, the supply cuts output before damage occurs — protecting both your device under test and the power supply itself.

For technicians in Pakistan working on mobile phones, tablets, or small electronics, the MP-2405+ offers a professional toolkit in a surprisingly compact footprint.

Key Features

  • 25-second current curve display — visualize real-time power draw changes on a fast-refresh 3.2-inch TFT screen for precise fault diagnosis
  • Dual-range mechanical pointer meter — auto-switches between 500mA and 5A ranges with analog responsiveness and digital accuracy
  • Three-channel synchronous digital display — monitor voltage, current, and power simultaneously without switching screens
  • 6 multi-protocol output ports — includes 2x PD3.1 fast-charge ports and 4x Type-C power outputs for broad device compatibility
  • Intelligent thermal management — all-metal body for passive heat dissipation, with temperature-triggered active fan cooling
  • Triple protection system — overcurrent, overvoltage, and short-circuit protection cuts output instantly under fault conditions
  • Fine voltage adjustment — 10mV step tuning for precise control across the full 0–24V output range
  • Universal AC input — compatible with both 110V and 220V mains, suitable for Pakistan's power grid (220V)

Specifications

Name Mechanic MP-2405+ Digital Curve Power Supply
Brand Mechanic
Model MP-2405+
Input Voltage AC 110V / 220V
Power Fuse 3A (at 220V AC)
Output Voltage Range DC 0–24V (adjustable)
Maximum Output Current 5A
Maximum Instantaneous Current 7A (1 second)
Maximum Output Power 120W
Voltage Adjustment Step 10mV
Current Display Accuracy ±1mA
Display 3.2-inch TFT Screen
Output Ports 2x PD3.1 Fast Charge, 4x Type-C
Body Material All-Metal
Product Dimensions 125 × 98 × 110 mm
Packing Dimensions 90 × 78 × 110 mm
Net Weight 0.9 kg
Package Contents 1x Power Supply, 1x Test Line, 1x Power Cable

FAQ

Q1: Can the MP-2405+ be used for mobile phone repair and board-level diagnostics?
Yes, it's specifically suited for this. The 25-second current curve display lets you track power-draw behavior during boot or charging sequences, which is essential for identifying faults on mobile motherboards and charging circuits.
Q2: Does this power supply work on Pakistan's 220V electricity supply?
It does. The MP-2405+ accepts both AC 110V and AC 220V input, so it works directly on Pakistan's standard 220V grid without any voltage converter.
Q3: What's the difference between the mechanical pointer and the TFT screen readings?
The mechanical pointer gives you real-time analog feedback — it reacts instantly to transient current changes, which digital displays can sometimes miss or delay. It auto-switches between 500mA and 5A ranges. The TFT screen complements this by showing precise numerical values and a scrolling current history curve over 25 seconds.
Q4: How does the overload protection work, and will it damage my device if triggered?
The built-in protection system monitors for overcurrent, overvoltage, and short-circuit conditions continuously. If any threshold is exceeded, the output is cut off automatically within milliseconds. This protects both your device under test and the power supply itself — no damage to either side under normal fault scenarios.
Q5: Is the cooling fan always running, or does it activate only when needed?
The fan operates on intelligent temperature control. During low to moderate loads, the all-metal casing handles heat dissipation passively and the fan stays off. It only activates when internal temperature rises beyond a set threshold — typically during sustained high-power operation — keeping noise minimal under normal use.
Q6: What devices are compatible with the Type-C and PD3.1 output ports?
The four Type-C ports provide standard DC power output for a wide range of devices. The two PD3.1 ports support the latest fast-charge protocols, making them compatible with modern smartphones, tablets, and other USB-C fast-charge enabled devices without needing additional adapters.
