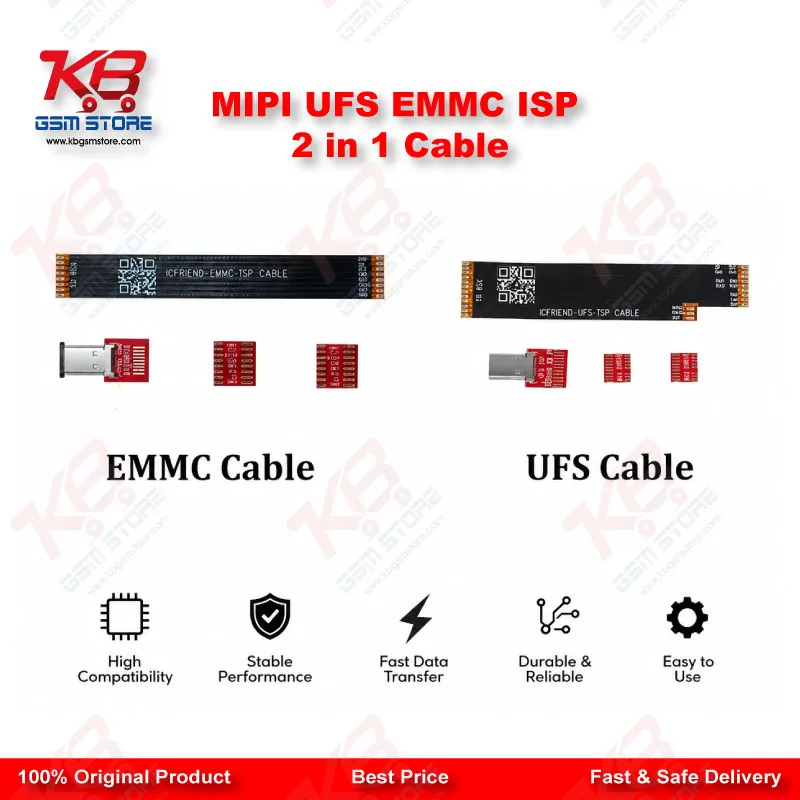

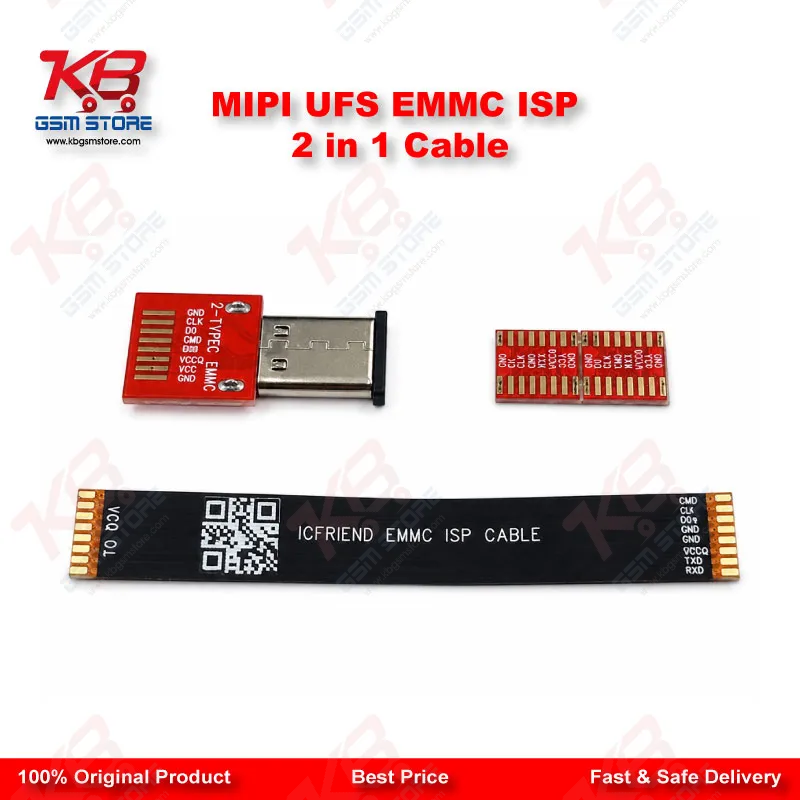

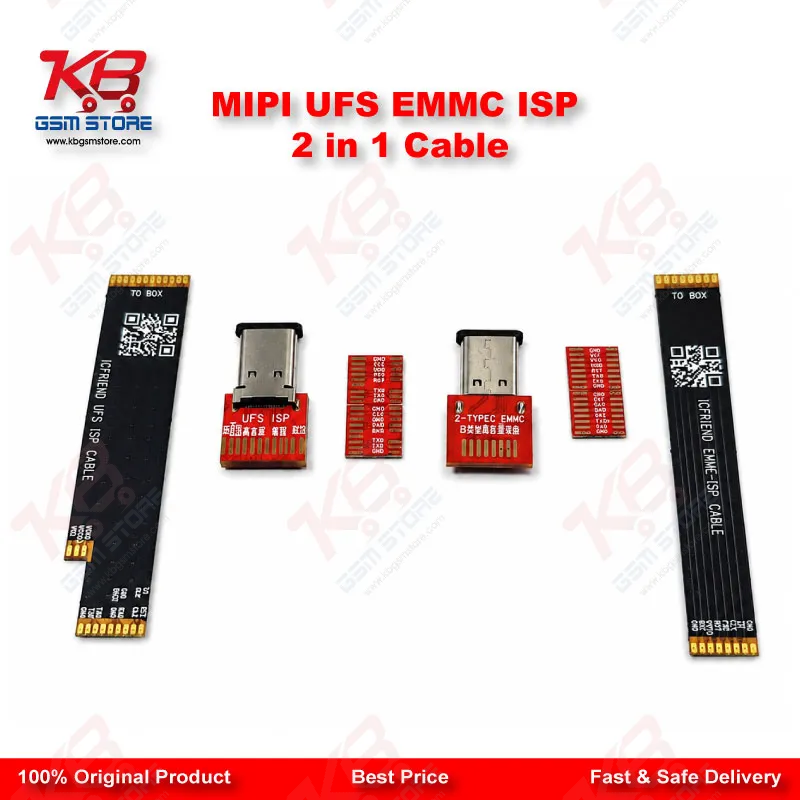

MiPi EMMC UFS ISP Cable – 2-in-1 ISP Interface Cable for MiPiTester Devices

Every GSM bench eventually hits a board where desoldering the memory chip is the last thing you want to do. The MiPi EMMC UFS ISP Cable exists for exactly that situation. You clip onto the ISP test points on the board — no BGA removal, no reballing, no risk to the pads — and your MiPiTester box talks to the eMMC or UFS chip directly through the ISP interface.
The cable pairs with the full MiPiTester lineup: Mini, Gear 2, Gear 2.5, MiPi Pro, MiPi Plus Box, and the Easy JTAG UFS 3-in-1, 4-in-1, and 6-in-1 kits. That range matters on a Pakistani repair bench where you're rarely running just one box — the same cable moves between your ISP setups instead of sitting idle.
Power-up discipline is where most technicians lose time on ISP jobs, so it's worth setting expectations here. Use a regulated power supply rather than a USB line whenever possible. Press and hold the power button on your MiPiTester box; a current draw of 100–200mA tells you the UFS chip powered up correctly. If you're running off USB with a battery device manager, the board needs a working CPU port present, or the UFS simply won't come online — this is the single most common reason a "dead phone" won't respond during ISP.
Chip generation changes the wiring approach. For UFS 2.0, 2.1, and 2.2, you're working with VCC at 3.3V and VCCQ2 at 1.8V. For UFS 3.0, 3.1, and 4.0, the TX, RX, CLK, RST, and GND lines all run through flywire connections — there's no seat option here, and you're limited to the host power supply rather than USB or an external supply. Keep the GND-TX-RX run under 15mm, and route the GND junction as close as possible to TX and RX so both signal lines stay equal length. Some chipsets also need the RST line wired in separately, so check the target board before you commit to a connection.
This is the cable a technician reaches for on hardware fault cases that software alone can't touch: a dead-after-flash board where the CPU still boots but the software box can't see the memory, a board hanging on logo with corrupted eMMC partitions, or a UFS chip that needs a direct read before you attempt any jumper lagana or board-level rework. Because ISP wiring works at the chipset and board level rather than through the phone's USB port, it doesn't matter whether the display is broken, the charging port is dead, or the board's been pulled from the housing entirely — if the ISP points are accessible, you have a path to the data.
For service centers running Qualcomm, MediaTek, Samsung Exynos, or Unisoc-based repairs side by side, having a dependable ISP cable on the bench cuts down the guesswork when a board arrives with no clear software-side diagnosis. Pair it with your existing NAND/eMMC/UFS adapters and BGA sockets, and you've got a workflow that moves from board-level diagnosis to direct chip access without extra tools.
