Every GSM workshop eventually runs into a phone that won't boot, won't take a flash, or shows dead after a failed update. The MiPi Tester EASYJTAG eMMC UFS ISP Adapter gives you a direct route into that board through the ISP test points, so you read and write the storage chip without desoldering it. That single ability saves you from board-level rework on jobs where the chip itself is fine and the data or firmware is the actual problem.

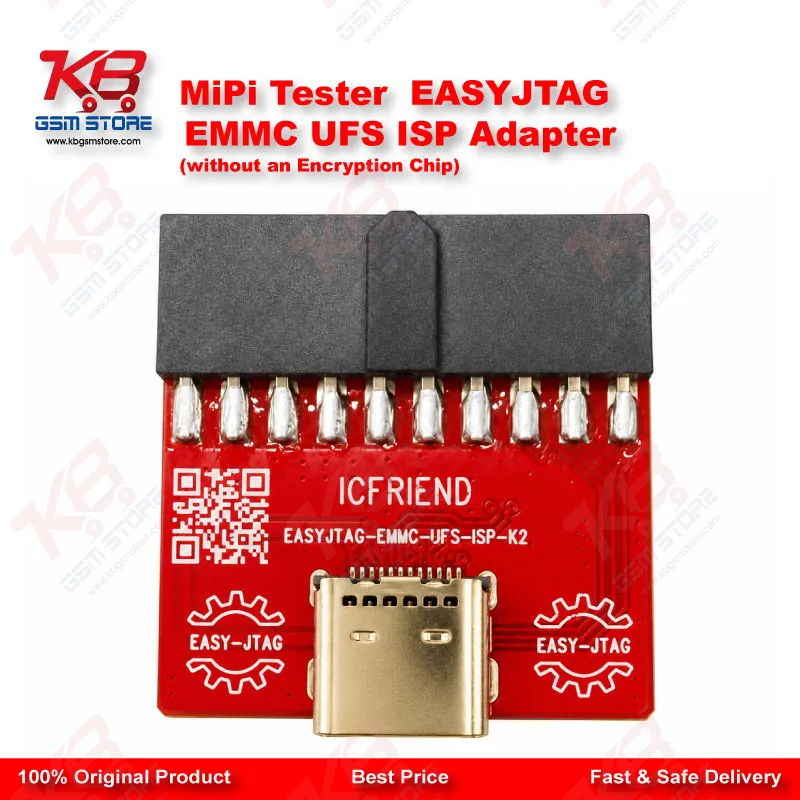

At the core of the adapter is a special FPC tape fitted with USB-C sockets. Ribbon-style ISP cables wear out fast on a busy bench, and loose pogo pins cause failed reads halfway through a job. The USB-C socket design locks the connection in place, so your read and write operations complete without the constant reconnect-and-retry cycle that eats up repair time. When you're pulling data off a water-damaged board or writing a full firmware dump back onto a dead phone, that kind of stable connection is what separates a clean job from a wasted afternoon.
This adapter is built for Easy UFS 3-in-1, 4-in-1, and 6-in-1 kits, and it also works with Z3X Easy Jtag Plus setups. Because this is the version without an encryption chip, it plugs into Easy UFS kits immediately. If your workflow runs through Z3X Easy Jtag Plus, keep in mind you'll need to source the encryption IC separately — it isn't bundled with this adapter. Technicians already running an encryption chip from an existing Z3X setup can carry it over here without buying a new box.
In real workshop use, this adapter earns its place on jobs where a phone is hang on logo, stuck in a boot loop, or completely dead after a botched software update. Instead of guessing at a software fix that won't take, you go straight to the ISP points, pull a full backup of the eMMC or UFS storage, and either repair the partition table or write a known-good firmware image back. It's also the tool of choice before attempting an IC change or any board-level rework, since you can secure the user's data first and confirm exactly what state the storage chip is in before you touch a soldering iron.
FRP lock and pattern unlock jobs benefit the same way. Rather than relying on software bypass methods that don't always work on newer security patches, you connect through ISP, work on the storage directly, and clear the lock at the file system level. For phones that show a charging issue or hardware fault alongside software failure, the ISP route lets you separate the two problems — you confirm whether the storage is actually damaged before spending time on hardware diagnosis.

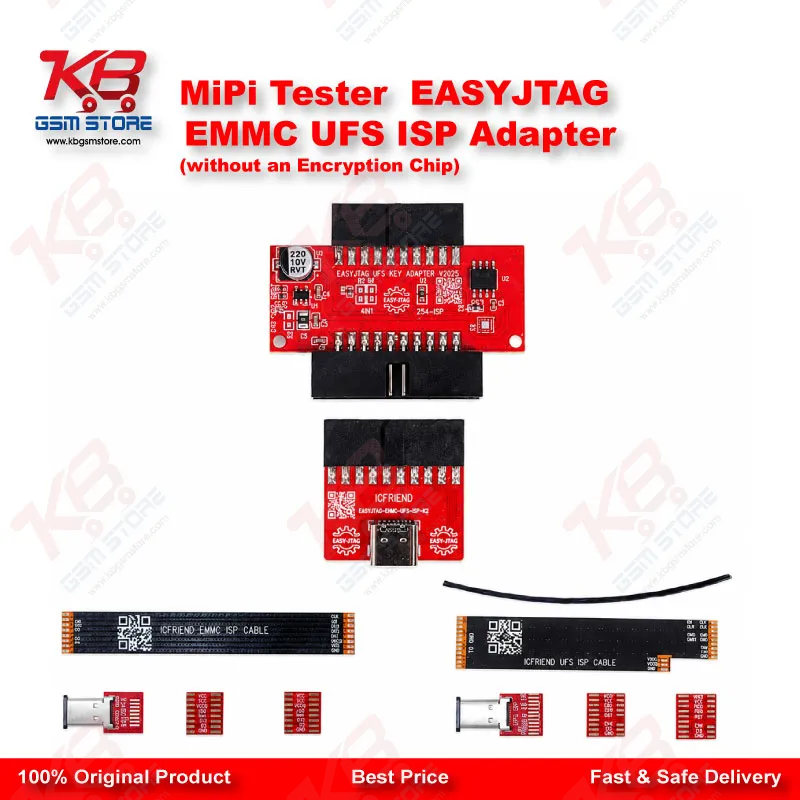

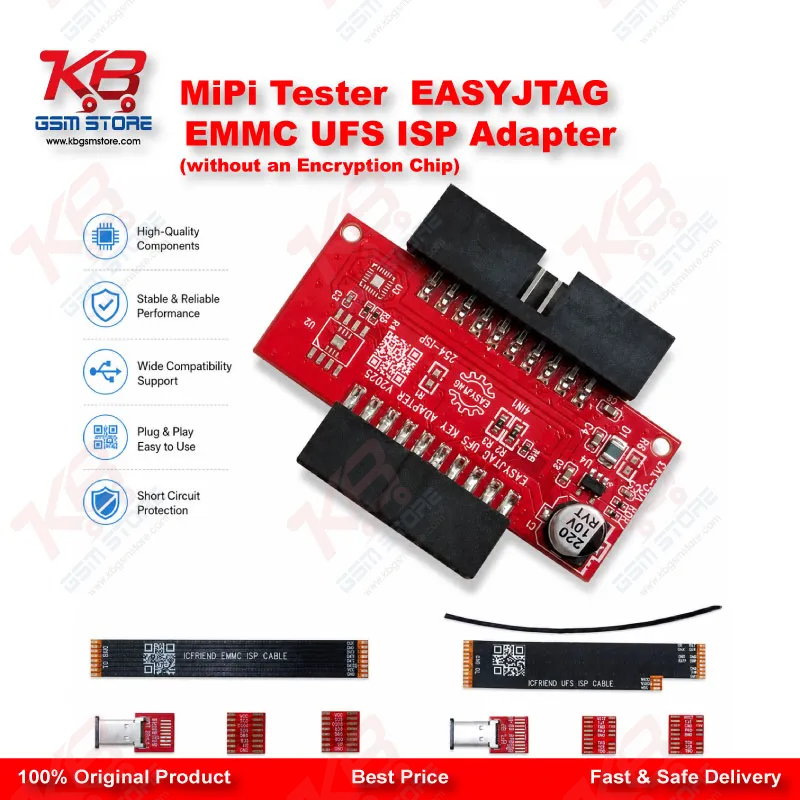

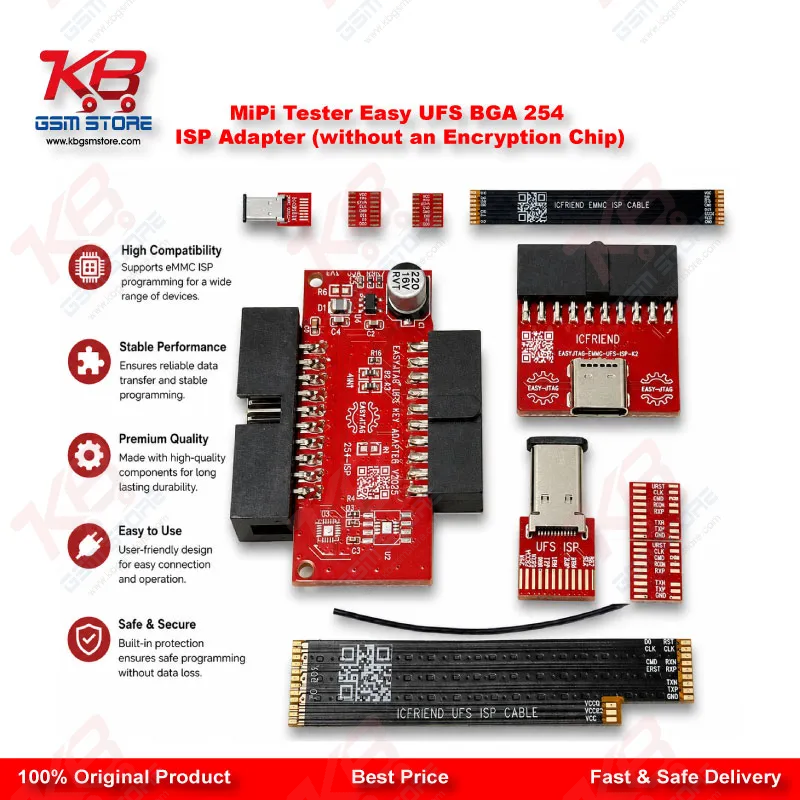

The package includes the MiPi Easy JTAG UFS Adapter EJ2025 (without encryption chip), the MiPi Easy EMMC ISP K2, the MiPi EMMC UFS ISP Cable, and two ISP PCB connectors — everything you need to start ISP work on your existing Easy UFS setup without extra sourcing. This is bench-tool territory: pair it with your test points documentation and a steady hand, and it becomes one of the fastest ways to recover a phone that looked unrecoverable ten minutes earlier.
