MiPi Tester eMMC/UFS ISP Adapter for Gear 2 – ISP Pinout Repair Tool

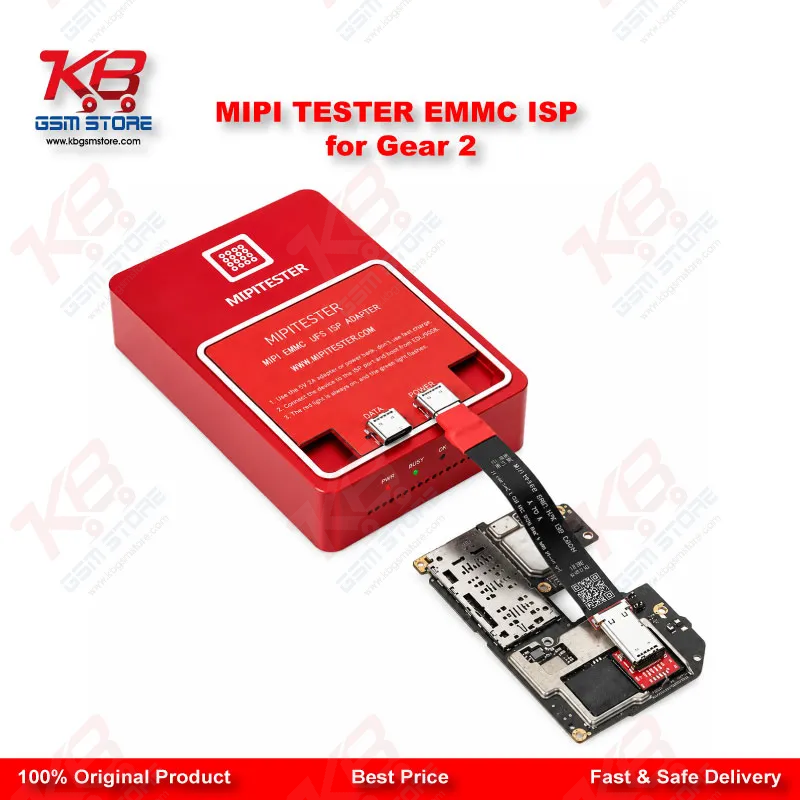

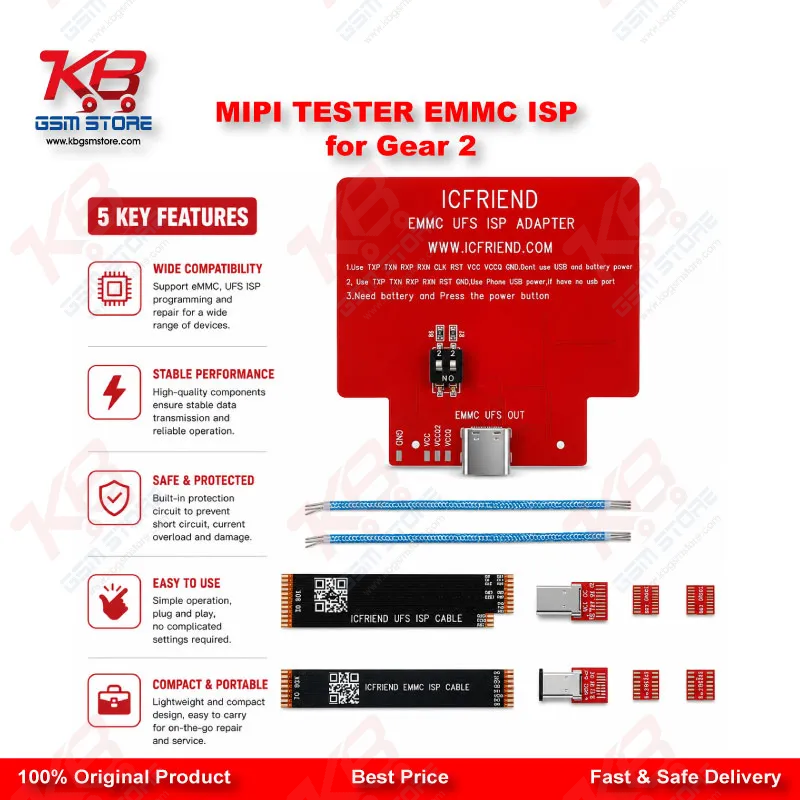

When a phone lands on your bench dead after flash or stuck on a boot loop, you don't always have time to remove the eMMC or UFS chip. The MiPi Tester eMMC/UFS ISP Adapter gives you a faster path — you connect straight to the ISP pinout on the board and talk to the chip while it stays soldered in place. Built specifically for the MiPi Tester Gear 2 and MiPi Tester Mini, this adapter turns your box into an ISP-capable programmer for both eMMC and UFS memory.
You'll use this adapter most on dead phones, hang-on-logo cases, FRP-locked devices, and boards that won't respond after a bad flash. Instead of reballing or removing the chip, you hook onto the TX, RX, CLK, RST, and GND test points directly on the PCB. That keeps your repair non-destructive and saves you the risk of pad damage during chip removal — a real concern when you're working on tightly packed boards from Samsung, Oppo, Vivo, or any other eMMC/UFS-based device.
The adapter covers the full UFS protocol range your workshop is likely to see: UFS 2.0, 2.1, and 2.2 chips run on VCC 3.3V and VCCQ2 1.8V, while UFS 3.0, 3.1, and 4.0 chips route TX, RX, CLK, RST, and GND through flywire connections instead of a socket. For these newer chips, you power the board only through the host — skip the USB and external power supply combination, since it won't bring the UFS chip online reliably. A regulated power supply without USB is the setup MiPi recommends: press and hold the power button, and you should see the current settle around 100–200mA once the UFS chip powers up successfully.
Wiring discipline matters here. Keep your GND, TX, and RX flywires under 15mm, and route the GND junction as close as possible to TX and RX so the signal paths stay equal in length. Some chipsets also need the RST line wired separately to complete the handshake — skipping it is a common reason technicians get a "no response" instead of a successful chip connection. Get these details right and you'll cut down on failed reads that waste time and frustrate customers waiting on data recovery jobs.
Software marna, IC ka data check karna, ya dead board ko wapis zinda karna — is adapter se aap yeh sab ISP se hi kar sakte hain, bina chip nikale. For a workshop doing FRP lock removal, pattern unlock, or data backup before a board-level repair, this adapter turns into one of the most-used tools on the bench. It also works well for technicians handling charging issue or network issue diagnostics where the root cause traces back to corrupted eMMC/UFS partitions rather than hardware fault.
Because it connects through ISP rather than a device-specific socket, you're not locked into supporting only a handful of phone models. Any board with an accessible eMMC or UFS ISP pinout is fair game, which makes this adapter genuinely universal across brands rather than tied to one manufacturer's connector layout. That flexibility is exactly why Gear 2 and MiPi Tester Mini owners keep this adapter in their toolkit rather than reaching for chip-specific programmers first.
Pair it with a stable regulated power source, keep your flywire connections short and clean, and this adapter becomes your go-to for dead phone recovery, boot repair, and eMMC/UFS diagnostics without ever touching a hot air station.
