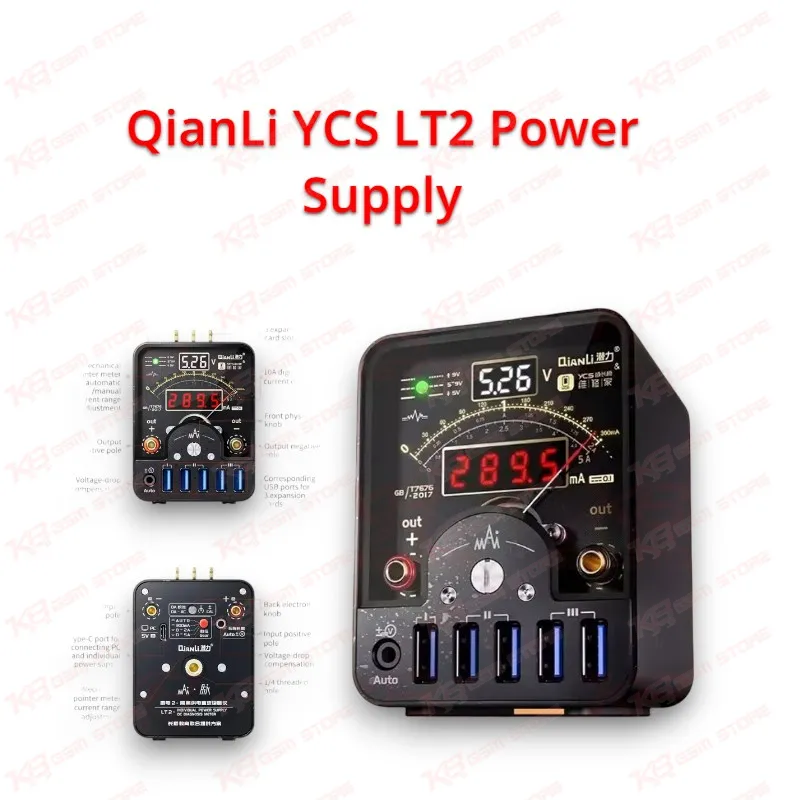

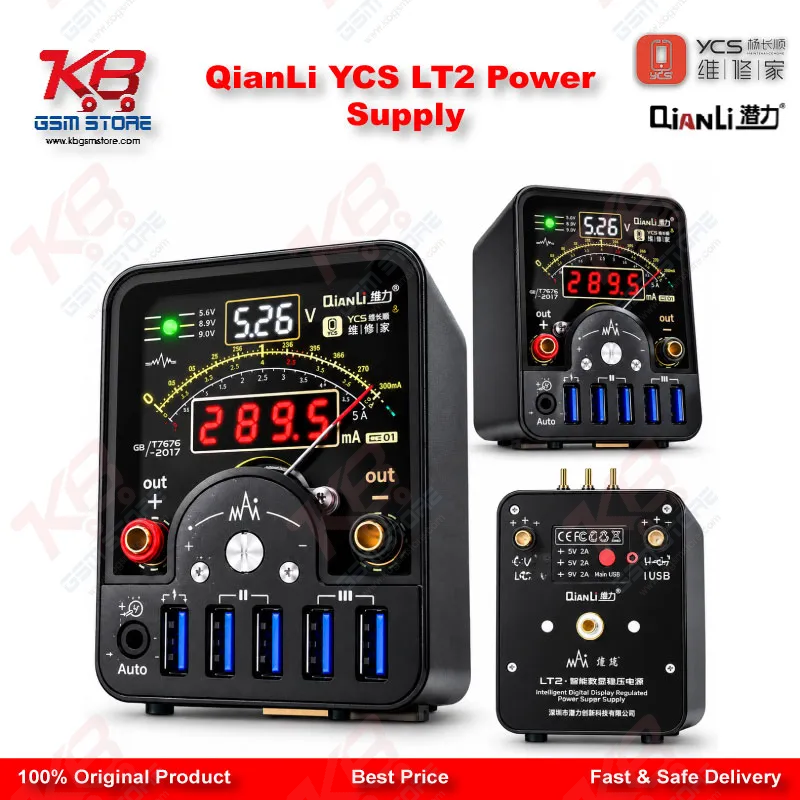

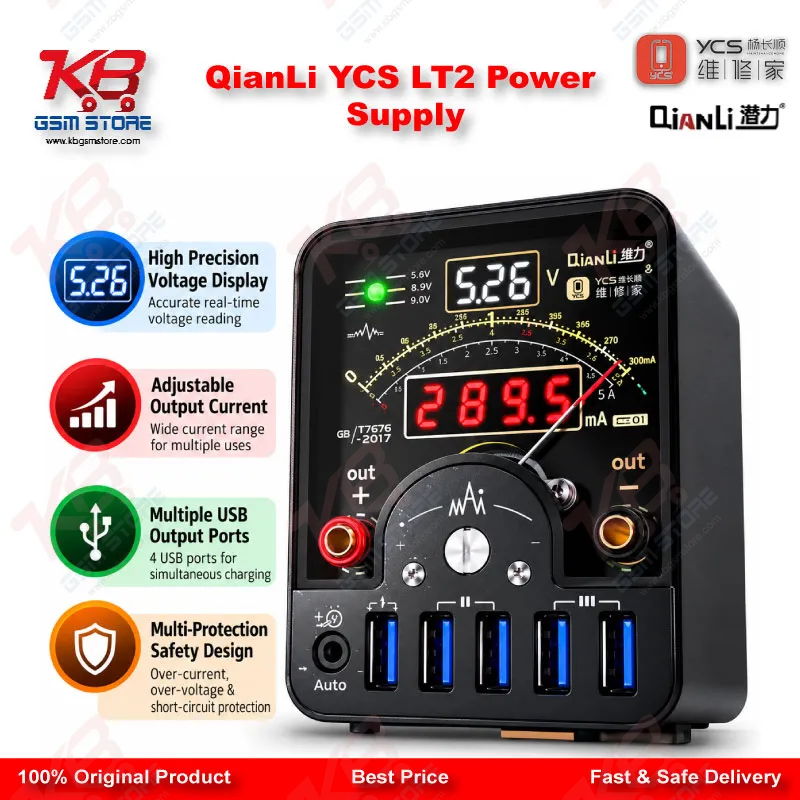

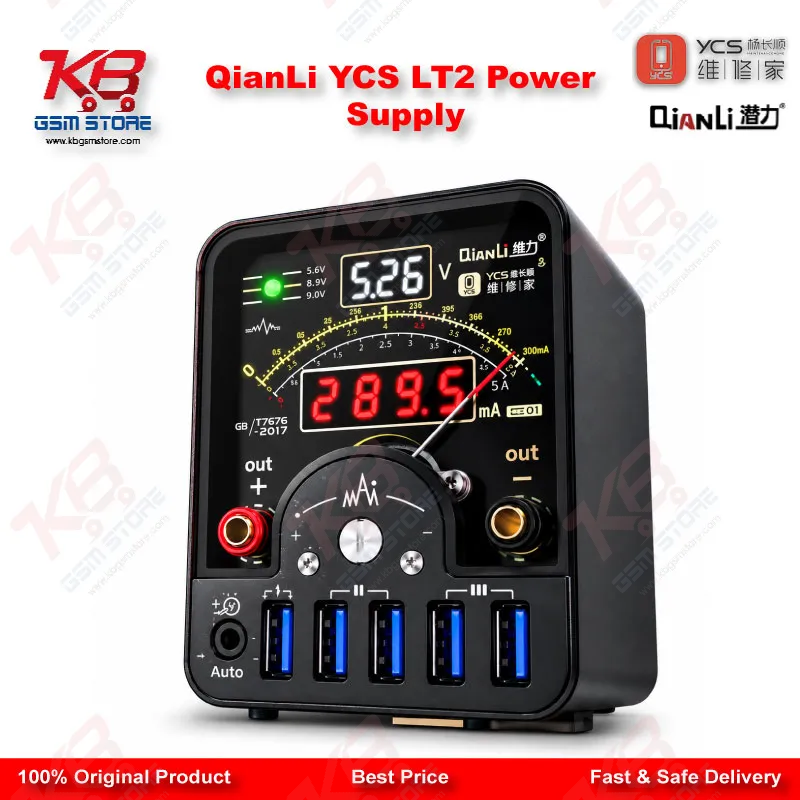

When a dead phone lands on your repair bench, the current reading gives you the first real answer, and the QianLi YCS LT2 Power Supply diagnosis setup shows that reading in two ways at once: a digital display covering 0 to 30V and 0 to 10A, and a mechanical pointer meter that tracks current across 300mA, 2A and 5A ranges. The LT2, which QianLi also calls Thunder 2, sits between your regulated DC power supply and the phone board, so you keep your existing bench supply and get a far more readable view of what the board draws the moment you press the power key. The pointer needle matters more than many new technicians expect, because a needle shows the swing and rhythm of current draw in a way a jumping digit never can, and experienced hands read a boot sequence from that swing almost like a heartbeat. You switch the pointer range manually or let the LT2 choose it automatically, so a phone that pulls a few milliamps in standby and then jumps past an amp during boot stays readable without you touching a knob mid-test. QianLi upgraded the permanent magnet inside the analog movement, and that change keeps the needle steady against knocks and temperature swings in a busy shop, which counts for a lot when your workshop runs hot through a Lahore or Karachi summer. The LT2 takes its own power through a USB Type-C cable, so its measuring circuit never draws from the line feeding the board under test, and the reading you see reflects the phone alone. A pre-reserved 3.5mm interface handles voltage drop compensation, which keeps the reading stable when long test leads would otherwise eat into the voltage reaching the board. Three green indicator states tell you the output voltage band at a glance: a steady light below 5V, a slow flash between 5V and 9V, and a fast flash above 9V, so you catch a wrong voltage setting before it reaches a sensitive board. The YCS curve ammeter adds something a pointer cannot give you: a live screen that draws the current and voltage curve as it changes, with a voltage measurement range of 0 to 36V. You connect it in one of two orders, either power supply to LT2 to curve ammeter, or power supply to curve ammeter to LT2, and you must respect polarity on every connection, because reversed leads can damage the meter. The curve ammeter carries a two-channel output, a DC 5V power input and a reset button on the back, with a single-channel output, a voltage testing interface and a toggle switch on the front, so routing power to a second board or checking a rail takes seconds. In daily work, this pairing turns guesswork into a pattern you can read. A board that shoots straight to high current with no swing points you toward a shorted line, and you move to the thermal camera, rosin or freeze spray to find the hot component. A board that rises, stalls and drops back to zero in a loop usually means a boot loop issue or a phone stuck at hang on logo, and the curve shows you exactly where the sequence breaks. That helps you choose between a software flash and a hardware fault before you even connect the box. A phone that shows no current at all on power key press sends you straight to the power key line, the battery connector or the PMIC side. On charging issue jobs, the steady reading tells you whether the board accepts current at the expected level, and on network issue or display problem cases, a sudden current jump as a section powers up helps you isolate the faulty block. Three expansion card slots on the LT2 correspond to its USB ports and activate automatically once you connect a card. The unit also works with optional QianLi cable sets for iPhone 6 to XS Max, iPhone 11 to 14 Pro Max, Huawei Mate 30 Pro, Mate 20 Pro and P30 Pro, and Huawei Nova 6 SE, plus an 8-in-1 USB cable with iPhone or Huawei battery buckles and a DIY board for custom setups. The compact body fits a crowded bench, and a 1/4-inch screw hole lets you mount it on the desk, on a wall or on a stand at eye level beside your microscope. The LT2 carries CE and FCC certification. In your bench layout, the QianLi YCS LT2 Power Supply diagnosis setup belongs in the diagnostics stage that comes before soldering and rework, so it pairs naturally with a regulated bench supply, a digital multimeter for rail checks, a trinocular microscope, and a hot air station for the component swap that follows the diagnosis. For shops that already own a basic power supply, it is the most practical upgrade toward faster fault-finding, and shop owners searching for the QianLi LT2 price in Pakistan can get the setup from KB GSM Store for technicians in Lahore, Karachi, Islamabad and across the country.
