RELIFE LS5 Constant Temperature Heating and Pressure Tool for Back Cover and Middle Frame Restoration

Back cover cracks and loose middle frames are one of the most common complaints technicians see on the repair bench in Lahore, Karachi, and Islamabad workshops. When a customer brings in a phone with a broken glass back or a frame that has come apart from moisture damage, you need a machine that heats evenly, holds pressure steadily, and does not damage the camera module or internal flex cables in the process. The RELIFE LS5 Constant Temperature Heating and Pressure Tool is built exactly for this job.

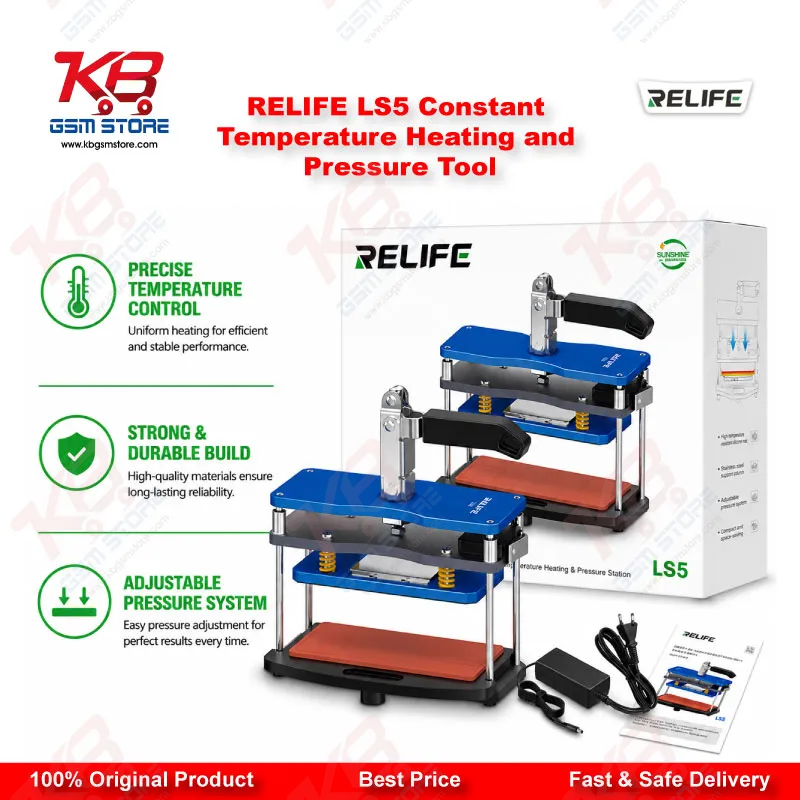

At the core of the LS5 is its constant temperature heating plate, which applies steady, controlled heat to the back cover or middle frame assembly. Unlike a hot air gun where temperature fluctuates and technicians have to guess distance and airflow, the LS5 gives you a fixed heating surface that softens factory adhesive uniformly across the whole panel. This matters when you are trying to open a sealed back cover without cracking the glass or warping the frame — uneven heat is usually what causes those cracks in the first place.

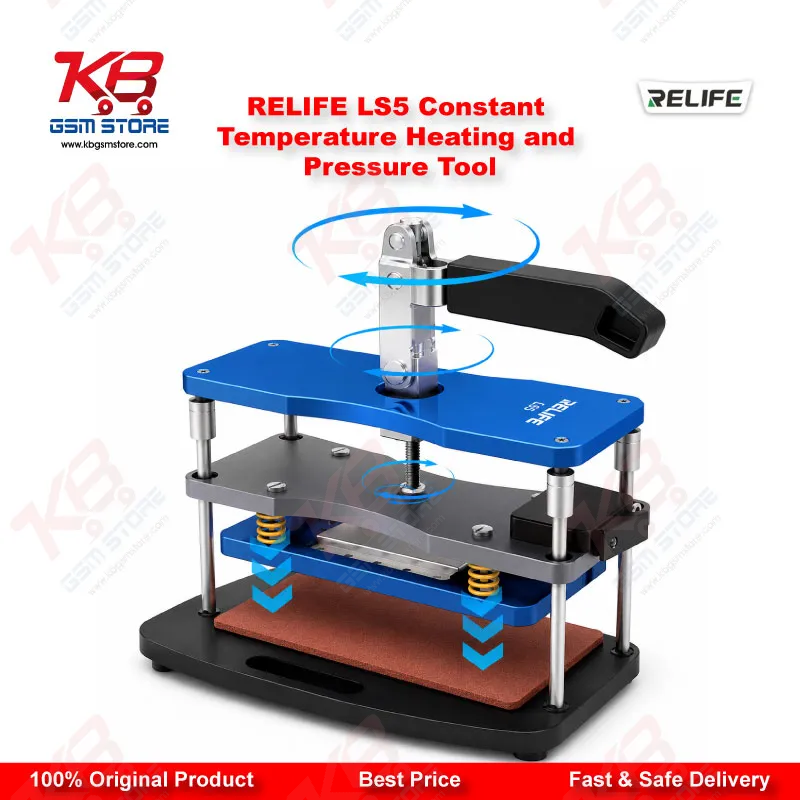

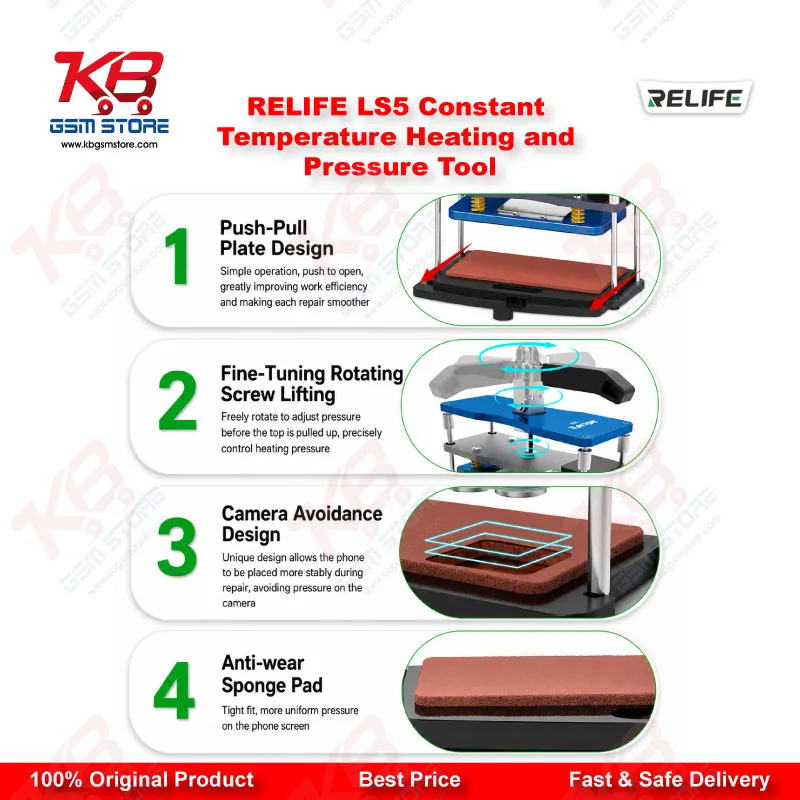

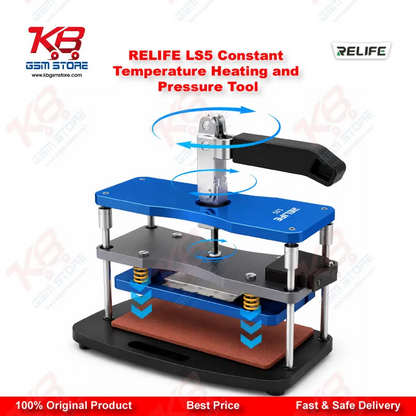

Once the panel is heated, the tool's pressure system takes over. The fine-tuning rotating screw lets you dial in exact pressure before the top plate comes down, so you are not clamping blind. You rotate the screw to set your pressure level, then use the push-pull plate to bring the top down onto the device. This two-step control — heat first, then calibrated pressure — is what gives you OEM-level airtightness back on waterproof phones after a back cover replacement or middle frame reseal. For technicians doing IP68 rated repairs, that airtight seal is often the difference between a job that passes a water resistance test and one that comes back with moisture damage a week later.
The camera avoidance design is a small detail that saves a lot of frustration on the bench. Many pressure jigs press flat across the entire back of the phone, which puts direct load on the rear camera module and can crack the lens glass or shift the camera bracket out of alignment. The LS5's cutout design keeps pressure off the camera housing entirely, so you can safely clamp the whole back assembly without worrying about a camera issue showing up after the repair — something that would otherwise turn a simple back glass job into a camera replacement as well.

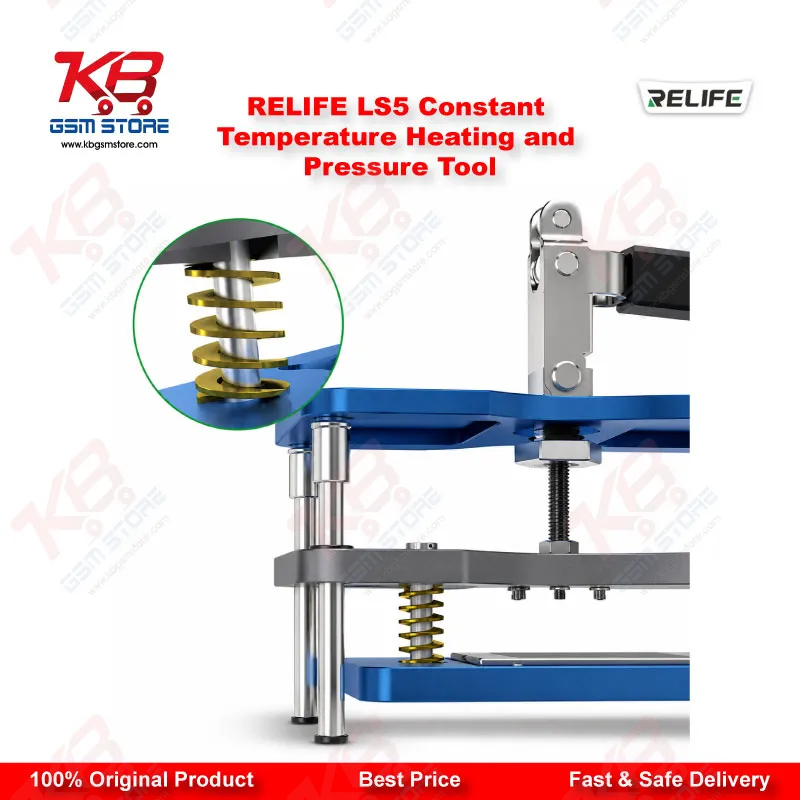

Build quality on this station comes from its metal fixed spring system, made from high-hardness steel. This spring assembly is what keeps the device stable and properly seated during the entire heating and pressure cycle, so the panel does not shift mid-repair. In a busy workshop where you are running multiple hot pressing jobs back to back, that stability keeps your results consistent from one device to the next, rather than depending on how carefully you held something in place by hand.
Operating the LS5 is straightforward for technicians who are used to soldering stations and hot air rework equipment already. You connect the power, switch on the heat function, and let the plate reach temperature. Place the device on the platform, use the camera avoidance cutout to position it correctly, then adjust the fine-tuning screw to your target pressure. Press down the pressing handle and move it up or down until you reach the correct pressure height, then hold for the required time. Once the hold cycle is complete, lift the pressing handle, pull out the pressing plate, and switch off the power. The whole process is push-pull based, so there is no threading screws in and out by hand for every job — you save real time on high-volume back cover and frame work.
The LS5 runs on 110V-240V input, which covers Pakistan's standard 220V mains supply directly without needing a voltage converter on your bench. That is a practical advantage for shops that already deal with enough equipment compatibility headaches when importing repair machines. Whether your workshop is doing iPhone back glass replacement, Android middle frame reinforcement, or general bracket hot pressing for CPU de-glue and chip removal work, the LS5 slots into that motherboard layered heating and pressure workflow alongside your existing soldering station and hot air rework setup.
For shops handling water damage cases regularly — a very common issue with phones coming in after monsoon season — this station earns its place fast. A dead phone repair often traces back to a compromised seal, and reinstalling the back cover or frame without proper heat and pressure control just sets the same customer up for another water damage visit. The LS5 gives you the controlled process needed to actually restore that seal properly, rather than pressing a cover back on by hand and hoping it holds.
If your workshop already runs ISP tools, UFS adapters, or eMMC programmers for board-level work, the LS5 fits naturally into the mechanical side of your repair bench — the physical reassembly stage that comes after the software and IC-level work is done. Pairing it with your existing PCB holders, microscopes, and soldering stations rounds out a workshop that can handle both hardware fault diagnosis and clean, professional-grade reassembly.
