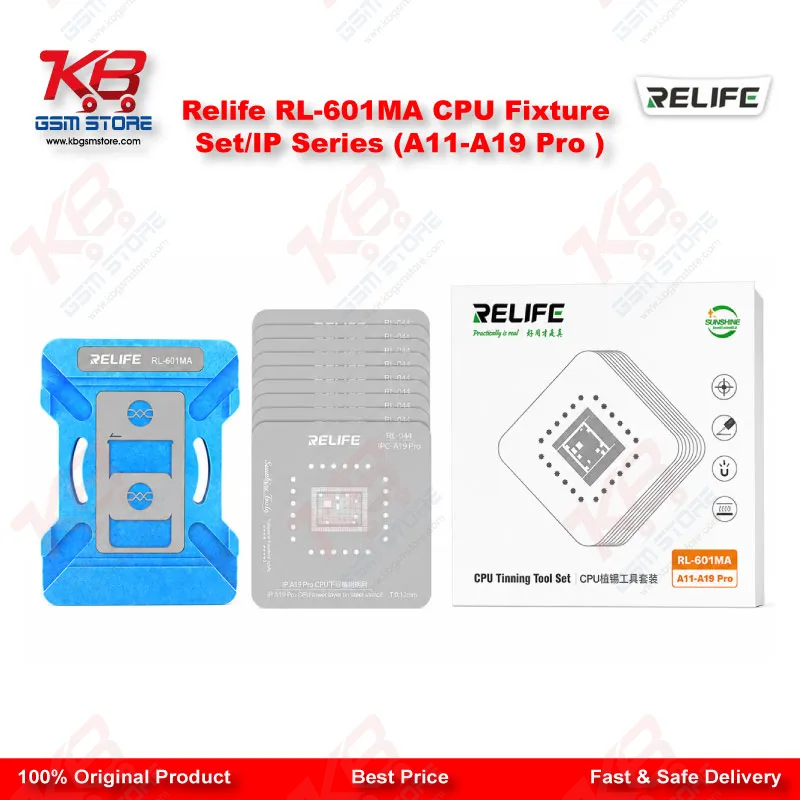

A CPU that fails after a drop, a phone stuck in boot loop, or a board that goes dead after flash all lead back to the same bench task: pulling the chip and reballing it cleanly. The RELIFE RL-601MA gives you a dedicated magnetic fixture to do that job across almost every recent Apple chipset, from A11 up to A19 Pro, without switching platforms every time a different iPhone model lands on your desk.

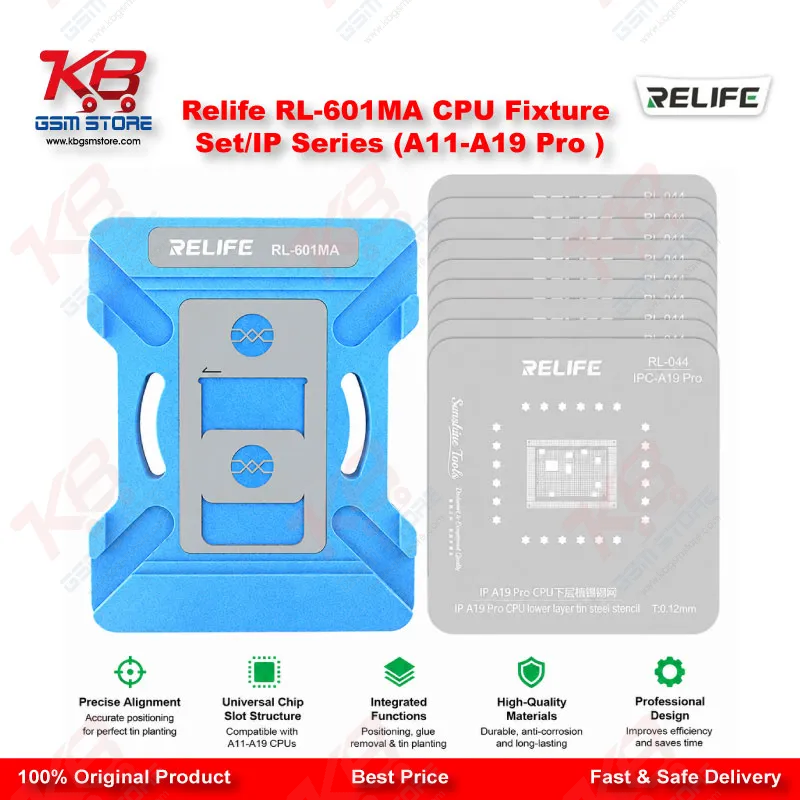

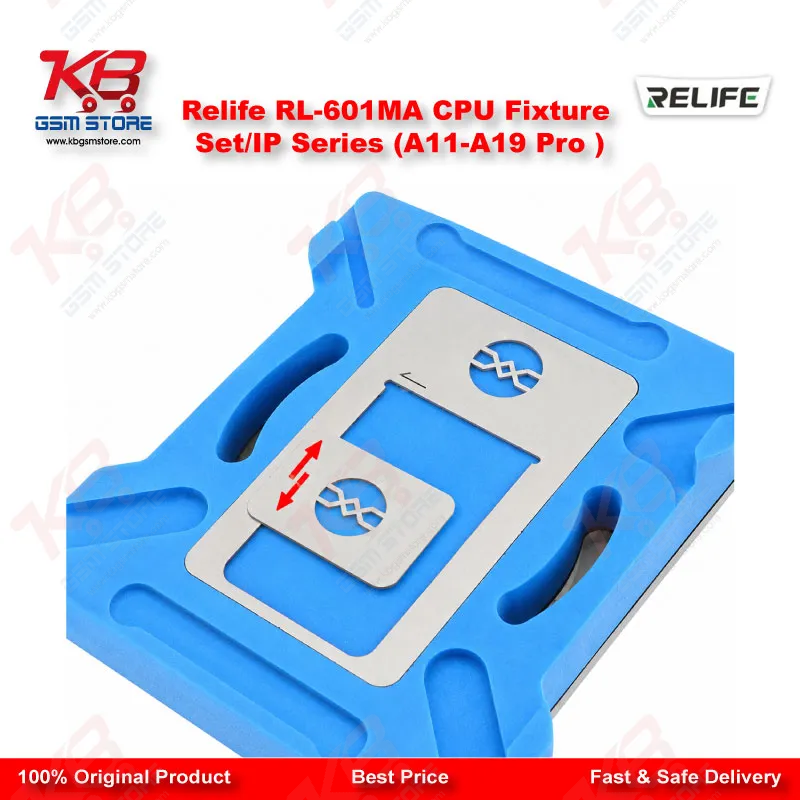

The fixture works on a magnetic clamping principle instead of screw-down clamps. You place the chip in the slot, the built-in high-temperature magnet pulls it into position automatically, and the stencil sits flush over it. This matters on smaller CPU packages where manual alignment by eye leads to shifted solder balls and failed reflow. The magnet holds its strength even under repeated heat cycles from your hot air station, so you don't lose clamping force after a few reballing runs.

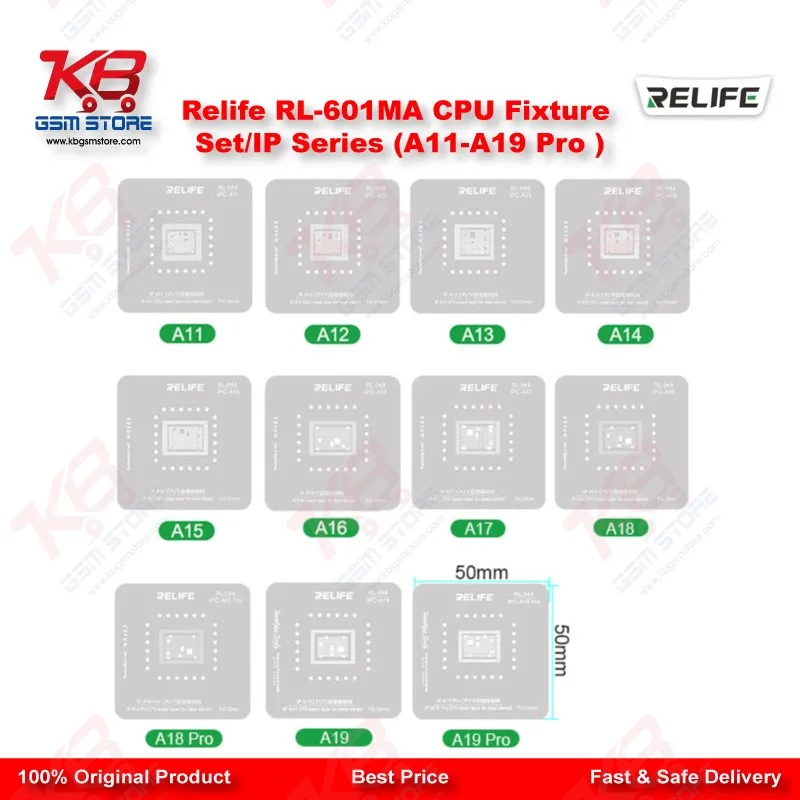

Each of the 11 steel mesh stencils included in the set is cut with round and square precision hole positions. That combination keeps solder balls rounded and evenly sized instead of flattened or uneven, and it stops the mesh from jamming mid-application, which is one of the more common reasons technicians end up with bridged or missing balls on a fresh reball. For a repair shop running multiple CPU jobs a day, that consistency directly cuts down on rework and repeat visits.
The platform base itself is made from a high-temperature resistant synthetic stone, chosen because it holds up to direct heat exposure from hot air rework and soldering irons without warping or degrading over time. It's also easy to wipe clean of flux residue and solder flux between jobs, which matters if your bench handles high volume. Non-slip rubber feet keep the whole fixture in place while you're working under a microscope or applying pressure during positioning, so it doesn't slide mid-job.
Coverage runs from Apple A11 through A19 Pro, which lines up with iPhone 8 through the iPhone 17 series including 17, 17 Air, 17 Pro, and 17 Pro Max boards. For a Pakistani GSM repair shop handling a mixed queue of older and newer iPhones, that range means you're not maintaining two or three separate fixture sets on the same bench. Whether the job in front of you is a dead phone after a failed software update, a CPU short from liquid damage, or a straightforward IC change karna task on an older A11 board, the same fixture handles it.
Setup on the bench is simple: seat the fixture on your work mat, place the target chip, let the magnetic slot pull it square, drop in the correct stencil from the 11 included, and proceed with your tin planting as usual. No separate calibration step, no adapter swap between chip generations within the supported range. That's a meaningful time saving during a busy shift, particularly when jobs are stacked back to back and you're moving between different phone brands and models across the day.
For technicians who train juniors on CPU-level repair, this kind of fixture also reduces the learning curve. Manual clamping requires a steady hand and experience to get consistent alignment; a magnetic auto-align system reduces the room for error, which means less scrapped boards during the training period. That's a practical consideration for repair shop owners bringing new staff onto CPU-level work.
The RL-601MA fits into a standard reballing and rework workflow: hot air removal of the CPU, cleaning the pads, positioning the chip on this fixture, applying flux and stencil, tin planting, then reflow and reinstallation. It's built as a fixture, not a full rework station, so it works alongside your existing hot air gun or rework system rather than replacing it. For shops already running RELIFE, Mechanic, or similar branded tools on the bench, it slots into the existing setup without requiring new accessories beyond the stencils already included.
