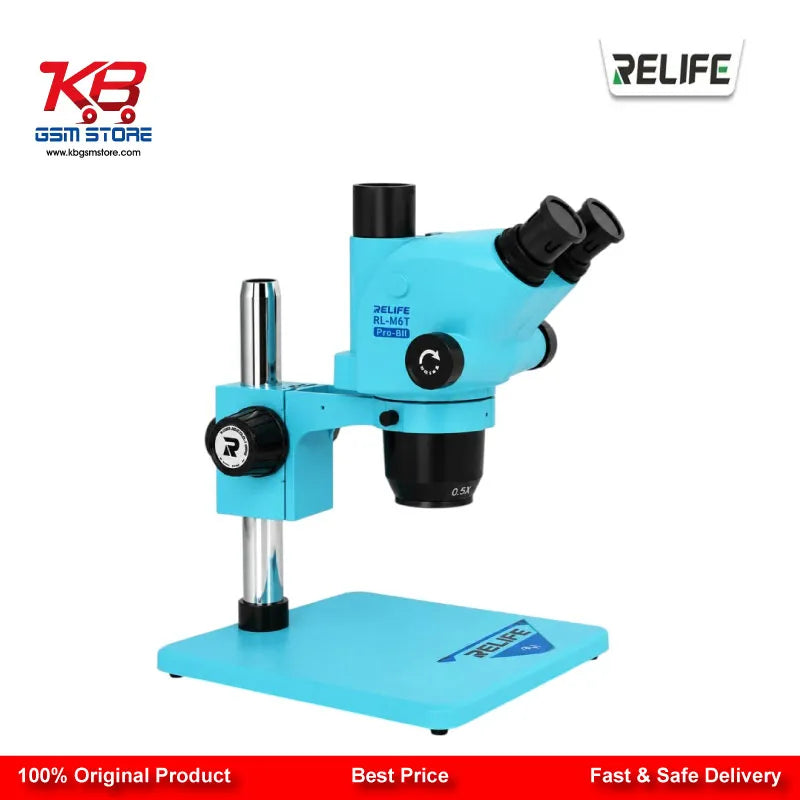

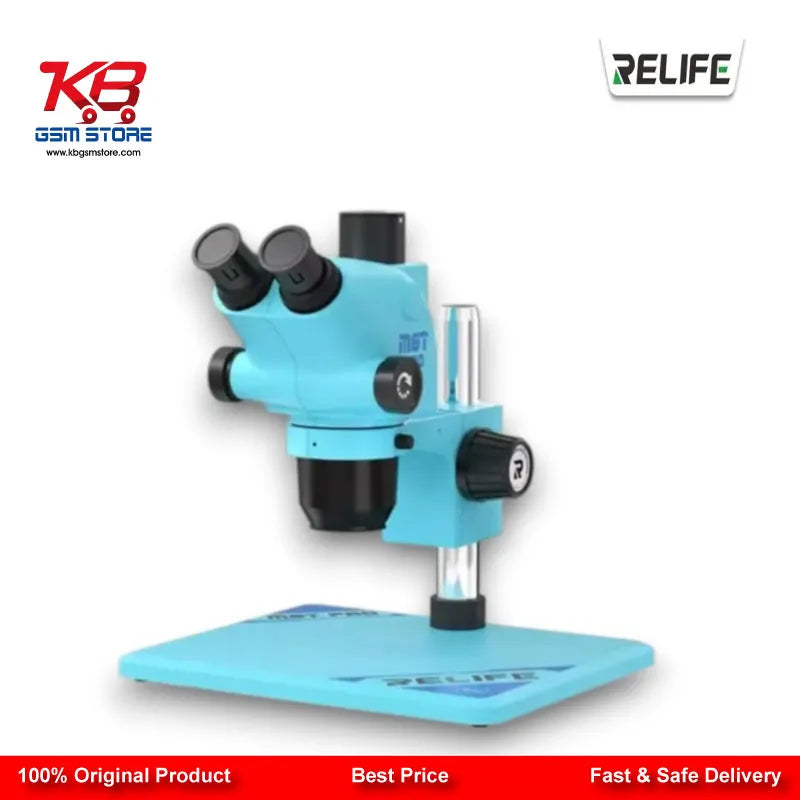

When you are working on a motherboard fault — tracking down a hardware fault on a Qualcomm chipset or reworking a BGA pad — the quality of your microscope determines whether you catch the problem or miss it entirely. The RELIFE RL-M6T Pro-B11 in Gulf Blue is built precisely for that level of work. This is not a basic inspection tool. It is a high-definition trinocular stereo microscope with a 6.5X to 65X continuous zoom range, giving your repair bench the optical depth needed to handle everything from display problem diagnostics to fine-pitch IC rework on the smallest PCB pads.
The zoom system on the RL-M6T Pro-B11 uses a fine-tuning knob mechanism that moves the magnification from 6.5X to 65X without any locking steps or interruptions. You control every incremental change smoothly, which means when you are mid-job doing a jumper lagana or cleaning flux from a CPU pad, the magnification stays exactly where you set it. No slipping, no recalibrating — just clean, stable optical control throughout your workflow.
At the heart of the optical system sits the WF10X/25 wide-angle eyepiece paired with an M-25 dust-proof objective lens. The lenses carry FMC (Fully Multi-Coated) anti-reflection treatment across all optical surfaces. This coating increases light transmittance and raises the refractive index, so you get a brighter, crisper image without the glare that causes eye strain during long sessions. Lens diameter on the objective reaches 25mm, delivering a genuinely wide field of view with zero vignetting at the edges.

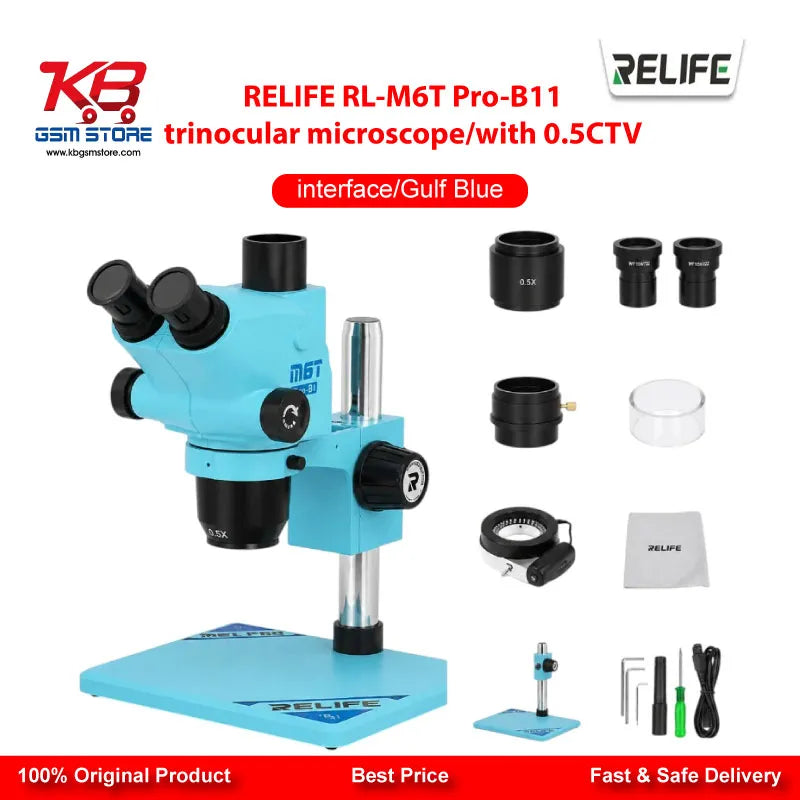

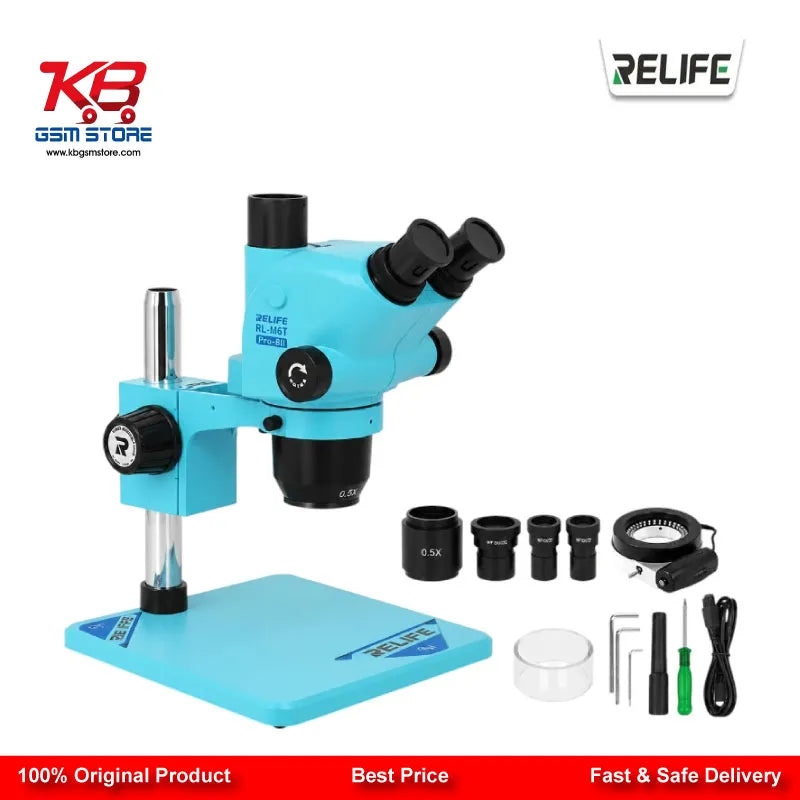

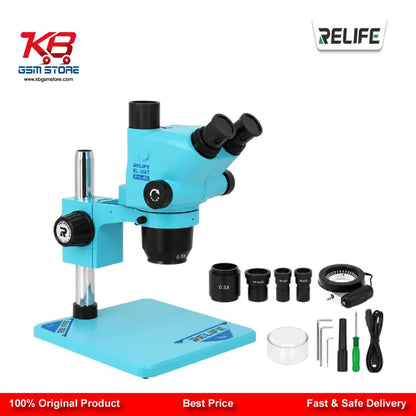

The 0.5X CTV adapter — included in the standard package — is what separates the RL-M6T Pro-B11 from entry-level binocular microscopes in the same price range. The CTV port expands the optical field further and eliminates dark corners entirely, giving you an image that is uniformly sharp from center to edge. When you connect an external HDMI camera through the CTV port, the output feeds a display monitor cleanly, turning this microscope into a full teaching or dual-monitoring setup. For repair shops running technician training in Pakistan, that capability alone justifies the investment.
The base is the B11 large aluminum alloy platform — measuring 260mm × 320mm × 17mm — which gives your workpiece, whether it is a motherboard, a PCB holder, or a reballing jig, a stable and spacious resting area below the objective. The 100mm working distance between the objective and the working surface is generous enough to handle your soldering iron, tweezers, or flux applicator without the tool bumping the lens housing. That kind of clearance is essential when you are doing IC change karna on a live board and every hand position counts.
The microscope head rotates 360° on its axis. This means you adjust the viewing angle to your natural body position rather than awkwardly repositioning the board under the lens. Combined with the 45° ergonomic tilt of the eyepiece barrel, fatigue drops significantly during extended sessions. Pakistani technicians often work six to eight hour stretches on repair benches — neck and eye strain is a real productivity killer, and RELIFE designed this scope with that reality in mind.
Illumination comes from the SS-033 LED ring light, fitted directly around the objective housing. The brightness is fully adjustable, so you dial in exactly the lighting level your job demands — whether you need harsh bright light to spot a cold solder joint or subdued illumination to inspect a display problem without glare. The LED runs at low power and operates on AC 90V–240V input, making it compatible with Pakistani power supplies without any adapter modification.
For workshops that need camera integration, the CTV port accepts RELIFE's M-17 4K camera (available as an upgrade set), enabling full 4K output to an external monitor. This configuration suits repair shop owners who want to show customers the fault before and after the repair, or trainers who need the live feed on a classroom screen.
Every technician who deals with hanging on logo issues, charging IC faults, or network issue diagnostics at the component level needs a microscope they can trust at high magnification without optical distortion pulling the image apart. The RL-M6T Pro-B11 Gulf Blue delivers that trust — with verified, FMC-coated optics, a rock-solid aluminum base, and a CTV system that brings your repair work from the eyepiece onto any external screen.
For a complete repair bench setup, pair this microscope with a hot air rework station for BGA reballing operations, a digital multimeter for current draw testing, a PCB holder for board stabilization, and a soldering station for fine-pitch IC work — all available at KB GSM Store.
