Relife TO5 Electric Solder Sucker – 30W Desoldering Gun for Mobile PCB Repair

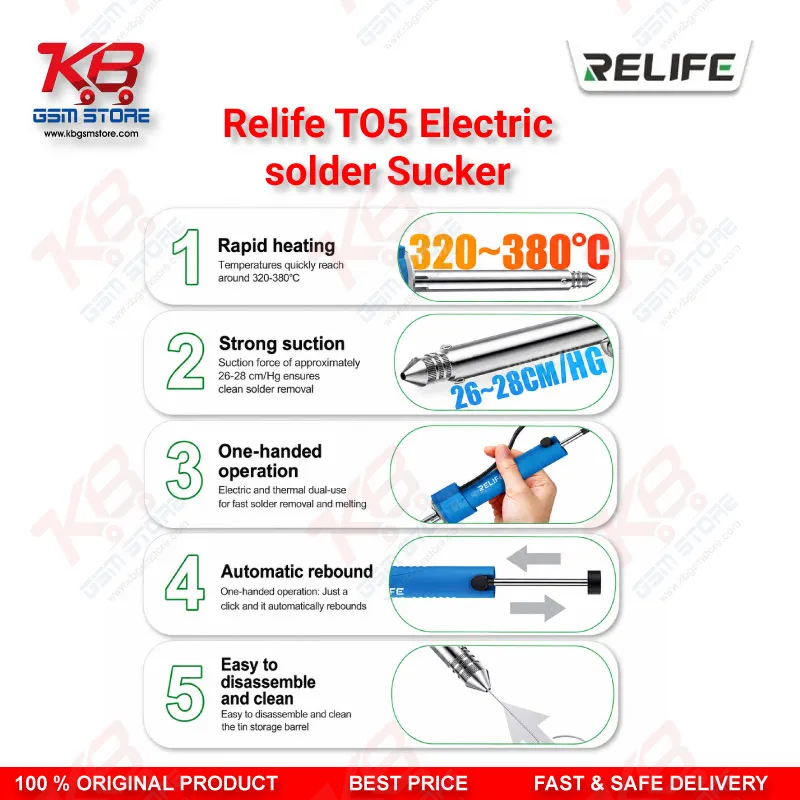

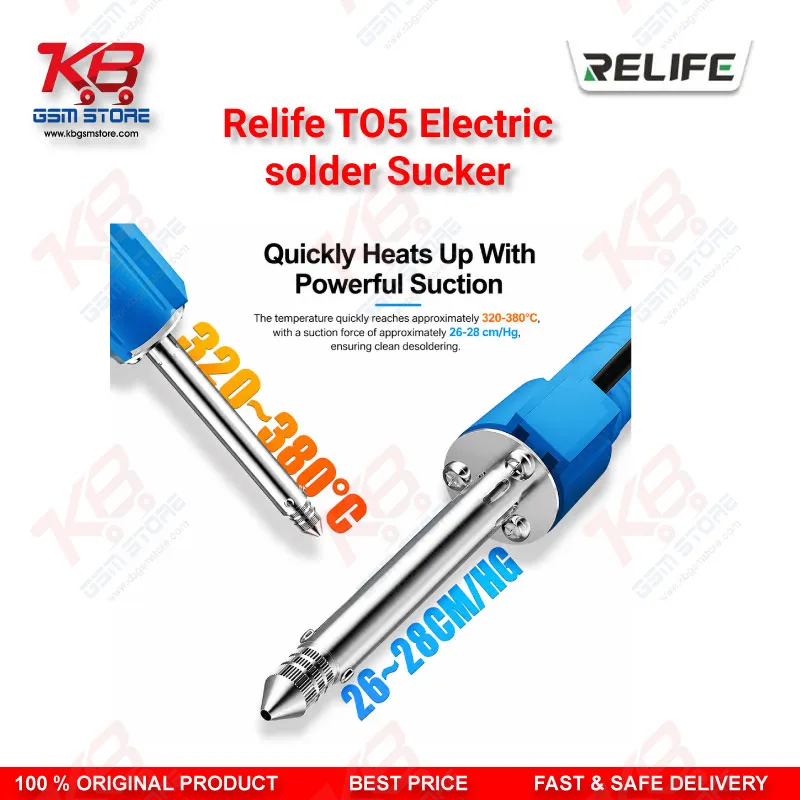

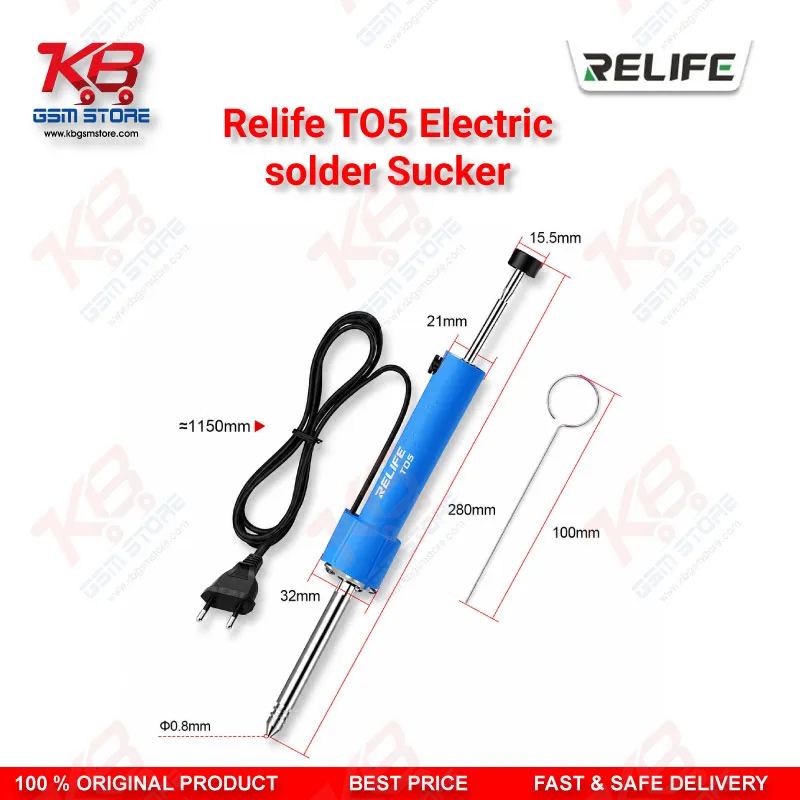

When you're pulling components off a mobile motherboard, coordinating a hot iron in one hand and a spring-loaded solder sucker in the other slows you down and increases your risk of lifting a pad. The Relife TO5 solves that by putting the heating element and the suction mechanism into a single device. You press the trigger, the tip melts the joint, and the suction pulls the molten solder away in one motion. The TO5 heats up to a working range of approximately 320–380°C, which is hot enough to melt standard leaded and most lead-free joints on mobile phone boards without a long warm-up wait. Suction force sits around 26–28 cm/Hg, strong enough to clear through-hole joints, connector pins, and small SMD pads cleanly on the first pass. The nozzle diameter is 0.8mm, sized for the tight component spacing you deal with on modern phone PCBs rather than the wider tips built for consumer electronics repair. Operation is one-handed. You press the button, the internal motor generates suction immediately, and the mechanism rebounds automatically once you release, so you're ready for the next joint without resetting anything manually. On a board with dozens of joints to clear — say, replacing a shielded RF module or removing a damaged charging IC — that speed difference adds up across a full repair queue. Maintenance is built into the design. A cleaning pin is included with the unit so you can clear solidified solder residue from the nozzle and internal tube between jobs. Suction tools lose effectiveness fast if the tip clogs, so keeping that pin in reach and using it after heavy sessions keeps suction consistent instead of degrading over a few days of use. The housing uses a non-slip ergonomic grip, which matters more than it sounds like it should when you're running dozens of desoldering cycles in a shift. At roughly 110g and 280mm long, it sits comfortably in hand without adding fatigue over a long repair bench session. This isn't a replacement for a hot air rework station when you're pulling a whole IC package — for that you still want controlled hot air and a proper reflow profile. Where the TO5 earns its place on the bench is single-joint and through-hole work: connector removal, jumper wire cleanup, component leg desoldering, and clearing solder bridges before a board goes back together. Technicians doing dead phone diagnostics, board-level charging repair, or general PCB cleanup will reach for this far more often than a full rework station, simply because most of the day's work is single joints, not whole-chip reflow. Running it on Pakistan's standard 220–240V mains needs no adapter or converter, so it drops straight into an existing repair bench setup. For shops handling high daily volumes of charging port repair, jumper work, and IC change jobs, the TO5 cuts the time spent per joint without adding a learning curve — pull the trigger, hold steady, and the suction does the rest.
