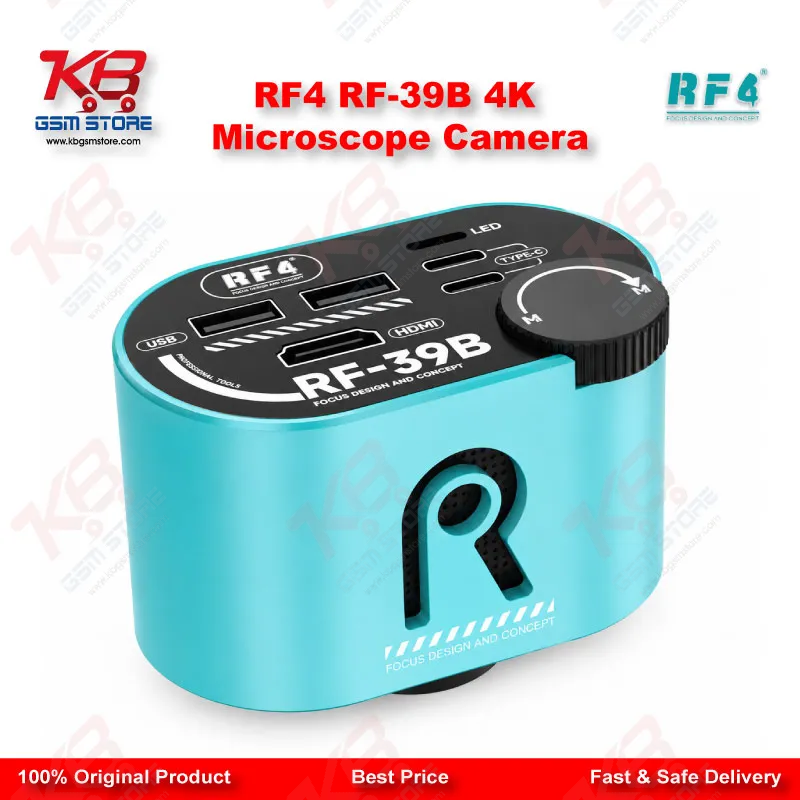

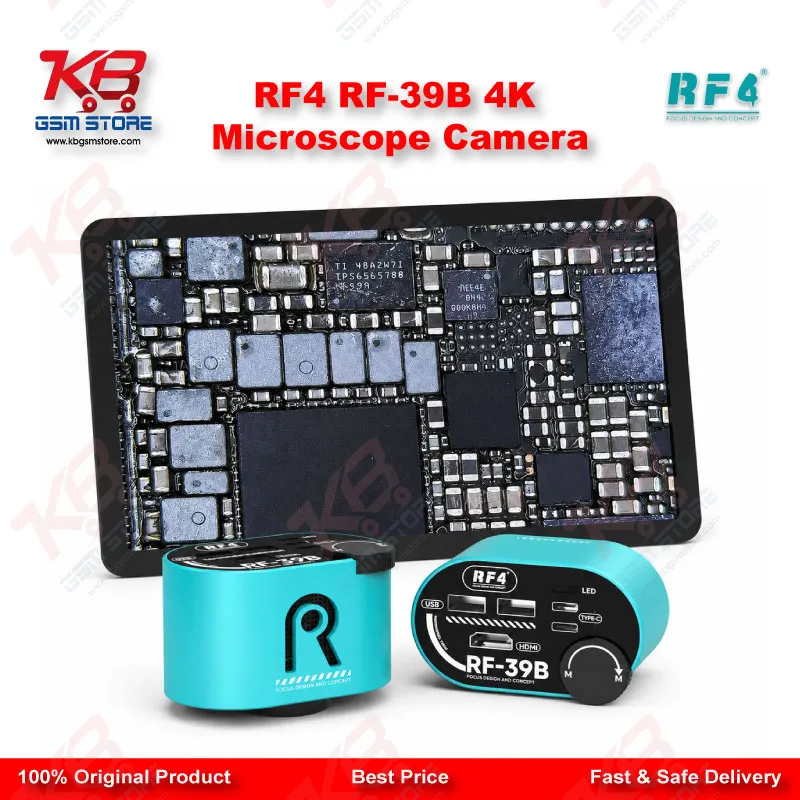

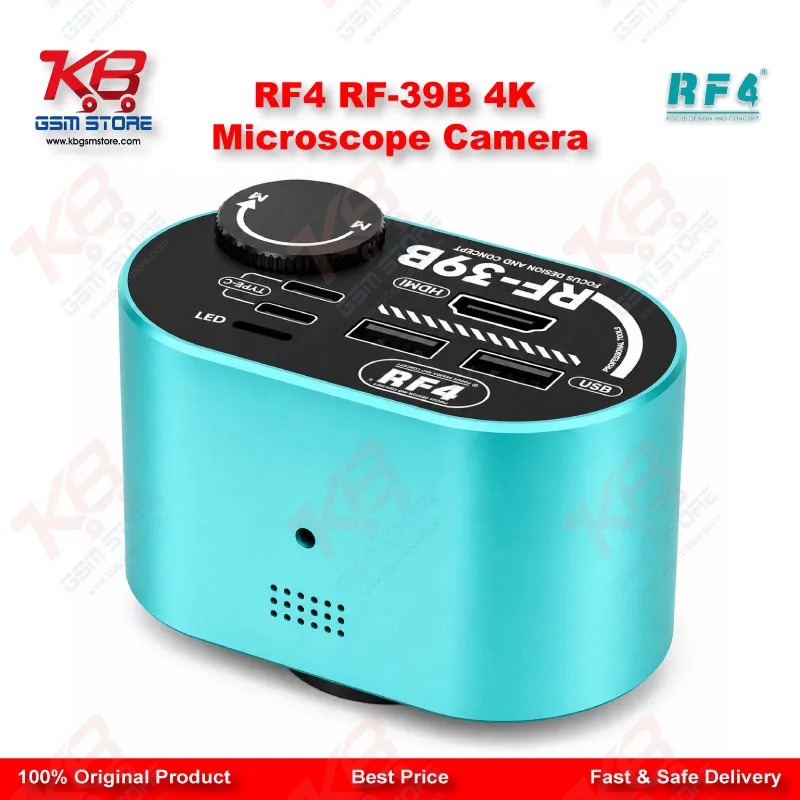

RF4 RF-39B 4K Wide-Angle CMOS Microscope Camera – Lossless Zoom for PCB Repair

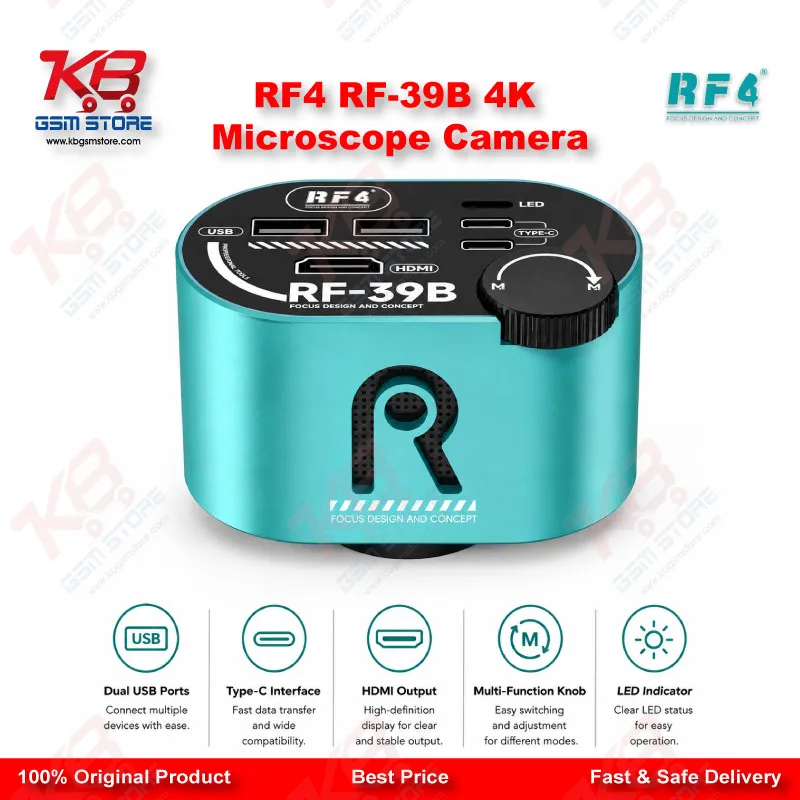

When you're chasing a hairline crack on a PCB or lining up a BGA IC for reballing, your camera is only as good as the detail it holds at high zoom. The RF-39B solves the problem most microscope cameras have: image quality falling apart the moment you zoom in. It uses a Sony CMOS sensor with a 1/1.8-inch surface size and 1.45μm × 1.45μm pixel pitch, built specifically to hold true 4K detail through the zoom range instead of just at the base magnification. The zoom itself runs on a manual handwheel, not a digital crop. You rotate the wheel to move from a wide-angle panorama — useful when you're locating a component or checking board orientation — down to a tight, high-magnification close-up for soldering or inspecting a chip pinout. RF4 calls this lossless zoom, and the practical result on your bench is that you're not second-guessing whether a solder bridge is real or just a compression artifact. Output runs through HDMI at 3840×2160@30fps, or 1080P@60fps if you need smoother motion for live soldering work rather than static inspection. Two USB 2.0 ports handle a USB flash drive for saving reference images or a mouse for navigating an on-screen menu, so the camera can run without tying up a full PC setup. The CS lens interface is the same mount used across most trinocular stereo microscopes and C-mount lens systems, so if you already run a trinocular scope on your bench, the RF-39B slots into your existing setup rather than forcing you to replace it. For a Pakistani repair shop, this kind of camera earns its place on jobs where a dead phone traces back to something on the board itself — a lifted pad, a cracked via, a burnt IC leg — rather than a software fault you'd fix with a box or flasher. It's the tool you reach for after your diagnostics point to a hardware fault: confirming a jumper point before you jumper lagana, checking a pad before reballing, or getting a clear enough view to catch a hairline short that a multimeter alone won't show you. Because it outputs straight to HDMI, you can run it on any monitor you already have on your workbench — no dedicated proprietary display required. That keeps the setup cost down if you're building out a repair station from scratch or adding a second inspection point in a busier shop. Where the RF-39B fits in your workflow: it's the inspection layer that sits between diagnostics and the actual rework. You've isolated the fault, now you need to see it clearly enough to work on it — whether that's IC removal, a reballing job, or checking a trace after a board clean. A camera that holds detail through the zoom range means fewer failed attempts at reflow because you misjudged pad alignment, and less time spent squinting at a soft image trying to decide if that's corrosion or just glare.
