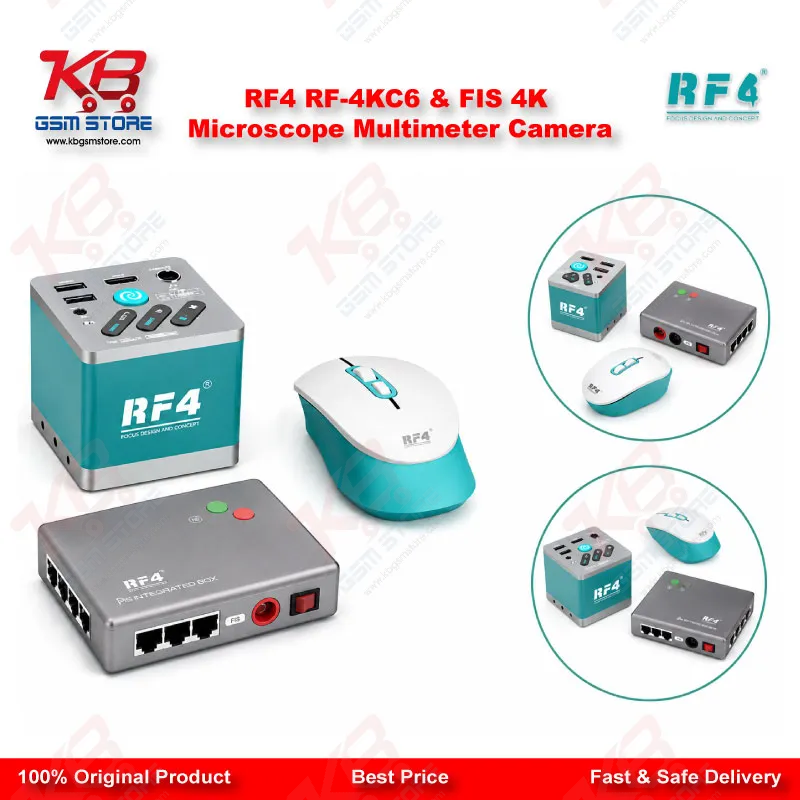

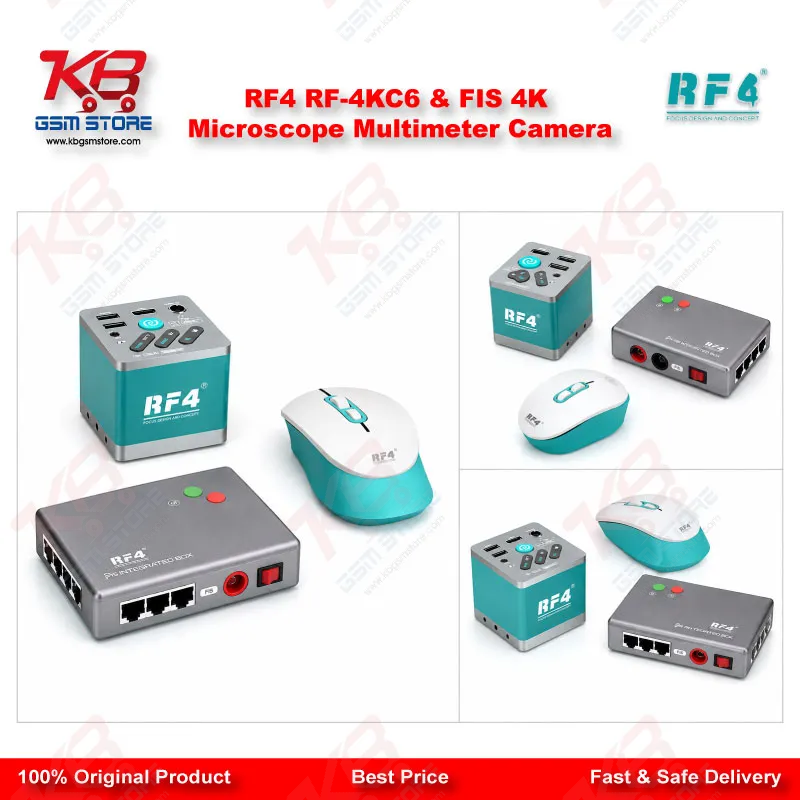

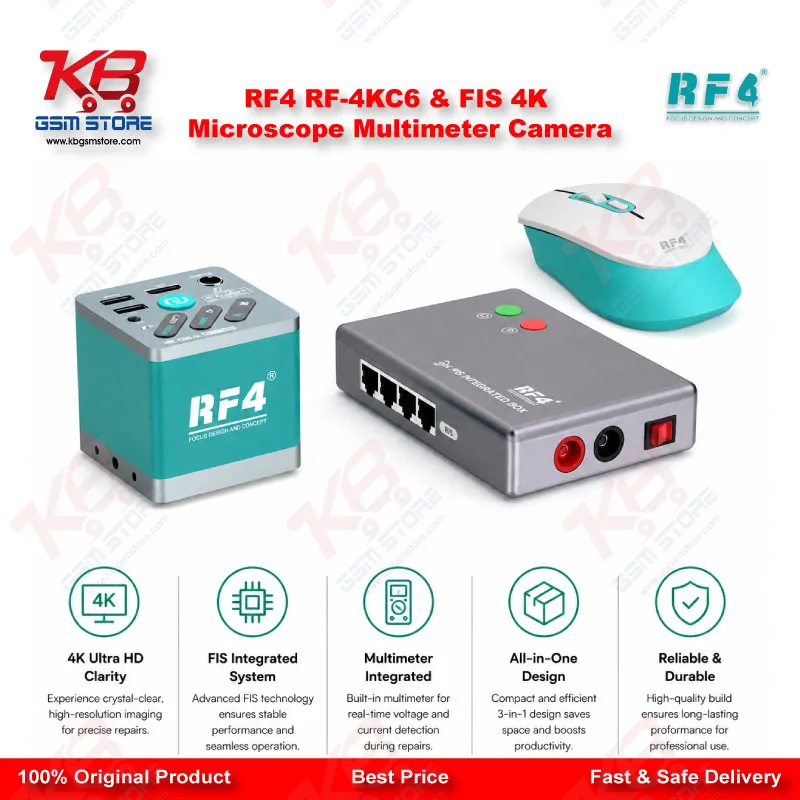

RF4 RF-4KC6 & FIS 4K Microscope Multimeter Camera – Integrated Interface Box for PCB Repair

When you're working on a dead phone or a board stuck in a boot loop, most of your time goes into finding the fault, not fixing it. The RF4 RF-4KC6 & FIS is built around that exact problem. It's a 4K Ultra HD microscope camera that connects a multimeter function to the live video feed through its FIS integrated box, so you can identify voltage, resistance, or short points on a PCB while you're still looking at it under magnification.
RF4 is an established name in the mobile repair microscope camera segment, and its RF-4KC series — including the RF-4KC1 Pro, RF-4KC5, and RF-4KC7 — already sees regular use across GSM workshops. The RF-4KC6 & FIS is the variant that pairs the camera with a dedicated FIS box, combining camera output with multimeter readings so component-level testing happens right on the screen. Where this camera fits in the board repair workflow
Every PCB repair job starts with diagnosis. A technician checks for shorts before powering the board, then inspects components visually. The RF-4KC6 & FIS brings both steps into one place. You're zoomed in on an IC or solder joint through the microscope, and at the same time you touch a multimeter probe to that point and read the value right on the same screen. Whether the job calls for an IC change or placing a jumper wire, this setup cuts down on guesswork. This is particularly useful for technicians handling charging issues, dead-after-flash symptoms, or general hardware faults. When a phone won't take charge, or a board hangs on logo, locating the short point usually eats up the most time. With multimeter integration built into the camera, that step becomes direct — place the probe, read the value on screen, decide the next move. What the 4K resolution actually gives you
A 4K Ultra HD sensor means you can see the smallest solder joints, hairline cracks, or corroded pads in real detail. For BGA reballing, chip-level soldering, and fine-pitch component work, that resolution matters — you catch a potential problem area before it turns into bigger board damage. What multimeter integration changes for a technician In a traditional setup, a technician looks through the microscope, glances away to check the multimeter reading, then refocuses back on the board. That back-and-forth slows things down and makes precise probe placement harder every time your eyes shift. The RF-4KC6 & FIS removes that gap — probe placement happens through the microscope view, and the reading shows up on the same screen. That means you keep your workflow uninterrupted, which saves time on a busy repair bench. What kind of setup it works with
This camera mounts onto standard trinocular stereo microscopes commonly found on mobile repair benches. If you already have a compatible trinocular microscope, this camera is a straightforward way to upgrade your existing setup without replacing the whole microscope.
Who this suits This tool delivers value across experience levels, from a technician just starting out to a senior hardware engineer. For a beginner, the combination of visual inspection and multimeter reading speeds up learning, since you see and measure at the same time. For an experienced technician, it delivers both speed and accuracy on complex board-level faults.
Overall, the RF-4KC6 & FIS is built for repair shops and service centers where diagnosis speed directly affects revenue — less time spent hunting for faults means more boards fixed per day.
