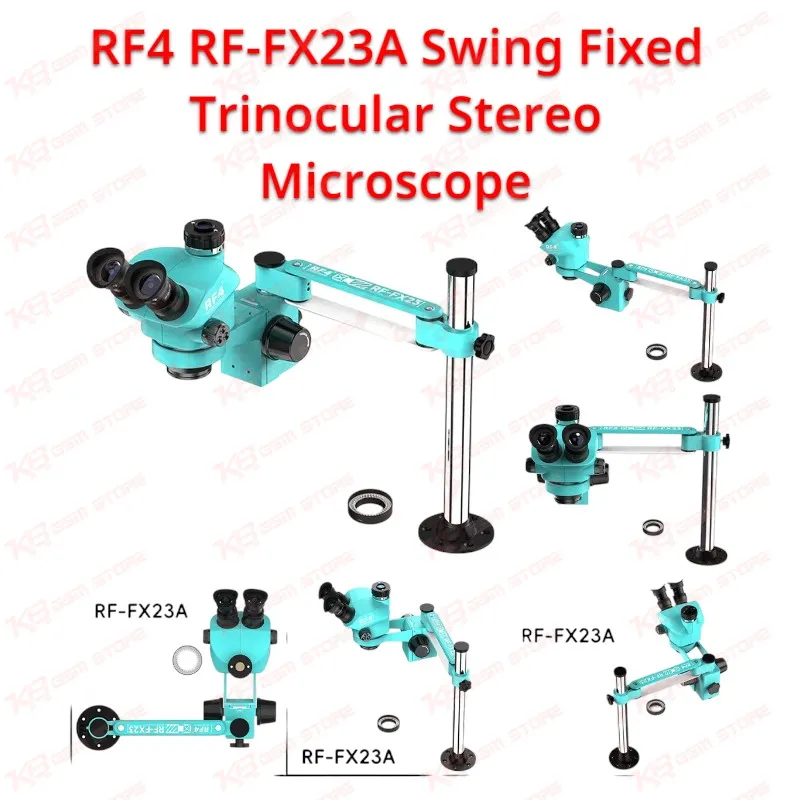

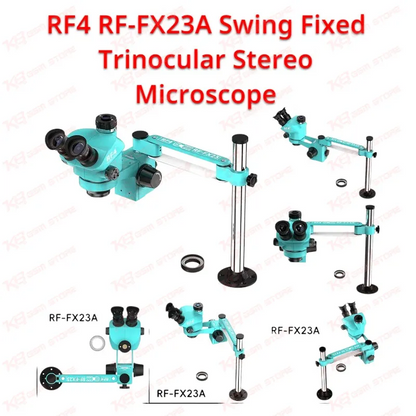

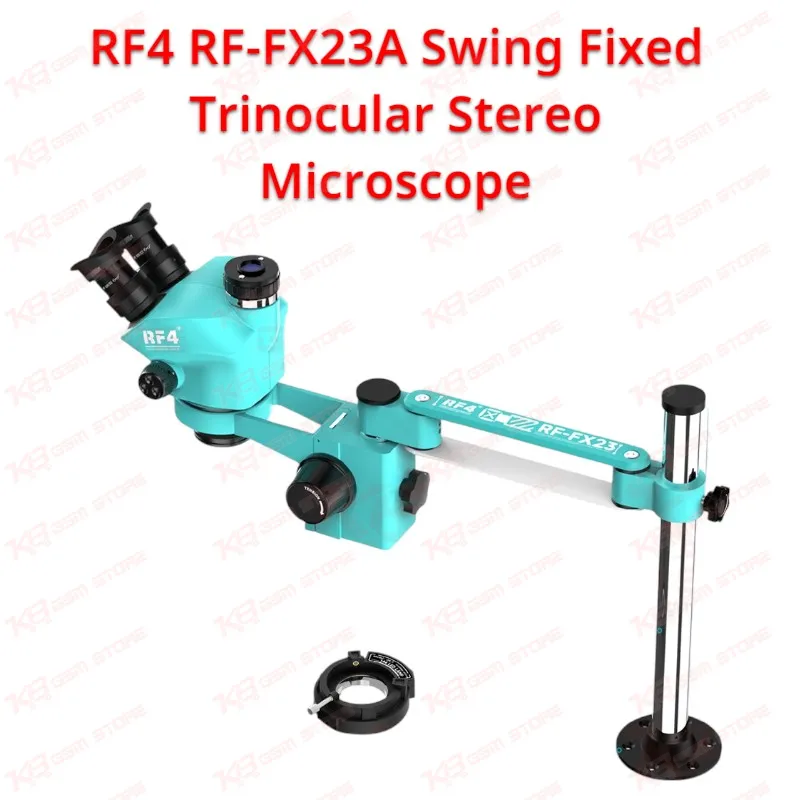

Your repair bench needs a microscope that covers the whole board without forcing you to slide the phone around under the lens, and the RF4 RF-FX23A Swing Fixed Trinocular Stereo Microscope solves that with a folding swing bracket that reaches out to 330mm and locks where you need it. Most technicians in Pakistan know the frustration of a fixed-arm microscope: you reach one corner of a motherboard, then lose the CPU or the charging IC area at the other end and shift the board again and again. The swing arm removes that problem. You park the head over the section you repair, fold the arm sideways when you finish, and swing it back when the next dead phone lands on your bench. The wider reach also cuts the small errors that come from repositioning the board mid-repair, such as a nudged jumper wire or a shifted stencil. The optics give you continuous zoom from 7X to 50X, built from a 0.7-5X objective and WF10X/22MM wide-angle eyepieces, so you move smoothly between a wide board overview and a tight look at a single BGA pad. Special coating on the optical components sharpens the image, and the working distance reaches up to 100mm, which leaves real room for tweezers, a soldering iron tip, a hot air nozzle, and a probe at the same time. You do not fight for space under the lens while you lift an IC. Both eyepieces support diopter adjustment of plus or minus 5, so each technician sets the focus for their own eyes, and you can even work without glasses. That matters in a busy workshop where two or three technicians share one microscope during a shift, and it reduces eye fatigue during long sessions on hardware fault jobs. The 144 LED ring light sits around the lens, focuses light onto the work area, and gives you adjustable brightness, so you light a dark charging port pad or dim the glare on a shiny flux-covered IC without touching the surrounding space. You control brightness for the job in front of you instead of living with one fixed glare level. A dustproof lens protects the optics from flux fumes, oil, dust, and heat, and it keeps the eyepiece area cleaner during soldering and rework. The trinocular head sets this microscope apart from a basic binocular model. The third port takes the included 0.5X CTV adapter, so you attach a compatible camera and show the repair live on a screen while you keep looking through the eyepieces. Shop owners use this to train new staff, record before-and-after board conditions, and show customers the actual fault under the lens instead of only describing it. Training institutes use it to teach soldering technique on a shared display. The camera itself does not come in the box, so you choose the camera or monitor setup that fits your budget. In a real mobile repair workflow, this microscope earns its place before and after nearly every hardware job. You start with inspection: burnt tracks, corroded pads after liquid damage, lifted connector pads, and cracked capacitors near a charging issue all show up clearly at 7X to 20X. You move into IC change karna and rework: you check pad condition before you place a new IC, confirm alignment before you apply heat from your hot air station, and inspect reballing results before you fit the chip back on the board. For ISP and eMMC or UFS repair on a dead after flash phone, the magnification helps you place fine ISP pinout wires on tiny test points and verify each jumper lagana connection before you connect your programmer or test box. You also use the higher zoom to spot solder bridges under a chip edge, cold joints, and tiny component damage that a multimeter reading alone will not explain. After the repair, you inspect again to confirm clean joints before you close the phone. A silicone work pad comes in the package, which gives you a heat-tolerant surface under the board and a place to rest small components while you work. Pair this microscope with soldering stations, hot air stations, reballing kits, PCB holders, multimeters, ISP pinout tools, eMMC programmers, and UFS adapters from the KB GSM Store range, and you build a complete bench for boot loop issue repairs, hang on logo faults, display problem diagnosis, network issue tracing, and hardware fault repair. If you already use a basic magnifier or a binocular microscope, this swing arm trinocular model gives you the upgrade path toward camera-assisted work and a wider working area. The package includes the microscope, focus bracket, pillar, two eyepieces, a dustproof lens, the 0.5X CTV adapter, the ring light, the silicone pad, and the swing arm, so you assemble the stand and start inspecting boards without hunting for extra parts. Choose the RF4 RF-FX23A Swing Fixed Trinocular Stereo Microscope when your bench handles daily PCB inspection and micro soldering, and when you want a wider working range and a camera-ready head in a single professional tool for your repair shop, service center, or training lab in Pakistan.
