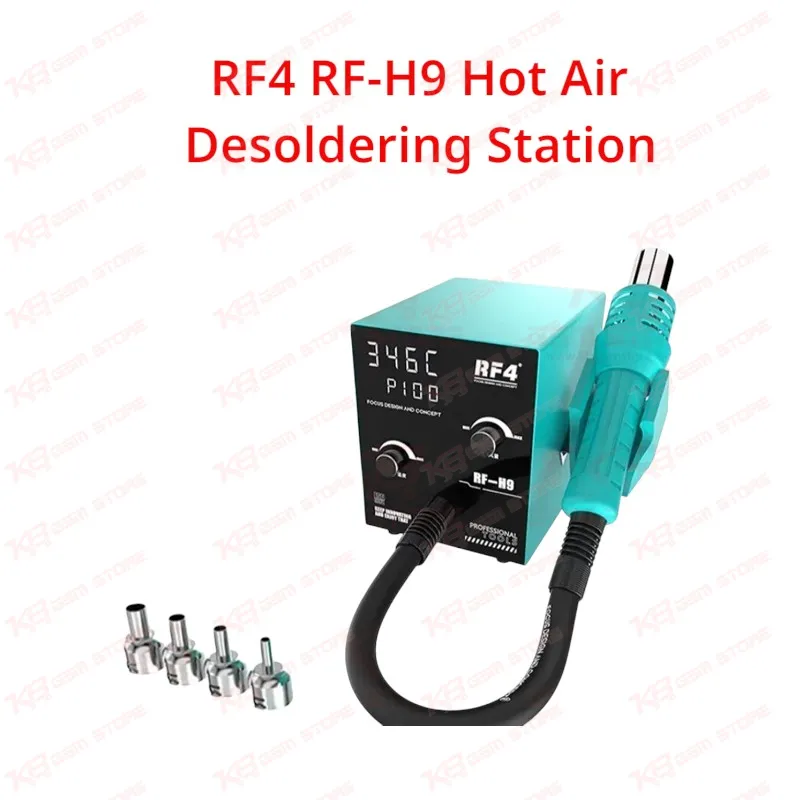

RF4 RF-H9 Hot Air Rework Station | BGA Desoldering Station with Hang-Up Function

RF4 RF-H9 Hot Air Rework Station | BGA Desoldering Station with Hang-Up Function

Rs.17,500.00 PKR
Rs.17,500.00 PKR
Sale Sold out
Shipping calculated at checkout.

The RF4 RF-H9 is a professional direct-air hot air rework and desoldering station with passive temperature runaway protection, auto-standby hang-up function, and precise temperature control from 100°C to 500°C. Ideal for BGA rework, SMD soldering, and PCB repair.

MST-REWORK-STATION-71

⚖️ Weight: 3.0 kg

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

RF4 RF-H9 Hot Air Rework & BGA Desoldering Station

The RF4 RF-H9 is a high-performance, professional-grade hot air rework station engineered for precision electronics repair, BGA rework, SMD component removal, and PCB soldering tasks. Designed with both safety and efficiency in mind, this station delivers consistent, controlled airflow and temperature performance for technicians and hobbyists alike.

Smart Hang-Up Auto-Standby Function
When the hot air gun handle is placed back in its bracket after use, the station automatically stops heating while continuing to blow cool air — protecting the heating element and extending its lifespan. Once the handle temperature drops below 100°C, the device saves the current temperature and airflow settings and enters standby mode. Picking up the handle instantly resumes full working operation — no need to reconfigure settings every time.

Passive Temperature Runaway Protection
Safety is built into the core design. If the air gun temperature exceeds the set value by more than 100°C, the passive temperature runaway protection activates automatically — cutting off power to the heater core immediately and preventing damage to components or injury to the user.

Precise Temperature & Airflow Control
The RF-H9 offers a wide temperature range of 100°C to 500°C with user-adjustable temperature calibration for maximum accuracy. Airflow can be adjusted from P010 to P100, giving technicians full control over the air volume for different component sizes and soldering tasks.

Whether you are removing BGA chips, reflowing solder, or handling fine SMD components, the RF4 RF-H9 delivers the reliability and control demanded by professional repair environments. It comes complete with 4 interchangeable nozzles, a dedicated handle holder, and all necessary accessories to get started right out of the box.

Key Features

  • Direct-air hot air gun design for precise and efficient heat delivery
  • Wide temperature range: 100°C – 500°C with user calibration support
  • Adjustable airflow: P010 to P100 for full control over air volume
  • Smart hang-up function: auto-stops heating and cools down when handle is placed in holder
  • Auto-standby mode: saves temperature & airflow settings when handle temp drops below 100°C
  • Instant resume: picking up the handle immediately restores working state
  • Passive temperature runaway protection: cuts heater power if temp exceeds set value by 100°C
  • Includes 4 interchangeable nozzles for versatile component work
  • Compatible with BGA rework, SMD soldering, and general PCB repair
  • Compact and professional design suitable for workshop and bench use

Specifications

Brand RF4
Model RF-H9
Product Type Hot Air Rework & BGA Desoldering Station
Temperature Range 100°C – 500°C
Airflow Range P010 – P100
Temperature Calibration Supported
Runaway Protection Passive (cuts heater power at +100°C over set temperature)
Hang-Up Function Yes (auto cool-down & standby when placed in bracket)
Standby Mode Activated when handle temperature drops below 100°C
Nozzles Included 4 Nozzles
Package Contents Main Body, Hot Air Gun Handle, 4 Nozzles, Handle Holder, Power Cable
Application BGA Rework, SMD Soldering, PCB Repair, Component Desoldering

FAQ

Q1: What is the temperature range of the RF4 RF-H9 Hot Air Station?
The RF4 RF-H9 supports a temperature range of 100°C to 500°C with user-adjustable temperature calibration for accurate and consistent results.
Q2: What is the hang-up function in the RF4 RF-H9?
When the hot air gun handle is placed in its bracket after use, the station automatically stops heating and continues to blow cool air to safely cool down the handle, protecting the heating element.
Q3: Does the RF4 RF-H9 have auto-standby mode?
Yes. Once the handle temperature drops below 100°C after being placed in the bracket, the station saves the current temperature and airflow settings and enters standby mode automatically.
Q4: How does the passive temperature runaway protection work?
If the air gun temperature exceeds the set temperature by more than 100°C, the passive protection system activates and immediately cuts off power to the heater core to prevent damage or safety hazards.
Q5: Can I use the RF4 RF-H9 for BGA rework?
Yes, the RF4 RF-H9 is fully suitable for BGA rework, SMD component removal, PCB repair, and general desoldering tasks.
Q6: How many nozzles are included in the package?
The package includes 4 interchangeable nozzles suitable for different component sizes and soldering tasks.
Q7: What is the airflow range of the RF4 RF-H9?
The airflow can be adjusted from P010 to P100, giving you full control over the air volume based on your specific repair needs.
Q8: Does the RF4 RF-H9 remember my settings after standby?
Yes. When the station enters standby mode, it saves your last used temperature and airflow settings. Picking up the handle immediately restores those settings and resumes working mode.
Q9: What is included in the RF4 RF-H9 package?
The package includes: 1x Main Body, 1x Hot Air Gun Handle, 4x Nozzles, 1x Handle Holder, and 1x Power Cable.
Q10: Is the RF4 RF-H9 suitable for beginners?
Yes, its simple controls, auto-standby, and safety protection features make it user-friendly for both beginners and professional technicians.
