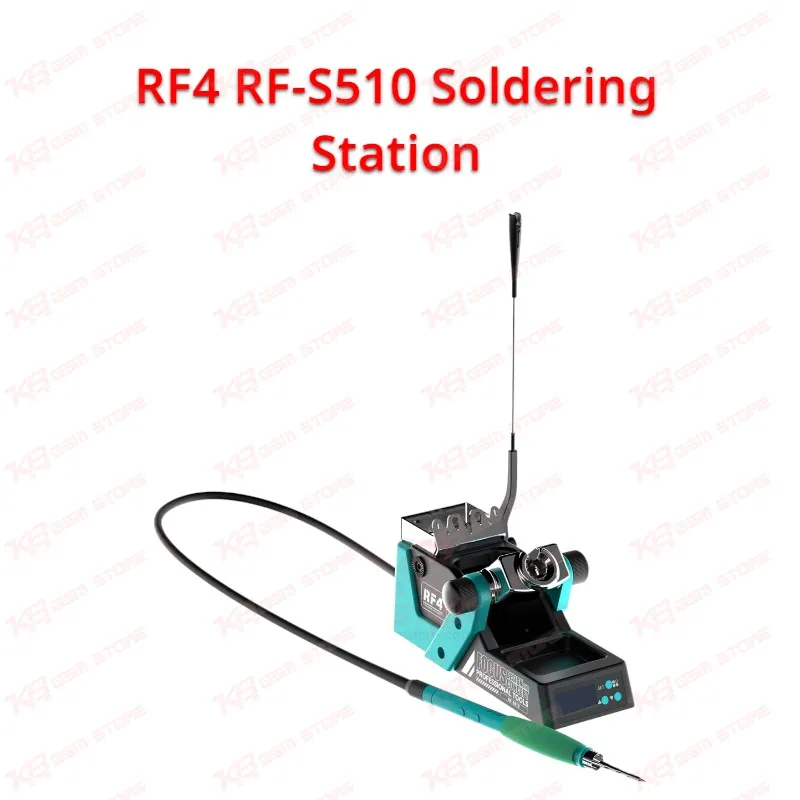

When a dead phone lands on your bench after a failed flash, the next fix often needs a soldering iron, not another box. The RF4 RF-S510 Soldering Station answers that moment with a compact 40W setup that runs from a Type-C power source and takes a C210 heating core. You move from software marna to hardware fault repair without clearing space for a bulky mains-powered unit. RF4 builds the body around the heating core frame in a clean, simple layout, so you store it neatly between jobs and deploy it in seconds when a charging issue or display problem needs a quick solder touch-up. Power comes through a Type-C port with a working voltage range of DC 9V to 20V. The station reads PD2.0, PD3.0, QC2.0 and QC3.0 fast-charging protocols, and RF4 recommends a PD charger rated at 65W or higher. Match your charger to that advice before you plug in, because a weak source limits what a 40W station can deliver. A TFT full-color LCD shows the temperature status in real time, so you see what the tip does while you work. You set the temperature anywhere between the 150°C lower limit and the 450°C upper limit. That range covers the daily jobs in a Pakistani repair shop: pad repair, jumper lagana on lifted tracks, connector soldering, and IC change karna on small components. Lower settings suit delicate flex and connector pads, while higher settings help on ground-plane areas that pull heat away from the tip. The display confirms your number, so you stop guessing. Intelligent sleep adds another practical layer. The body includes an integrated sleep placement seat, and the station senses when you rest the iron there and drops into standby energy-saving mode on its own. You stop burning power between boards, and you keep a hot iron parked in a defined spot while you check a schematic, swap to the microscope, or answer a customer. Where does the RF4 RF-S510 Soldering Station sit in your repair workflow? It owns the touch-up and small-component stage. Say a phone arrives with a charging issue. You check the board with your multimeter, find the faulty part, and remove and replace it with the C210 tip. When a large shield or BGA chip needs heavy heat, you switch to your hot air station, and this iron takes over again for cleanup, tinning and jumper work. That split keeps your hot air station free for big jobs and keeps your fine work precise. The same logic applies to eMMC and UFS operations. When you work with ISP pinout tools, test points and adapters, you often solder thin wires onto tiny pads. A temperature-controlled iron with a C210 tip gives you the finesse that job demands, and you pair it with a microscope and a steady PCB holder for clean results. After you finish the wire work, you read or flash the chip with your eMMC programmer or UFS adapter, then confirm the repair on your test box. If the phone shows hang on logo or a boot loop issue afterward, you go back to the board with the same iron and recheck your joints. The station takes C210 heating cores, so match the tip shape to your job: a fine point for IC pads and jumper wires, a wider face for connectors and shield legs. Reballing kits and stencil work call for hot air, but the finishing touches on pads, such as tinning and levelling, fit this iron well. Keep your tips clean and tinned, keep the temperature as low as the joint allows, and you protect both the pads and the tip. Good habits matter with any iron. Set the station to the lowest temperature that flows your solder, rest the iron in the sleep seat every time you put it down, and let the station cool before you store it. Use flux on old joints, clean the pad after you lift a component, and inspect your work under the microscope before you power the board. These steps cut down on lifted pads, cold joints and repeat visits from the same customer. Workshops in Pakistan handle mixed traffic, with phones from every brand that passes through your counter. This station works on the solder joint, not on a specific model, so you choose the temperature and the tip and repair the board in front of you. The RF-S510 measures 19 x 15 x 8.5 cm and weighs 1.3 kg, so it takes little room on a crowded workshop table and moves easily between your bench and an on-site job. Shop owners who run several technicians can give each seat its own station fed by a Type-C charger, and training institutes can teach temperature control on a screen that shows the real number. If you compare this station with a larger desk unit, weigh your daily work honestly. You handle precision electronic maintenance, motherboard soldering and daily soldering operations, and you want a portable tool that starts from a Type-C source. The RF4 RF-S510 Soldering Station fits that profile. If your bench also needs Soldering Stations for heavier work or Hot Air Stations for rework, browse those categories at KB GSM Store alongside Multimeters, Microscopes, Reballing Kits, PCB Holders, Test Boxes, ISP Pinout Tools, eMMC Programmers and UFS Adapters to complete your setup.
