RF4 RF6565TV 6.5X-65X Synchronous Zoom Trinocular Stereo Microscope

RF4 RF6565TV 6.5X-65X Synchronous Zoom Trinocular Stereo Microscope

Regular price Rs.1.00 PKR
Regular price Sale price Rs.1.00 PKR
Sale Sold out
Shipping calculated at checkout.
Quantity

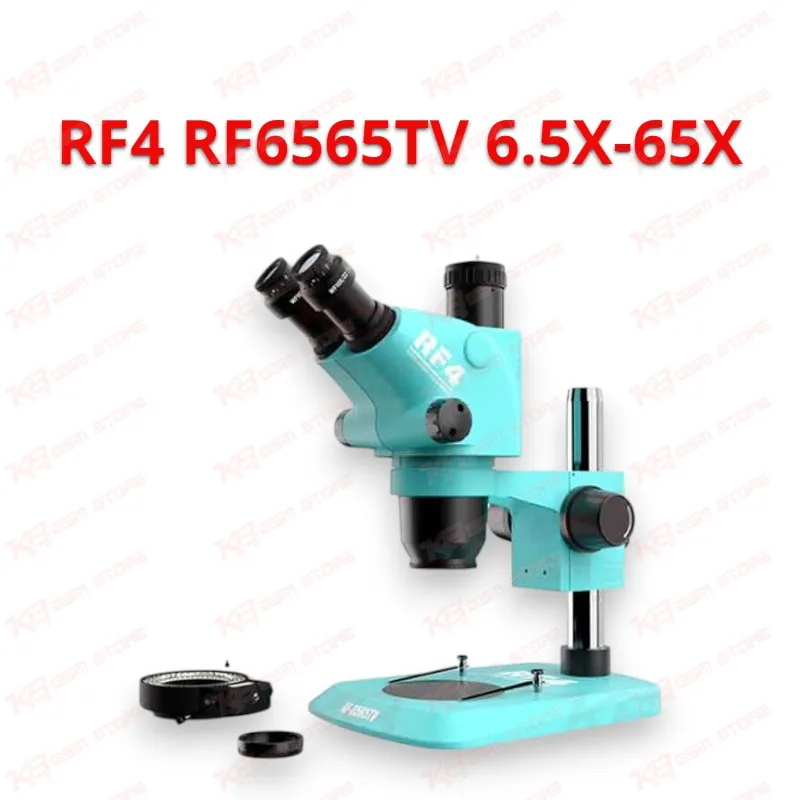

The RF4 RF6565TV 6.5X-65X Synchronous Zoom Trinocular Stereo Microscope gives mobile repair technicians a sharp stereo view of motherboard components, from a wide 6.5X overview to a detailed 65X close-up. Its 45° inclined, 360° swiveling trinocular head, WF10X/22mm eyepieces, and 100mm working distance leave room for tweezers, hot air nozzles, and soldering tips under the lens. The trinocular port zooms in sync with the eyepieces, so your camera feed always matches what you see. A 144-LED adjustable ring light and dust-proof lens complete a setup built for BGA work, jumper wire repair, and PCB fault tracing in Pakistani repair shops.

⚖️ Weight: 6.0 kg

SKU:MST-MICROSCOPES-137

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

Every board-level job on a modern smartphone starts with one question: can you actually see the fault? The RF4 RF6565TV 6.5X-65X Synchronous Zoom Trinocular Stereo Microscope answers that question for technicians who spend their day inside dead phones, shorted power rails, and torn pads that the naked eye cannot read. RF4 built this stereo zoom microscope around a 0.65X–6.5X continuous zoom objective paired with WF10X/22mm wide-field eyepieces, which gives you an uninterrupted magnification range from 6.5X to 65X with a single turn of the zoom knob. At the low end you get a wide overview of the whole logic board, enough to spot a burnt area near the charging IC or a lifted shield frame; at the top end you can inspect a single tiny capacitor, check the solder joints along a PMIC edge, or confirm whether a jumper wire actually sits on the right via. Because the zoom runs continuously instead of in fixed steps, you move between overview and detail without losing your place on the board, which matters when you trace a line from a connector down to a small filter coil. Stereo optics give you true depth perception, and that depth separates a stereo microscope from a flat camera view: you can judge the height of your tweezer tip above a component, see whether solder has flowed under a chip or only bridged the surface, and guide a fine soldering tip onto a pad without touching the neighbouring parts. The head sits at a 45° incline and swivels a full 360°, so you can angle the eyepieces toward yourself or rotate the head when you share the bench, and the 54–76mm interpupillary adjustment with diopter adjustment on both sides lets different technicians in the same shop set a comfortable view in seconds. The trinocular design is where the RF6565TV earns its name: a third optical port with a 1/2 CTV camera interface zooms in sync with the eyepieces, so whatever magnification you set for your eyes also appears on the monitor. That synchronous zoom makes a real difference in daily work, because you no longer need to refocus or re-adjust the camera every time you zoom in on CPU underfill or back out to check the whole board, and it lets you record repairs for training, show customers the exact corrosion on their board, or create video content for your shop's social media pages. The camera itself depends on the package you choose, so check the bundle before you order. On the mechanical side, the microscope mounts on a boom stand with a 250mm, Φ32mm pillar and a 200mm × 255mm base, and the focus bracket gives you 50mm of lifting range with adjustable handwheel tension, so the head holds its position instead of creeping down during a long job. The standard working distance of 100mm leaves generous space between the objective and the board for hot air nozzles, tweezers, and a soldering iron handle, and an optional auxiliary Barlow lens (0.5X, 0.7X, or 2.0X) shifts the working distance anywhere from about 30mm to 287mm to suit either high-magnification inspection or wide-clearance rework. Lighting often decides whether you catch a hairline crack or miss it completely, and the included 144-LED adjustable ring light delivers bright, even illumination across the field, running from an AC 100–240V 50/60Hz supply that suits Pakistani mains power. A dust-proof protective lens shields the objective from flux smoke and solder spatter, which protects the optics during daily hot air work. Now think about where this microscope fits in your real workflow. A customer brings in a phone with a charging issue; you open it, clamp the board in your PCB holder, and use the RF6565TV to inspect the charging port pins, the charging IC, and the surrounding capacitors for corrosion or cracked joints. A phone arrives with a network issue after a drop; you zoom in on the RF section to check for a cracked PA or a lifted antenna switch before you reach for the hot air station. A device keeps hanging on logo or sits in a boot loop after a failed flash; once your test box and eMMC programmer confirm a memory fault, you use the microscope to lift the eMMC or UFS chip, clean the pads, and inspect them before you restore the chip with your reballing kit. A Samsung or an iPhone comes in with a dead short on the main line; you inject voltage, find the warm component, and then use 40X–65X magnification to remove and replace a capacitor no bigger than a grain of sand. For ISP work on a dead phone, the microscope becomes essential, because ISP points sit on tiny test pads and vias, and you need a steady, magnified view to solder thin jumper wires from your ISP pinout tools to the right CMD, CLK, and DAT points without damaging the board. The same clarity helps when you prepare boards for UFS adapters or verify your work after a CPU reball. In a Pakistani repair market where shops in Lahore, Karachi, Rawalpindi, and Faisalabad handle Oppo, Vivo, Infinix, Tecno, Samsung, Xiaomi, and iPhone boards side by side, one microscope has to handle everything from budget MediaTek boards to stacked iPhone logic boards, and the 6.5X–65X range covers that spread comfortably. Training institutes gain just as much, because the trinocular port lets an instructor put the live view on a screen while students follow every step of a BGA removal or a jumper repair. When you build a complete bench, pair the RF6565TV with a reliable soldering station for fine pad work, a hot air station for chip removal, a digital multimeter for continuity and short checks, a solid PCB holder to keep boards flat under the lens, and reballing stencils for BGA restoration; together these tools cover diagnosis, rework, and final verification. If you currently work under a basic binocular or a magnifying lamp, the RF6565TV gives you a clear upgrade path: you gain higher magnification, true stereo depth, and a camera port for documentation, while keeping a working distance your hands already find comfortable. For technicians who already own a 7X–45X or 7X–50X model, the extra reach to 65X helps with the smallest passive components on current flagship boards, and it turns the RF4 RF6565TV into the tool at the center of every board repair you perform, from the first inspection to the final quality check before you close the phone and hand it back to the customer.

Key Features

  • 6.5X–65X continuous zoom through a 0.65X–6.5X objective for smooth transitions from full-board overview to fine component detail
  • 45° inclined trinocular head with 360° swivel for flexible viewing angles on a shared bench
  • WF10X/22mm wide-field eyepieces with 54–76mm interpupillary range and diopter adjustment on both sides
  • Synchronous zoom between eyepieces and the 1/2 CTV camera port, so the monitor view matches your eyepiece view
  • 100mm standard working distance, extendable from about 30mm to 287mm with an optional 0.5X, 0.7X, or 2.0X Barlow lens
  • Boom stand with 250mm Φ32mm pillar, 200mm × 255mm base, and 50mm focus lift with adjustable handwheel tension
  • 144-LED adjustable ring light with brightness control for even, shadow-reduced illumination
  • Dust-proof protective lens that shields the objective from flux smoke and solder spatter

Specifications

Brand Entity RF4
Product Entity RF4 RF6565TV 6.5X-65X Synchronous Zoom Trinocular Stereo Microscope
Technology Entity Continuous synchronous zoom stereo optics, trinocular 1/2 CTV camera port, 144-LED ring illumination
Compatible Device Entities Android and iPhone motherboards, BGA chips, PMICs, eMMC/UFS memory, SMD components
Repair Process Entity PCB inspection, BGA rework, jumper wire repair, ISP soldering, micro-soldering, short tracing
Industry Entity Mobile phone repair, PCB repair, electronics rework and inspection

Compatible Devices

  • Universal — not device-specific; works with any PCB that fits on the base
  • Android smartphone motherboards (Samsung, Oppo, Vivo, Infinix, Tecno, Xiaomi, and similar)
  • iPhone single-layer and stacked logic boards
  • Tablet, smartwatch, and small electronics PCBs
  • Camera port accepts microscope cameras through a 1/2 CTV adapter (camera depends on package)

Common Repair Uses

  • Board inspection for corrosion, burnt components, and cracked solder joints
  • SMD component removal and replacement (capacitors, resistors, coils, filters)
  • BGA chip removal, pad cleaning, and reballing inspection (CPU, PMIC, eMMC, UFS)
  • Jumper wire repair on broken traces and torn pads
  • ISP point soldering for dead phone data recovery and flashing
  • Charging port, charging IC, and RF section fault inspection
  • Recording repairs for customer proof and technician training

FAQ

What is the product name?
The product name is RF4 RF6565TV 6.5X-65X Synchronous Zoom Trinocular Stereo Microscope.
What is the brand of this product?
The brand of this product is RF4.
What is the model of this product?
The model of this product is RF6565TV.
What is this product used for?
This product is used for magnified stereo inspection, micro-soldering, BGA rework, jumper repair, and ISP soldering on mobile phone motherboards and other PCBs.
Which devices are compatible with this product?
This product is compatible with any mobile phone or electronics PCB that fits on its base, including Android and iPhone motherboards; it is a universal inspection tool, not device-specific.
Who should use this product?
This product is suitable for mobile repair technicians, repair shops, service centers, and professional users.
What working distance does the RF6565TV offer, and can I increase it?
The RF6565TV gives you a 100mm standard working distance. With an optional auxiliary Barlow lens (0.5X, 0.7X, or 2.0X), you can shift it anywhere from about 30mm to 287mm, depending on whether you need more clearance or more magnification.
Does the camera view zoom together with the eyepieces?
Yes. The trinocular port uses synchronous zoom, so the image on your monitor follows the eyepiece magnification across the full 6.5X–65X range. The port uses a 1/2 CTV interface, and the camera itself depends on the package you buy.
