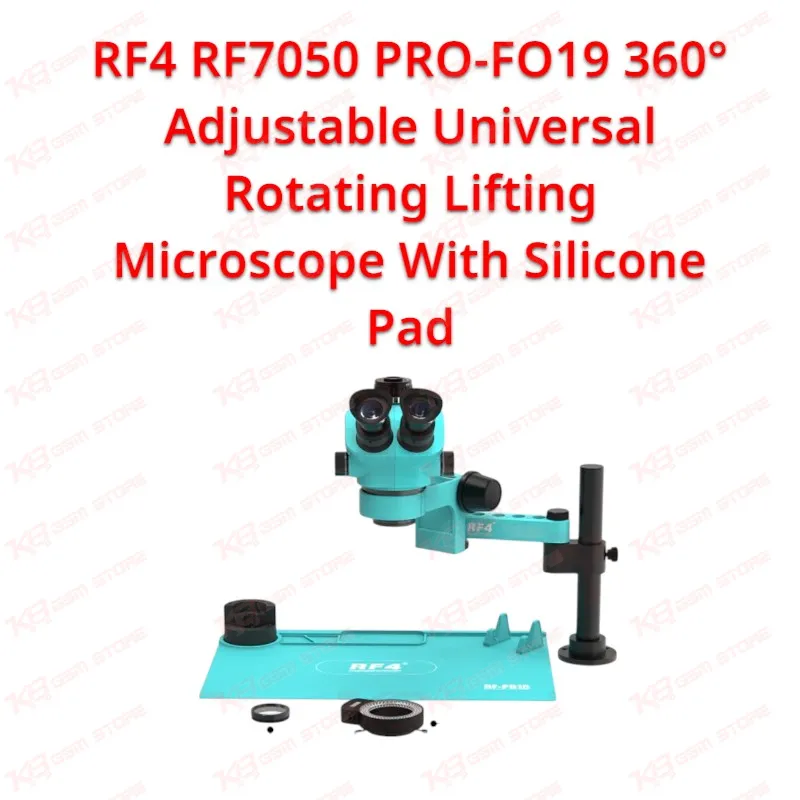

RF4 RF7050 PRO-FO19 360° Adjustable Universal Rotating Lifting Microscope With Silicone Pad

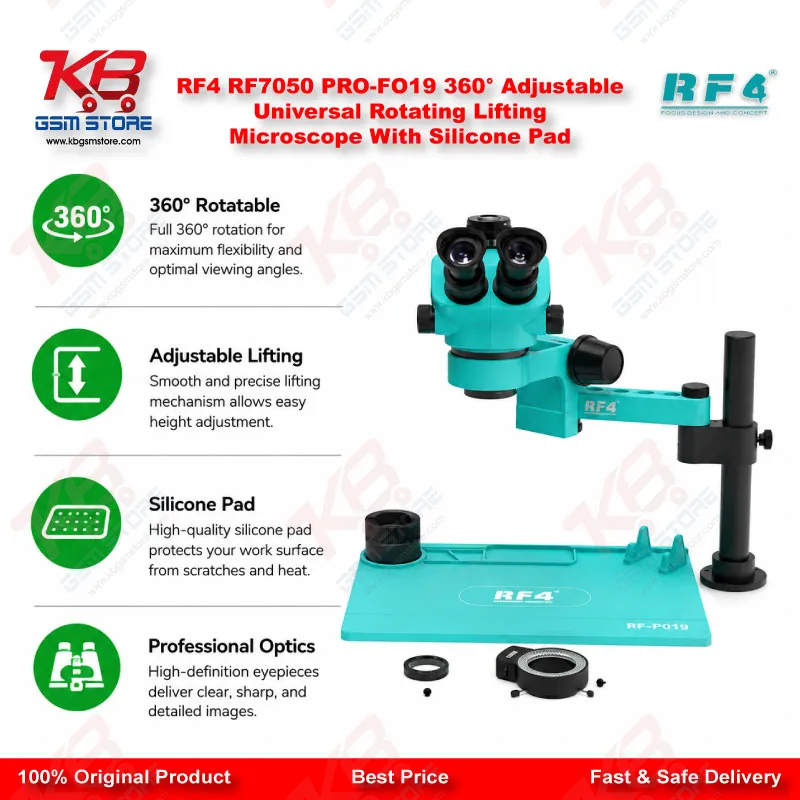

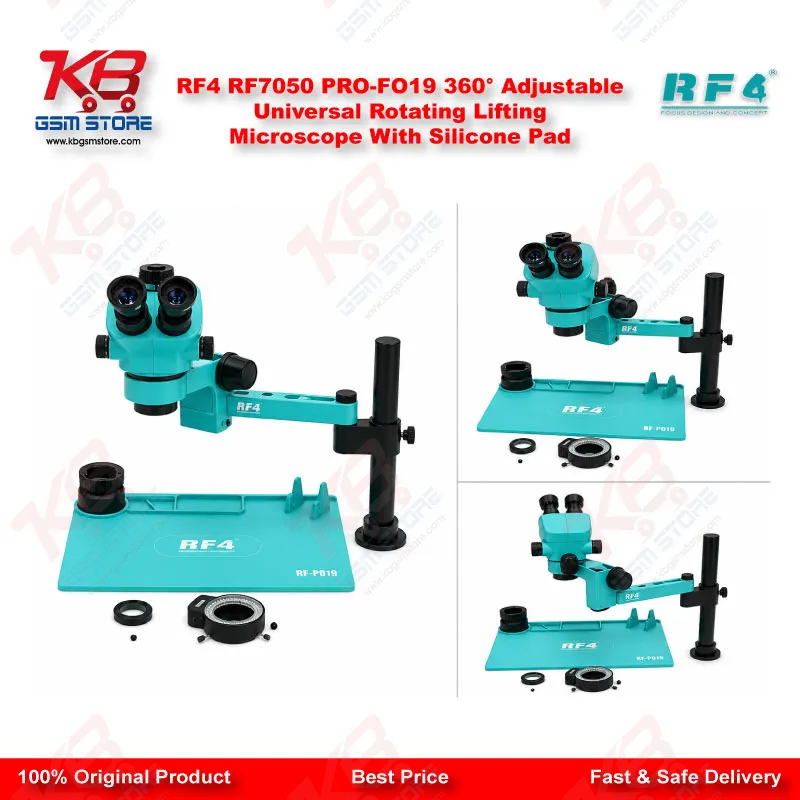

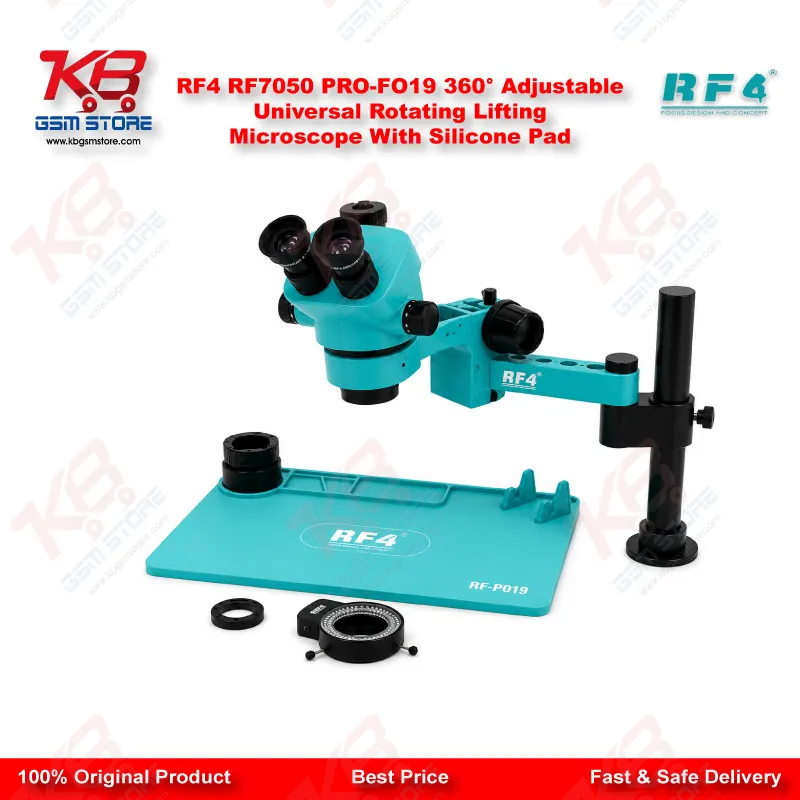

Working on modern boards means dealing with smaller ICs, tighter pad spacing, and solder joints that a naked eye simply cannot judge accurately. The RF4 RF7050 PRO-FO19 solves that problem with a trinocular head that tilts 45 degrees and rotates a full 360 degrees, so you position your eye line exactly where you need it instead of twisting your neck around a fixed microscope body. This matters most during long reballing or micro-soldering sessions, where a badly angled scope turns into hours of neck and back strain.Magnification runs on a continuous zoom from 7X to 50X, controlled through an objective lens rated 0.7X-5.0X paired with WF10X/22mm wide-angle eyepieces. You get a wide field of view at low zoom for locating a component on a crowded board, then tighten the zoom to inspect a single solder pad or a hairline PCB crack without switching lenses or losing image clarity mid-adjustment. The adjustable metal knob locks in fixed steps, clicking at every 10x increase, so you land on a consistent magnification level instead of drifting past the zoom you actually need.Lighting is handled by a 144 LED ring light with a 60mm inside diameter, running on AC 100-240V input and DC 12V output. The light output stays even across the full working area, which cuts down glare on reflective solder and metal shielding — a common issue technicians face when using a weak or uneven light source during IC work. Because the ring sits directly around the lens, shadow interference from your own hands or tools drops significantly compared to an external desk lamp setup.The included 0.5X CTV lens is where this microscope earns its "PRO" tag. Built from aluminum alloy with a copper chrome-plated bayonet mount, the adapter houses a transparent internal mirror that splits the image feed to an external monitor while you look through the eyepieces. Both views stay in sync, so a second technician watching the monitor sees exactly what you see through the scope in real time. This is genuinely useful for training juniors on IC removal or reballing technique, and for recording repair work for documentation or dispute resolution with a customer.Mounting comes through an articulating arm bracket, giving you height and reach adjustment without buying a separate boom stand. The base sits on a 450x280mm silicone repair pad, which does double duty as a non-slip mat for small screws, ICs, and connectors, and as a static-safe, heat-resistant surface during hot air rework. Boards stay put while you work, and small parts don't roll off your bench mid-repair.In a typical repair workflow, this microscope sits at the diagnostics and rework stage. After a board fails a boot check or shows a dead-after-flash condition on the software side, you move to visual and component-level inspection — checking for burnt ICs, lifted pads, corroded connectors, or a botched previous repair. The RF7050 PRO-FO19 is where you confirm hardware fault before committing to an IC change or a jumper. During the repair itself, the same scope guides hot air placement, solder paste application, and post-reflow inspection to confirm a clean joint before reassembly.It fits naturally into eMMC and CPU-level repair too, where BGA pads are small enough that misalignment during reballing causes a dead board even when the IC itself is fine. Zooming in at 30X-50X lets you verify ball alignment before reflow, catching a bridged pad or a missing ball before it turns into a comeback repair.Build quality centers on the aluminum alloy housing for the CTV adapter, giving it enough rigidity to hold focus without wobble during extended sessions. The manual focus method through the adapter ring means you control depth of field directly, which experienced technicians generally prefer over auto-focus units that hunt for focus on reflective solder.For a repair shop running multiple technicians, the synchronous monitor output also helps with quality control — a shop owner or senior technician can review IC-level work on a screen without physically taking over the scope, keeping the bench free for the technician actually doing the repair.Overall, this microscope is built for technicians handling PCB-level and IC-level work daily — not casual hobby use. The combination of continuous zoom, even LED lighting, monitor sync, and a proper repair pad covers most of what a professional mobile repair bench needs from a single microscope setup.
