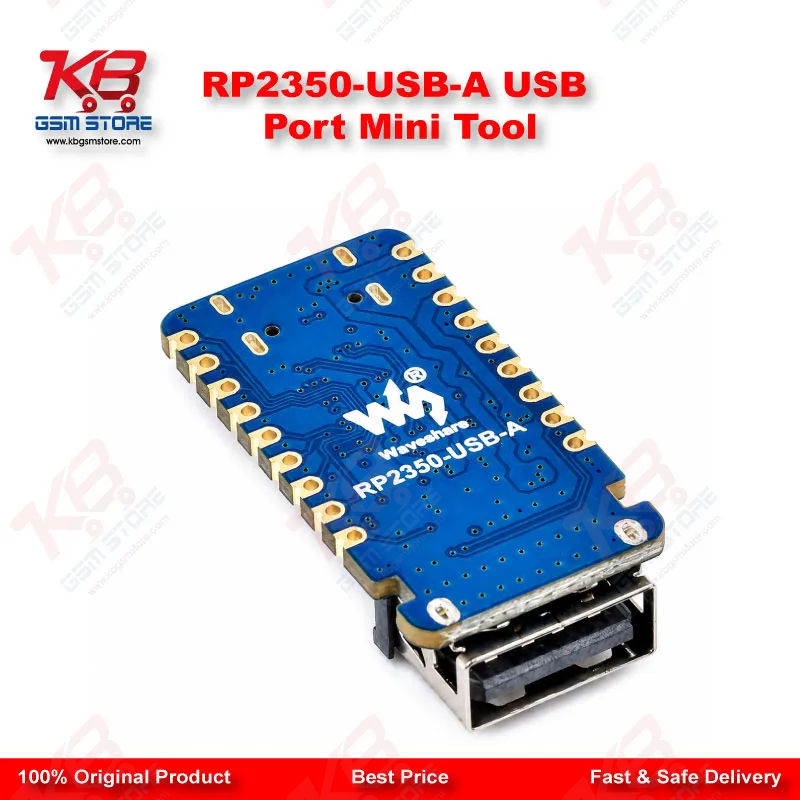

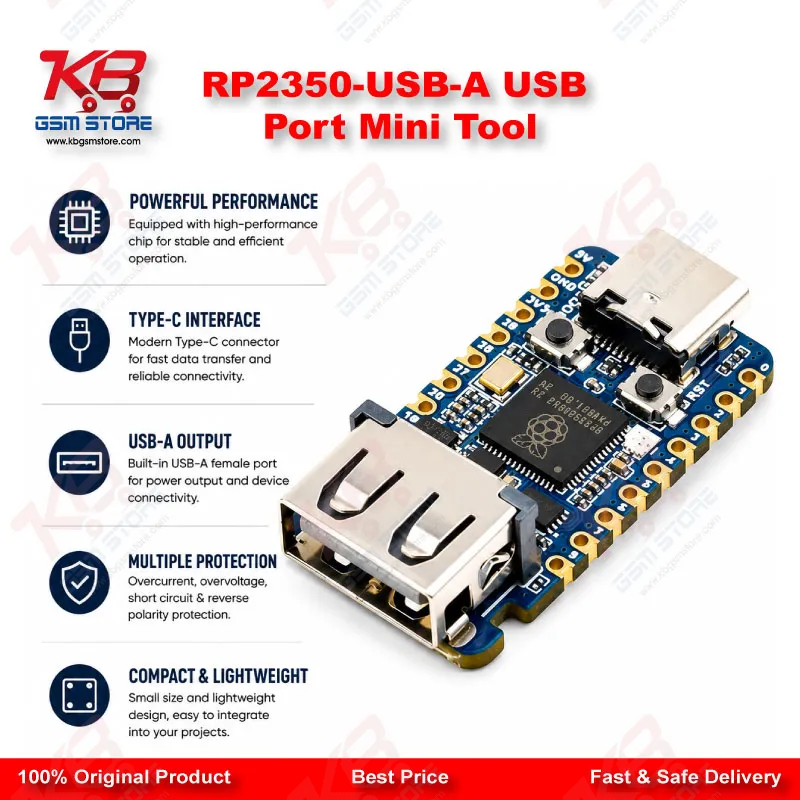

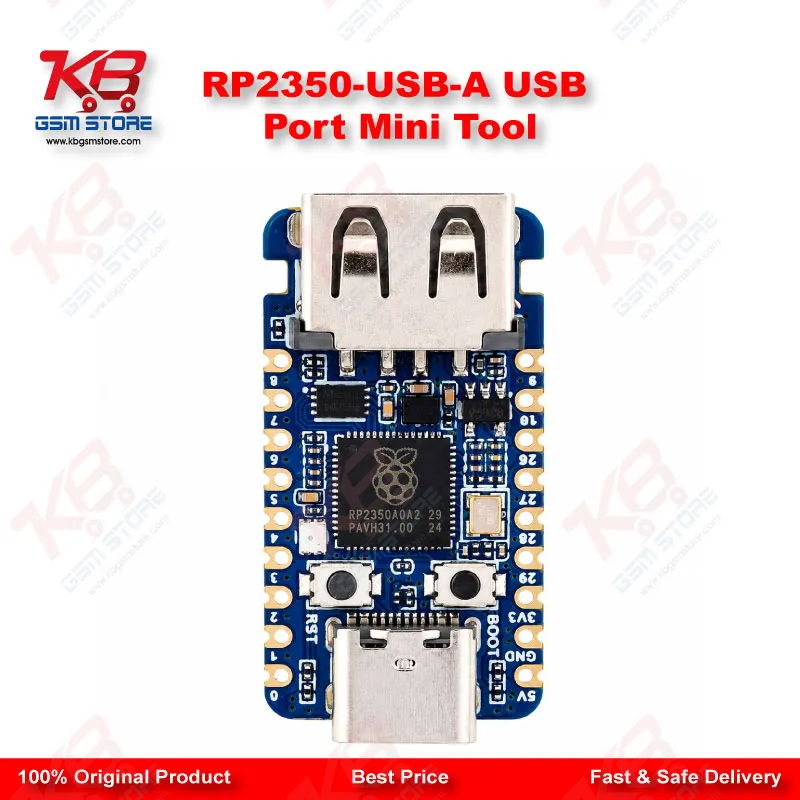

The Waveshare RP2350-USB-A puts Raspberry Pi's RP2350A chip on a board small enough to solder straight into your own hardware. You get a dual-core, dual-architecture setup — an Arm Cortex-M33 pair alongside a RISC-V Hazard3 pair — clocked up to 150MHz, so you can pick whichever architecture your firmware toolchain targets without switching boards. 520KB of SRAM and 2MB of onboard Flash give you room to run real applications rather than toy demos, and the drag-and-drop USB mass storage upload means you flash new firmware by copying a file, no separate programmer required. The USB Type-C port handles both power delivery and the primary programming connection, while a second USB Type-A port sits on the board itself, driven through the RP2350's PIO (Programmable I/O) blocks rather than a dedicated USB controller. That PIO-based Type-A port can act as either a USB host or a USB device, which means you can wire the board to read from a USB peripheral like a keyboard, a flash drive, or a serial adapter, or have the board itself show up as a USB peripheral to a PC. For anyone building a custom bench tool — a jig that reads input from a USB device and relays it over UART, a bridge that lets two different tools talk to each other over USB, or a small automation controller that needs to emulate a keyboard or mass-storage device — this dual-port setup removes the need for a second microcontroller just to handle USB translation. The castellated module design uses a stamp-hole edge along the board, so you can reflow-solder it directly onto a carrier PCB the same way you'd place any other SMD component, which matters if you're designing a permanent fixture rather than prototyping on a breadboard. Quick prototyping still works fine too, since the pin spacing matches standard header layouts. You get 15 multi-function GPIO pins broken out for general digital I/O, alongside two SPI buses, two I2C buses, two UART interfaces, four 12-bit ADC channels for analog sensing, and fourteen PWM-capable channels for motor control, LED dimming, or signal generation. Twelve PIO state machines sit behind the scenes, giving you the flexibility to bit-bang custom protocols in hardware-timed loops when none of the built-in peripherals match what you need — this is the same PIO subsystem that makes the onboard USB Type-A port possible in the first place. An onboard RGB LED gives you a quick visual status indicator without wiring an external one, useful when you want the board to signal states like "connected," "flashing," or "error" during testing. Low-power sleep and dormant modes let the board idle at minimal draw when it's sitting in a battery-powered fixture waiting for an event, then wake up fast when needed. You can program the RP2350-USB-A in C/C++ through the Pico SDK, in MicroPython, or through the Arduino IDE with the Arduino-Pico core, so the toolchain choice comes down to what you're already comfortable with rather than what the hardware forces on you. In a repair or electronics workshop, boards like this typically end up inside custom test fixtures — something you build once to automate a repetitive check, drive a set of relays, read sensor data during a diagnostic sequence, or act as a USB-to-serial bridge between two pieces of bench equipment that don't otherwise talk to each other. It isn't a phone-model-specific flashing tool and it doesn't come preloaded with any repair firmware; what it gives you is a small, solderable, dual-USB-capable brain you can build your own tool around.
