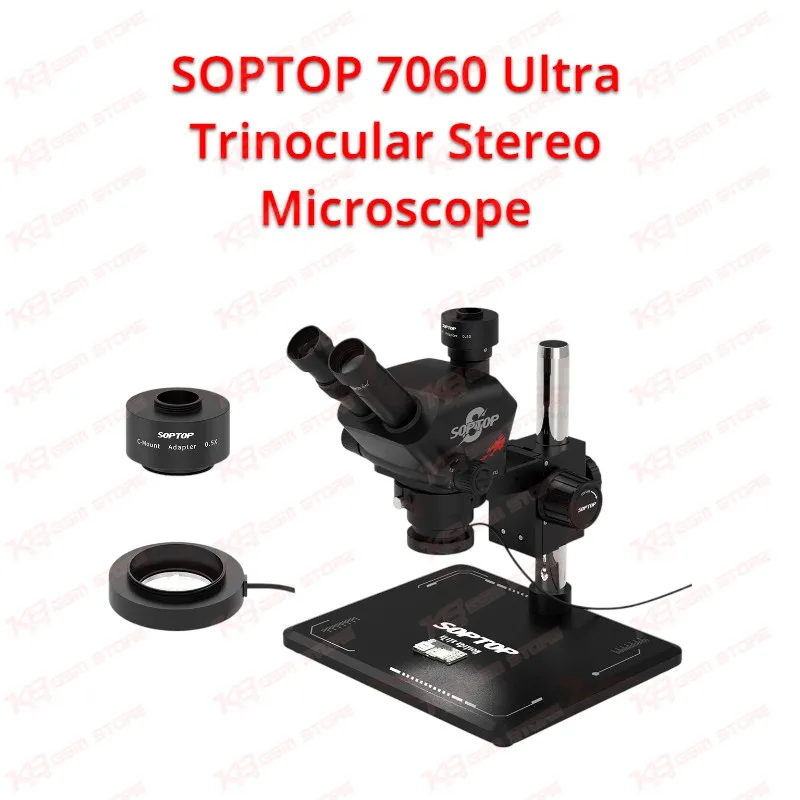

SOPTOP 7060 Ultra Trinocular Stereo Microscope

Soptop 7060 Ultra 7-60X Adjustable Zoom Trinocular Stereo Microscope with Big Base for PCB Repair

SOPTOP 7060 Ultra Trinocular Stereo Microscope Best Price in Pakistan

• 7-60X HD Zoom for Micro Repairs: Crisp imaging with continuous zoom, ideal for SMD components and iPhone motherboard diagnostics
• 102mm Ultra-Long Work Distance: Ample space for tools and hands, reducing obstruction during intricate phone repairs
• 360° Rotatable Trinocular Head: Switch angles effortlessly for multi-angle inspections without moving the workpiece
• Stable All-Metal Construction: Precision slide rail and focus lock ensure vibration-free, long-term stability
• Large Base & Optional Lighting: 320mm platform fits bulky devices, and original fill light enhances dark-area visibility
• The CTV Lens easy to install, equipped with full coke locking mechanism
• The large base is more like a work platform, which can accommodate larger volume items, and the large base design has wider compatibility
• LED multi bead fill light, high brightness,no flicker screen, long service life, metal shell easy to dissipate heat, compact design,easy installation, convenient and fast
• Manual macro adjustment, 50mm macro adjustment, precision linear slide rail has strong stability, It has high structural strength and strong stability, long term use without decline
• Upgrade single-sided binocular simultaneous adjustment, focusing is easier and avoids confusion caused by misoperation, with adjustable left and right linkage design for pupil distance
• In different usage scenarios,when observing objects, it is often necessary to switch between different angles, at this time, simply rotate the observation head to immediately switch angles

Specification:

• Model: 7060 Ultra
• Optical power: 7~60X
• Viewing head: Three eye observation head,tilted at 45,continuous zoom objective lens 0.7-6X, pupillary distance adjustment range 55mm-75mm, with built-in interlocking mechanism, single view adjustable lens barrel, and fixed zoom mechanism
• Eyepiece: High eye point, large field of view, flat field eyepiece WF10X/22mm
•  Work distance: Ultra long working distance of 102mm
• Focusing bracket: The focusing handwheel has adjustable elasticity and a lifting range of 50mm
• Working platform: Black and white tabletop
• Base: Column type large flat base, length 230mm, LxW:260x320mm.
• C-type interface: 0.35X, 0.5X, 0.65X, 1X camera receiver (0.5X CTV as standard), C-type interface,adjustable focus
• Optional objective lens: 0.5X, 0.75X, 1.5X ,2X
• Optional eyepiece: 15X/15mm, 20X/10mm (WF10X/22mm as standard)

Package includes:

• 1 x SOPTOP 7060 Ultra Trinocular Stereo Microscope
