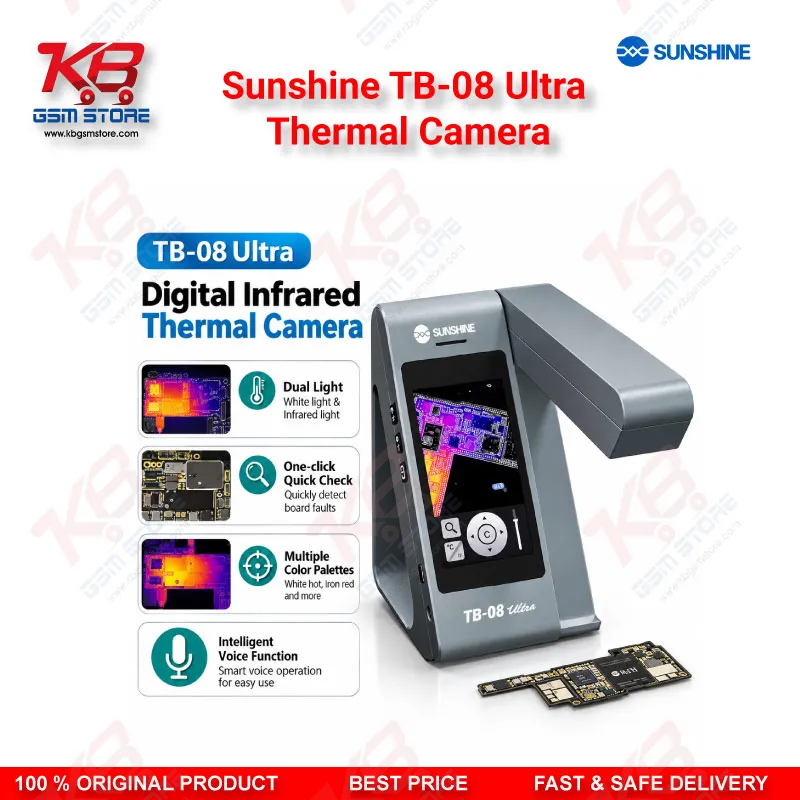

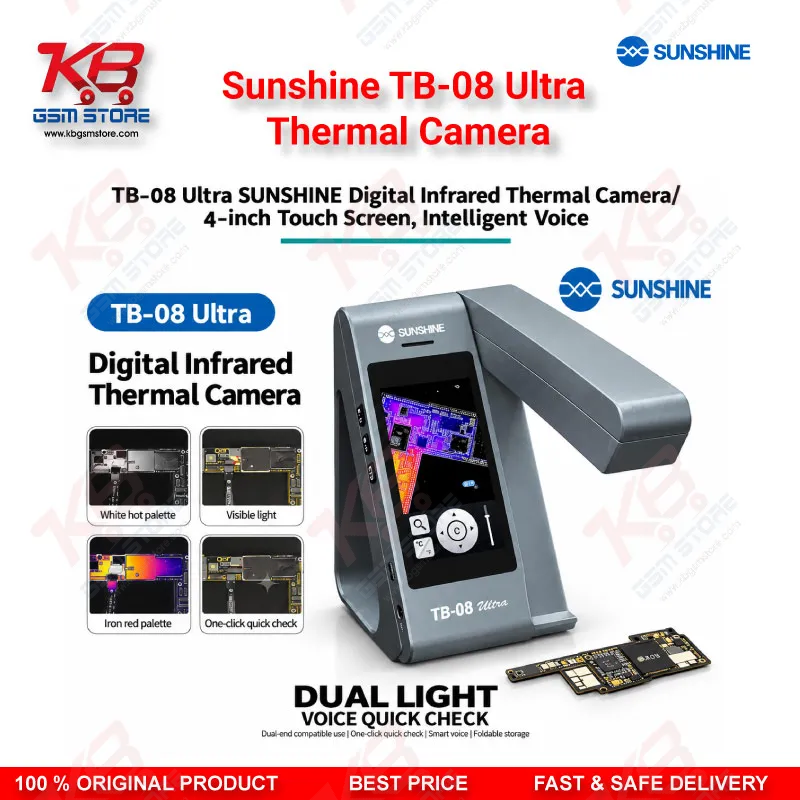

Every technician in Pakistan knows the moment: a customer drops a dead phone on the counter, the DC power supply shows a current draw the instant you connect the battery line, and somewhere on a board packed with hundreds of tiny capacitors sits one shorted component eating that current. The Sunshine TB-08 Ultra Thermal Camera exists to end that search quickly. Instead of burning rosin, spraying freeze spray, or touching components with your fingertip, you inject voltage, watch the screen, and let heat point you straight to the fault. Sunshine built this unit around an uncooled vanadium oxide (VOx) detector with a 256×192 infrared resolution that reads the 8–14 µm long-wave band, the range where a warming component on a PCB shows most clearly. What separates the TB-08 Ultra from basic thermal viewers is dual light fusion: the camera blends the infrared image with a high-definition visible light image captured at 3864×2192, then runs a super-resolution algorithm and center zoom over the combined picture. This matters on a real repair bench, because a plain thermal image shows you a bright blob, while a fused image shows you that bright blob sitting exactly on a specific small capacitor next to the PMIC, with the component outlines still visible. You stop guessing which of three neighbouring parts carries the heat and go straight to the right one with your hot air station or soldering station. The camera offers three display modes — visible light, thermal imaging, and quick check — and the quick check mode suits the most common job in any Pakistani repair shop: a short on the main power line that kills the phone completely. Power the board through your DC supply at a safe voltage, switch to quick check, and the shorted capacitor or failing IC stands out on screen. The same workflow helps with a charging issue where the charging IC runs hot, a phone that heats up in standby, a board that hangs on logo because a power rail collapses under load, or a device that goes dead after flash and actually carries a hardware fault rather than a software problem. Thermal diagnosis also saves you from unnecessary work: when the camera shows no abnormal heat at all, you know to move toward software checks with your test boxes, ISP pinout tools, eMMC programmers, or UFS adapters instead of lifting chips blindly. The built-in 4-inch IPS touchscreen makes the TB-08 Ultra ready to use the moment you switch it on. You don't need a laptop, a phone app, or an external monitor to start working; the unit powers up, the image appears, and you control everything by touch. Keep in mind that the Ultra has no HDMI output, so it does not drive a TV or monitor directly. When you want a larger view for training students, recording a repair, or showing a customer exactly where the fault sits, you connect the camera to a computer over its Type-C USB 2.0 port. This dual-end design lets one tool serve a single-technician bench, a busy service center, and a technical training institute equally well. Smart voice control solves a problem every board-level technician faces: your hands stay busy. While you hold tweezers in one hand and a probe or soldering iron in the other, you can switch display modes, change color palettes, adjust image quality, or shut the unit down with a voice command instead of reaching for the screen. It sounds like a small convenience until you count how many times a day you put tools down just to press a button. The TB-08 Ultra measures temperatures from -20°C up to 550°C with an accuracy of ±3°C or 3%, whichever figure comes out greater, and it works at a measuring distance of 13 cm with a 24.8° × 18.7° lens field of view. That narrow field keeps pixel density concentrated on the section of the motherboard you actually care about rather than spreading it across your whole bench. You save captures as JPG images, which makes it easy to keep repair records, send a thermal shot to a colleague, or build a reference library for boards you repair often. The interface supports Chinese and English. Sunshine designed the lens to fold down when you finish work, and the folded structure protects the optics from dust, scratches, and knocks — a real concern in workshops where flux fumes, solder balls, and falling screwdrivers are part of daily life. The unit runs on DC 12V through the included power adapter, weighs 1260 g, and measures 104 × 125 × 170 mm, so it sits comfortably beside your microscope without crowding the bench. Where does a thermal camera fit in the full repair workflow? Think of it as the diagnostic step between measurement and rework. Your multimeter in diode mode tells you a line has a short to ground; your DC power supply tells you how much current the board pulls; the TB-08 Ultra tells you exactly which component causes it. From there, you secure the board in a PCB holder, remove the faulty part with hot air, fit the replacement, and if the fault involves a BGA chip such as the CPU, PMIC, or storage IC, you move to your reballing kit and stencil work. After the repair, you power the board again and use the camera to confirm that the hot spot has disappeared and no new component runs hot — a quick quality check that cuts down on comebacks. For shops that handle Samsung, Oppo, Vivo, Infinix, Tecno, Xiaomi, and iPhone boards every day, this non-contact method works the same across brands because it reads heat, not schematics. It also helps when you work on a board without a schematic or boardview, a common situation with newer budget models in the local market: the camera finds the hot component even when you don't know the circuit. Technicians moving up from freeze spray and rosin smoke notice the difference quickly: no residue on the board, less risk of moisture around sensitive ICs, and a visual record of the fault you can show the customer before you quote the repair. For repair shop owners, faster diagnosis means more jobs finished per day and fewer boards sitting in the pending tray. Whether you are upgrading an older thermal viewer or building your first professional board repair setup, the Sunshine TB-08 Ultra Thermal Camera gives you a modern fused-image diagnostic tool that belongs alongside your microscope, soldering station, and DC power supply as core equipment for serious motherboard repair.
