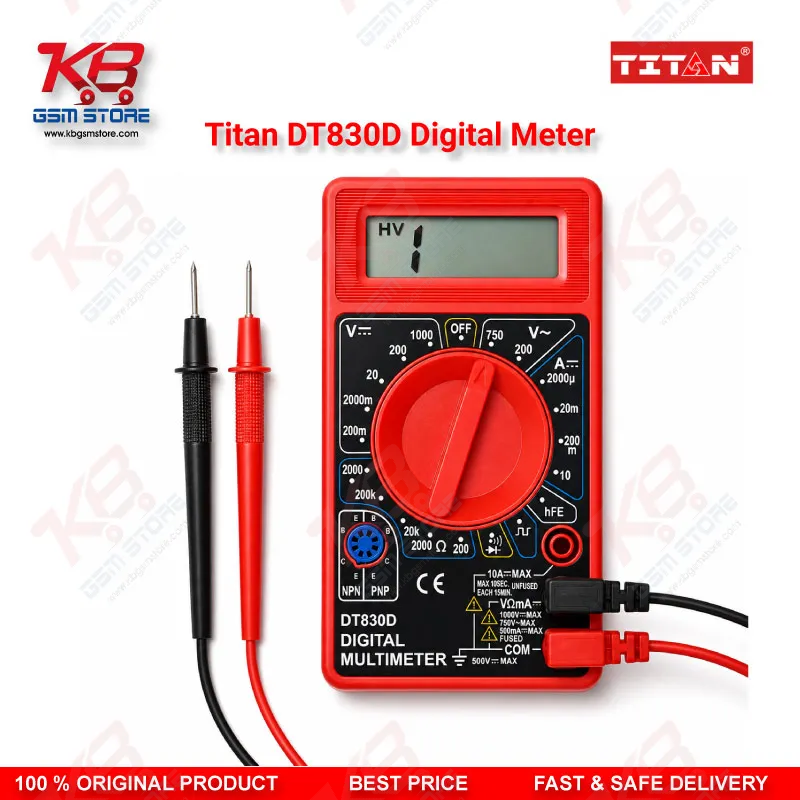

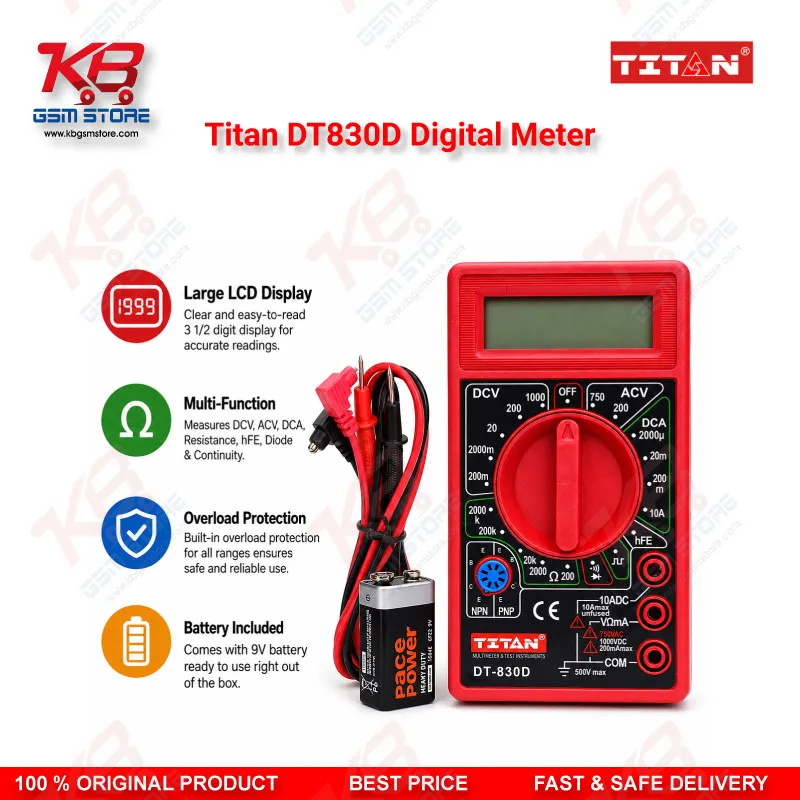

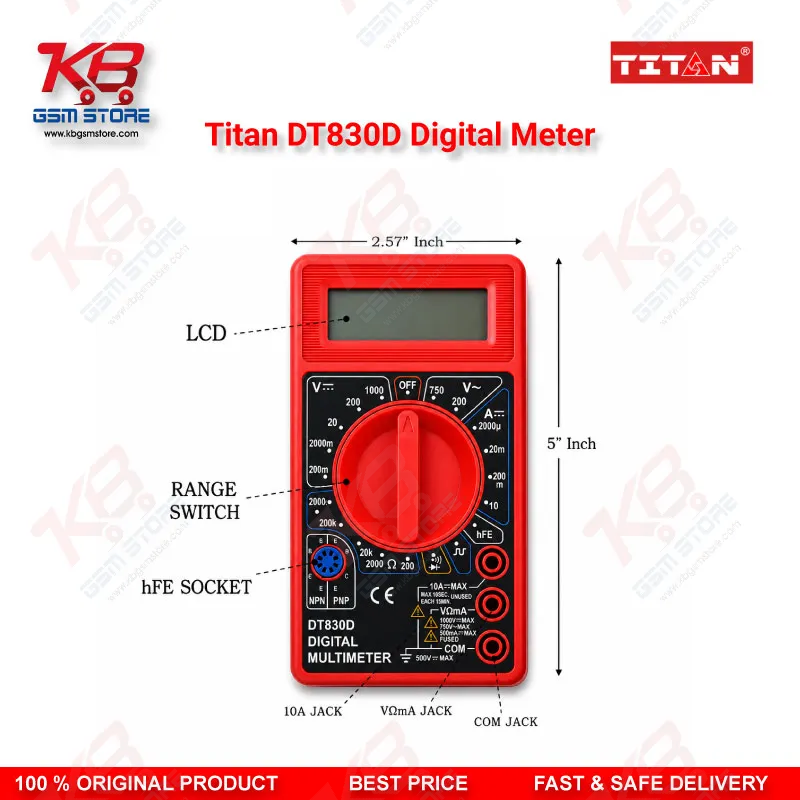

When a phone comes in dead or stuck on a boot loop, the first tool you reach for is a multimeter, and the Titan DT830D handles that first diagnostic pass without complications. You get a 3½ digit LCD display with a maximum reading of 1999, large enough to read at a glance under workshop lighting, and a single rotary selector switch that moves you between DC voltage, AC voltage, DC current, resistance, diode test, and transistor hFE test without digging through menus. DC voltage measurement covers 200mV up to 1000V with 0.5% accuracy, so you can check everything from a coin cell to a laptop charger rail on the same meter. AC voltage measurement goes up to 750V with 1.0% accuracy, useful for verifying mains-side components on power adapters and SMPS boards. DC current measurement spans 20µA to 10A with 1.8% accuracy, giving you enough range to catch a phone board pulling excess current on a shorted PMIC line, or to confirm a charging IC draws current within spec. Resistance measurement runs from 200Ω to 2000KΩ with 1.0% accuracy, which covers the typical range you need when checking filter resistors, pull-up resistors, and coil continuity on a mobile board. Diode test mode applies roughly 2.8V at 1mA and shows the forward voltage drop directly on the display, so you can compare a suspect diode or protection component against a known-good reference and spot a shorted line in seconds. Continuity mode adds an audible buzzer, letting you trace jumper points and check for broken tracks without watching the screen the whole time, which speeds up board-level fault finding considerably. The transistor hFE test checks current gain on NPN and PNP transistors, a feature that comes in handy when working on older boards or general electronics repair outside the phone bench. Overload protection and a double fuse design protect the meter and the board under test from accidental miswiring, a real concern when you're moving fast between multiple repair jobs in a day. Square wave output at the frequency setting gives you a basic signal source for quick continuity or trigger checks on logic-level circuits. The compact 125x70x29mm body and roughly 146g weight keep the meter light enough to hold with one hand while probing with the other, and it runs on a single 9V 6F22 battery that's available at any local shop. Auto polarity display means you don't need to worry about reversing your leads when checking DC voltage or current, which saves time during repeated diagnostic passes. For a repair shop or service center handling charging issues, display problems, network issues, or general hardware faults, having a dependable multimeter on the bench cuts diagnostic time before you move to more advanced tools like an ISP box or a boot line tester. Students, hobbyists, and electronics enthusiasts get the same practical value, since the DT830D covers the core measurement functions needed for general circuit troubleshooting, component testing, and educational lab work. The included test probe leads are ready to use out of the box, so there's no extra purchase needed to start testing. Whether you're confirming a battery connector reads the correct voltage, checking a charging port for a short to ground, or verifying a fuse hasn't blown, the Titan DT830D gives you a straightforward, accurate first step in the diagnostic process.
