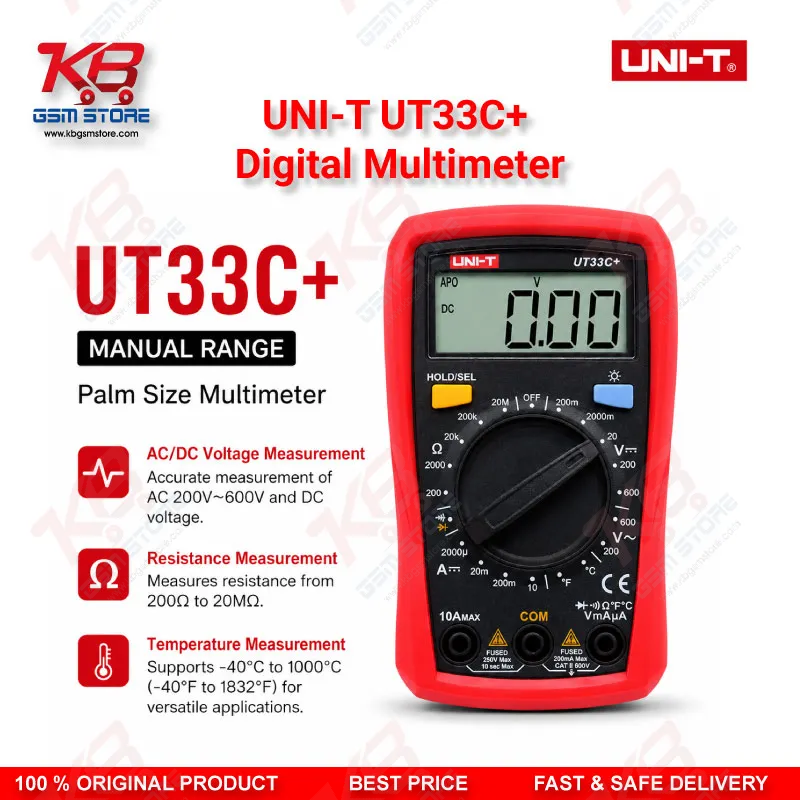

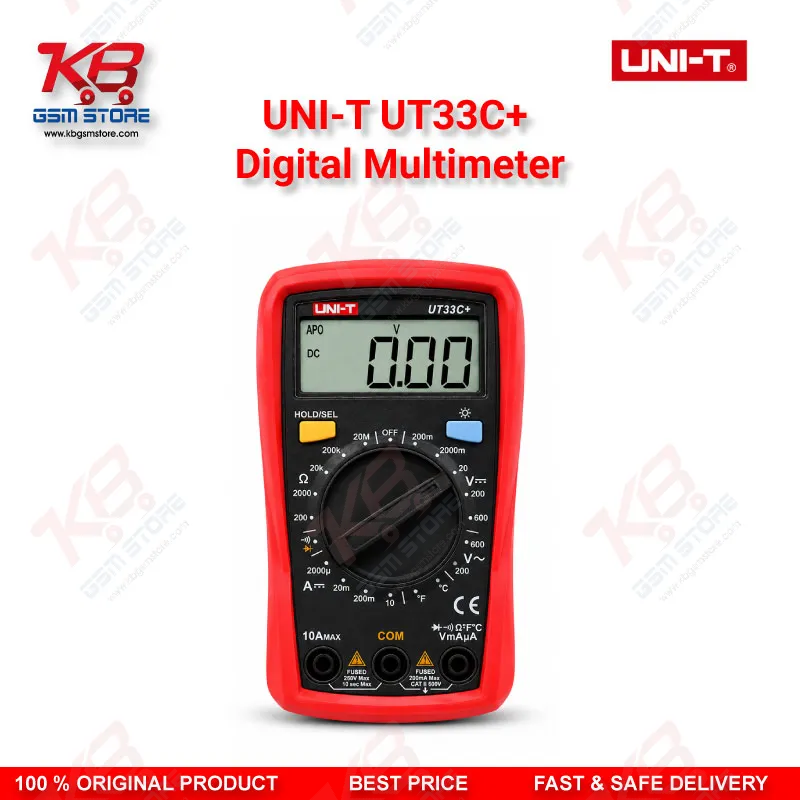

UNI-T UT33C+ Digital Multimeter – Palm Size DMM with Temperature Measurement

If you're running board-level repair on a bench in Lahore or Karachi, you need a multimeter that gives you accurate readings without slowing down your workflow. The UT33C+ handles voltage checks, continuity testing, and diode testing on phone PCBs, chargers, and repair fixtures, and it adds one function most entry-level meters skip: temperature measurement.

Voltage and Resistance Testing

On DC voltage, the UT33C+ covers 200mV, 2V, 20V, 200V, and 600V ranges with accuracy rated at ±(0.5%+2). That's tight enough for checking supply rails, battery voltage, and charging IC output on a phone board. AC voltage measurement runs on 200V and 600V ranges at ±(1.2%+3) accuracy, so you can test mains-side components on power supplies and adapters used in your workshop. DC current measurement spans 2000μA, 20mA, 200mA, and 10A at ±(1%+2) accuracy, giving you the range to check everything from a low-draw sensor line to a charging circuit under load. Resistance testing covers 200Ω through 20MΩ at ±(0.8%+2) accuracy, which is enough range for tracing shorted traces, checking coil values, or verifying resistor networks on a motherboard.

Temperature Measurement for Repair Work

This is the feature that sets the C+ variant apart in the UT33+ lineup. The meter reads -40°C to 1000°C (-40°F to 1832°F) with a K-type thermocouple probe included in the box. That range covers hot air station calibration, soldering iron tip verification, and preheater temperature checks — tasks you'd otherwise need a separate thermometer for. If your hot air station's display seems off, you clamp the thermocouple near the nozzle output and confirm the actual airflow temperature against what the station shows.

Diode Test, Continuity, and Data Hold

The UT33C+ includes diode testing and a continuity buzzer, so checking a suspected shorted diode or tracing a broken trace doesn't require switching tools. Data hold locks the display when you're working in an awkward spot on the board and can't watch the screen and the probe tip at the same time. Auto power-off kicks in when the meter sits idle, so you're not swapping batteries every other day from someone forgetting to switch it off.

Build and Safety

The UT33+ series carries a CAT II 600V safety rating, which matters if you're testing anything connected to mains power, not just low-voltage board work. The casing includes overload protection, and the meter is built to survive a 2-meter drop — a real consideration on a busy repair bench where tools get knocked around. The unit ships with a 2000-count LCD display measuring 66mm x 51mm, large enough to read clearly under bench lighting without squinting.

Fit in Your Repair Workflow

For a GSM technician, this meter sits at the diagnostic stage — before you decide whether a board needs an IC change, jumper work, or full board cleaning. You use it to confirm whether a dead phone has a power rail issue versus a software fault, whether a charging IC is passing voltage correctly, or whether a hot air station's calibration has drifted. It pairs naturally with your existing ISP tools, eMMC programmers, and reballing stations as part of a complete diagnostics-to-repair setup.

What's in the Box

The package includes batteries, test leads, and a K-type thermocouple probe, so you can start testing voltage and temperature right out of the box without buying accessories separately.If you run a repair shop handling multiple boards a day, having a dedicated temperature-capable multimeter on the bench saves you from guessing whether your hot air station or soldering iron is running at the temperature it claims — a detail that directly affects reballing and IC reflow success rates.
