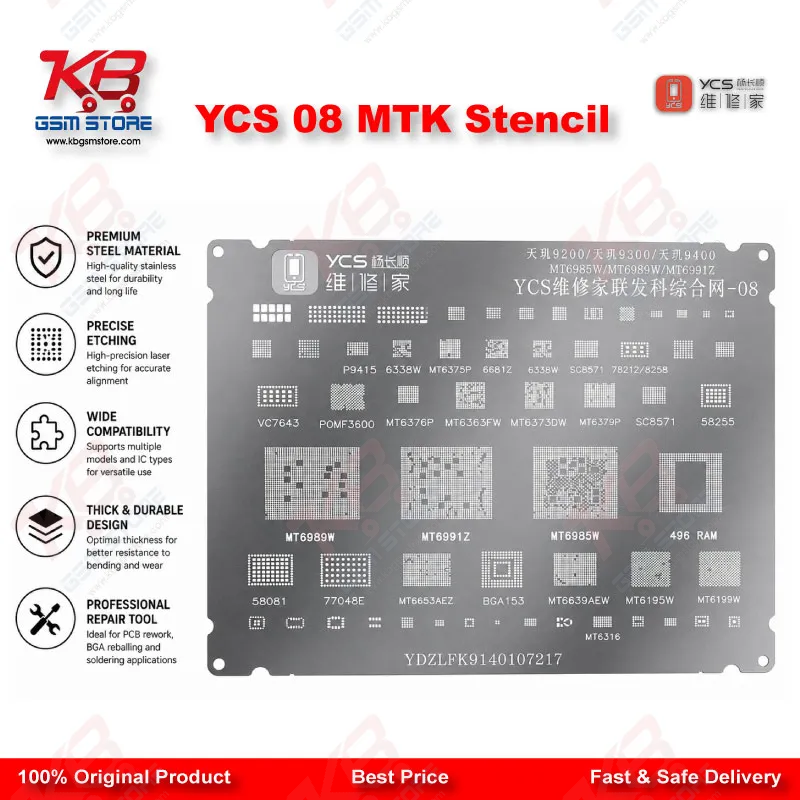

YCS 08 MTK Stencil – Dimensity 9200/9300/9400 BGA Reballing Plate

When a flagship MediaTek board lands on your bench with a dead CPU, a bad PMIC, or a board that won't power up after a drop, the reballing step is where most repairs succeed or fail. The YCS 08 MTK Stencil is designed exactly for that moment, giving you a single comprehensive plate that covers the Dimensity 9200, 9300, and 9400 chipset family, including MT6985W, MT6989W, and MT6991Z CPU footprints. You also get accurate ball patterns for a long list of companion ICs on the same board, such as P9415, MT6375P, 6681Z, SC8571, VC7643, POMF3600, MT6376P, MT6363FW, MT6373DW, MT6379P, MT6653AEZ, MT6639AEW, MT6195W, MT6199W, and MT6316, along with BGA153 and 496 RAM footprints. That range matters because a flagship motherboard rarely has just one faulty chip, and switching stencils mid-repair slows your workflow and increases the risk of pad damage. The plate is laser-etched on premium stainless steel, so the mesh holds its shape through repeated use instead of warping or losing precision after a few reflow cycles like cheaper plates do. Etching accuracy directly affects your ball height and solder joint quality, so a stencil with tight, consistent openings gives you fewer cold joints and fewer callbacks on the same board. The thickness is built to resist bending during handling and cleaning, which matters on a busy bench where stencils get stacked, wiped down, and reused dozens of times a week. You place the stencil over the cleaned pad, apply solder balls or paste through the etched openings, and reflow with your hot air station or infrared preheater, then lift the plate cleanly without disturbing the fresh joints. This stencil fits directly into standard reballing, CPU rework, and PMIC replacement workflows, sitting alongside your hot air station, preheater, and BGA reballing kit as one of the core tools for flagship MediaTek board repair. For a technician handling dead phone cases, boot loop issue boards, or charging issue complaints traced back to a power IC, having the correct footprint on hand means you go straight from diagnosis to IC change karna without waiting on a supplier or improvising with a mismatched template. It also covers common no display and network issue cases where the fault traces back to an RF or PMIC chip rather than the main CPU, so one plate handles multiple repair scenarios on the same generation of boards. Because it is a comprehensive network stencil rather than a single-chip plate, it reduces the number of individual stencils you need to stock for Dimensity 9200 to 9400 generation repairs, which saves bench space and repair time on high-volume flagship service work. The stencil ships as a flat plate ready for immediate use, with the chip layout and part numbers etched directly on the surface so you can identify the correct footprint at a glance without checking a reference sheet mid-repair. This makes it practical both for experienced GSM technicians running fast turnaround shops and for repair centers standardizing their toolkit around current-generation MediaTek flagship chipsets. If your workshop regularly sees Dimensity 9200, 9300, or 9400 based devices for hardware fault diagnosis, CPU reballing, or PMIC replacement, this stencil covers that entire chip family on one plate instead of several.
