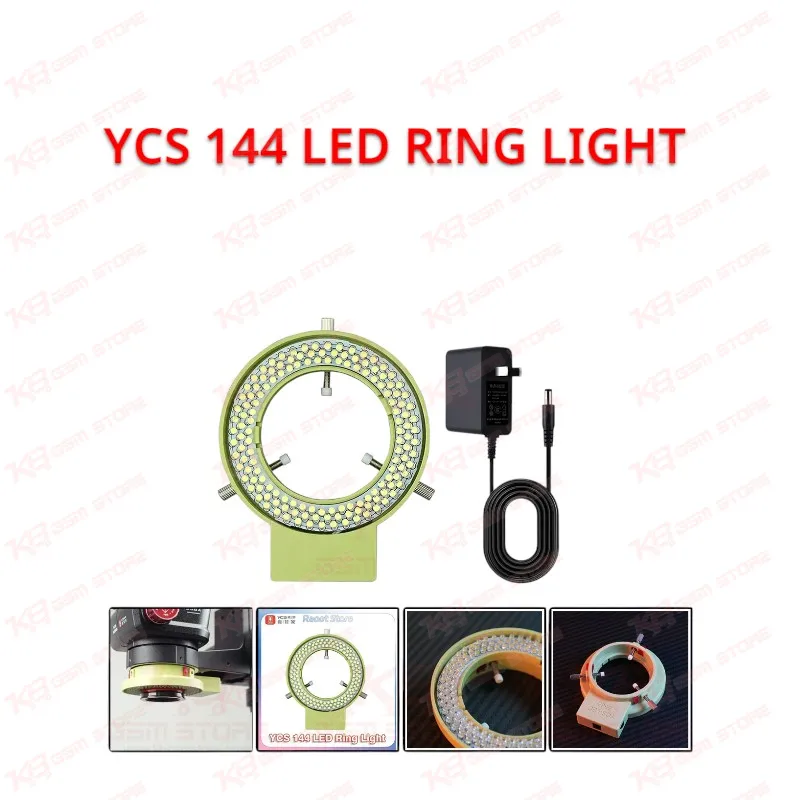

The YCS 144 LED Ring Light solves the problem every board-level technician knows too well: you put a dead phone under the microscope, zoom in on the PMIC area, and the overhead tube light throws a dark shadow right across the pads you need to see. This ring places 144 LEDs in a full circle around your microscope’s objective, so light hits the board from every side at once and the shadows behind tall components, shields and capacitors drop away. You stop tilting the board, moving desk lamps and guessing whether that dull joint has cracked or just looks dark. On a busy repair counter in Lahore, Karachi or Islamabad, that alone saves real minutes on every job. Brightness control matters more than most technicians expect. Bare copper pads, fresh leaded solder and the mirror-like top of a CPU all bounce light straight back into the eyepieces at full output, so you dial the intensity down when you clean pads after removing an IC and bring it back up when you trace a dark FPC connector or read faded markings on a charging IC. One light covers both jobs without glare washing out the detail. The ring runs from a separate power adapter rated for 110V to 240V input, so it plugs straight into standard Pakistani 220V mains without a step-down transformer and draws nothing from your microscope or camera. LED beads run far cooler than old halogen or bulb-type illuminators, which keeps heat away from your hands, the objective lens and the board while you work long sessions under magnification. Think about where this light fits in your repair workflow. During diagnosis, you inspect the logic board for liquid damage, green corrosion around connectors, burnt components and lifted pads before you even connect the DC power supply. During rework, you watch solder reflow under your hot air station, check whether underfill has softened around a NAND or eMMC chip, and confirm every ball sits clean after reballing. During microsoldering, you run jumper wires across broken traces and need even light along the entire path, not a bright spot on one end. After the repair, you run your final quality check on each joint before the phone goes back into its housing. Each of these stages depends on clear visibility, and uneven light causes the comeback jobs that eat into shop profit: a charging issue that returns because of one cold joint, a network issue from a missed solder bridge near the RF section, or a hang on logo fault you blame on software while a cracked capacitor sat right in front of you. The YCS 144 LED Ring Light also works around camera lenses and magnifiers, so technicians who record repair videos or run a microscope camera for their shop’s social media get cleaner, evenly lit footage without hard shadows across the frame. Before ordering, measure the outer diameter of your microscope’s objective housing and compare it with the ring’s mounting bore, because stereo microscope bodies vary from model to model. Pair this light with a stable PCB holder and a good stereo microscope from the KB GSM Store Microscopes category, and you get a bench that handles everything from simple charging port jobs to full CPU reballing. A trinocular microscope with an attached camera makes the natural upgrade path, and this ring light keeps the same shadow-free coverage on that setup too. For technicians who already own a hot air station, soldering station and reballing kit, the right lighting completes the bench, and it costs far less than a single comeback job. Whether you run a small repair counter or a full service center, this ring light gives your team consistent, shadow-free visibility on every board you open.
