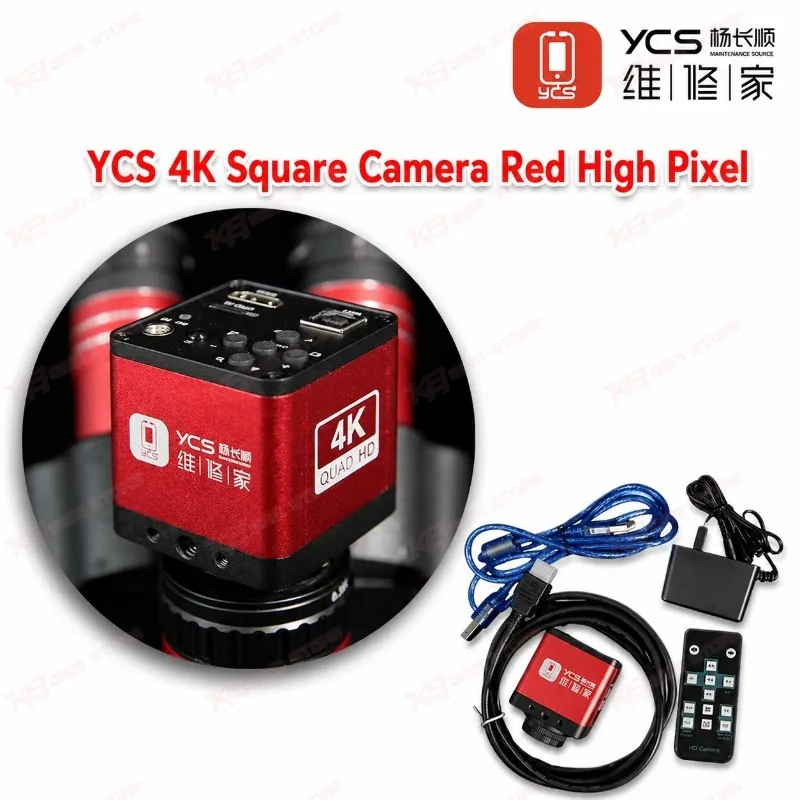

When a board comes in with a hardware fault you cannot see with the naked eye, the image on your screen decides how fast you find it, and the YCS 4K Square Camera Red High Pixel gives your trinocular microscope a sharp 4K view that you watch on a monitor instead of staring through the eyepieces all day. You fit the camera on the third port of your stereo microscope, run an HDMI cable straight to a display, and the camera pushes out a 4K high-definition picture without any host computer in between, so your bench stays simple and you skip the driver headaches that slow down a busy repair shop. Inside the red square body sits an imported CMOS image sensor with a 1/1.8-inch target surface, and that large sensor area collects more light from the microscope optics, which helps you see fine solder joints, tiny capacitors, and the edges of BGA balls with cleaner detail than a small-sensor budget camera usually delivers. Colour accuracy matters on the repair bench because you judge flux residue, burnt components, corrosion, and overheated pads by colour, and the camera handles this with one-click automatic white balance, so you press a single button and the picture corrects itself instead of you fiddling with manual settings every time you change your ring light or move the board. For a dead phone that shows no current draw or a short on the main line, you hunt through dozens of 0201 and 01005 parts around the PMIC, and a big 4K picture on a monitor lets you scan the area quickly, spot a cracked capacitor or a lifted pad, and point your thermal camera or freeze spray at the right zone. On charging issue jobs you inspect the charging IC area and the USB connector pins for corrosion and bad joints, and on display problem jobs you check the FPC connector pins and the filter components around the backlight line, and in both cases a clear screen view helps you work faster and with less eye strain. Network issue repairs often take you under shields to the RF and PA area, where tiny components sit close together, and the higher resolution helps you separate one component from the next before you touch anything with your hot air or soldering iron. When you take on IC replacement work, such as swapping a PMIC, charging IC, or audio IC, you watch the solder melt, check the alignment of the new chip, and confirm that every pin joint looks clean, all on the monitor while your hands stay steady under the microscope. CPU and eMMC or UFS reballing jobs on boot loop issue phones, hang on logo phones, and boards that went dead after flash need careful inspection of the ball grid and the pads after cleaning, and the 4K output shows you missing balls, bridged pads, and damaged traces before you place the chip back. Jumper wire work becomes easier too, because you see the exact trace path, the via you plan to use, and the thickness of your copper wire against the pads on screen, so you route a neat jumper instead of guessing. The USB connection to a host computer opens another useful side of the camera, because you bring the feed into your PC for recording repair videos, capturing before-and-after images for customers, and sharing your work on social media to build trust for your shop. Technical training institutes and senior technicians who teach juniors gain a lot from this setup, since the whole class or your shop assistant watches the same live picture on a large display while you explain where to touch and where not to touch. Shop owners in Lahore, Karachi, Islamabad, and every smaller city know that customers trust what they can see, and showing a customer the corroded area or the damaged chip on a monitor turns a doubtful conversation into an approved repair. The camera fits into the inspection and rework stage of your workflow, right between diagnosis with a DC power supply and multimeter and the actual repair with your hot air station or soldering station, so it supports almost every board-level job you handle rather than one narrow task. Pair it with a stable trinocular stereo microscope from our Microscopes category, a good LED ring light, a PCB holder that keeps the board level, and a reliable HDMI monitor, and you build a complete inspection station around it. If you already run a reballing kit and a hot air station, this camera completes the setup by giving you the visual confirmation that every reballing and IC replacement job needs. Technicians who want to move from a basic 1080p camera to a sharper picture find the YCS 4K Square Camera Red High Pixel a practical upgrade step, because it keeps the same simple HDMI plug-and-view routine while raising the detail on screen. Before you buy, check that your microscope has a trinocular camera port, because the camera works with the third port and does not attach to a standard binocular head, and confirm that your display accepts 4K input if you want the full sharpness on screen. KB GSM Store supplies this camera across Pakistan for repair shops, service centers, and training institutes that want clearer board inspection at a sensible price, and our team guides you on matching it with the right microscope, monitor, and repair accessories for your bench.
