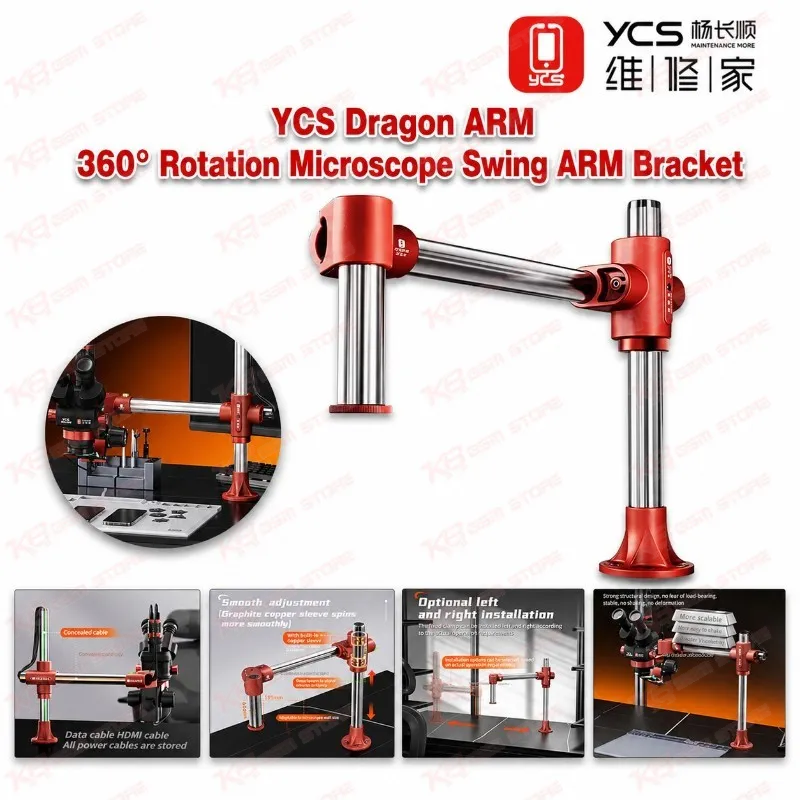

YCS Dragon Arm 360° Rotation Microscope Swing Arm Bracket

The YCS Dragon Arm 360° Rotation Microscope Swing Arm Bracket takes your microscope off its fixed base and puts it on a 40cm articulating arm, so the optics follow the board instead of the board chasing the optics. On a busy repair bench in Lahore or Karachi, you juggle a hot air station, a soldering iron, a PCB holder, and three phones waiting for diagnosis. A fixed pillar stand blocks half of that space and forces you to drag the motherboard under the lens every time. The swing arm clears your desk, lets you pull the microscope over any job, and lets you push it aside when you need open space for disassembly or screen work.
Rotation is where this bracket earns its place. The arm turns a full 360° with a smooth, silent action, so you swing from the hot air station to the PCB holder without lifting the microscope or knocking its focus. When you chase a dead phone with a shorted line near the PMIC, you angle the view, check around shields, and inspect solder joints from a different side without unclamping the board. That saves real minutes on every board-level job, and those minutes add up across a full day of repairs.
Height control matters just as much. A limit knob lets you set the working height and lock it, so the microscope returns to the same focus zone every time you swing it back. Extended threads on the joints add stability and widen the operating range, which keeps the head steady while you run hot air on a CPU or lift a charging IC. A built-in leveling bubble helps you set the arm flat during installation, so your field of view stays even and the image does not drift toward one edge.
Cable mess kills a clean bench. The YCS Dragon Arm routes cables through integrated channels and seals them with silicone plugs, so the USB lead from your microscope camera and the power line for your LED ring light run inside the arm instead of hanging across the board. You avoid snagging a cable with tweezers mid-job, and you keep hot air away from exposed wires. If you record repair videos for customers or your social pages, this tidy setup also looks professional on camera.
Compatibility covers the microscopes most Pakistani technicians already own. YCS designs this bracket with universal fitment for the large majority of stereo and trinocular repair microscopes, and it also suits camera lens magnifiers. YCS offers it alongside its 6558X trinocular stereo microscope and its 144 LED ring lamps, so pairing it with those units gives you a matched setup. Mounting uses a secure hole fixing on the bench, which gives the arm a solid anchor for long-term daily use rather than a wobbly clamp.
Think about where this bracket sits in your workflow. Diagnosis starts with a multimeter and a DC power supply, but confirming a burnt component, a cracked BGA joint, or corrosion under a shield happens under magnification. Reballing a CPU, replacing a network IC, or fixing a charging issue at the connector all depend on a clear, stable view. The swing arm supports every one of those stages without forcing you to rebuild your bench layout.
For a complete station, pair the YCS Dragon Arm with a quality stereo microscope from our Microscopes category, a hot air station and soldering station for rework, a PCB holder to lock the board, and a reballing kit for BGA jobs. If you plan to grow into high-volume board repair, upgrading to a trinocular microscope with a camera on this arm gives you live screen inspection and easier customer explanations. Order the YCS Dragon Arm 360° Rotation Microscope Swing Arm Bracket from KB GSM Store and get a bench that works with you, not against you.
