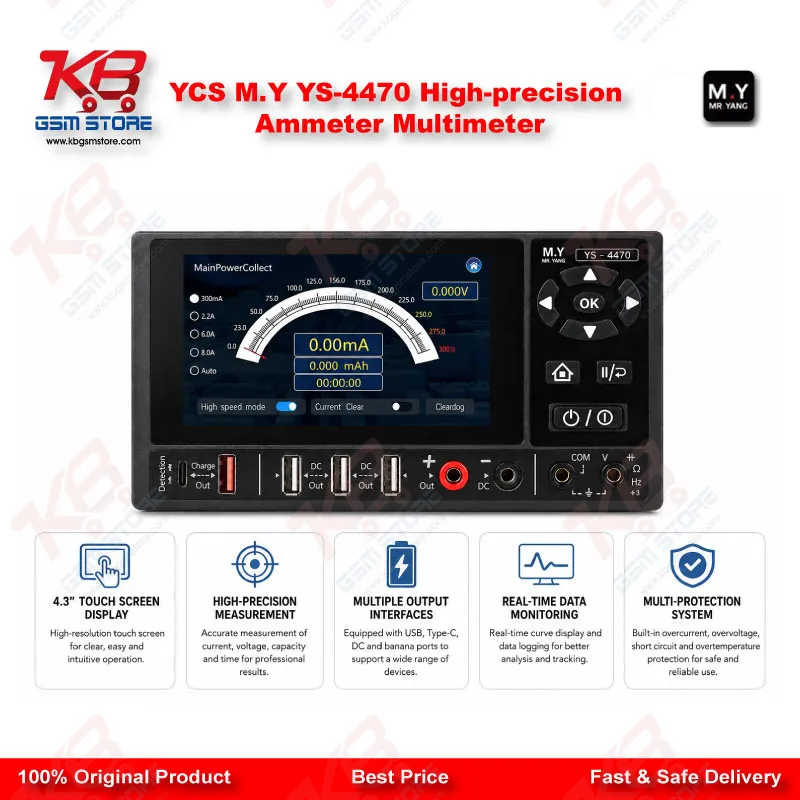

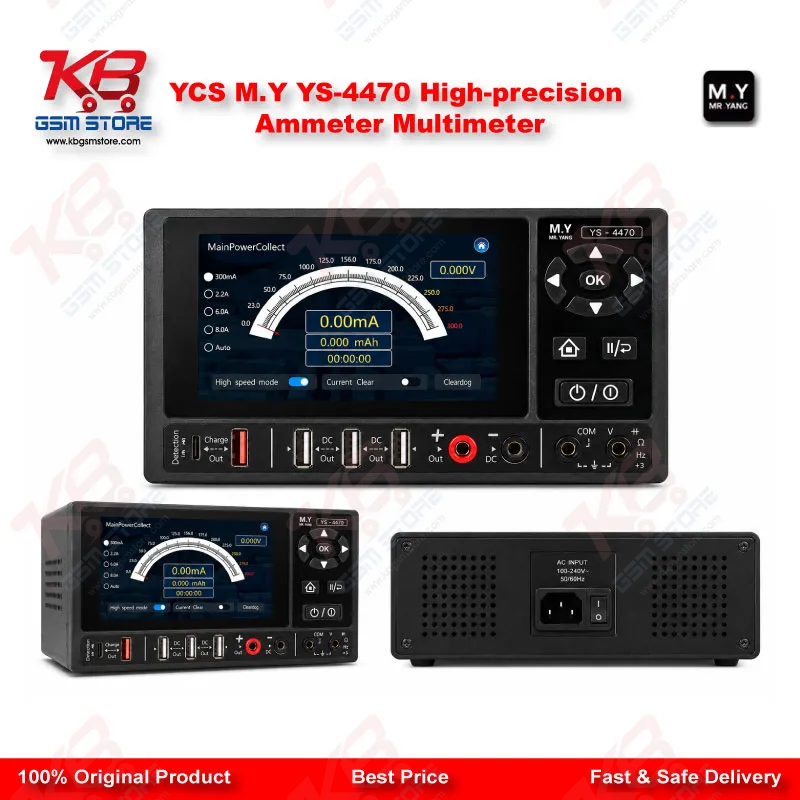

When a phone comes in dead and you don't know if it's a shorted IC, a bad power rail, or a simple software fault, guesswork wastes bench time. The YCS M.Y YS-4470 solves that by putting voltage, current, frequency, resistance, and waveform data on one screen, so you can read the actual electrical behavior of the board instead of swapping parts on a hunch. At its core, the YS-4470 is a multi-function testing instrument. It measures voltage (V), frequency (Hz), and resistance (Ω), and it layers waveform analysis on top of standard readings. That waveform view matters on a repair bench — a flat line where you expect current draw tells you a rail is dead, while a jumpy or unstable waveform points toward a component pulling irregular current, which is often the signature of a short or a failing IC. You stop relying only on a single number and start reading the shape of the fault. The built-in DC output turns the YS-4470 into more than a meter. You can use it to power a board directly during testing, which is useful when you're checking whether a phone draws current at all after a dead-after-flash situation, or when you want to feed a controlled voltage into a section of the board to isolate where a short sits. Pair that with the charging detection function, and you get a dedicated way to check battery charging status and confirm whether a charging issue is coming from the battery, the charging IC, or the port itself — a distinction that saves you from replacing the wrong part. Connectivity is where the YS-4470 fits into a modern repair workflow. It supports multiple interfaces — detection output, charging output, DC output, and a PC connection — so you're not limited to reading numbers off the small screen. Export your data to a PC when you need to compare readings across a repeat job, document a fault for a customer, or study a waveform pattern more closely than the on-device display allows. For a shop handling recurring board-level faults, that export function turns individual repairs into a reference log you can pull up the next time a similar symptom walks in. Day-to-day operation stays straightforward. The control layout uses arrow keys, a home button, a pause/play button, and an OK button, so switching between measurement modes or holding a reading steady while you probe a test point doesn't require digging through menus. That matters when you're working fast during a busy shift and need the tool to keep up rather than slow you down. In terms of where this fits in your actual repair workflow: the YS-4470 sits at the diagnostic stage, before you commit to IC change karna or start jumper lagana on a board. Run a current and voltage check first, watch the waveform for anomalies, and you narrow down whether you're dealing with a hardware fault, a shorted component, or a charging-specific problem — before you touch a soldering iron. For boot loop issues where the phone powers on but never gets past the logo, current draw readings during the boot attempt can show you whether the CPU or PMIC is pulling power normally or whether something downstream is holding the board back. For a phone that's dead after flash, the DC output and current reading together tell you quickly whether the board is even accepting power before you assume a software marna fix will solve it. Built with a plastic housing for a lightweight, durable body, the YS-4470 is sized for daily bench use and easy to keep within reach alongside your other test equipment. It doesn't replace a full power supply or a dedicated oscilloscope, but as a combined ammeter, multimeter, and waveform reader, it covers the diagnostic checks that come up on nearly every repair job — current draw, voltage stability, resistance across suspect components, and charging behavior — in a single tool. For technicians and repair shops in Pakistan working through a steady stream of dead phone, charging issue, and hardware fault cases, the YS-4470 cuts down the diagnostic guesswork that eats into billable repair time. It gives you the readings to make a confident call before you open the board, which is where real efficiency on a repair bench comes from.
