Every board-level technician knows the moment: the phone came in dead, the customer wants it today, and the fault sits under a tiny capacitor you can barely see through the eyepieces. The YCS X80 4K Trinocular Microscope Camera moves that view off the eyepieces and onto a big screen, so you inspect, solder, and explain the fault while sitting upright at your repair bench. YCS built this camera for the trinocular port of a stereo microscope, and it turns the third tube into a live 4K feed through HDMI or a USB Type-C connection. For a busy Pakistani repair shop handling dead phones, charging issues, and network faults all day, that screen view changes how fast you work and how little your neck and eyes suffer by evening.
At the core sits a Sony 1/1.8-inch CMOS sensor with 8 million pixels. A 1/1.8-inch sensor surface collects more light than the small sensors in budget microscope cameras, and you see the result as cleaner edges on solder joints and less grain when you dim the ring light to cut glare off shiny shields. The camera outputs true 4K at 30 frames per second, or 1080P at 60 frames per second when you want a smoother image while your tweezers move. Both HDMI and USB carry these modes, so you choose the resolution that suits the job instead of accepting whatever the port allows. For tracing a shorted line near the PMIC or checking BGA balls along the edge of a CPU, 4K detail lets you spot a cracked joint or a lifted pad before you waste time with the hot air.
The camera adds a 5x electronic magnification function on top of your microscope’s optical zoom. When the optics reach their limit, you push the digital zoom on screen to read a tiny component marking or check a bridged pin on a charging IC without swapping objectives. The body carries a standard C/CS adapter ring, so it fits most trinocular microscopes that accept a C-mount camera on their trinocular port. Four 1/4-inch screw holes on the housing give you extra mounting options for arm brackets and holders, which helps when you build a custom bench setup. The housing combines carbon fiber and aluminum alloy, measures roughly 47 x 55 x 47 mm, and sits compact on the trinocular tube without making the head top-heavy.
A TF card slot accepts cards up to 64GB, so you capture photos and videos straight from the camera without a computer on the bench. That matters when a customer argues that the board had no liquid damage before you opened it; you record the board condition at the start of the job and show the footage. The included remote control lets you take snapshots and start recording without touching the camera, so the image stays steady while you focus. Connect the HDMI cable straight to an LCD or LED monitor for a standalone setup, or run the Type-C cable to a laptop when you want to stream the feed, capture frames on the PC, or record a tutorial for your channel or your training students.
In a real repair workflow, this camera earns its place across several stages. During diagnosis, you inspect corrosion around the charging port connector, burnt marks near the battery connector, and shorted capacitors that heat up during a thermal check. During soldering and rework, you watch the solder flow while you remove an eMMC or UFS chip with a hot air station, then check the pads before reballing. During jumper work on a broken trace, you route a thin jumper wire under 4K view instead of guessing through the eyepieces. After the job, you inspect the board once more for stray solder balls and bridges before the phone goes back together. Each stage gets the same clear screen view, so you work with fewer reworks and fewer comebacks.
To build a complete board-repair station around the YCS X80 4K Trinocular Microscope Camera, pair it with a trinocular stereo microscope from our Microscopes category, such as a continuous-zoom model like the YCS 6575X. Add a temperature-controlled unit from Soldering Stations, a reliable Hot Air Station for chip removal, and a PCB Holder that keeps the board flat under the lens. Keep a Multimeter on hand for diode-mode checks, and stock a Reballing Kit for CPU and memory work. When your shop grows, a larger 4K monitor and a stronger ring light give you the next jump in image quality without replacing the camera itself.

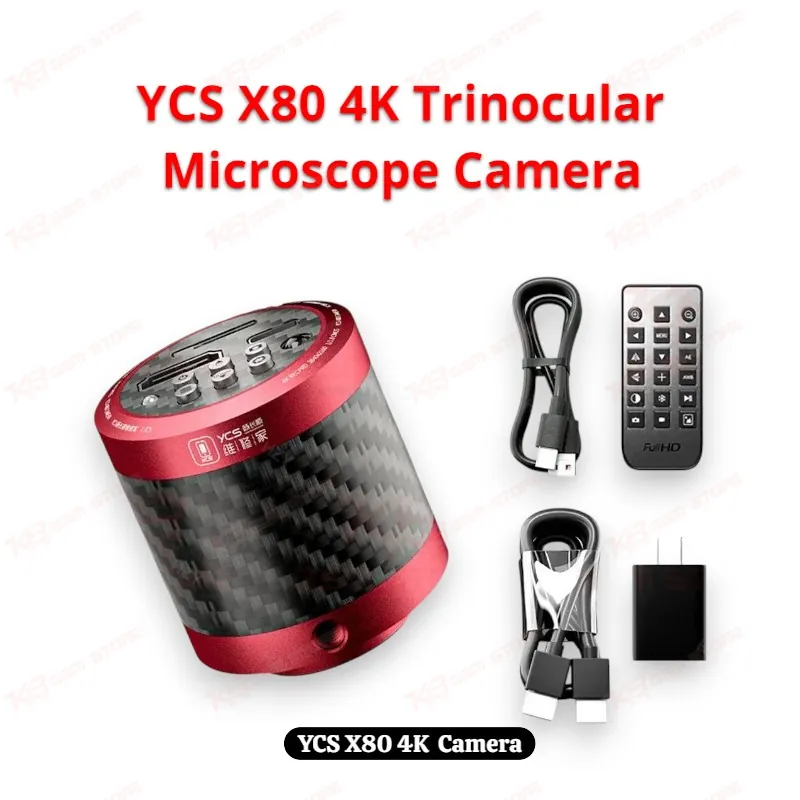

Repair shop owners in Lahore, Karachi, Islamabad, and smaller cities use a screen-based setup to train junior technicians, because the whole team watches the same live image while the senior technician explains the fault. Training institutes run live classes through HDMI on a large display, and solo technicians simply work longer hours with less strain. KB GSM Store supplies the YCS X80 with the lens cover, HDMI cable, Type-C cable, adapter ring, charging adapter, remote control, and paper manual, so you unbox it and start working the same day. If you are searching for a 4K microscope camera price in Pakistan that delivers real board-level detail, this camera gives your repair bench a practical upgrade.
