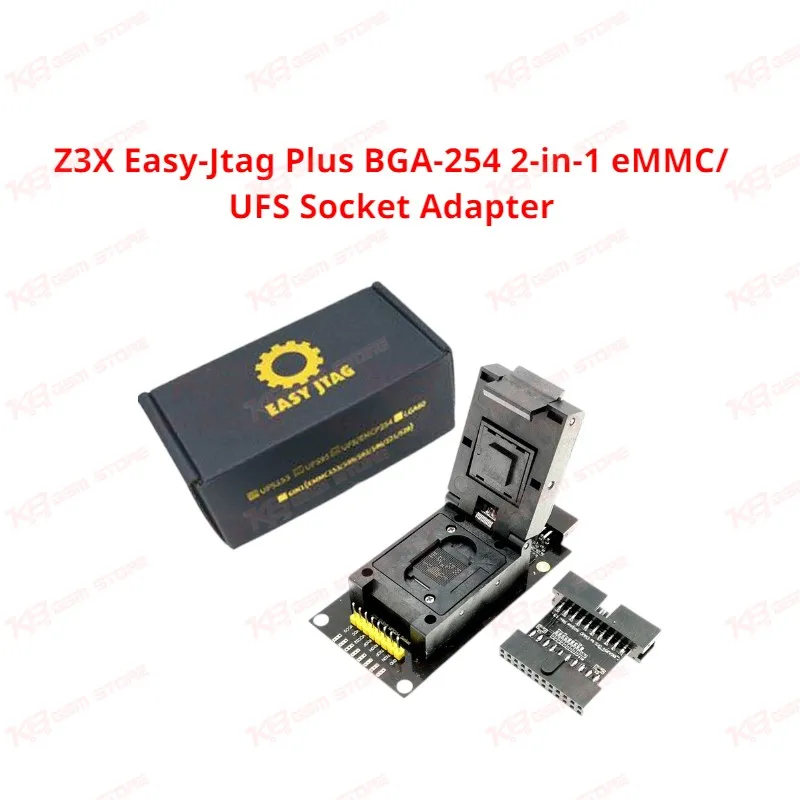

Chip-off repair work on modern Android boards means dealing with two memory families in the same session — eMMC on older and budget devices, UFS on current mid-range and flagship boards. The BGA-254 2-in-1 Socket Adapter solves the socket-swapping problem by putting both interfaces in one housing built for the Z3X Easy-Jtag Plus box.
You drop the desoldered chip into the BGA-254 cavity and the socket handles pin mapping for both memory types automatically. There is no manual jumper configuration between eMMC and UFS mode — the adapter reads the chip package and routes signals accordingly through your Easy-Jtag Plus software.
Direct Mode and ISP support
This socket supports Direct Mode read and write, which means you get raw access to the memory chip without depending on the phone's motherboard being functional. That matters when you are handling a dead phone with a damaged CPU trace, a board that will not power on, or a chip pulled off during BGA reballing. Alongside Direct Mode, the adapter carries an output signal for ISP operation, so technicians running in-system programming on a still-attached board can use the same socket path for signal testing and verification before deciding whether to go the chip-off route.
Where this fits in your repair workflow
For a GSM technician, this adapter sits at the chip-off stage of the repair chain — after diagnostics have ruled out a simple software fix and the board shows signs of NAND corruption, boot loop after flash, or a dead phone that will not respond to normal flashing tools. You desolder the eMMC or UFS chip, clean the pads, then use this socket on your Easy-Jtag Plus to dump the firmware, repair the partition table, or write back a clean image. It is also the tool of choice when a customer brings in a phone with a cracked BGA ball or physically damaged connector where onboard flashing through USB or test point is no longer possible.
Common scenarios in a Pakistani repair shop include recovering data from a water-damaged phone before the customer buys a replacement, clearing an FRP lock on a board where software tools have failed, and fixing a hang-on-logo issue caused by corrupted firmware after a bad flash attempt. In each case, IC change karna or a straight chip repair only becomes reliable once you can talk to the memory chip directly — which is exactly what this socket is built for.
Build quality that survives daily use
High positioning accuracy on the socket means the chip lands in the same spot every time, reducing failed reads caused by misalignment — a common cause of "chip not detected" errors on cheaper adapters. The ECDSA protected serial number is a licensing safeguard built into genuine Z3X hardware, confirming the adapter is authorized to run on your Easy-Jtag Plus box rather than a cloned unit that risks bricking chips or corrupting reads. Rated for more than 30,000 insertion cycles, the socket is built for a repair shop doing this work daily rather than occasional hobbyist use.
What comes in the box
The package includes one BGA-254 2-in-1 eMMC/UFS Socket Adapter, ready to connect to your existing Z3X Easy-Jtag Plus box. No additional cables or drivers are needed beyond your standard Easy-Jtag Plus setup, and it works alongside your other Easy-Jtag socket adapters as part of a complete eMMC/UFS servicing kit for network and service centers doing volume chip-off repair.
