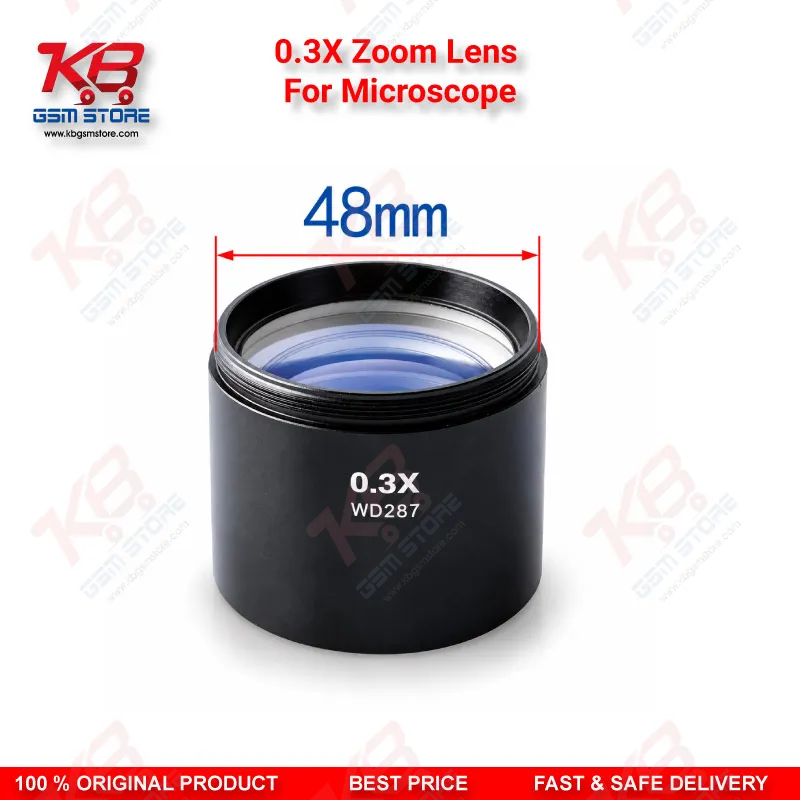

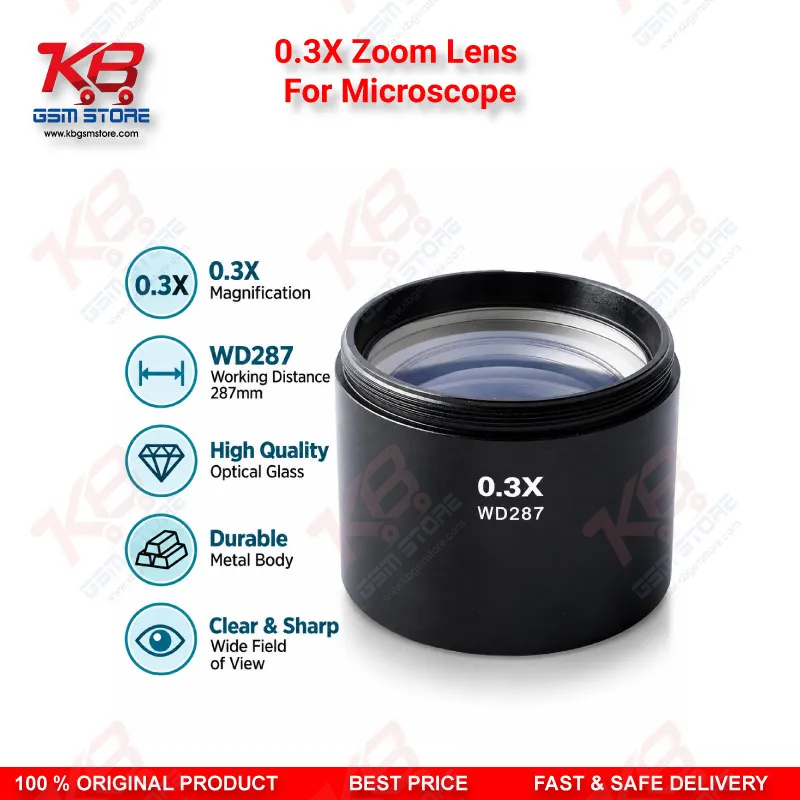

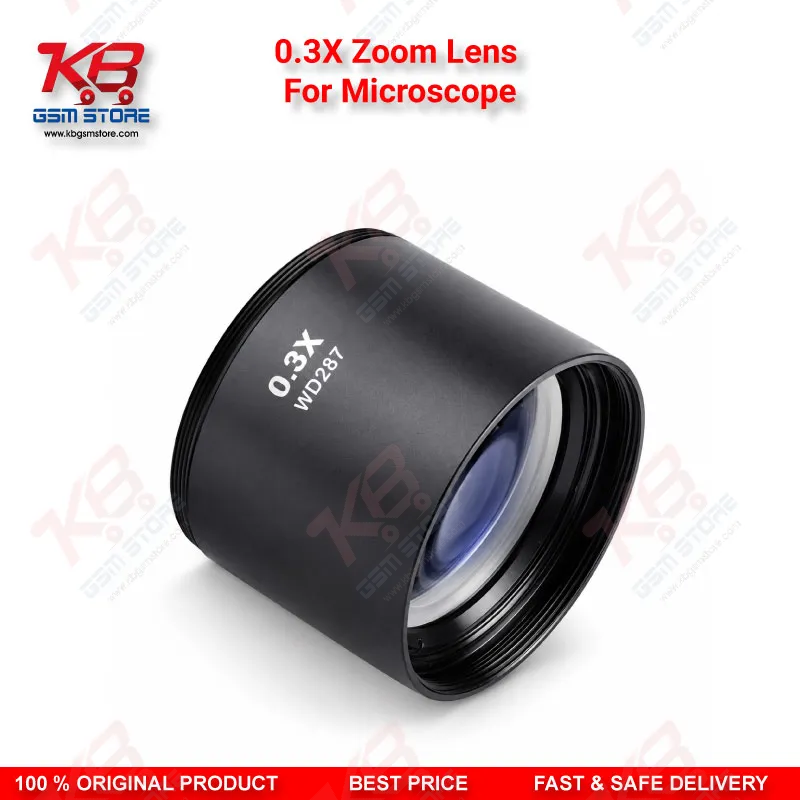

0.3X Zoom Lens For Microscope – 48mm Wide Field Barlow Lens

Every repair shop that runs a stereo microscope hits the same wall sooner or later: the board sits too close to the objective, the hot air nozzle bumps the lens, and you lose track of your position on the motherboard because the view only shows a tiny patch of components. The 0.3X Zoom Lens For Microscope fixes that problem with a simple optical trick. This auxiliary objective, often called a Barlow lens, threads onto the 48mm mount under your microscope head and multiplies the total magnification by 0.3, which roughly triples both your field of view and your working distance. On a standard 7X–45X stereo zoom with 10X eyepieces, the math puts your new range at about 2.1X to 13.5X, and published data for 0.3X auxiliary objectives on 48mm stereo bodies lists a working distance of up to around 287mm. That is a huge jump from the cramped gap most technicians tolerate every day, and it changes how you handle large-area work. Think about lifting an EMI shield on a dead phone: you need room for a hot air handle angled at the board, tweezers in the other hand, and a clear view of the whole shield edge so you do not overheat nearby capacitors. With the stock optics you see one corner of the shield; with the 0.3X lens fitted you see the shield, the surrounding components, and your nozzle position in one frame. The same advantage shows up when you replace a charging port, remove a display connector, or run a full visual check on a water-damaged board where corrosion spreads across several sections. You spot the damaged zones first, plan your cleaning, then switch back to higher magnification for close work. Many technicians keep the 0.3X lens on during board disassembly and inspection, then remove it when the job moves to fine pads, IC replacement, or jumper wire runs near the CPU. Fitting the lens takes seconds. You screw it clockwise into the threaded ring under the objective, and the aluminum body holds firm without tools. Because the working distance grows so much, your microscope stand must give you enough height travel, so check that your boom or pillar stand lets you raise the head far enough to bring the board back into focus. Tall stands and boom arms handle this easily, while a short fixed post may not reach. The lens uses optical glass inside an aluminum alloy housing, so keep it covered during flux-heavy jobs, because smoke and rosin film on the lower glass surface softens the image. Wipe it with lens tissue and a drop of isopropyl alcohol, never with the cloth you use on the board. Magnification drops when you fit a 0.3X lens, so treat it as a wide-view tool, not a fine-pitch tool. You will not read tiny component markings or inspect BGA balls at 2X, and you should not expect to. What you get instead is comfort and context, which cut eye strain during long shifts and help trainees understand board layout before they touch a single component. On a camera-equipped trinocular setup, the wider view also lets you show a customer the fault area on screen in one shot. This lens belongs in the Microscopes category alongside eyepieces, ring lights, and camera adapters, and it pairs naturally with Hot Air Stations, Soldering Stations, and PCB Holders, since those tools work inside the space it creates. If you want more magnification while keeping some of the extra room, a 0.5X auxiliary lens gives you a middle-ground option with roughly double the working distance. Before you order, confirm that your microscope uses a 48mm objective thread; 48mm is a common size on stereo and trinocular microscopes, but measure the ring or check your manual to be sure. Order the 0.3X lens from KB GSM Store and give your repair bench the room it needs for shield removal, board inspection, and large rework jobs.
