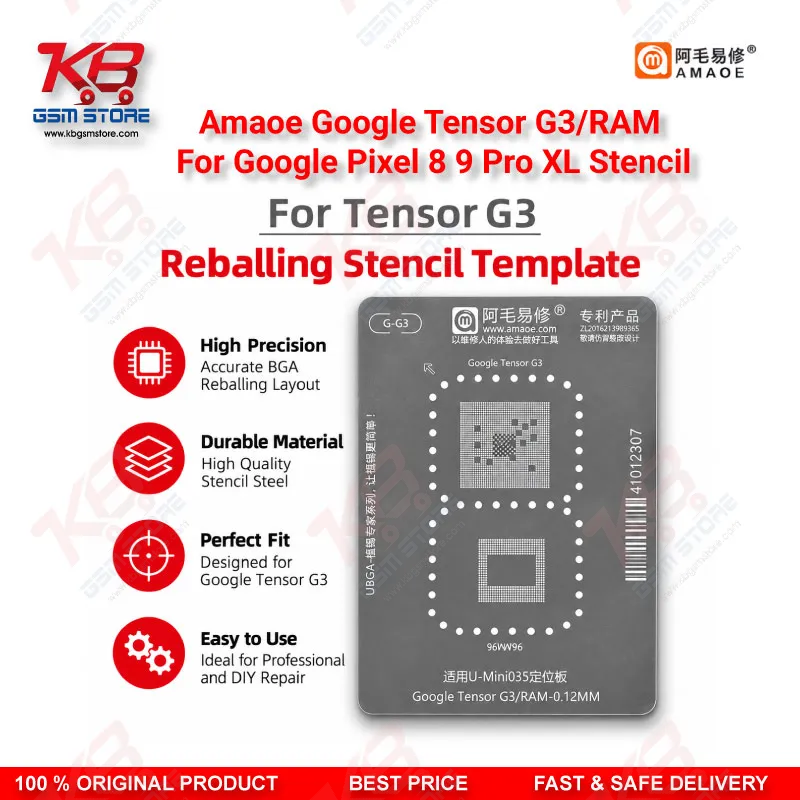

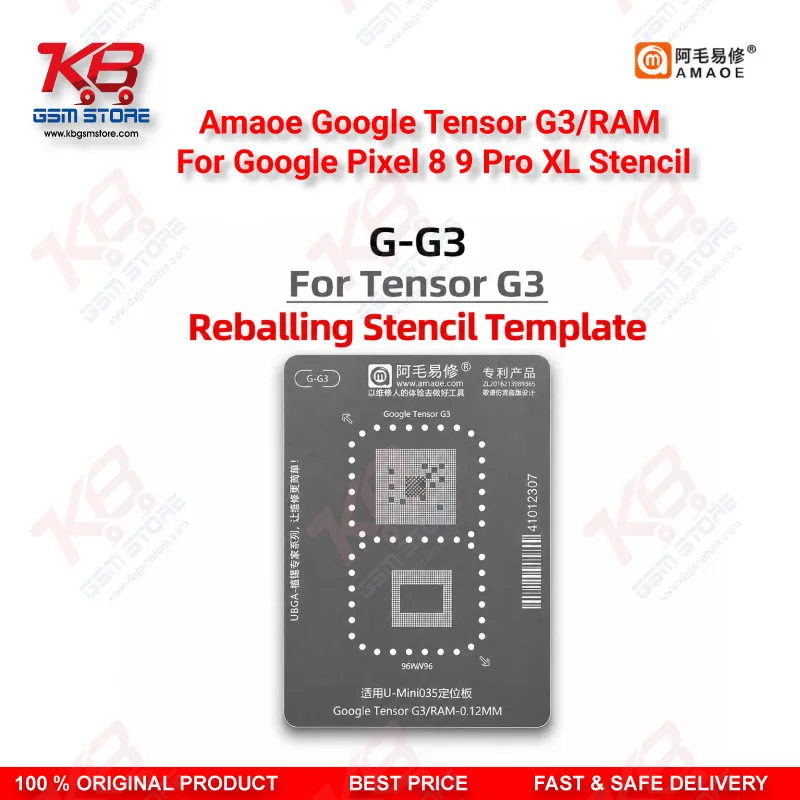

Amaoe Google Tensor G3/RAM For Google Pixel 8 9 Pro XL Stencil

Pixel board work leaves no room for guesswork, and the Amaoe Google Tensor G3/RAM For Google Pixel 8 9 Pro XL Stencil targets one specific job: reballing the Google Tensor processor package and its memory on the Pixel models Amaoe names on the product. Google built the Tensor G3 as a package-on-package assembly, with LPDDR5 memory stacked directly on top of the processor. That stacking changes how you approach the repair, because a CPU job on these phones is really a two-layer job. You deal with the joints between the board and the processor, and you deal with the joints between the processor and the RAM that rides on top of it.A Pixel usually reaches your bench in one of three states: a dead phone with no current draw, a phone that powers on and hangs on logo, or a phone stuck in a boot loop issue that no software flash fixes. Once you rule out the battery, the charging path, and a firmware fault, the BGA joints under the CPU become the next suspect. A hardware fault at this level never responds to box work or repeated flashing. You lift the chip, clean both surfaces, and reball it. The quality of that reball decides whether the phone comes back to life or returns to your counter a week later with the same complaint.A dedicated stencil keeps every ball exactly where the pad pattern expects it. Generic universal sheets force you to mask off unused holes, and on a dense application processor that improvisation costs time and creates solder bridges. With a pattern cut for the Tensor package, you align the stencil over the chip, apply paste or loose balls, and reflow with hot air at a controlled temperature. The RAM pattern works the same way for the memory layer, so you handle both parts of the stack with matching precision instead of improvising on the second layer.A clean bench routine for this stencil runs in a clear order. Preheat the board on a PCB holder or preheater to reduce thermal shock, then lift the CPU with your hot air station and fresh flux. Clean the old solder from the board pads and the chip with a quality desoldering wick, and keep the iron moving so you protect the pads from lifting. Lock the chip into a reballing platform, place the Amaoe stencil on top, spread solder paste evenly across the holes, and heat until the balls form. Let everything cool fully before you lift the stencil, inspect each row under your microscope, and correct any missing or oversized ball before the chip goes back on the board.
The stencil uses steel construction, so it holds its flat shape across repeated heat cycles when you treat it properly. Clean it with isopropyl alcohol after every job and store it flat to keep the holes clear and the sheet straight. A warped or clogged stencil gives you uneven balls, and uneven balls give you an open joint that shows up later as a random restart, a network issue, or a charging issue that seems unrelated to the CPU. A few seconds of cleaning protects every future repair you do with it.Check the fit honestly before every job. Lay the stencil over the chip on your board and confirm the ball layout matches before you commit paste to it. Never assume compatibility with other Pixel models based on the name alone, because one wrong guess on a flagship processor costs you the chip and the customer’s trust.
Pair this stencil with the rest of your BGA kit for consistent results. A reballing platform or magnetic stencil holder keeps alignment steady, a hot air station with stable airflow controls the reflow, and a stereo microscope lets you inspect every row before reinstallation. Good flux and quality solder paste matter as much as the stencil itself. When your shop starts handling regular Pixel CPU work, a preheater or a full rework station makes the natural upgrade, since it takes the guesswork out of heating large, dense packages evenly.Pixel phones now show up regularly on Pakistani repair benches, and most shops still turn away CPU-level Pixel faults. A dedicated Tensor stencil turns that risky job into a repeatable one. You quote the CPU repair with confidence, finish it faster, and hand the phone back working. Order it from KB GSM Store and keep it ready in your stencil drawer for the next Pixel that comes in dead.
