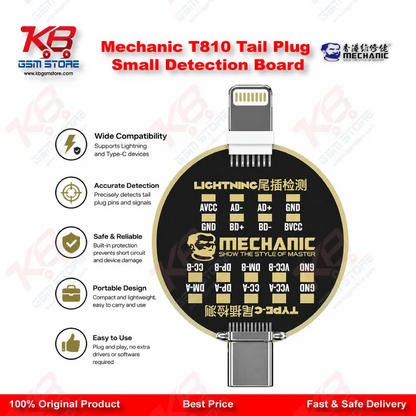

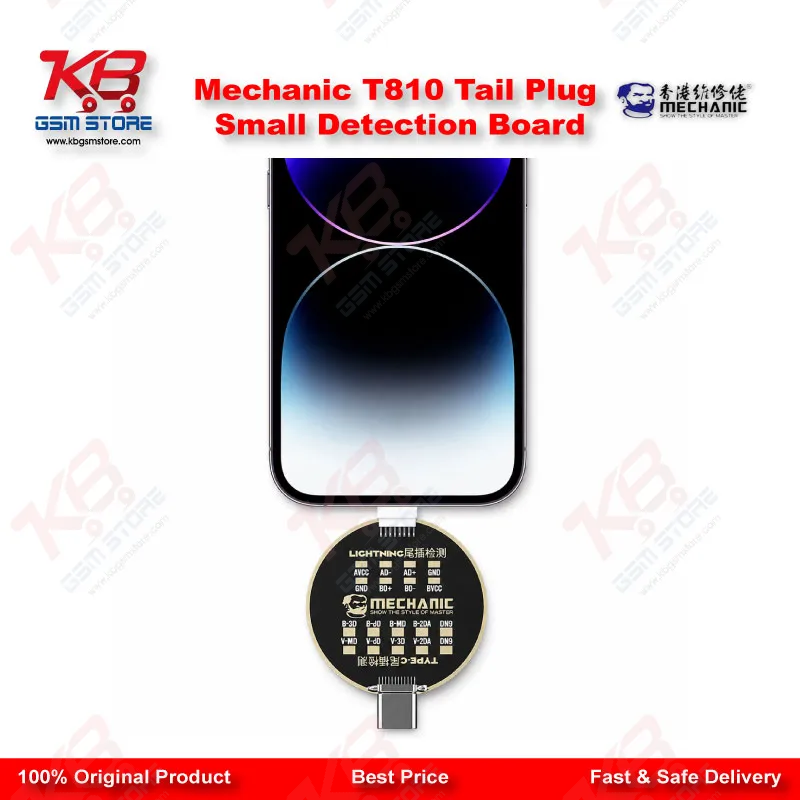

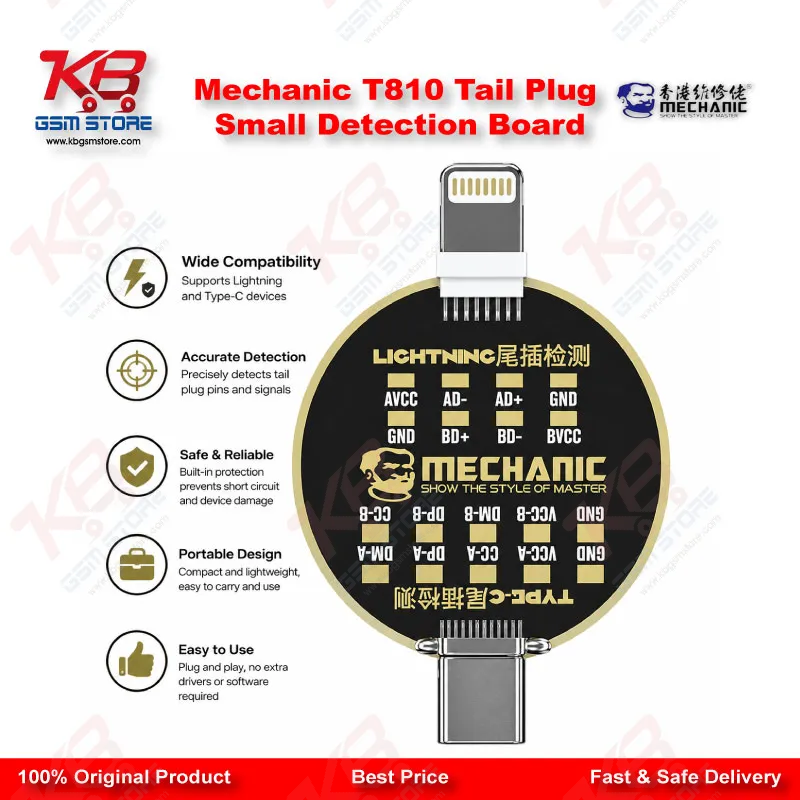

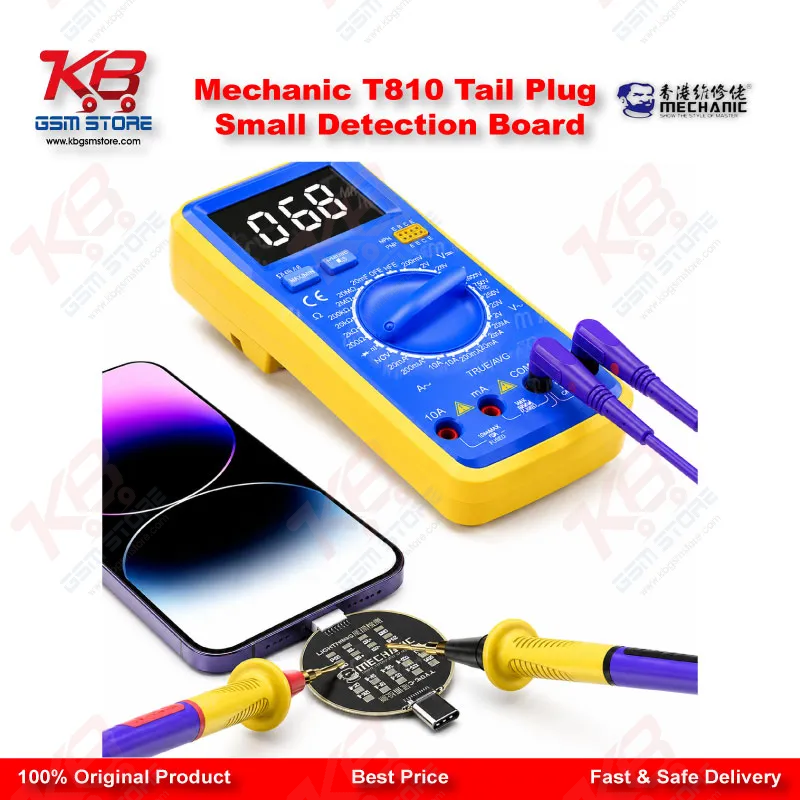

The Mechanic T810 solves a problem every mobile repair technician runs into on a daily basis: a phone that won't charge, and no fast way to tell whether the fault sits in the tail plug, the flex cable, or deeper on the motherboard. Instead of stripping the device down to reach the charging IC or tristar area, you plug the phone's original cable or pigtail straight into the T810's Lightning or Type-C socket and take your readings from the exposed test points on the board. This puts the DP, DM, CC and GND lines within reach of a multimeter probe in seconds, which means a "dead phone" or "charging issue" complaint stops being a full teardown job and becomes a five-minute bench check. The board runs on the same working principle as other pinout interposer tools: it doesn't generate a reading on its own, it exposes the pins so your multimeter can do the measuring. Set the meter to diode mode, touch the red probe to GND on the corresponding plug, then walk the black probe across the remaining test points to see which line is open, shorted, or reading outside the expected range. On Lightning-port iPhones this lets you isolate whether the fault is on the DP/DM data lines, the CC configuration line, or the ground path itself, which narrows down a charging complaint to either the tail flex, the charging IC, or a broken trace long before you touch a soldering iron. On Type-C Android phones the same workflow applies, since the board carries its own dedicated Type-C port wired the same way, so you're not swapping tools between an iPhone bench and an Android bench during the same shift. This is where the T810 earns its place in a busy repair workshop: single-sided charging problems, where the phone only charges when the cable sits at a certain angle, are notoriously hard to pin down by eye, and hang-on-logo or dead-after-flash cases often turn out to be a charging path fault rather than a software fault. Checking the tail plug first, before you commit to IC change karna or before you order a new flex, saves both time and unnecessary part cost. The board's non-removal design is the other half of the value here — you're not desoldering the tail flex or lifting the connector to get a reading, which means a customer's phone stays intact during diagnosis even if the final fix ends up being something else entirely, like a battery fault or a display problem unrelated to charging. For a shop running high device turnover, that non-invasive first check matters: it keeps warranty-sensitive repairs safer and keeps your bench moving instead of stalling on teardown just to rule out the charging port. The T810 fits naturally into the diagnostics stage of your repair workflow, ahead of board-level rework, and works well next to your existing pinout and jumper tools rather than replacing them. It's not a substitute for a full point-to-point diagram or a proper power supply current-draw test on a genuinely dead board, but as a first-pass charging port check it cuts a meaningful amount of guesswork out of the day, especially on the Lightning-port iPhone jobs that make up a steady share of most Pakistani repair shop traffic. Keep it on the bench next to your multimeter and it becomes one of those small tools you reach for on almost every charging complaint that walks through the door.
