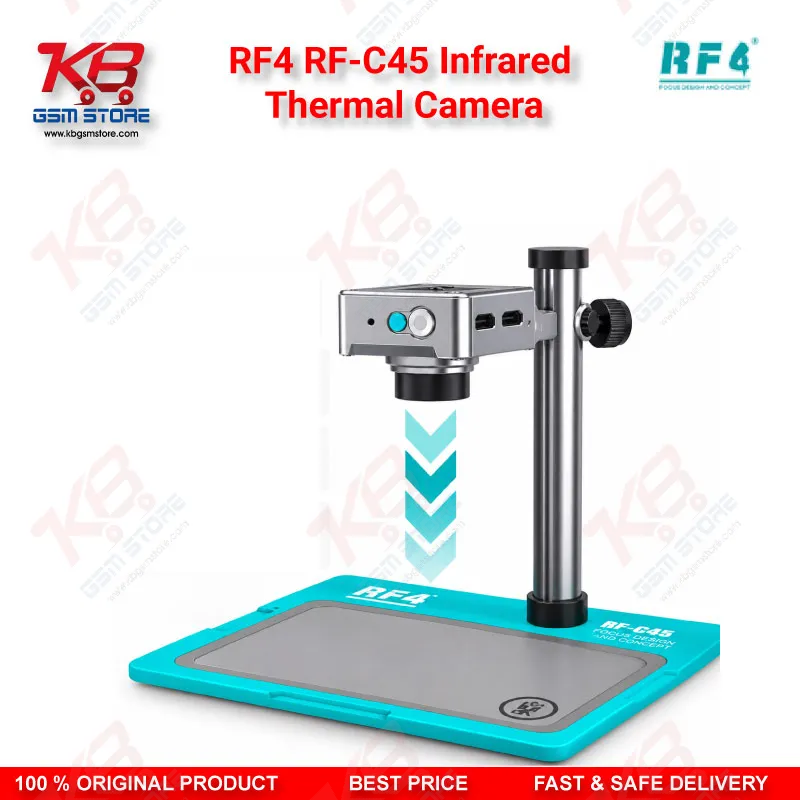

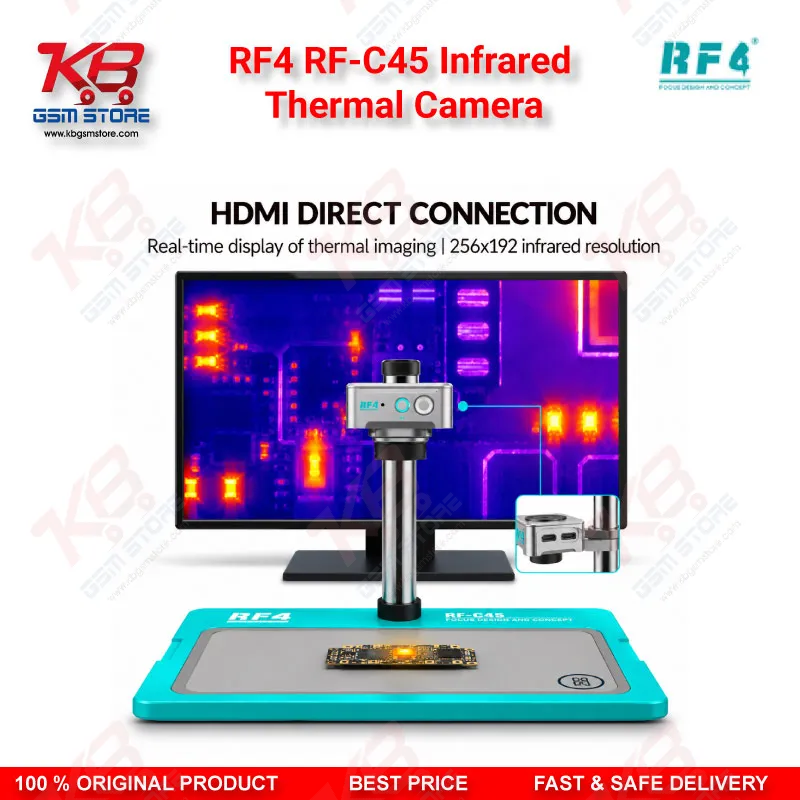

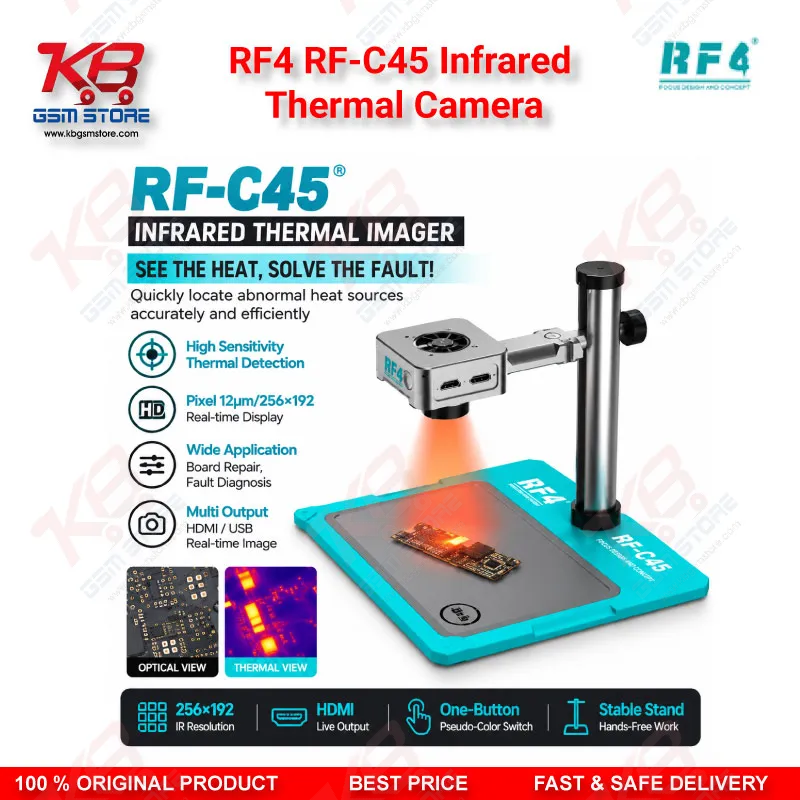

The RF4 RF-C45 Infrared Thermal Camera gives your repair bench a faster way to find the one component that kills a motherboard, because every shorted capacitor, leaking PMIC, or failing CPU rail shows itself as heat long before you can see any physical damage. Most technicians in Pakistan still hunt shorts with rosin smoke, freeze spray, or a fingertip on the board, and those methods waste time on a dense iPhone or Samsung logic board where dozens of tiny capacitors share the same rail. With a 256×192 infrared sensor, the RF-C45 reads temperature differences across the whole board at once and paints them on your screen, so the hotspot appears the moment you inject voltage. You feed the image straight into any monitor through the HDMI output, and you skip the PC, the drivers, and the software setup entirely, which matters on a busy counter where the shop computer already handles flashing and box work. The workflow stays simple: you mount the board in a PCB holder, connect your DC power supply to the shorted line, raise the current slowly, and watch the monitor until one spot glows brighter than everything around it. That glowing spot usually marks a shorted MLCC capacitor, a damaged charging IC, a cracked PMIC, or a CPU pulling more current than it should, and you now know exactly where to aim your hot air instead of lifting good parts at random. The 256×192 resolution gives you enough thermal detail to separate two neighboring components on a crowded mainboard, which a low-resolution pocket imager often blurs into a single warm patch. The optical and thermal view switching works with you during that hunt, since you can flip from the heat map to a normal visual view of the same area, match the hotspot to an actual component, and mark it before removal. One-button pseudo-color switching lets you cycle through several color palettes, and you pick the palette that makes a faint hotspot stand out against a warm background, which helps on boards where the whole area around the CPU already runs warm. RF4 builds the RF-C45 on an adjustable stand, so you set the camera height to suit a full-size tablet board or a small smartwatch board, and you keep both hands free for power supply probes and tweezers. The stand base carries an anti-static silicone worktable, which protects sensitive ICs from static discharge and gives the board a stable, heat-resistant spot to rest while you inject power. Think about the jobs that eat your hours every week: a dead phone that shows a dead short on the DC power supply, a phone that pulls a fixed current and refuses to boot, a device with a charging issue after the customer used a cheap charger, a board stuck in a boot loop issue after water damage, a handset that sits on hang on logo, or a phone that heats up near the camera area and drains the battery overnight. Each of these repairs starts with the same question of which component has failed, and the RF4 RF-C45 Infrared Thermal Camera answers that question in minutes instead of an afternoon. Water-damaged boards benefit the most, because corrosion often creates partial shorts that pull small currents, and a thermal view reveals the warm trace or component even when your multimeter shows only a low resistance on the rail. The camera also helps after the repair, since you can power the board again and confirm that the new IC runs at a normal temperature and that no neighboring part still overheats. This tool sits at the diagnostic stage of the board-level repair workflow, right before rework, and it pairs naturally with the bench equipment you already own. A digital multimeter tells you that a rail has a short, the RF-C45 tells you where that short lives, and your hot air station and soldering station then handle removal and replacement. For IC-level jobs such as a CPU or eMMC change, you follow up with a reballing kit and stencil, and your microscope handles the close inspection of pads after the hot air work. A PCB holder keeps the board flat and steady under the lens, and a DC power supply with current control remains essential, because the thermal method depends on feeding controlled current into the faulty rail. Shops that already run a microscope camera on one monitor can give the RF-C45 its own display, so one screen shows the magnified board and the other shows the heat map, and your technician never swaps cables between steps. Repair training institutes find the HDMI output just as useful, since the instructor can connect a large display and let a whole class watch a shorted capacitor heat up in real time, which teaches fault finding far better than a whiteboard diagram. Shop owners who weigh the price in Pakistan against the time saved usually see the return quickly, because faster short finding clears more boards per day and cuts down on comebacks where unnecessary heating created a second fault. Thermal diagnosis also reduces collateral damage, since you stop blasting hot air across a whole section of the board and only heat the one part that actually failed. That approach protects underfill, nearby connectors, and plastic components, and it keeps the board in better condition for the customer. When a dead after flash phone lands on your bench and repeated software attempts fail, the RF-C45 helps you decide quickly whether a hardware fault sits behind the problem, so you stop wasting time on flashing and move to board work with a clear target. The camera reads heat rather than communicating with the device, so iPhone, Samsung, Xiaomi, Oppo, Vivo, Infinix, Tecno, and Realme boards all work the same way under the lens, along with tablets, laptops, smartwatches, and other electronic PCBs. You need no device profiles, and you never wait for a software update to support a new model. For technicians who later want optical and thermal images fused into a single frame, a dual-spectrum thermal camera forms the natural upgrade path, though the RF-C45 already covers the everyday short-finding work most repair shops face. Keep the lens clean, set the stand height so the board appears sharp on screen, and inject current gradually, and the RF4 RF-C45 Infrared Thermal Camera turns short hunting from a guessing game into a routine step on your repair bench.
