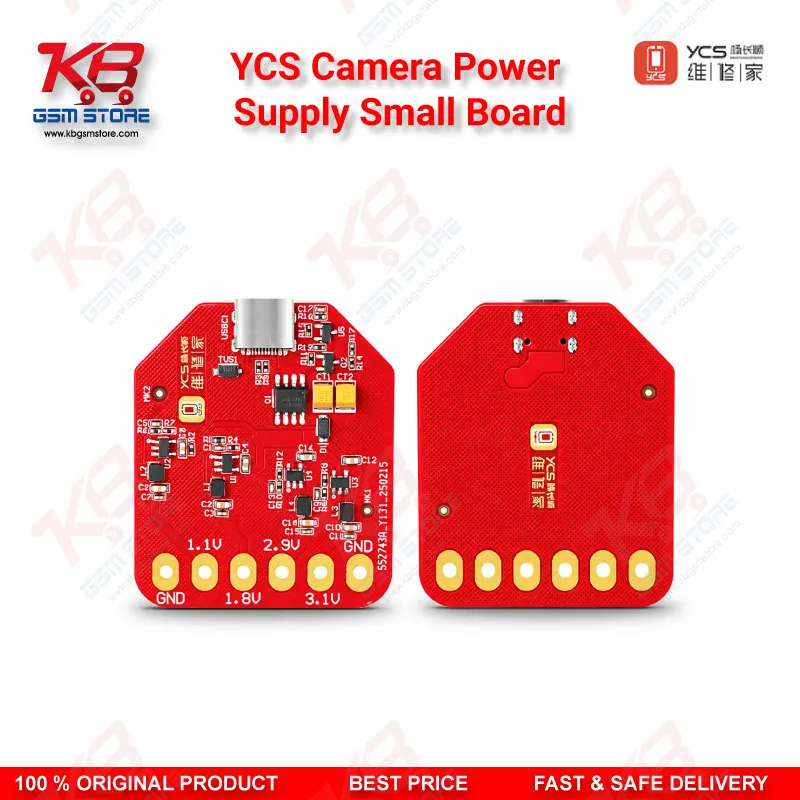

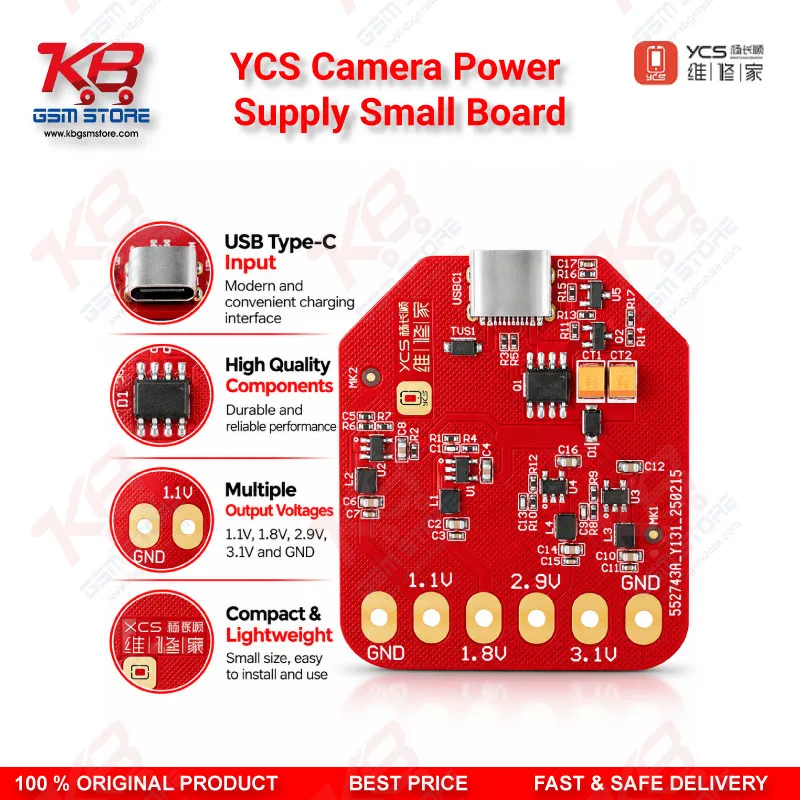

YCS Camera Power Supply Small Board – Microscope Camera

The YCS Camera Power Supply Small Board handles one job on your repair bench: it feeds power to the camera side of your microscope setup so the live image stays on screen while you work. Every technician who runs a trinocular microscope with an HDMI monitor knows the pain of a camera that cuts out in the middle of a CPU reball or a charging IC replacement. You lose your view, you lose your alignment, and a five-minute job turns into a twenty-minute one. A dedicated power board gives the camera its own supply path, so you stop chasing loose adapters and random blackouts when your hands should stay on the hot air handle. Think about how a busy Pakistani repair shop actually runs. The microscope camera stays on from morning until the shutters come down. You switch between a dead phone on the PCB holder, a boot loop issue that needs a memory check, and a charging issue that turns out to be a burnt connector line. Through all of it, the camera keeps streaming to the monitor so you, your apprentice, or the customer at the counter can see exactly what happens on the board. When the camera power fails, the whole microscope workstation slows down, even though the optics and lights still work perfectly. The YCS Camera Power Supply Small Board keeps that weak link under control. Its small form factor matters more than it sounds. Repair benches in Lahore, Karachi, and Islamabad shops run tight on space, with the soldering station, hot air station, DC power supply, multimeter, and preheater all fighting for the same few feet of table. A compact board tucks away without adding another bulky brick to the clutter, and you keep cable runs short and tidy around the microscope stand. YCS built its name on repair microscopes and 4K microscope cameras for mobile and laptop board work, so this board sits naturally inside that equipment family. If you already run a YCS trinocular microscope with a camera on the C-mount, a matching YCS spare on the shelf saves you from a full day of downtime waiting for parts. Before you connect any power board to a camera, check the rated output against the camera’s input rating and confirm polarity at the connector with your multimeter. That habit takes thirty seconds and protects an expensive camera sensor from a wrong-voltage mistake. Use the board as a diagnostic tool too. When a customer brings in a microscope setup with no picture, or your own camera stops showing an image on the monitor, the fault usually sits in one of three places: the power path, the HDMI or USB cable, or the camera module itself. Swapping in a known-good YCS Camera Power Supply Small Board lets you rule out the power path in minutes. If the image returns, you found your hardware fault without opening the camera housing. If it does not, you move straight to the cable and the module with one suspect already cleared. This board supports the microscope stage of your repair workflow, and that stage supports almost every other one. You inspect solder joints after hot air rework, check pads before jumper work on a broken trace, confirm ball alignment during reballing, and look for corrosion on a water-damaged board before you power it on a DC supply. Every one of those jobs depends on a clear, uninterrupted camera feed. Pair the board with the tools in our Microscopes category, a reliable PCB holder, and your existing hot air station and soldering station for a complete inspection-and-rework setup. For shops planning their next upgrade, a full trinocular microscope kit with a 4K camera gives you sharper detail for underfill removal and fine-pitch IC work, and a stable camera power source keeps that investment running day after day. For repair shop owners, service centers, and training institutes that run several microscope stations at once, the YCS Camera Power Supply Small Board makes sense as a stocked spare, because one failed camera supply should never take a whole station offline during the busy evening rush.
