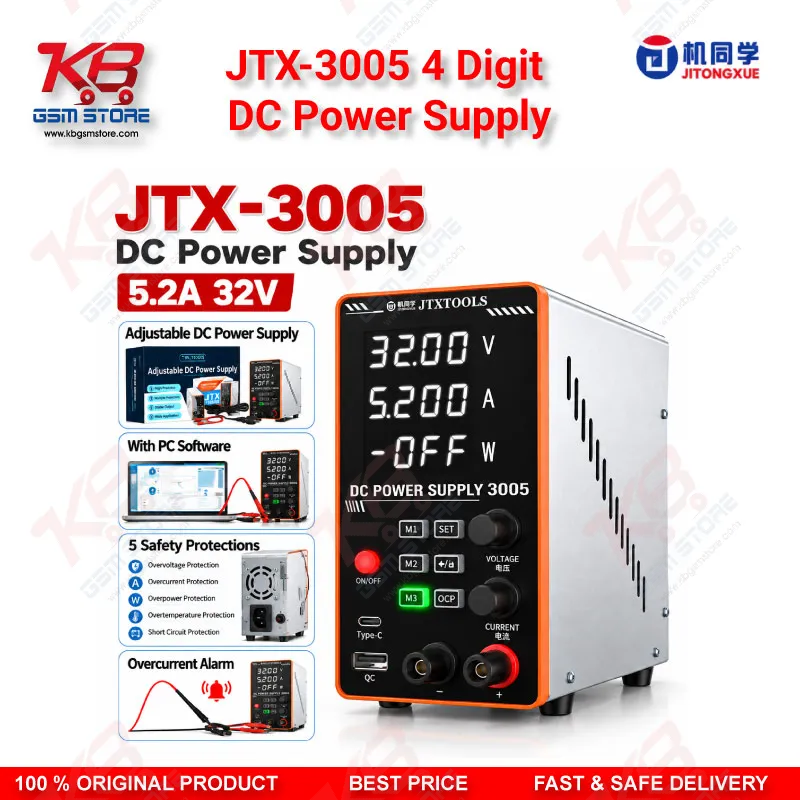

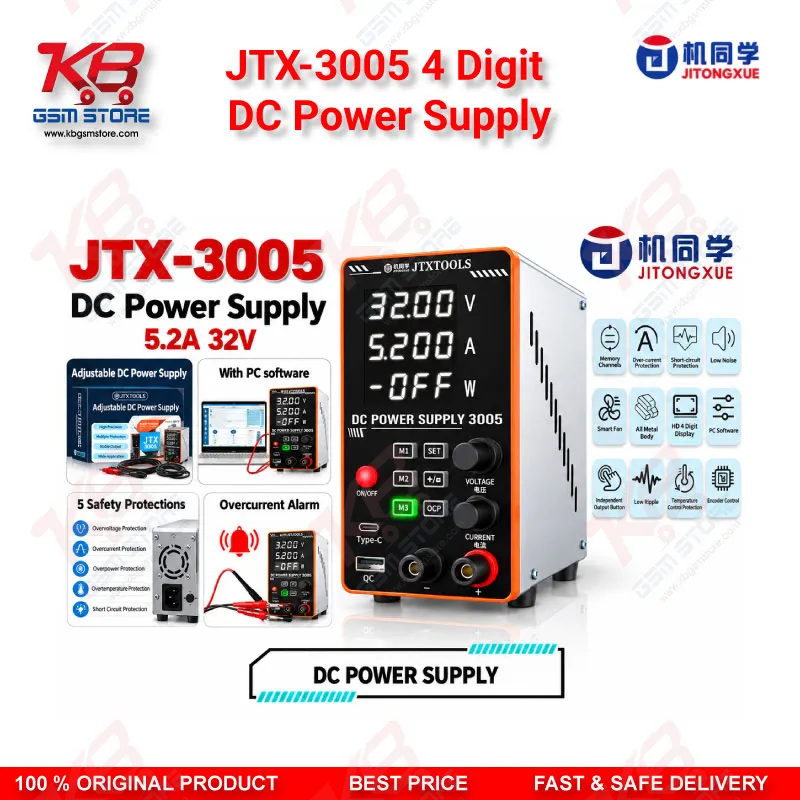

JTX-3005 4 Digit DC Power Supply for Mobile Repair Bench

When a phone reaches your repair bench completely dead, the current meter gives you the first honest answer, and the JTX-3005 4 Digit DC Power Supply puts that answer in front of you in clear numbers. You clip the leads onto the battery connector, set a safe voltage, press the power key, and watch how the board pulls current. A board that draws nothing points you toward an open line, a missing supply, or a power IC that never wakes up. A board that jumps to a high reading the instant you connect it tells you a short sits on the main rail. A board that climbs, settles, then falls back to zero in a repeating cycle shows you a boot loop issue before the display even lights up. Reading these patterns separates diagnosis from guesswork, and a four-digit readout gives you one more digit of detail than the three-digit units that still sit on many shop counters across Lahore, Karachi, and Islamabad. The 3005 designation follows the standard bench-supply naming for a 0 to 30V, 0 to 5A output range, which covers far more than phones. You set around 3.8V to 4.2V for a smartphone battery line, step up for tablets and power banks, and reach laptop board input levels when a customer walks in with a notebook charging issue. One unit handles the daily mix of work that comes into a Pakistani repair shop, from a budget Android stuck with a hang on logo complaint to a flagship that died after a fall. The current limit control does the real protective work. Before you connect any unknown board, you turn the current limit down, so a hidden short cannot pull unlimited power and burn a track or a freshly replaced IC. That same control turns the JTX-3005 into a short-finding tool. You drop the voltage to a low level, raise the current carefully, and inject power straight into the shorted capacitor or rail. The faulty component heats up first, and you spot it with rosin smoke, isopropyl alcohol evaporation, or a thermal camera, then lift it with your hot air station under the microscope. Technicians who skip this step end up replacing good parts one by one, and that costs time and margin on every job. Software work benefits just as much. A phone with a swollen or fully drained battery still needs flashing, FRP lock removal, or pattern unlock, and you keep the board alive from the supply while your service box runs. A steady external source removes the risk of the phone shutting down in the middle of a write, which is exactly how a simple flash job turns into a dead after flash case. For charging issue complaints, you power the board directly and check whether the phone boots normally without its battery. If it does, the battery or its connector becomes your main suspect. If it does not, the fault lives on the board, and you move on to the charging IC, the PMIC, or the charging port flex. You can also measure off-state current on a phone that drains overnight, because a board that keeps pulling current while switched off points to a leaking component on a rail that should stay quiet. After every board-level job, the supply gives you a final check. Once you finish an IC change, reball a power chip, or replace a cracked capacitor, you power the board again and confirm that standby current, boot pattern, and power-on behavior look normal before you close the phone and hand it back. That habit stops comeback jobs, and comebacks hurt a shop’s name faster than any price war in the market. This bench supply works best as the centre of a complete diagnosis setup rather than a standalone tool. Pair it with a digital multimeter for diode-mode readings and continuity checks, a stereo microscope for tracing hairline cracks, a PCB holder to keep the board steady while the leads stay clipped, and a soldering station with a fine tip for jumper work once you locate a broken line. Hot air stations and reballing kits come into play the moment the current reading confirms a faulty BGA chip. Shops that handle laptop motherboards in volume can later step up to a higher-current 30V 10A supply, while the 5A range comfortably covers the phone, tablet, and small-electronics jobs that make up most of the daily workload. A few bench habits get the most out of this unit. Keep your test leads short and firmly clamped, because a loose clip creates false readings that look like a hardware fault. Use a proper battery connector test cable instead of touching probes on tiny pads, especially on modern boards with fine-pitch connectors. Always set voltage and current before you connect the board, never after. Note down the normal boot current of phones you repair often, so you build your own reference for comparing faulty boards. Within a few weeks, you start reading a dead phone from the current display alone, and that speed turns into more jobs finished per day.
