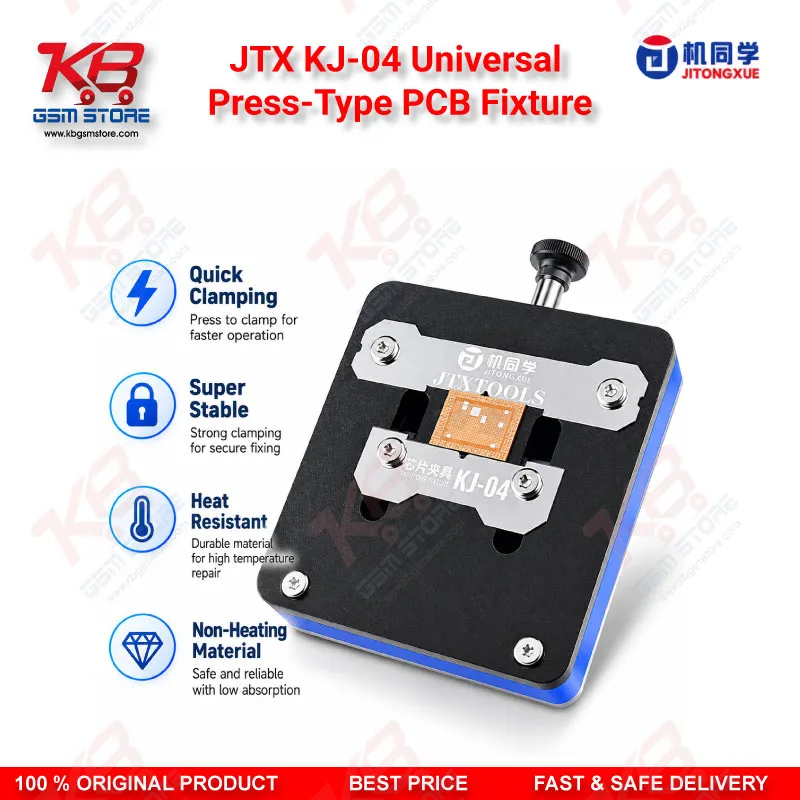

JTX KJ-04 Universal Press-Type PCB Fixture for Mobile Repair

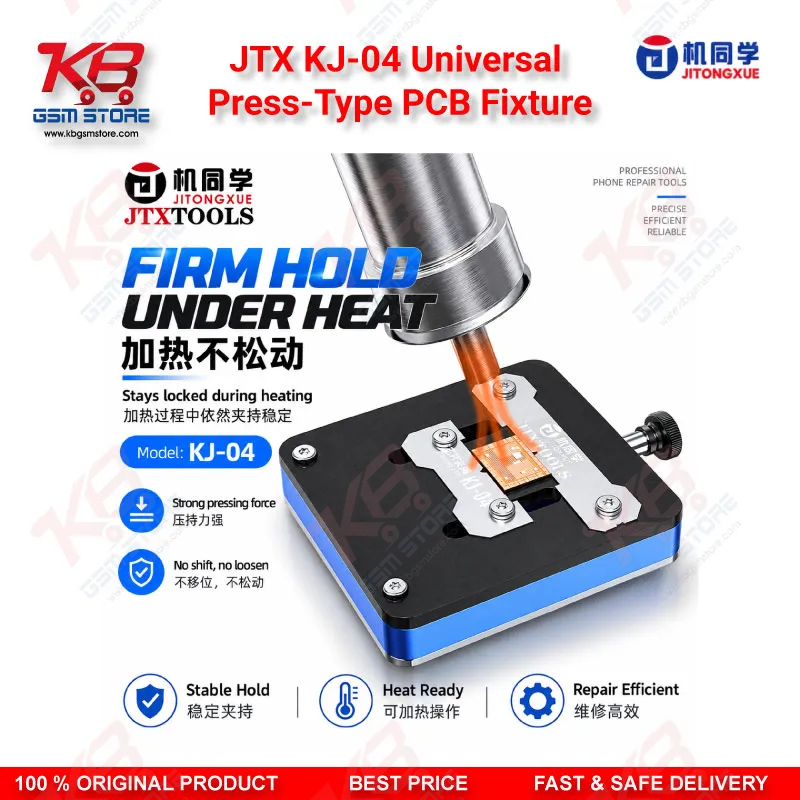

The JTX KJ-04 Universal Press-Type PCB Fixture solves a problem every technician on Hall Road or in Saddar knows well: a phone motherboard that slides around the moment your tweezers touch it. When you work on a dead phone or a charging issue, half your attention should not go into holding the board still. This fixture presses the board down and locks it in position, so your iron, your hot air nozzle and your tweezers get your full focus. On a busy repair bench where ten or fifteen boards pass through in a day, that steady grip saves time on every job and cuts the risk of knocking off small capacitors or lifting a pad. The press-type design works differently from a basic spring clip holder. Instead of only gripping the board edges, the press mechanism pushes the board down onto the fixture, which stops the rocking you get when you apply tweezer pressure on one side of an IC. That matters most during IC replacement, where a board that moves even slightly can drag a half-molten chip across neighbouring components. When you lift a charging IC to fix a charging issue, or pull a PMIC on a board that went dead after a short, you want the board to stay exactly where you placed it until the job finishes. The universal design means the fixture does not tie you to one brand or one model. Your shop sees Samsung, Infinix, Tecno, Vivo, Oppo, Redmi and iPhone boards side by side, and a model-specific holder sits unused most of the week. With the JTX KJ-04 you set the board in place and start working, whether the customer brought a phone with a network issue, a display problem from a damaged connector, or a unit that hangs on logo because of a hardware fault. Keep in mind that a fixture covers the hardware side only. It does not touch software problems such as an FRP lock or a boot loop issue that firmware causes, but when your diagnosis points to the board, this is the tool that holds it while you work. Jumper work is where a steady fixture pays for itself. Running a thin jumper wire across a broken track under the microscope needs both hands, and the board has to stay still while you tin the wire, position it and touch it down. A board that shifts by a fraction of a millimetre ruins the joint and sends you back to the start. The press grip holds the PCB steady through the whole jumper job, and the same benefit applies when you replace a damaged FPC connector, clean old solder off pads, or scrape glue from around a chip before removal. In the repair workflow, the fixture sits at the centre of your board-level stage. You diagnose with a DC power supply and a multimeter, inspect under a microscope, then mount the board on the fixture for soldering and rework. Pair it with a hot air station for chip removal, a soldering station for fine pad and jumper work, and a reballing kit when you need to rebuild BGA joints. JTX also builds bench equipment such as the JP-1 preheating platform, and a preheater makes a sensible upgrade once your board work grows into layered iPhone boards and stubborn underfill. Before heavy hot air work, position the press points away from the area you heat, so the airflow hits the chip and not the clamp. For shop owners comparing PCB holder price in Pakistan, the real value of the JTX KJ-04 Universal Press-Type PCB Fixture shows up in fewer damaged boards and faster turnaround. A fixture that holds firmly means fewer comebacks, fewer lifted pads and less time spent redoing a jumper. For a new technician setting up a first bench, it belongs on the basic tool list next to the iron and hot air station, and for an experienced engineer it adds a dependable second holder for running parallel jobs. KB GSM Store stocks it for technicians in Lahore, Karachi, Islamabad and across Pakistan.
