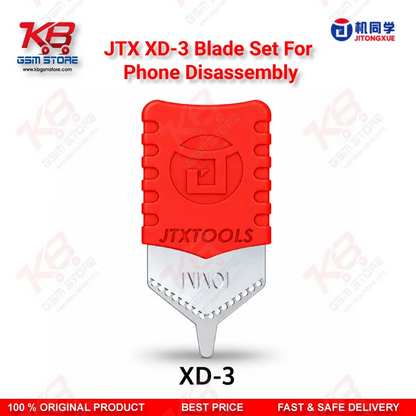

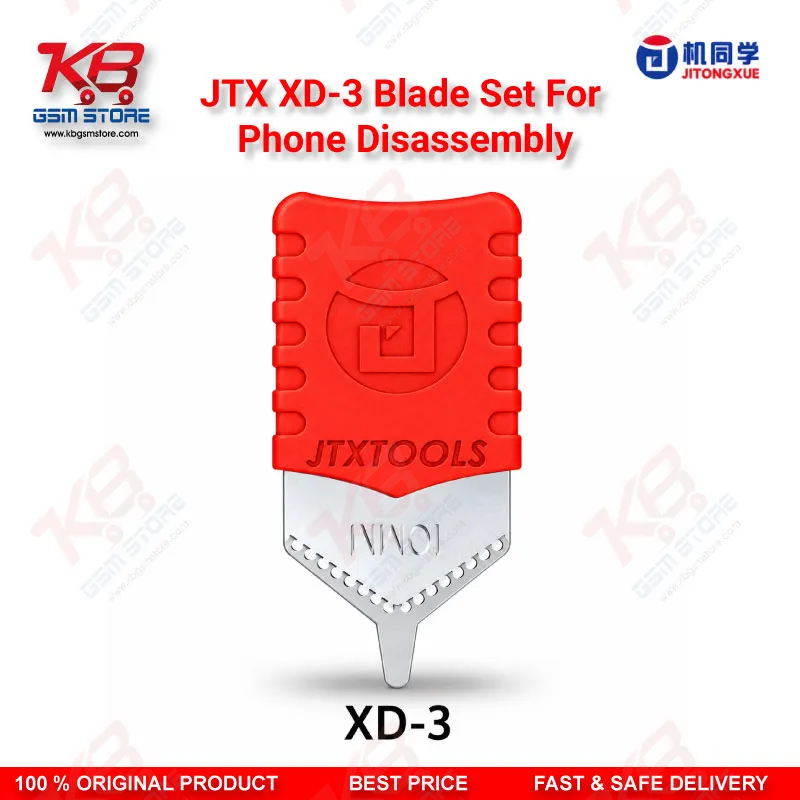

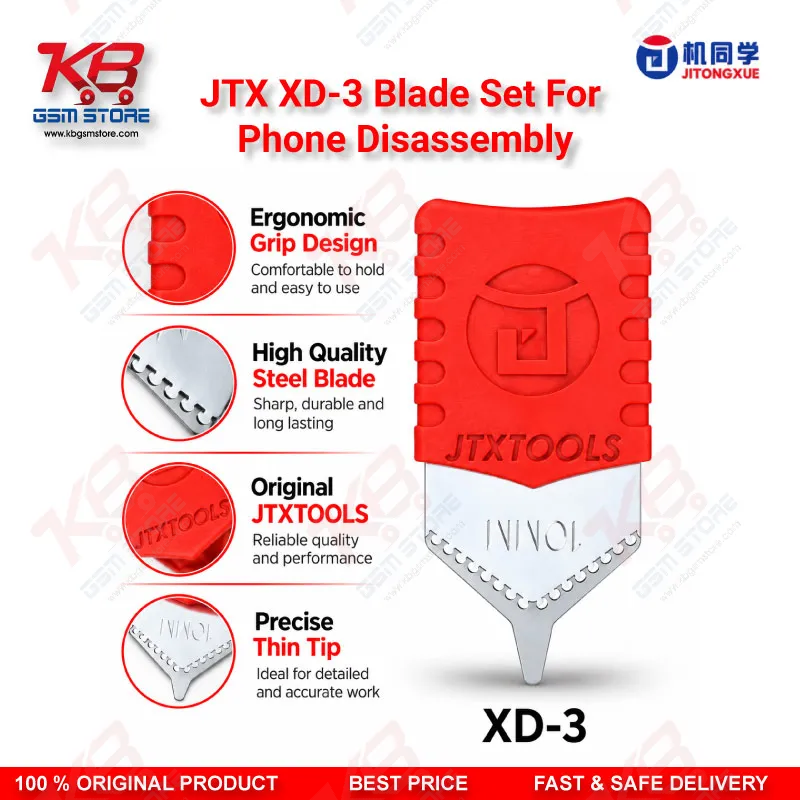

Every screen or back glass job starts with the same risky moment: getting a blade into a gap that the factory sealed with strong adhesive. The JTX XD-3 Blade Set For Phone Disassembly takes the guesswork out of that first cut. JTXTOOLS built the XD series around a depth-limiting structure, and the XD-3 carries the pointed tip with a 10mm insertion limit, the middle ground of the range. The XD-2 stops at 3mm for shallow seams, the XD-4 and XD-5 rounded tips reach 17mm for wide adhesive runs, and the XD-3 sits right where most screen-to-frame and back cover jobs need it. You push, the stop meets the frame edge, and the tip goes no deeper. That single feature protects the display panel, the digitizer flex, the battery connector, and the motherboard underneath from a slipped hand. On a busy counter where a customer waits for a display problem fix, that protection keeps a simple screen swap from turning into a dead phone and a board-level repair.The blade measures only 0.1mm thick, so the pointed tip enters the tight seam of a modern phone without the force a thicker pick needs. JTXTOOLS uses a high-toughness, heat-resistant material, which matters because most technicians warm the screen edge on a separator plate or with a hot air station before opening. A blade that softens at that temperature loses its edge fast; the XD-3 keeps its hardness, resists chipping at the tip, and returns to shape after repeated flexing.The pointed profile suits starting cuts. You place the tip at a corner or along the bottom edge near the charging port, work it under the glass, and then slide it along the seam to break the adhesive line. On phones with curved OLED edges, the pointed tip finds the narrow seam without levering against the fragile curve. On glass back covers, it opens a starting point you can widen with a rounded blade or opening picks. Technicians handling charging issue and battery replacement jobs on sealed phones use the same entry method to reach the battery and its connector.The handle uses non-slip silicone with an ergonomic shape, so your grip stays steady after a long stretch of opening jobs. Control matters more than force with a 0.1mm blade, and a firm, comfortable handle keeps your angle consistent while you trace the seam. Beginners and trainees in technical institutes benefit the most, because the depth stop removes the most common early mistake: pushing too far and cutting a flex. Experienced technicians use the XD-3 for speed, because they no longer slow down at every corner to judge depth.Within your opening workflow, the XD-3 pairs naturally with other tools from the KB GSM Store catalog. A screen separator or hot air station softens the adhesive first, a PCB holder or phone fixture keeps the device steady, and suction cups lift the glass once the blade breaks the seal. Opening picks hold the gap while you move around the frame, and precision screwdrivers and tweezers take over once the display comes free and you need to disconnect the battery and flex connectors. After disassembly, you can move to a microscope, soldering station, or multimeter for any board-level diagnosis the phone needs.
For shops that open many phones a day, the upgrade path leads to the full JTX XD 1-7 limiting blade set, which adds shallow 3mm tips, wide 17mm rounded tips, a square tip, and a hook tip for flex lifting, so you can match every seam depth on one bench. Shop owners searching for a disassembly blade price in Pakistan that balances cost with real protection for customer phones will find the XD-3 a practical pick. One saved screen or one avoided torn flex covers its cost many times over.
