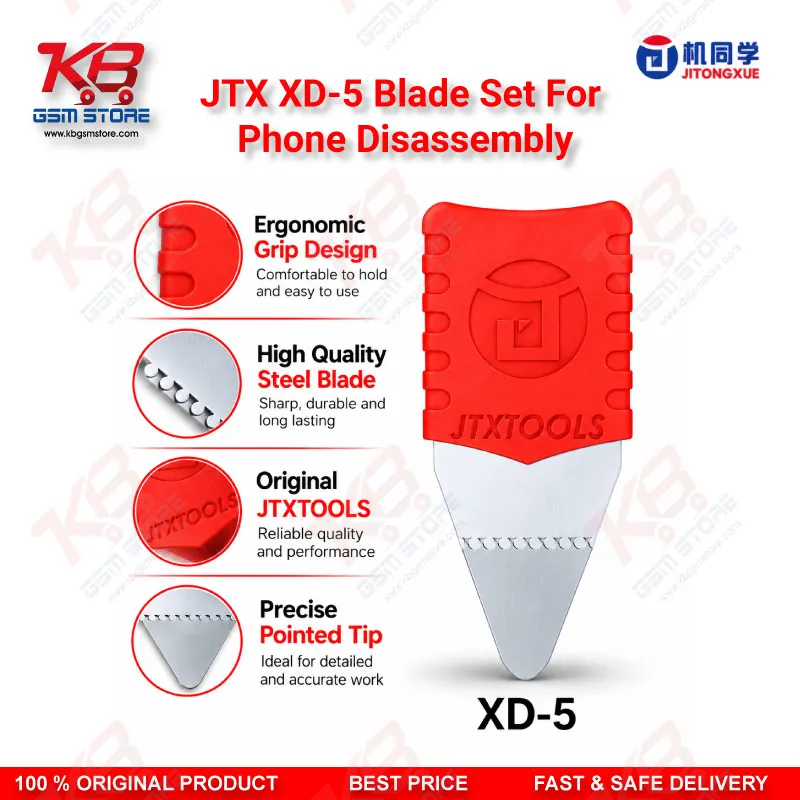

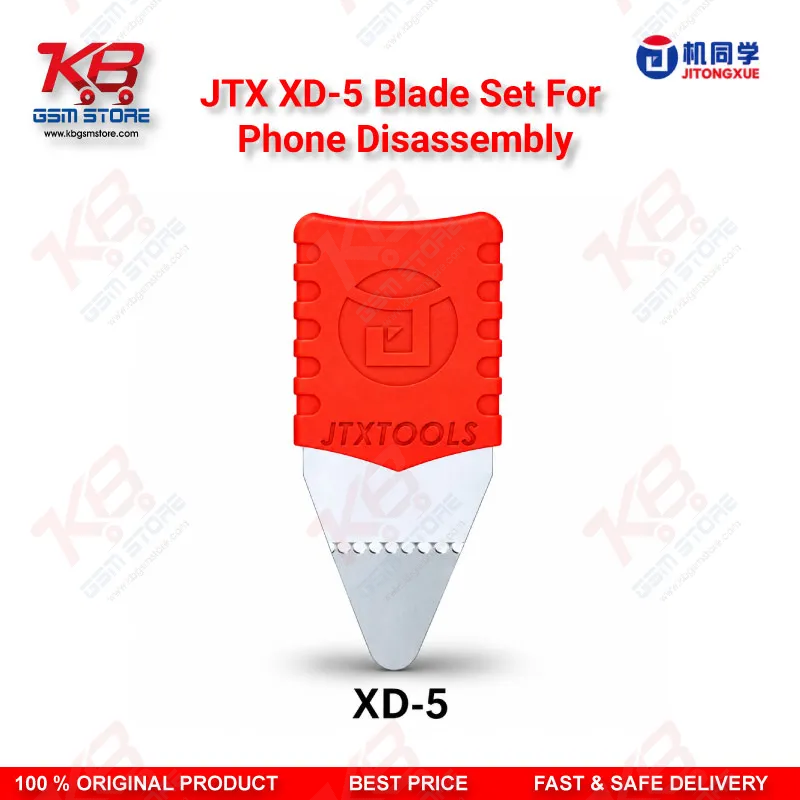

The JTX XD-5 Blade Set For Phone Disassembly solves a problem every technician meets on the repair bench: getting deep under glued panels without pushing the blade into something you cannot replace. JTXTOOLS builds the XD-5 as part of its XD limiting disassembly series, and this version carries a rounded tip with a 17mm insertion depth limit. That stop sets the deepest point the blade can travel, so your hand controls the slide along the seam while the blade itself controls how far it enters the phone. On a modern handset with tightly bonded back glass or a display stack sitting just above the flex cables, that difference decides whether the job ends in a clean repair or a fresh display problem and an unhappy customer. The blade measures only 0.1mm thick, which lets it slip into the hairline gap between glass and frame without forcing a thick pick in first. JTXTOOLS uses a high-toughness, heat-resistant material for the blade, so it holds its shape after you warm the adhesive on a heating pad or with a hot air station, and it resists chipping across repeated jobs. The rounded profile matters too. A pointed tip concentrates force on one spot and can snag a gasket or catch a cable edge, while the rounded nose of the XD-5 spreads pressure along a wider curve and glides through the adhesive line instead of digging into it. The 17mm depth makes this one of the two long-reach blades in the series, alongside the XD-4, and it suits work where the glue band sits well inside the panel edge. Think of a back cover that a previous technician sealed with too much B-7000, a battery that wide adhesive strips hold firmly in place, or a mid-frame that needs a full sweep from one corner to the other. You run the XD-5 along the seam after heating, let the stop ride against the frame, and work your way around without guessing how deep you have gone. For shops handling charging issue jobs, battery swaps, and back glass replacements every day, this keeps the opening stage quick and repeatable, and it lowers the chance of a hardware fault you created yourself. New staff learn faster with a depth-limited blade because the tool corrects the most common beginner mistake, which is pushing too far the moment the glue gives way. Experienced hands gain something as well, since you no longer need to slow down near the flex cable zone when the blade cannot reach past its stop. The non-slip silicone handle gives you a steady grip during long sessions and keeps your fingers from cramping when a stubborn panel takes several passes. Pair the XD-5 with the right supporting tools and the opening stage becomes a smooth routine. A heating platform or hot air station softens the adhesive first, a suction cup lifts the glass enough to start the gap, plastic picks hold the opening while you move around the device, and ESD-safe tweezers with a precision screwdriver set take over once the panel comes off and you reach the connectors. A PCB holder keeps the board steady when the job moves past disassembly into board-level work. If your workshop opens phones in volume, the full JTX XD 1-7 series adds pointed, square, and hook profiles for the shallow and narrow spots where a rounded 17mm blade does not fit, so the XD-5 works best as your go-to long-reach blade inside that wider kit. Wipe old adhesive residue off the blade with isopropyl alcohol after each job and store it away from heavier tools so the thin edge stays straight. Technicians searching for a reliable phone opening blade price in Pakistan want a tool that saves screens, protects boards, and pays for itself within a few jobs, and the depth-limited design of the JTX XD-5 Blade Set For Phone Disassembly answers exactly that need on a busy repair counter.
