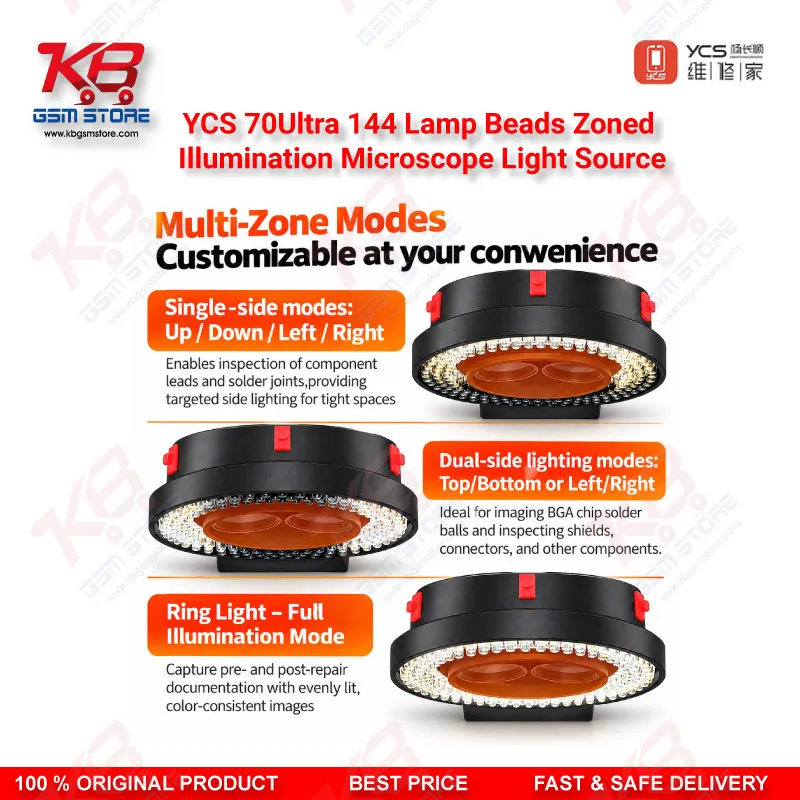

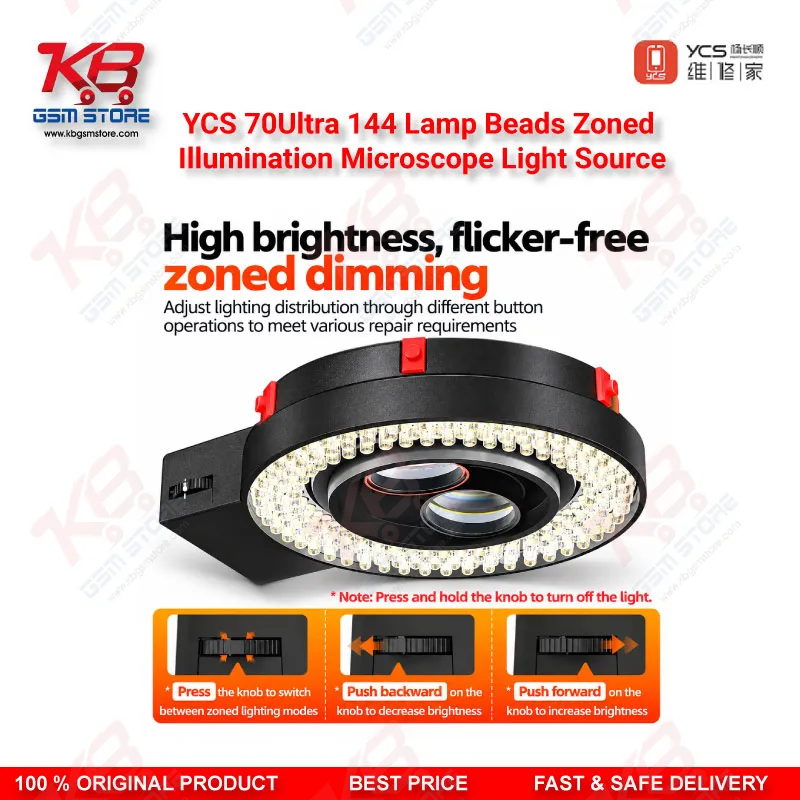

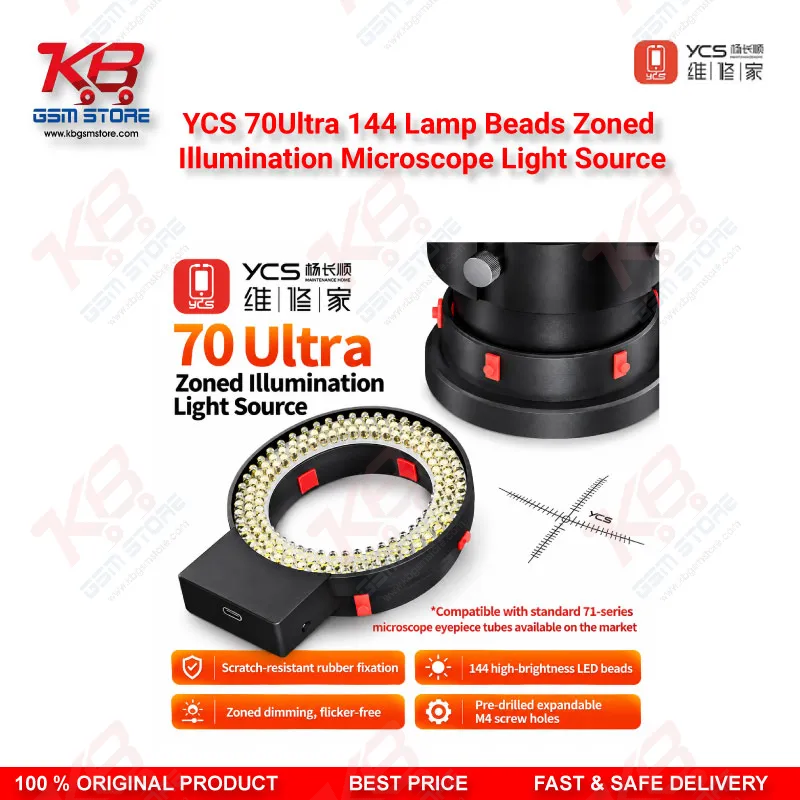

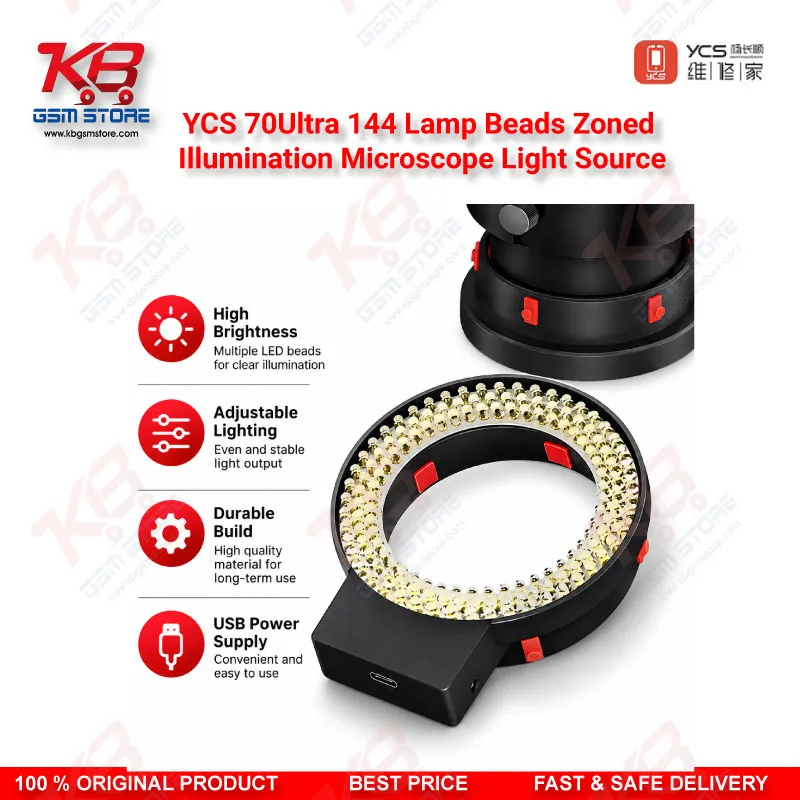

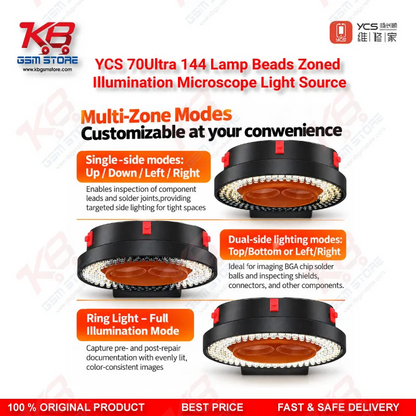

When you trace a short on a dead phone under the microscope, poor lighting wastes more time than the fault itself, and the YCS 70Ultra 144 Lamp Beads Zoned Illumination Microscope Light Source tackles exactly that problem on your repair bench. YCS built this ring light for 71-series stereo microscopes, and it fits the mainstream 71-series eyepiece tube, including the YCS 71 Ultra. A scratch-resistant rubber sleeve grips the tube body, so you skip fixing screws completely: push it on and the sleeve adjusts itself to a workable height. That matters in a busy shop where one microscope moves between two or three technicians in a day and nobody wants to hunt for a missing screw before the next job. Inside the ring, 144 high-brightness LED beads deliver the light, and the real story here is zoned control. A standard ring lamp throws light evenly from every side, which looks fine until you need to read a tiny component marking or check whether the solder under a CPU edge actually flowed. The 70Ultra lets you split the ring and fire only the top and bottom sections or only the left and right sections, and you switch between these modes through the buttons on the unit. Side lighting adds contrast across the board surface, so lifted pins, cracked joints, cold solder and tiny bridges stand out instead of vanishing in glare. This helps when you inspect the pins of a charging IC after a charging issue, check filters and small parts around the network section, or confirm that a jumper you just placed sits clean on both pads. Switch back to the full ring and you get even, color-consistent light across the whole field, which works best when you photograph the board before and after the job. Many shops now send customers a photo of the burnt area or the replaced part, and evenly lit images make that proof look professional and build trust with the customer. The dimming runs flicker-free, which counts when you mount a camera on a trinocular port, because flicker shows up as rolling bands in recorded video and ruins tutorials and customer proofs. Steady light also reduces eye strain during long sessions of reballing, IC change work on a PMIC, or cleaning corrosion off a water-damaged board. Pre-drilled M4 screw holes on the body give you room to grow, and YCS made them for the YCS Repair Pro MINI Microscope Thermal Imaging module, so the same ring can carry thermal imaging for spotting a heating component on a shorted rail without moving the board. Think about where this light sits in your full workflow. You clamp the board in a PCB holder, power it from your DC supply, use a multimeter to find the shorted line, then go under the microscope with this light in side mode to locate the exact component. Next comes removal with your hot air station, cleanup with the soldering station and wick, and if the fault sits under a BGA chip, the reballing kit comes out. For software-side faults like a boot loop issue, hang on logo, or dead after flash, you still need the microscope to find ISP points before you connect your test box, ISP pinout tools, eMMC programmer, or UFS adapter, and clear zoned lighting makes those tiny test points far easier to find and solder. The 70Ultra does not replace your microscope; it upgrades the scope you already own if it uses a 71-series tube, which makes it a smart, low-cost step before you invest in a new microscope head. For a shop owner in Lahore, Karachi, or Islamabad already running a 71 Ultra or a compatible 71-series scope, this light gives you sharper inspection, cleaner documentation, and expansion space in one ring. Order it from KB GSM Store and browse our microscopes category for matching heads, stands, and camera setups.
