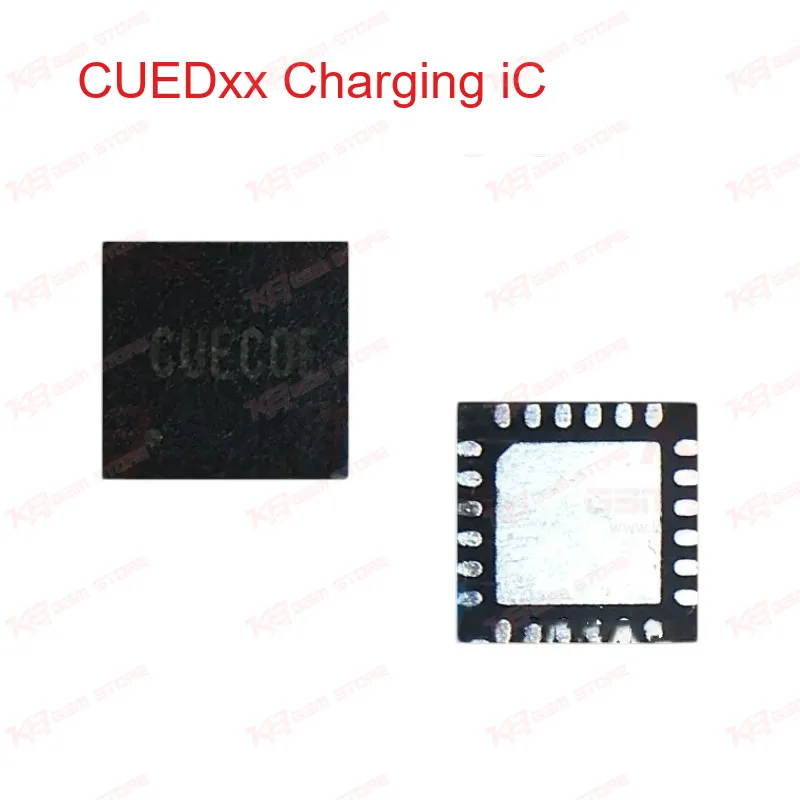

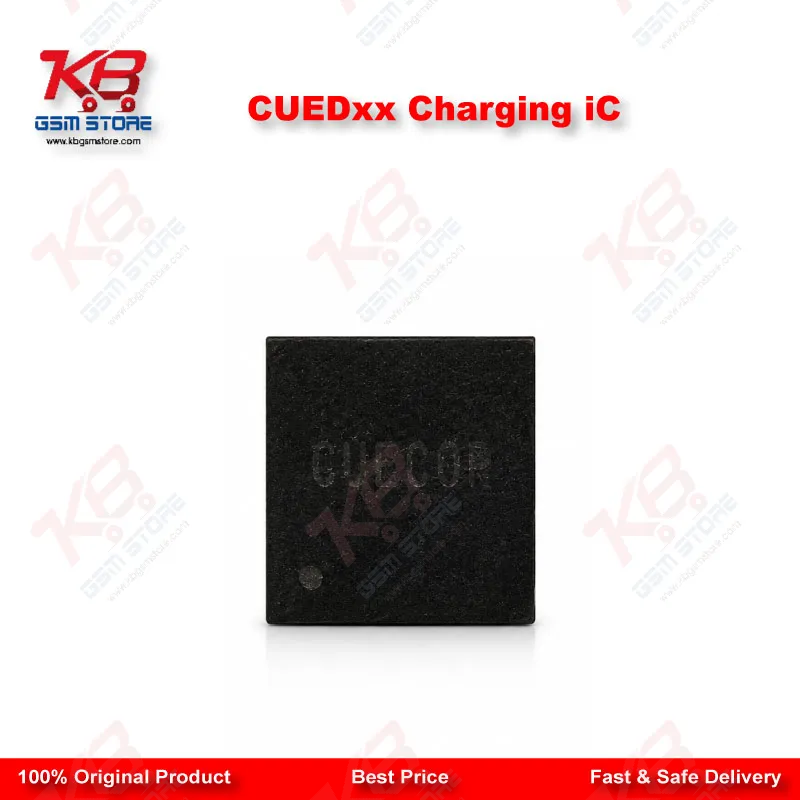

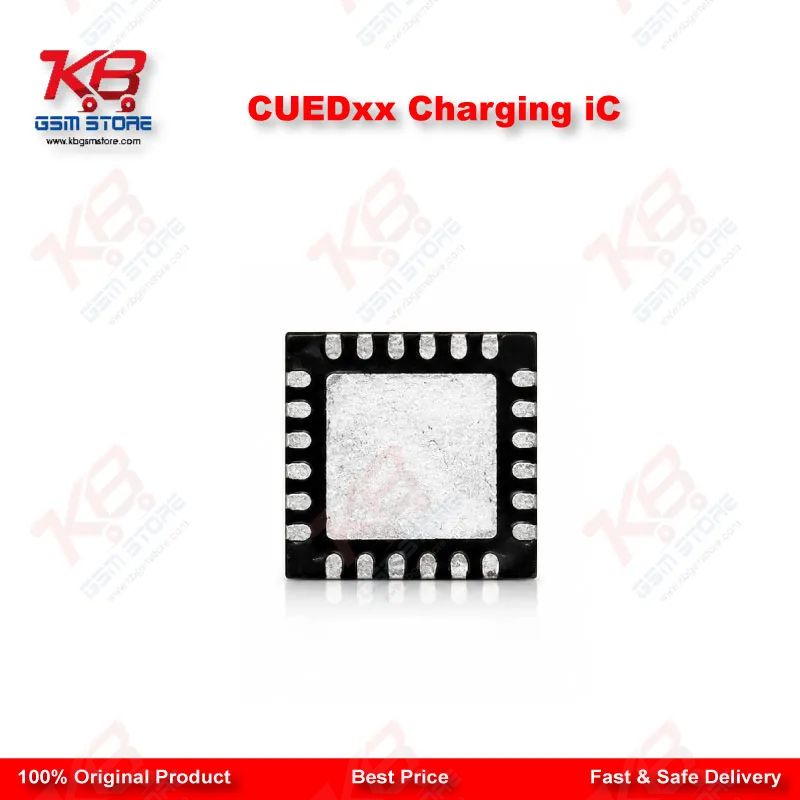

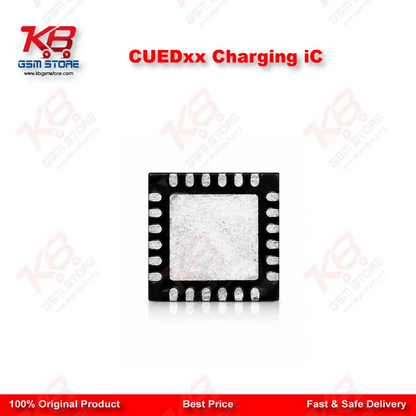

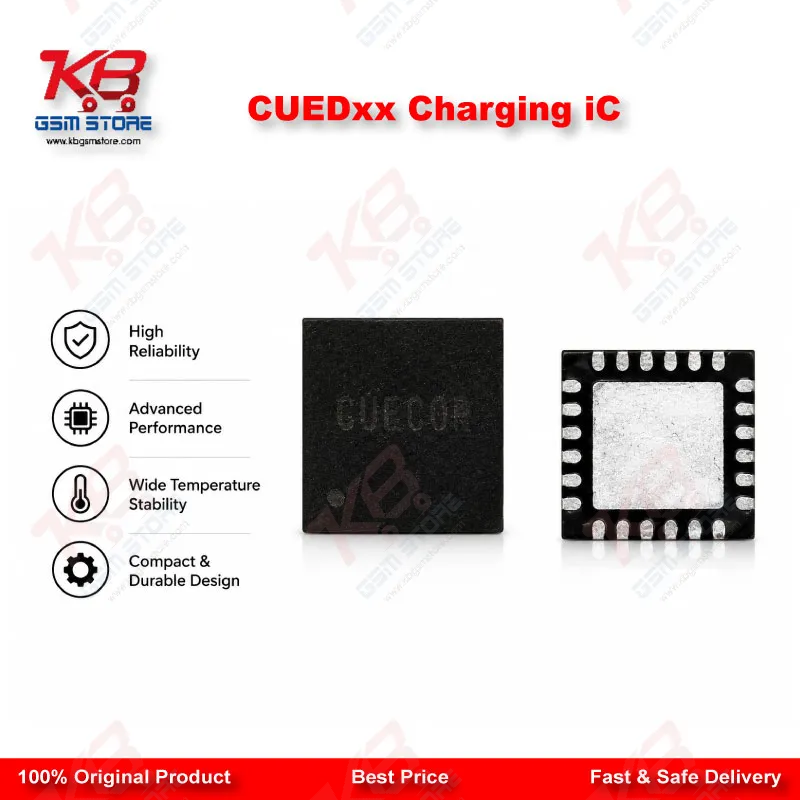

Charging faults on the Huawei Honor 20 often trace back to one component on the motherboard: the charging management IC. When a phone stops charging, shows a charging icon without actually gaining battery percentage, or gets hot near the USB port during charging attempts, the charging IC is usually the first suspect after you've ruled out the charging port flex and battery. The CUEDxx Charging IC replaces this exact component on Honor 20 boards, giving your repair bench a direct fix instead of sending the board out for a full swap. This chip sits between the USB-C charging port and the battery management circuit. It negotiates power delivery with the charger, regulates the current flowing into the battery, and protects the board from overvoltage during charging. When this IC degrades — often from moisture exposure, a physical short, or a cheap charger frying the input pins — the phone typically shows one of a few classic symptoms: dead phone with no charging response at all, charging LED with zero percentage increase, or the device charging painfully slow even on a rated fast charger. If you've already tested the charging port and cable and the board still shows no current draw on your DC power supply, this IC is the next component to check with your multimeter or thermal camera. Installing the CUEDxx requires standard BGA-level repair technique. Remove the faulty IC with your hot air rework station at a controlled temperature to avoid lifting neighboring pads, clean the footprint with flux and solder wick, then reball or paste-print before placing the new chip. A microscope helps you verify pad alignment before reflow, since a shifted placement on a charging IC often causes a phone to power on but never draw current — a frustrating fault to chase blind. After reflow, always test with a bench power supply set to current-limit mode before connecting a real charger, so you catch a short circuit before it damages your equipment or the board again. This part is aimed at technicians who already handle board-level repair rather than screen or battery swaps. If your workshop takes on "dead after liquid damage" or "charging issue" cases regularly, keeping this IC in stock saves you the delay of sourcing a donor board just for one chip. It pairs naturally with your existing ISP pinout tools for post-repair software checks, your hot air station for removal and placement, and your multimeter for pre-repair fault isolation on the charging line. Because this is a board-level component pulled and verified for Honor 20 charging circuits rather than a boxed retail chip with a public datasheet, exact electrical ratings aren't published by any manufacturer source — you're working with the same part that shipped on the original board, matched for direct compatibility. Handle it with standard ESD precautions during storage and installation, the same as any other BGA-level PMIC or charging component on your bench. KB GSM Store stocks this IC alongside other charging and power ICs for Huawei, Honor, Samsung, and Xiaomi devices, so you can source your full charging-repair toolkit in one order instead of chasing parts across multiple suppliers.
