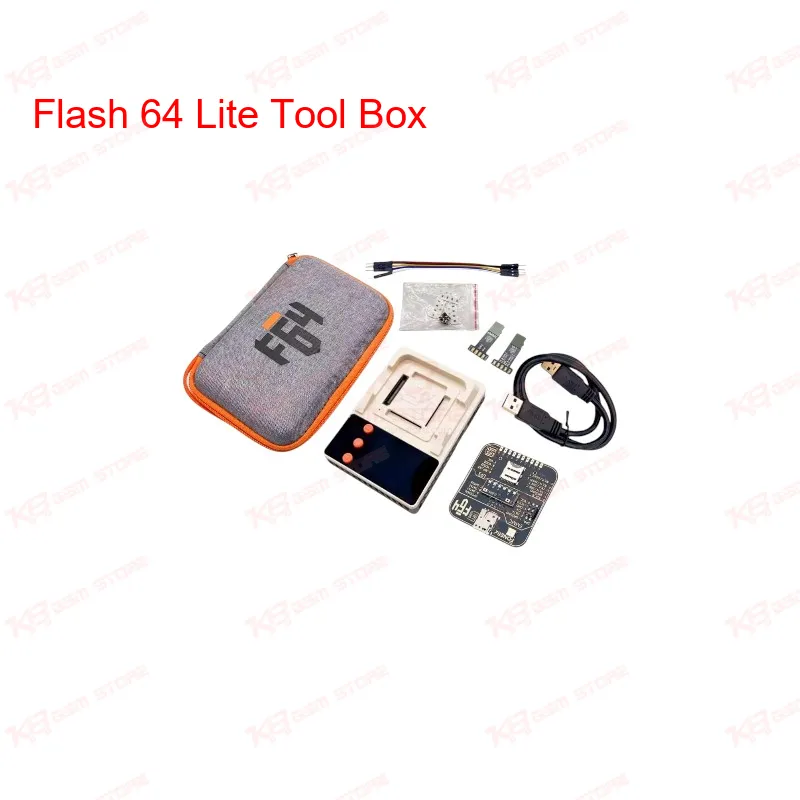

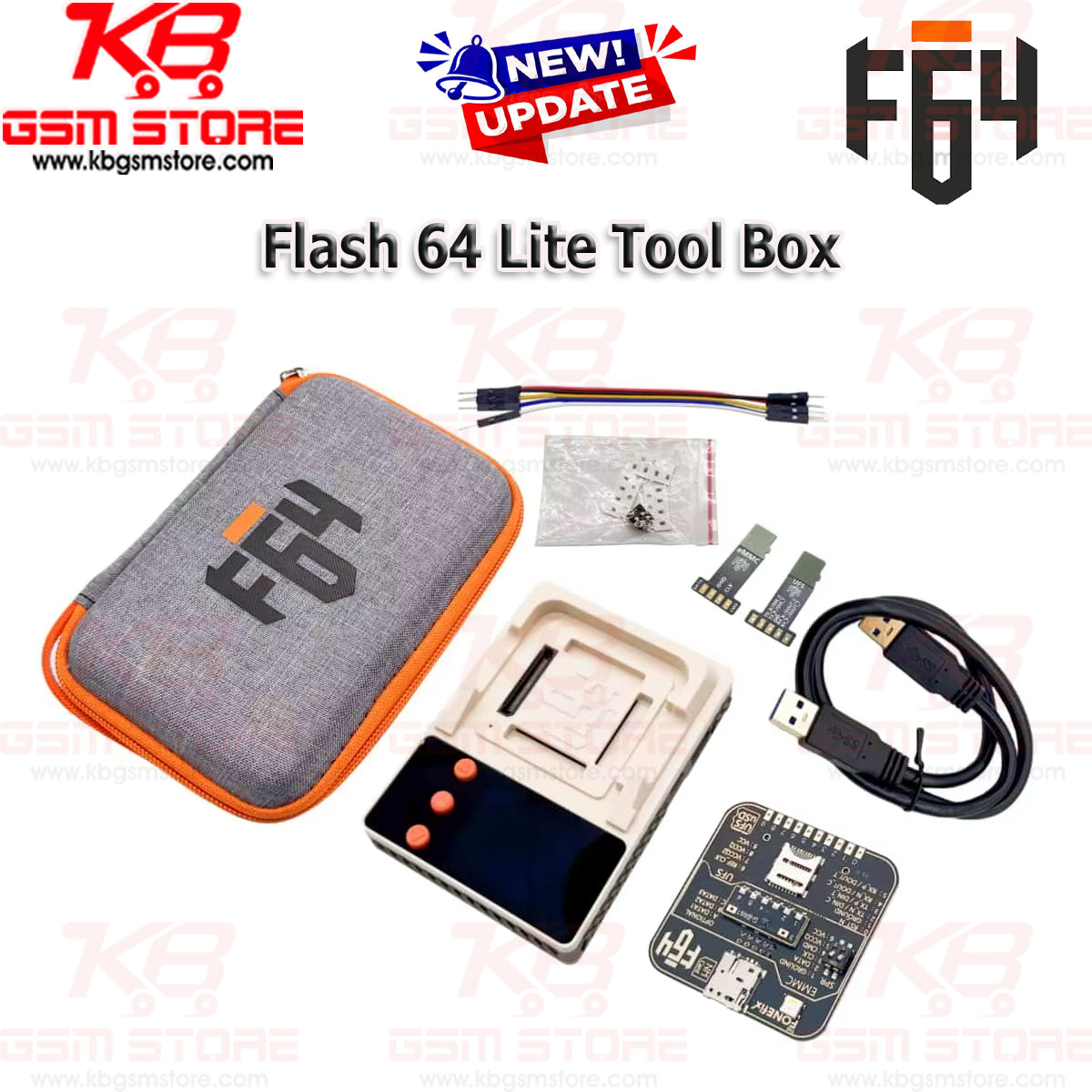

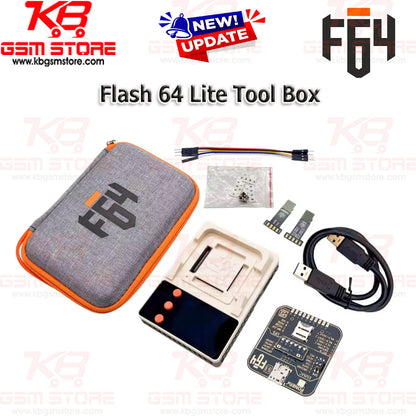

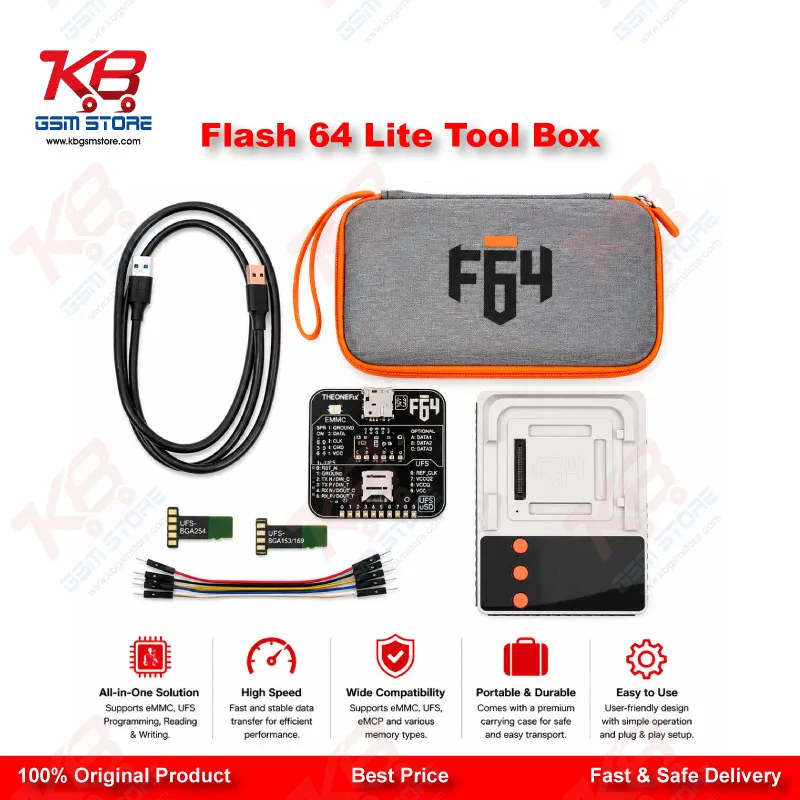

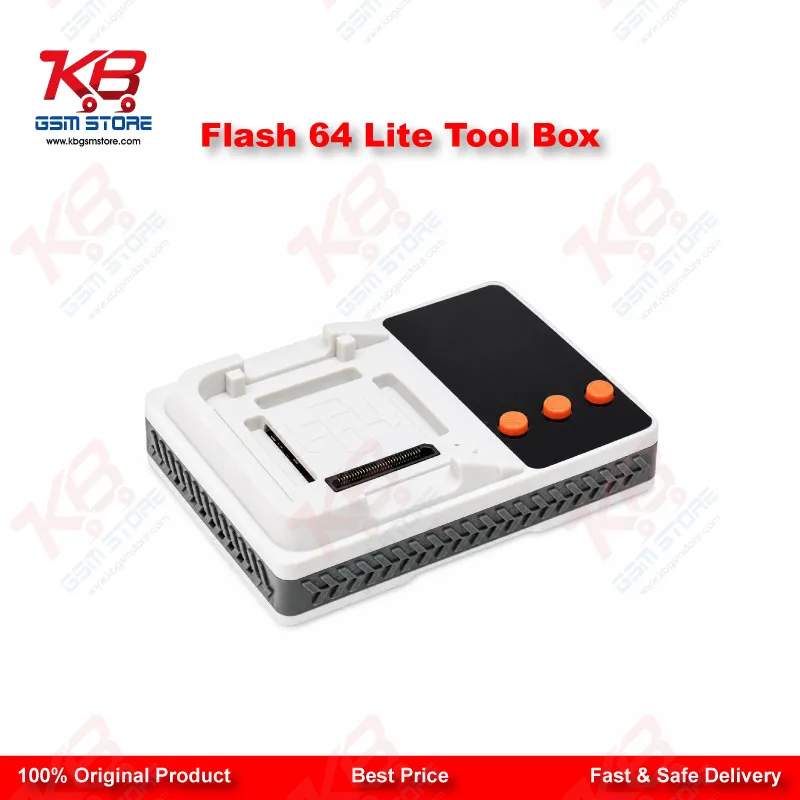

Flash 64 Lite Tool Box (F64) – UFS/eMMC ISP Programmer & JTAG Flashing Box

Your repair bench eventually runs into a phone that software tools can't touch — dead after flash, stuck on logo, or completely unresponsive to fastboot and download mode. That's the gap the Flash 64 Lite Tool Box closes. It talks to the storage chip directly, at the hardware level, instead of going through the phone's operating system or bootloader.
The F64 platform is built around managed NAND programming. It reads and writes UFS and eMMC storage — the chips that hold the Android partitions, IMEI data, and firmware on almost every modern smartphone. Where a software box needs a working bootloader or a live USB connection to talk to a phone, the F64 Lite bypasses that requirement entirely. You get low-level access to raw partitions, logical units, and RPMB regions, along with high-level access to standard Android OS partitions. For a dead phone with a corrupted eMMC or UFS chip, that's the difference between a write-off and a completed repair.

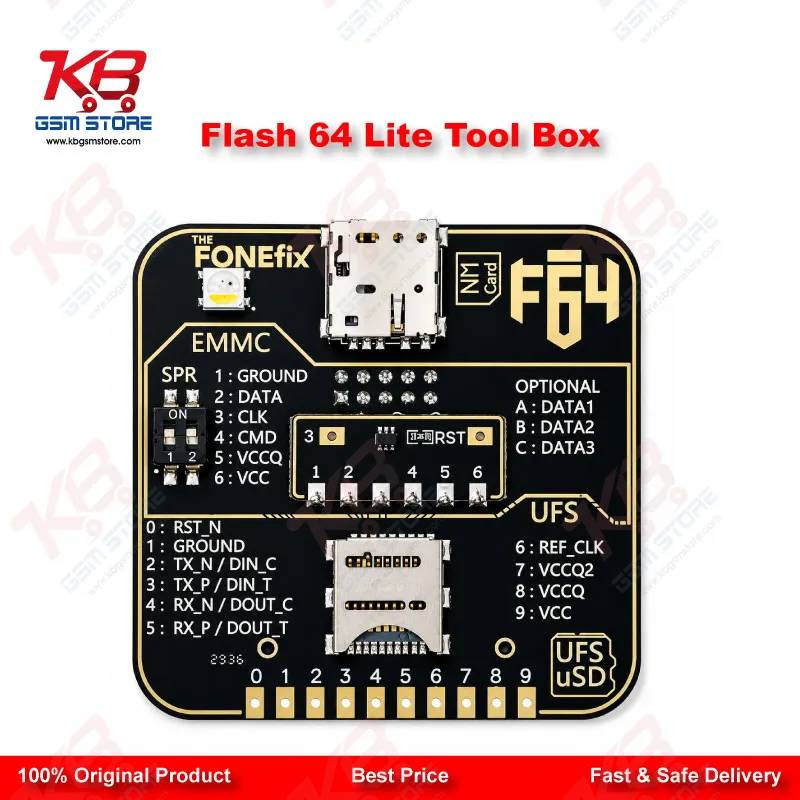

Interface support is where the Lite box earns its place next to your ISP and JTAG tools rather than replacing them. It works across JTAG, SPI, I2C, UART, and RFFE — so the same box that pulls a firmware dump off a UFS chip can also handle lower-level diagnostic and boot-recovery tasks that pure eMMC boxes skip. This matters on hard-bricked boards where the usual test point or download-mode approach gives you nothing to work with, and JTAG becomes the only reliable way in.
This is the Lite version, and that word does real work here. It comes as the tool box only — no adaptor bundle included. If you already run a shop with ISP pogo pins, BGA sockets, or a UFS flex cable set from another job, you're not paying again for accessories sitting in a drawer. You add exactly the adaptors your workflow needs: an eMMC BGA socket if you're doing bench-level chip work, an ISP flex cable if you're working through motherboard test points on a dead phone. That flexibility is why shops running a QianLi or Mechanic adaptor kit often pick the Lite box over a bundled full kit — the hardware access is identical, only the accessory list changes.
Where this box fits on your bench: it sits between your basic UFI or software box and your reballing/microscope setup. A typical dead-boot case starts with a software attempt, moves to ISP programming when that fails, and lands on JTAG or direct chip access when the board itself is the problem. The F64 Lite covers that last stage — the point where IC change karna and jumper lagana become part of the job, not just software marna. For eMMC repartitioning after a bad flash, or pulling data off a UFS chip before a board-level repair, this is the tool that gets you there.
Build quality matters on a bench that runs all day. Repair shops report stable connections through extended sessions without the signal drops or overheating that plague budget JTAG clones — a real factor when you're running back-to-back jobs on a busy counter rather than a single unit at home. At 0.6 kg, it's compact enough to sit on a crowded workbench alongside your hot air station and multimeter without eating up space.
Pair it with an eMMC programmer for read/write speed on standard flash jobs, or run it alongside your ISP pinout tools when the case calls for motherboard-level access instead of a socket. Technicians building out a full data-recovery station also connect it into their existing UFS adapter and test box setup rather than duplicating hardware they already own.
This isn't a beginner tool. JTAG and ISP-level programming mean direct access to a chip's raw memory — a wrong connection or a rushed procedure can turn a recoverable phone into a dead board. It's built for technicians who already understand chip-level repair fundamentals and want hardware-level access without paying for an adaptor set they won't use. For a Pakistani repair shop handling FRP lock cases, hang-on-logo boards, and boot loop issue diagnostics on a daily basis, the Flash 64 Lite Tool Box earns its spot as a core piece of the hardware-repair workflow rather than a shelf item
