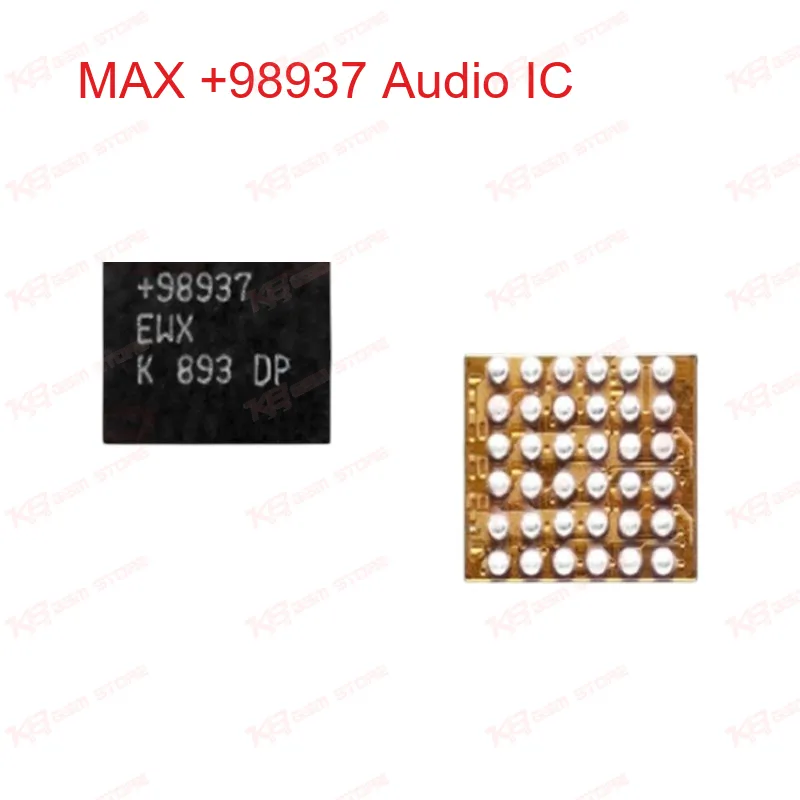

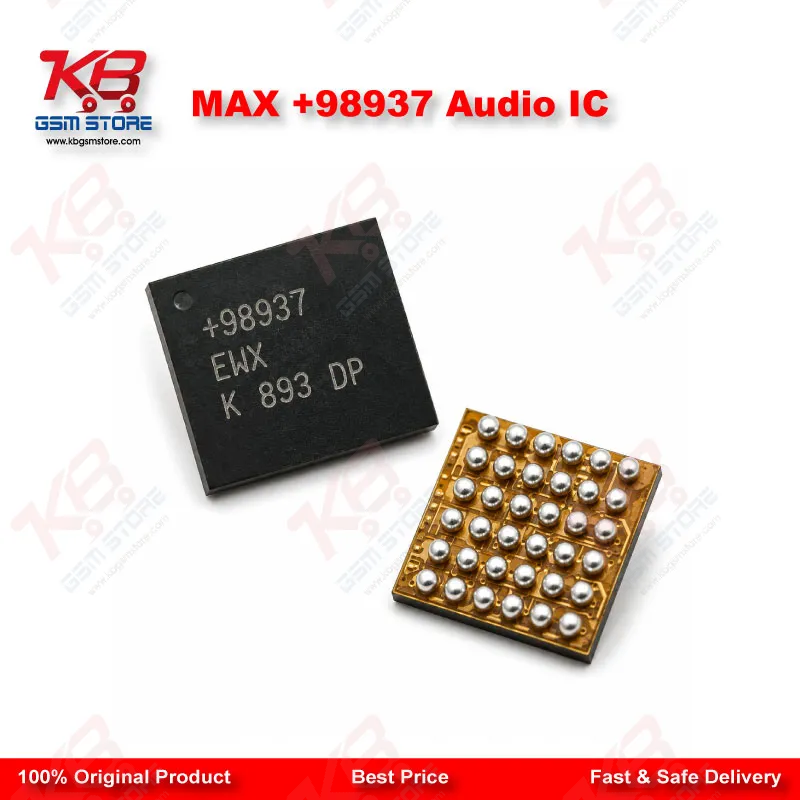

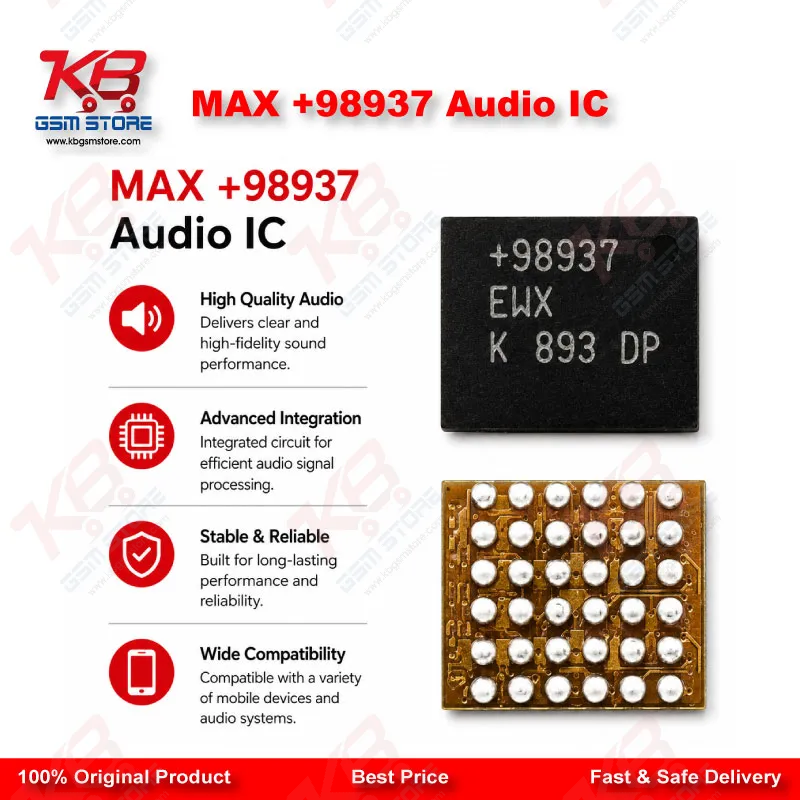

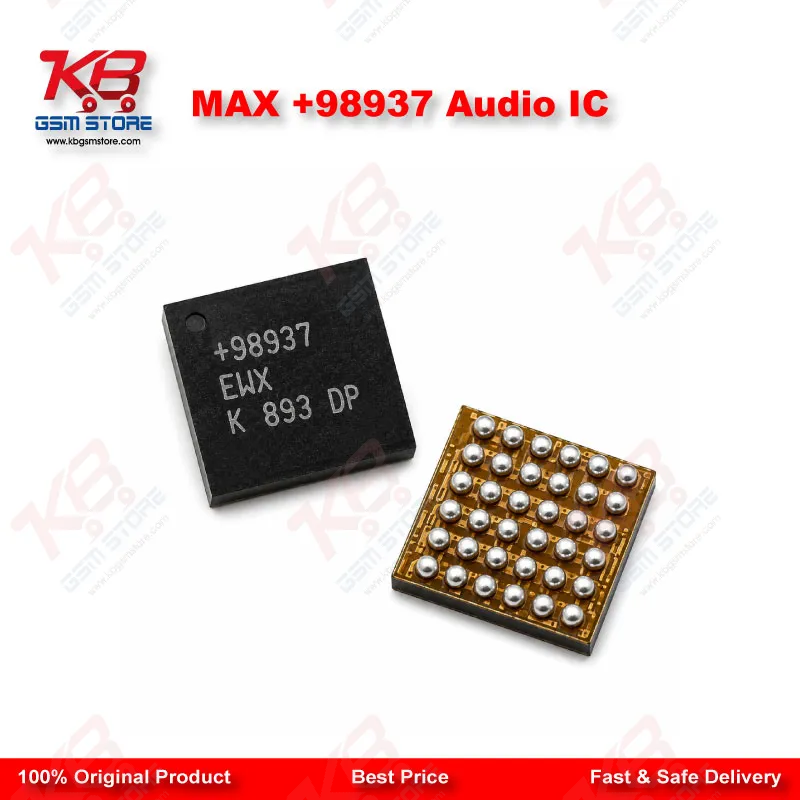

MAX +98937 Audio IC

MAX +98937 Audio IC

Rs.350.00 PKR
Rs.350.00 PKR
Sale Sold out
Shipping calculated at checkout.

MAX 98937 ek mono Class D audio amplifier IC hai jo Maxim Integrated (ab Analog Devices ka hissa) ne banaya hai. Yeh IC mobile phone motherboard par speaker aur earpiece audio path ko amplify karti hai. Jab kisi device mein no sound, low volume, ya distorted audio ka fault aata hai, technician zyada tar isi IC ko check ya reball karta hai. Compact WLP package ki wajah se yeh modern smartphone boards ke tight layout mein fit hoti hai. Yeh IC un repair shops ke liye zaroori hai jo audio-related faults handle karte hain aur original board-level performance restore karna chahte hain.

⚖️ Weight: 0.01 kg

MST-IC-383

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

MAX 98937 board-level audio amplification ka ek core component hai jo aksar Android smartphones ki motherboard par milta hai. Yeh Maxim Integrated ki Class D amplifier family ka hissa hai, jise ab Analog Devices manufacture karta hai. Repair workshop mein jab customer "awaz nahi aa rahi" ya "speaker se sound distort ho raha hai" ki complaint le kar aata hai, technician sabse pehle isi IC ko diagnose karta hai, kyunke digital audio signal ko amplify kar ke speaker tak bhejne ka kaam yehi chip karti hai. Class D architecture ka matlab hai high efficiency amplification — yani IC kam power consume karti hai aur kam heat generate karti hai, jo battery-powered mobile devices ke liye zaroori hai. Yeh design signal ko switching mode mein amplify karta hai, jis se linear amplifiers ke muqable power loss kaafi kam hota hai. Yehi wajah hai ke aaj kal ke smartphones mein Class D amplifiers standard ban chuke hain. Compact WLP (Wafer-Level Package) mein aane ki wajah se yeh IC un boards par bhi fit hoti hai jahan component placement bohat tight hota hai. Reballing aur IC replacement karte waqt precision zaroori hai, kyunke package ka pitch chhota hota hai aur thermal handling bhi careful karni parti hai. Yeh IC un technicians ke liye design hui hai jo daily basis par microsoldering aur board-level repair karte hain. Workshop workflow mein yeh IC audio troubleshooting process ka central point hoti hai. Jab bhi koi device "dead audio" ya "one side sound missing" ke saath aata hai, sabse pehle continuity check hoti hai, phir power rails verify hote hain, aur agar fault IC tak trace ho jaye to reballing ya replacement karni parti hai. Iske baad hi speaker aur earpiece dono paths normal function mein wapas aate hain. Yeh IC un repair shops ke liye especially useful hai jo bulk mein audio-fault devices handle karte hain, jaise service centers ya training institutes jahan students ko board-level IC repair sikhaya jata hai. Isse related common issues mein "software marne" ke baad bhi awaz na aana, "hardware fault" ki wajah se ek side ka speaker kaam na karna, ya "hang on logo" ke baad audio path disturb hona shamil hai — in sab cases mein technician IC health verify karta hai. Genuine ya tested MAX 98937 IC use karne se board ka original audio performance restore hota hai, jab ke low-quality alternatives se dobara fault aane ka risk rehta hai. Isliye professional repair shops verified source se hi yeh IC procure karte hain.

Key Features

Mono Class D audio amplification design

High power efficiency, kam heat generation

Compact WLP package, tight board layouts ke liye suitable

Digital audio signal amplification for speaker/earpiece paths

Board-level audio fault troubleshooting ke liye standard reference IC

Microsoldering aur reballing workflows ke saath compatible

Multiple smartphone motherboard designs mein use hoti hai

Professional repair benches ke liye reliable component

Specifications

Brand Entity Maxim Integrated / Analog Devices
Product Entity MAX 98937 Audio Amplifier IC
Technology Entity Class D Digital Audio Amplification
Compatible Device Entities Android Smartphone Motherboards
Repair Process Entity Board-Level Audio IC Repair, Reballing
Industry Entity Mobile Phone Repair, PCB Repair

Compatible Devices

Board-level component used across multiple Android smartphone motherboards in audio amplification circuits — not tied to one specific brand or model. Exact placement confirm karne ke liye board schematic ya existing IC marking se match karein.

Common Repair Uses

No sound / dead speaker issue, distorted ya crackling audio, one-side speaker fault, earpiece silent problem, audio path troubleshooting during board-level repair, IC reballing aur replacement.

FAQ

What is the product name?
The product name is MAX 98937 Mono Class D Audio Amplifier IC.
What is the brand of this product?
The brand of this product is Maxim Integrated, now part of Analog Devices.
What is the model of this product?
The model of this product is MAX 98937.
What is this product used for?
This product is used for amplifying digital audio signals to a phone's speaker or earpiece.
Which devices are compatible with this product?
This IC is a board-level component used across various Android smartphone motherboards; exact compatibility depends on the device's board design.
Who should use this product?
This product is suitable for mobile repair technicians, repair shops, service centers, and professional users.
Kya yeh IC "no sound after software" issue solve kar sakti hai?
Agar fault hardware-level hai aur audio path IC tak trace hota hai, to IC replace karne se sound restore ho sakti hai — lekin pehle software aur speaker continuity dono verify karna zaroori hai.
Kya MAX 98937 reballing ke through repair ho sakti hai?
Haan, agar IC ka fault solder joint ya cold joint se related hai to skilled technician reballing ke zariye ise repair kar sakta hai, lekin badly damaged IC ki jaga replacement hi reliable solution hai.
