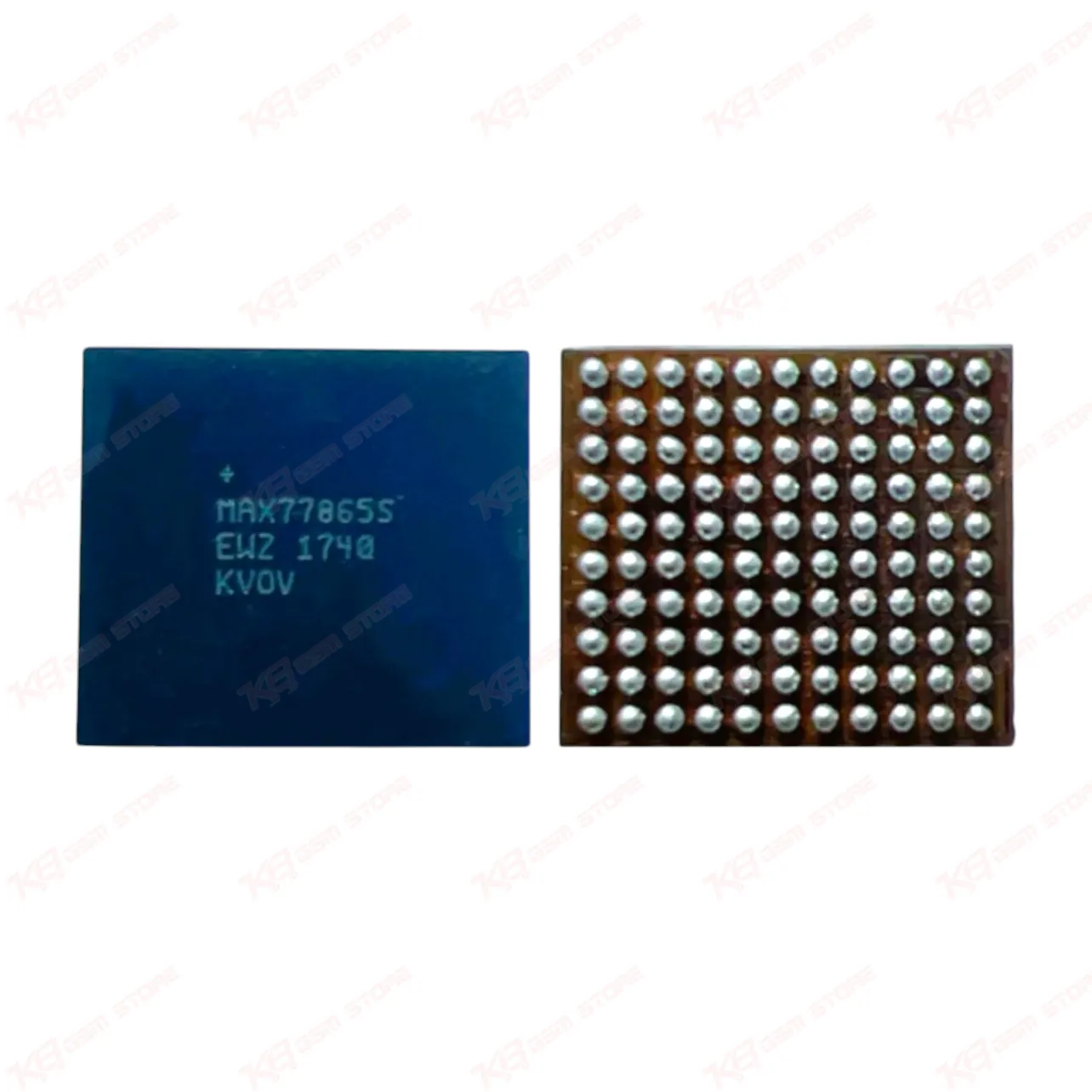

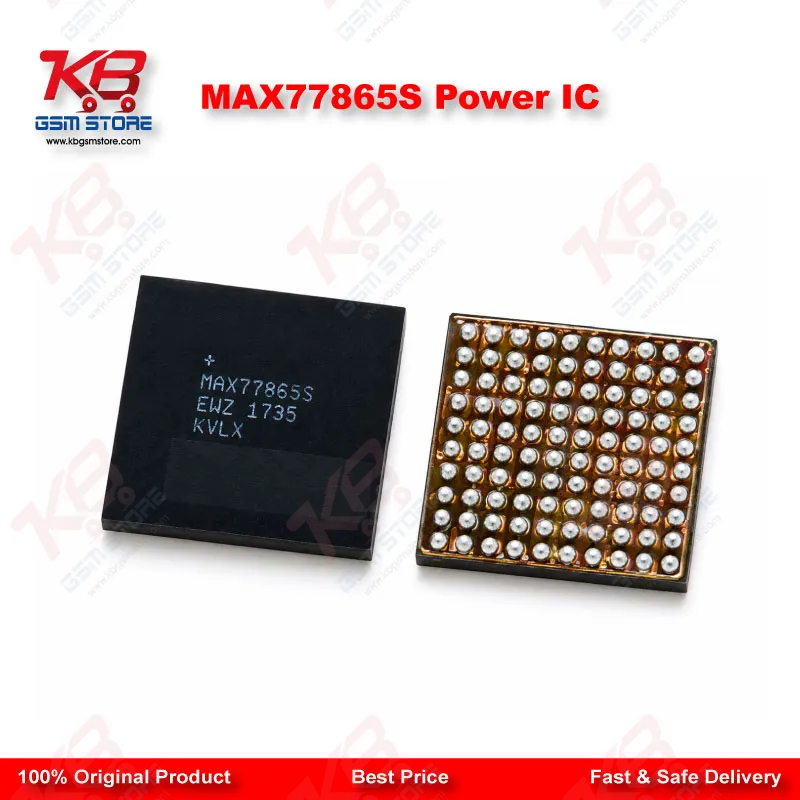

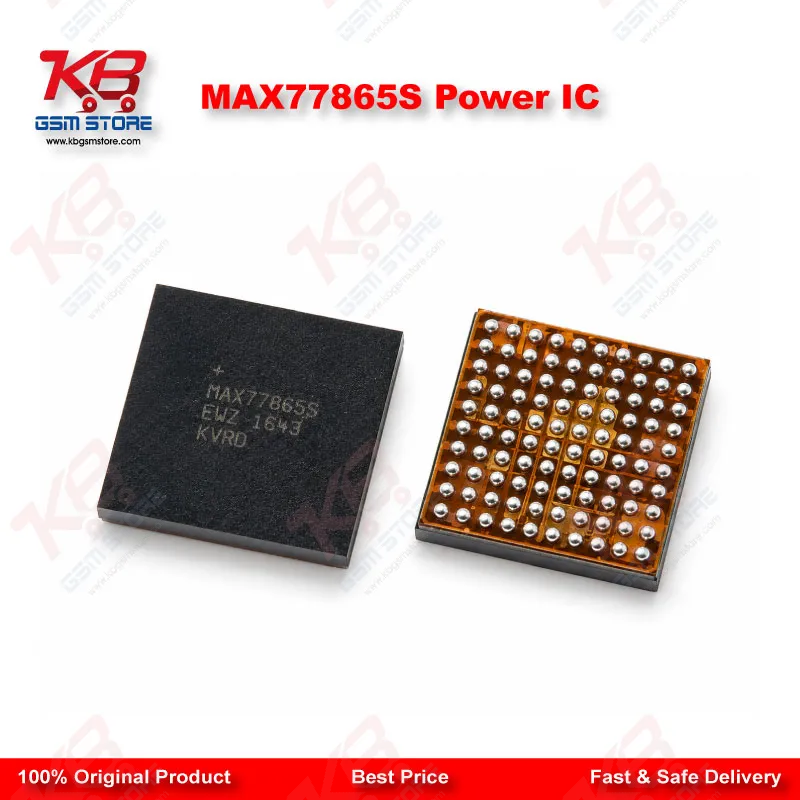

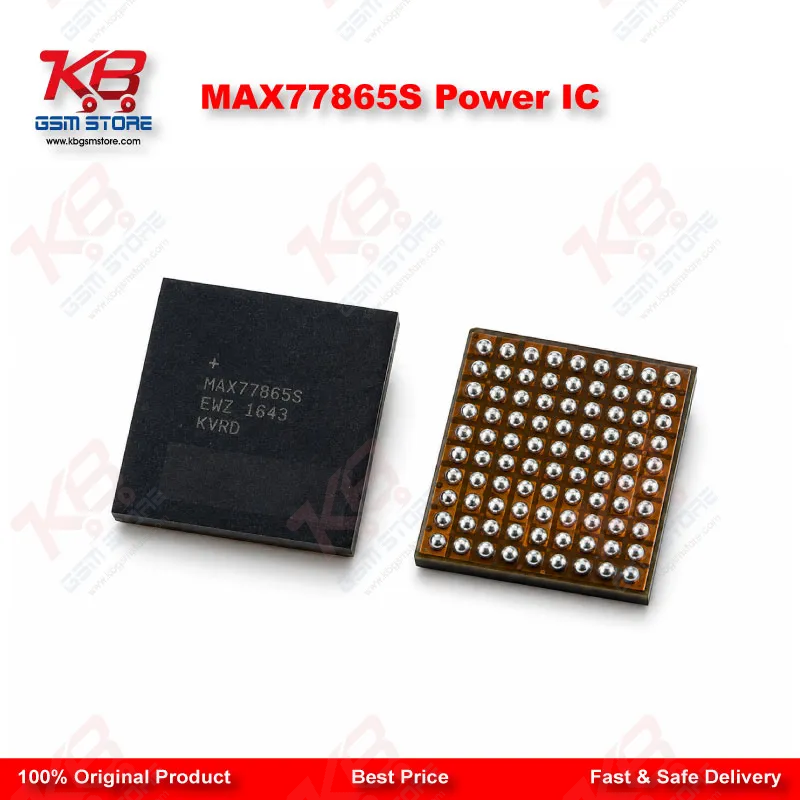

MAX77865S Power IC

Samsung S8 and Note 8 series boards run into power IC failure more often than technicians expect, especially on units that took a liquid hit or got stuck after a bad software flash. The MAX77865S sits on the baseband power rail, and when it goes bad, you typically see a dead phone, hang on logo, or the board drawing current but never booting. This replacement chip is built to the same functional spec as the original part fitted on SM-G950F, SM-G950FD, SM-G955F, SM-G955FD, and SM-N950F boards.Power ICs like the MAX77865S don't fail randomly. Liquid ingress, a short on the baseband rail, or a rough disassembly job are the usual causes. Before you order a replacement, confirm the fault sits on this specific IC and not somewhere else on the power tree — check for shorts on the rail with your multimeter, then isolate the IC by heating it in diode mode to see if the short clears. Skipping this step wastes both the part and your bench time on a board that has a different fault entirely.Removal calls for a proper hot air station set to a controlled temperature profile, since this BGA package sits close to other sensitive components on a densely packed board. Use flux generously, lift the old chip cleanly, clean the pads with braid or a pad cleaner, then reball before mounting the new IC. A microscope helps a lot here — BGA pads on S8/Note 8 boards are small, and a misaligned ball or a bridged pad turns a straightforward IC change into a callback. After reflow, always check continuity on the surrounding rails before you close up the board.This IC handles the baseband power supply function, meaning it regulates and distributes power to the modem and related circuitry. A failed unit commonly shows up as network issue, no signal, or the phone drawing current on your power supply box without ever reaching the logo. Some boards also show intermittent charging issue symptoms when the fault sits close to this rail. Confirming with a schematic or boardview before you commit to the IC change saves you from chasing the wrong fault.Stock this chip if your shop handles Samsung board-level repair regularly. S8, S8+, and Note 8 units are still common in the Pakistani secondhand and service market, and board-level faults on these models keep showing up years after release. Having the MAX77865S on your bench means you're not waiting on a supplier when a customer's board needs it fixed same day.Handle the chip with anti-static precautions from the moment you unpack it. Store it in its original packaging until you're ready to mount it, and avoid touching the ball contacts directly. A single ESD event before installation can damage the IC before it's even soldered to the board, and you won't catch that fault until after reflow — at which point you're troubleshooting a "new" IC that never worked. Test the board fully after the swap: check charging behavior, network registration, and boot stability before handing it back to the customer.Compatibility here is chipset and board-specific, not universal. This part fits the baseband power section only on the Galaxy S8 family and Note 8 family boards listed above. Cross-checking your board model against the exact variant (F vs FD) before ordering avoids a mismatch that costs you shipping time and a second order.
