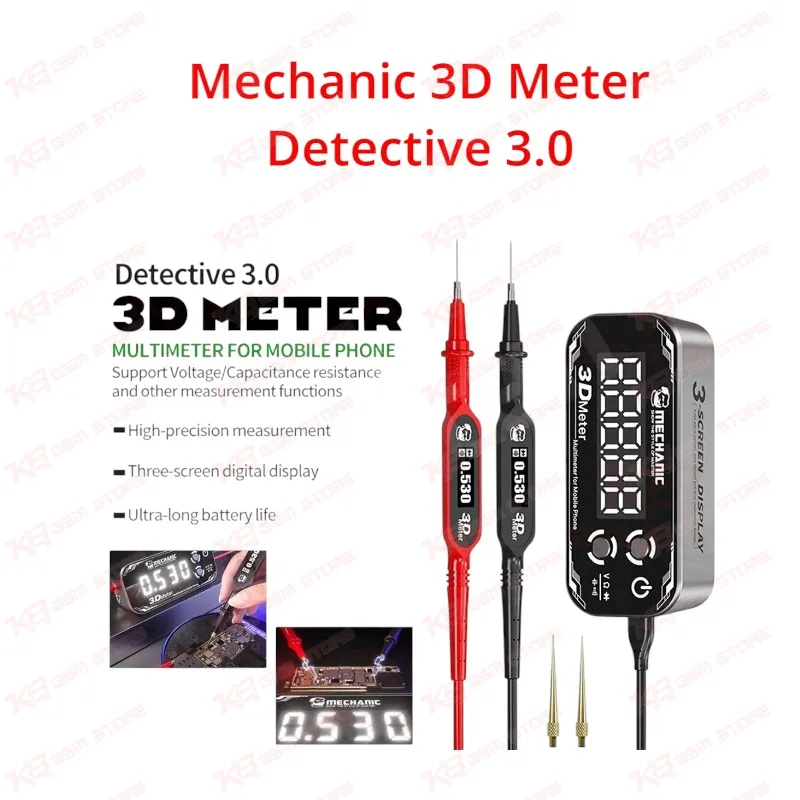

Mechanic 3D Meter Detective 3.0

The Mechanic Detective 3.0 Multimeter is one of the most thoughtfully engineered test instruments available for professional mobile phone repair technicians. Whether you're diagnosing short circuits, testing battery levels, measuring component resistance, or checking capacitance on a logic board, this multimeter handles each task with a level of precision that general-purpose meters simply cannot match.

What sets the Detective 3.0 apart from conventional multimeters is its innovative three-screen display system. Instead of forcing you to constantly shift your gaze between the probe tip and the main unit screen, the measurement data is simultaneously mirrored on a secondary screen located on the probe itself. This means you can keep your eyes focused exactly where the work is happening, improving both speed and accuracy during tight board-level diagnostics.

The measurement range covers the most critical parameters for electronics repair. Voltage readings span from -24.000V to +24.000V, making it ideal for battery charging circuits and power delivery testing. The capacitance range from 0.000uF to 9.999mF and resistance coverage up to 9.9999MQ give you comprehensive capability across passive component testing. PN junction measurements are also supported, useful for diode and transistor diagnostics.

Battery life is rarely considered when choosing a multimeter, but Mechanic has addressed this directly. A built-in 2000mAh lithium battery powers this unit, and an intelligent auto-shutdown feature activates after 15 minutes of idle time. Compared to devices running standard AAA cells, you get significantly longer working sessions between charges, which matters in a busy repair workshop.

The probes themselves deserve special mention. Super-hard gold-plated tips are precision-machined for fine electronic component pins and SMD pads. Gold plating provides anti-oxidation protection over time, while the hardened tips resist deformation under repeated pressure. Whether you're probing a 0.4mm pitch connector or a surface-mounted resistor, the probe geometry is well suited to the task.

The body of the Detective 3.0 is constructed from metal rather than the plastic housings common in budget multimeters. This contributes to better heat dissipation during extended use, improved grip and balance in the hand, and a corrosion-resistant finish that holds up well in workshop environments. The ergonomics are specifically designed for single-handed operation, which frees your other hand to hold components, adjust positioning, or take notes. Dimensions are 125x37x55mm with a net weight of 260g, keeping it comfortable for extended sessions.

For mobile phone repair shops in Pakistan, the Mechanic Detective 3.0 is a reliable, professional tool that improves workflow efficiency while delivering the measurement accuracy that quality repair work demands.
