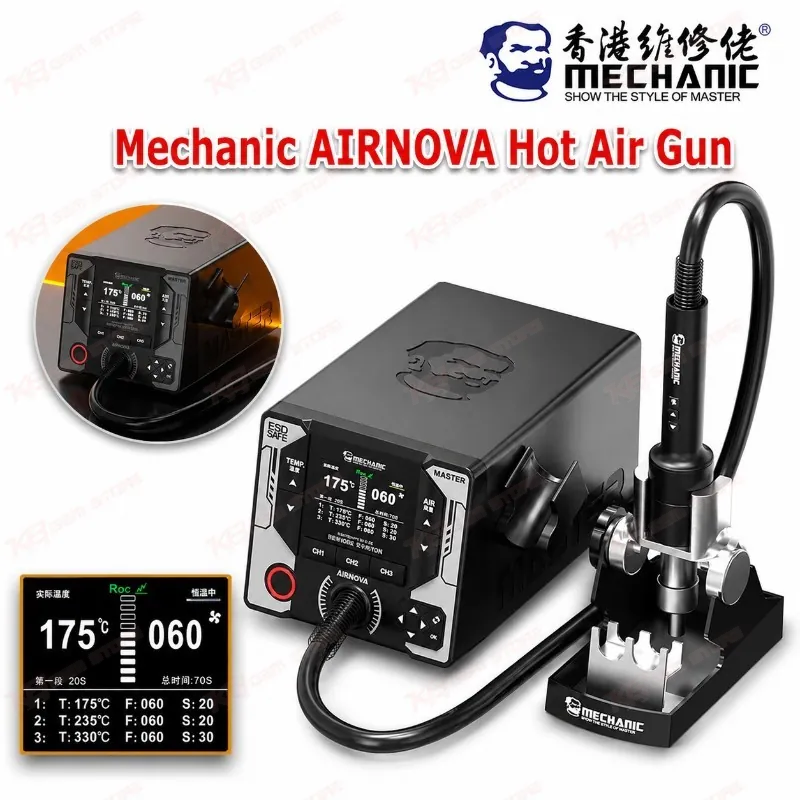

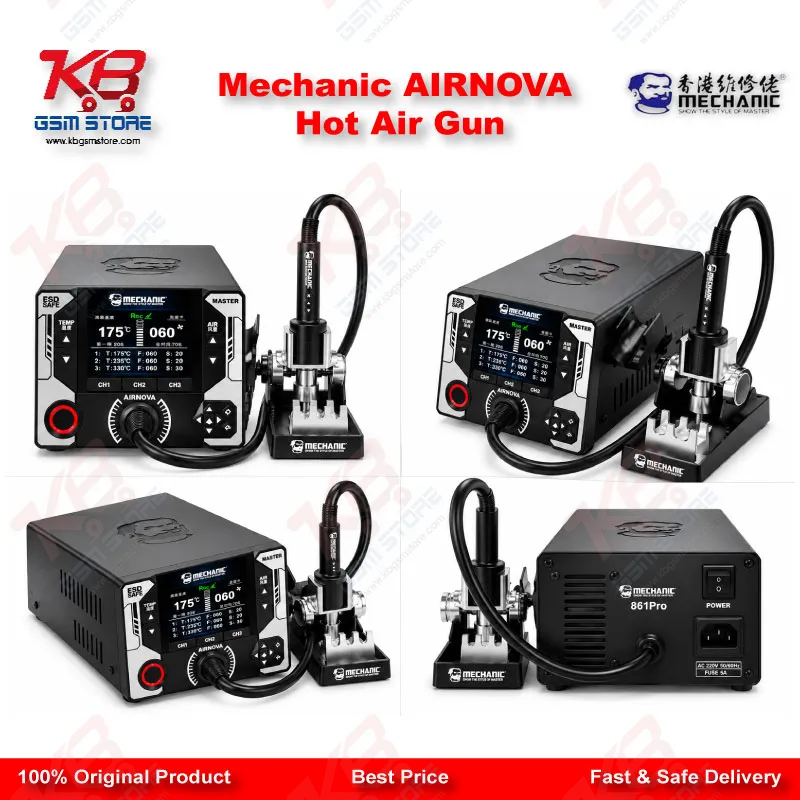

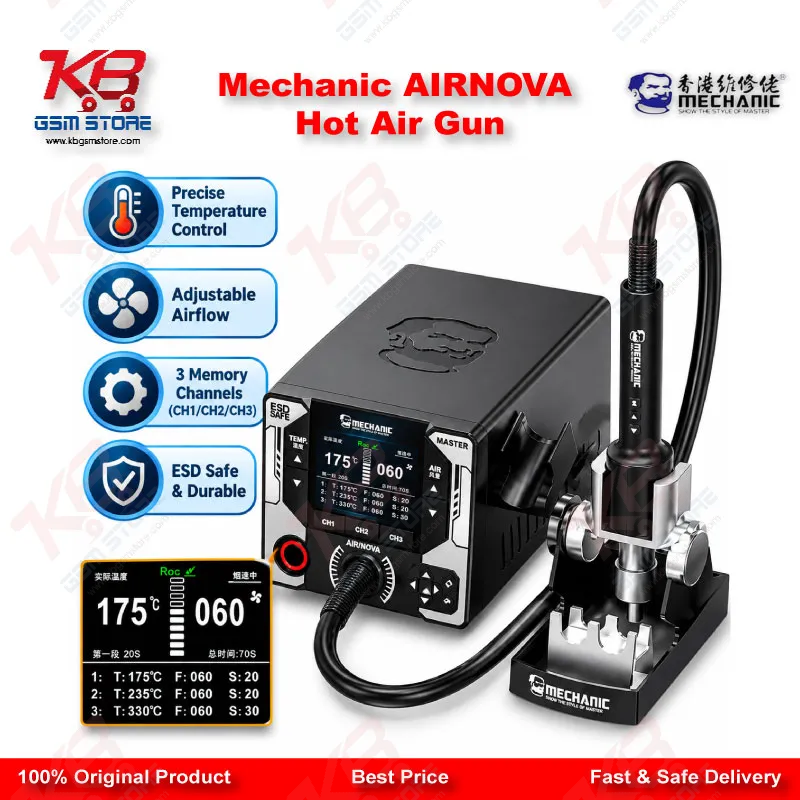

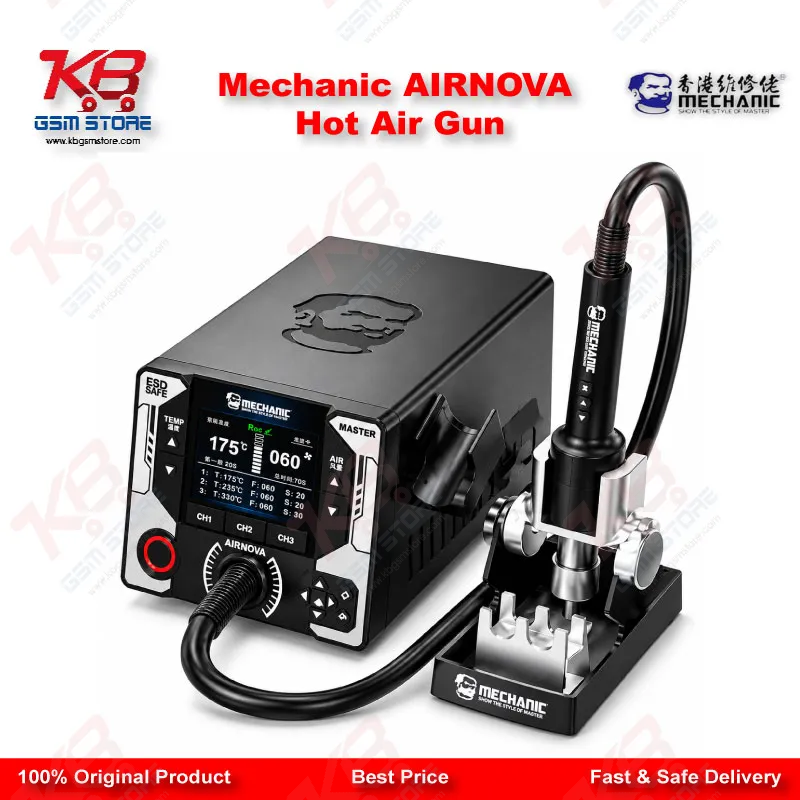

Every technician who has fought a stubborn underfill-coated CPU or a PMIC that refuses to lift knows that raw wattage alone never solves the job, and the Mechanic AIRNOVA Hot Air Gun approaches board-level rework from a different angle by giving you programmable heat curves instead of a single fixed temperature. This 1200W hot air rework station comes from Mechanic, a brand well known in the microsoldering tools segment, and it targets the exact workflow you run every day on mobile phone and laptop motherboards: IC removal, chip reballing, component replacement, and controlled reflow. The headline feature is Roc segmented temperature control, which lets you build heating profiles across three memory channels labeled CH1, CH2, and CH3. Each channel stores its own temperature, air volume, and time values, so you can set one channel for gentle preheating, another for full reflow, and a third for a specific job like shield removal, then switch between them without touching the knob again. That matters because most heat damage on a repair bench comes from inconsistency: a technician rushes, cranks the dial, and lifts pads or bubbles the board. A stored curve repeats the same thermal profile every time, which protects the board and protects your reputation when the customer comes back to collect the phone. The station covers a working temperature range of 100°C to 500°C, which spans everything from softening adhesive around a flex connector up to removing large BGA chips on multilayer boards. A 2.8-inch IPS full-view HD colour screen shows temperature, airflow, and channel status clearly, so you read settings at a glance even under bright bench lighting or between microscope sessions. You control the unit with both push buttons and a rotary knob, which suits technicians who prefer quick tactile adjustment as well as those who like stepping through values precisely. A long press on CH1 switches the gun into cold air mode, and this feature earns its place on a busy bench: after you reflow a charging IC or replace a power IC, you cool the area quickly and evenly instead of waiting, which reduces the chance of disturbing freshly seated components. The AIRNOVA uses an upgraded standard 7B heating core made from high-temperature-resistant stainless steel, and the handle uses a screwless design that lets you pull out and replace the heater core quickly when it eventually wears. The handle also adjusts and rotates, so you position the nozzle comfortably whether you work on a phone board clamped in a PCB holder or a larger laptop motherboard lying flat. At the outlet, Mechanic uses a bell-shaped air design that concentrates airflow and spreads heat uniformly across the target area, which helps when you lift a QFN or BGA package and need every pad to reach melting point together rather than one corner first. A high-speed compact motor drives the airflow, and you adjust air volume to suit the component: low airflow for tiny passives that blow away easily, higher airflow for large shielded areas. Auto-sleep kicks in when you rest the handle, and rapid cooling brings the heater down safely, which extends heating core life and saves power during long workshop hours. The memory and quick-switch mode lets you jump straight to frequently used settings, so a shop handling a dozen boards a day saves real time across a week. In a Pakistani repair shop, this tool fits into the hardware side of almost every serious fault. When a phone comes in as a dead phone with a shorted power line, you use a multimeter and thermal checks to locate the fault, then the AIRNOVA to remove the shorted capacitor or damaged PMIC. When a handset shows a charging issue after water damage, you lift and replace the charging IC. When a device hangs on logo or sits in a boot loop issue that software flashing cannot fix, the cause often lies in a failing eMMC or UFS chip, and you need controlled heat to remove that memory chip so you can read or program it with eMMC programmers and UFS adapters, or move to ISP pinout tools when you prefer working on the board directly. Network issues frequently trace back to RF ICs or PA modules that need reflow or replacement, and display problems sometimes come from a damaged display connector or backlight circuit, both of which this station handles comfortably. When a phone goes dead after flash and the box no longer detects it, you often end up at the hot air station to reflow or replace the components your test box diagnostics point toward. The AIRNOVA sits at the center of that workflow alongside your soldering station for fine pad work, your microscope for inspection, reballing kits and stencils for BGA rework, and your test boxes for software verification after the hardware repair. Technicians upgrading from a basic analog hot air gun will notice the biggest change in repeatability: instead of guessing the dial position for each job, you save profiles and recall them in one press. Shop owners setting up a new bench get a station that handles entry-level jobs like charging port and connector replacement as well as advanced work like CPU and memory chip rework. Training institutes benefit too, because students learn controlled heating curves from day one rather than building bad habits with uncontrolled heat. The unit runs on AC 220V/50Hz, which matches standard Pakistani mains supply, and the package includes the main unit, the hot air handle, three hot air nozzles, a handle stand, and a power cord, so you start working the day it arrives. The main body measures 230 x 154 x 127mm and weighs about 3.49kg, which keeps it stable on the bench without taking over your workspace. Pair it with a quality flux, a PCB holder that keeps the board steady under heat, and a microscope for alignment before you reflow, and use Kapton tape or heat shields to protect nearby plastic connectors and the camera area during long heating cycles. Whether you run a single-counter repair shop or a busy multi-technician service center, the Mechanic AIRNOVA Hot Air Gun gives you programmable heat control, cold air cooling, and a replaceable heating core in one compact rework station built for daily board-level repair.
