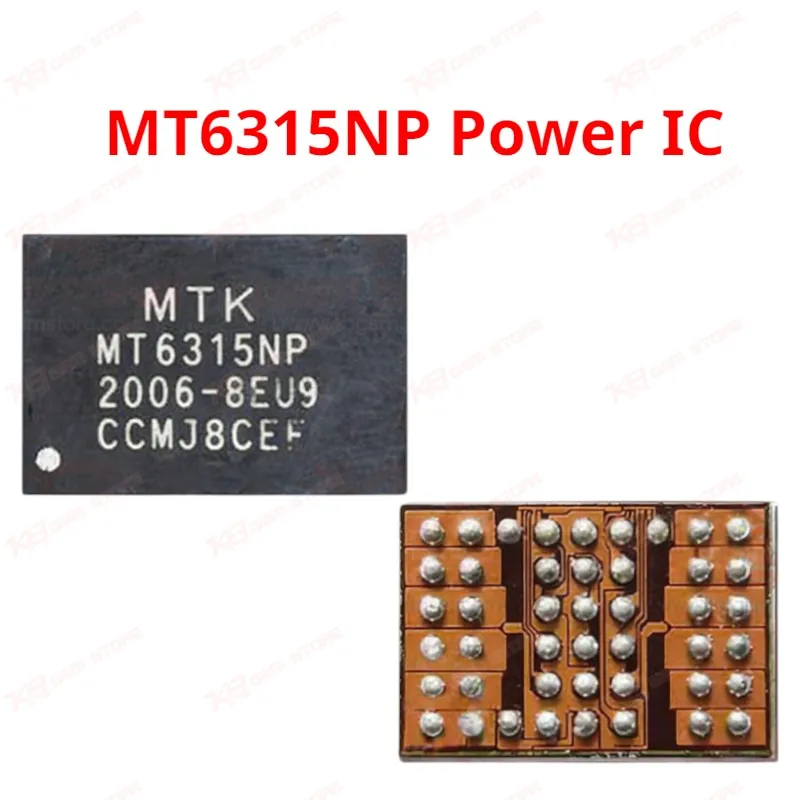

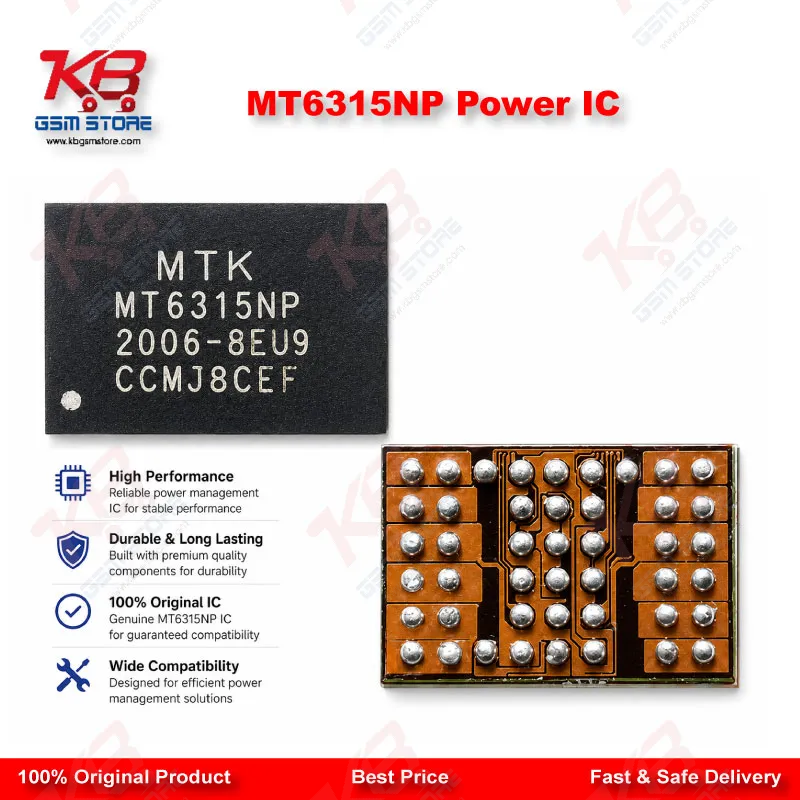

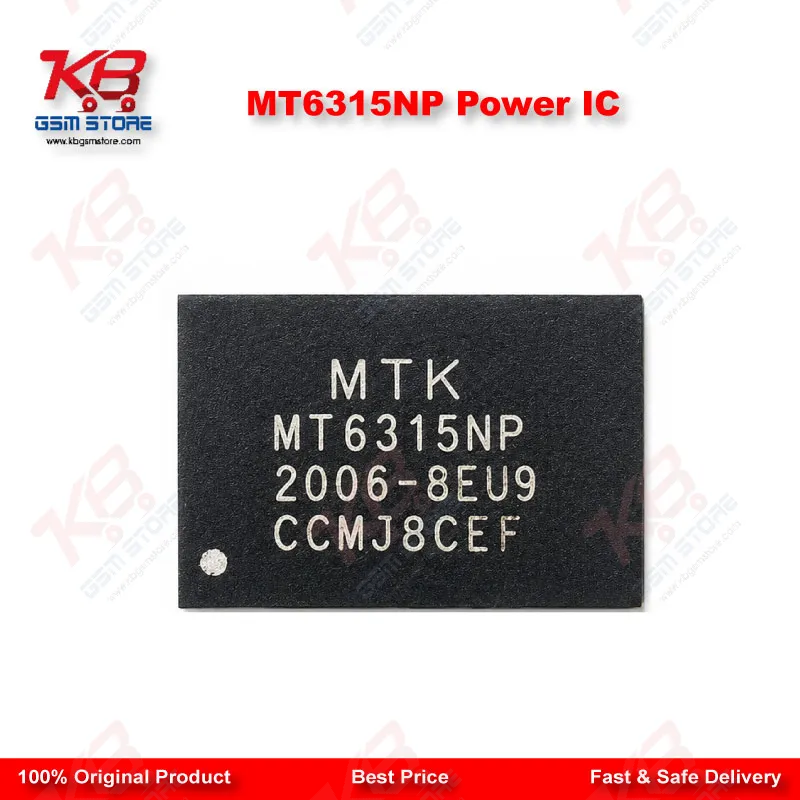

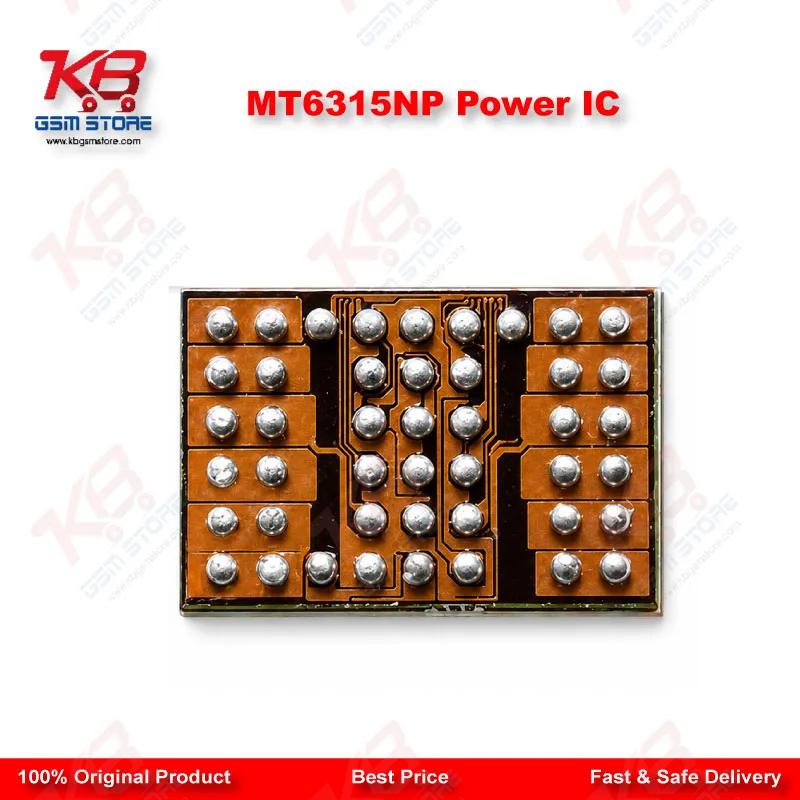

When a MediaTek Dimensity-based phone won't power on, technicians usually start checking the main PMIC first — but the MT6315NP deserves equal attention on your bench. This IC handles the CPU core voltage supply, and a fault here produces symptoms that look identical to a dead main PMIC: no display, no charging response, and a board that draws zero current from your power supply box. MediaTek designed the MT6315NP as a 4-phase buck converter, meaning it packs four separate step-down DC/DC converters into one chip. On Dimensity platforms like the MT6853 (used in Dimensity 700/800-series designs), the MT6315NP works as a companion regulator to the MT6359 PMIC, supplying VPROC1 and VPROC2 rails directly to the CPU big and little clusters. Each of these rails can deliver up to 4.8A at an output range of roughly 0.4V to 1.19V, adjustable in fine 6.25mV steps through the SPMI or I2C control interface. That granularity is what lets the SoC dynamically scale voltage as CPU load changes — a feature that matters for battery efficiency but also means even a small fault on this IC throws off the entire boot sequence. For your repair workflow, this translates into a specific set of symptoms: dead phone with no boot logo, hang on logo after a flash attempt, sudden dead after flash cases where the board was fine before software work, or a phone that draws current but never reaches the OS. Before condemning the main PMIC or CPU, check the MT6315NP's output rails with your multimeter or thermal camera under short-circuit testing. A shorted or leaking phase on this IC often shows as excessive current draw at power-on with no display response — a pattern many technicians mistake for a CPU-level hardware fault. Because the MT6315NP ships in a 45-pin WLCSP package at just 2.35 × 3.44 mm, this is a fine-pitch reballing job, not a beginner-level swap. Use a calibrated hot air station, quality flux, and a microscope for alignment — this IC change karna requires the same precision as CPU or NAND reballing work. Confirm ground and power pin continuity to the MT6359 PMIC before and after replacement, since a misaligned pad here can cause a fresh IC to fail immediately or produce an intermittent boot loop. Multiple Pakistani parts suppliers and repair-part catalogs consistently list the MT6315NP as the power IC used on Redmi Note 10 5G and Redmi Note 9 5G boards, both of which run MediaTek Dimensity chipsets from the same power-architecture family MediaTek documents in its MT6359/MT6315 platform design notice. If you're servicing either of these models and see no-power or hang-on-logo symptoms after ruling out the battery, charging port, and main PMIC, this IC is the next logical checkpoint. Stock the MT6315NP alongside your MT6359-series PMIC, ISP pinout tools, and reballing stencils to keep VCORE-related board repairs moving without waiting on parts. KB GSM Store ships genuine, tested stock to technicians and service centers across Lahore, Karachi, and Islamabad, so your workshop stays stocked for the next dead-board job that comes through the door.
