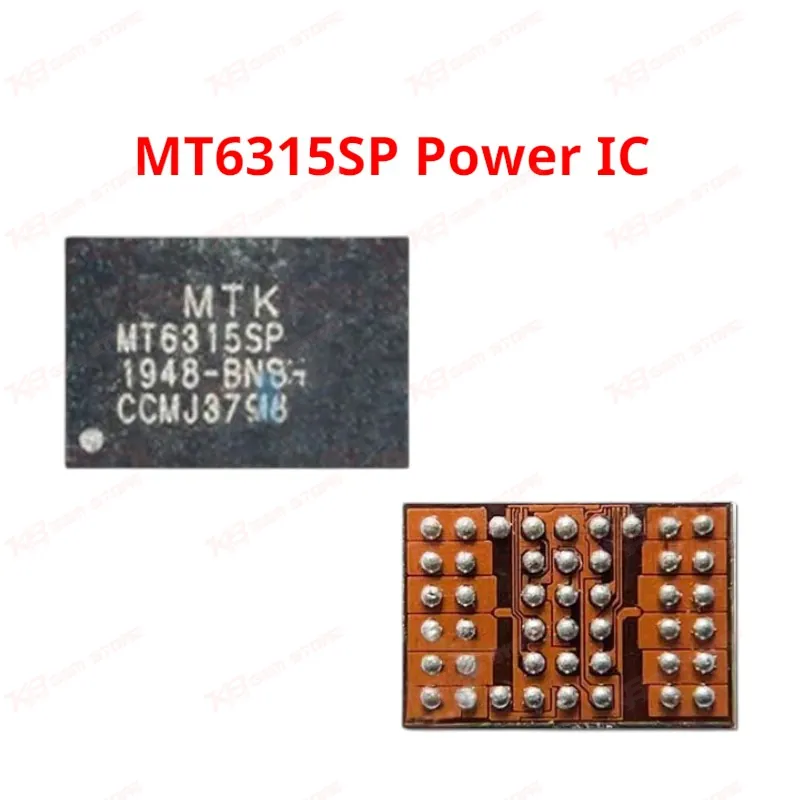

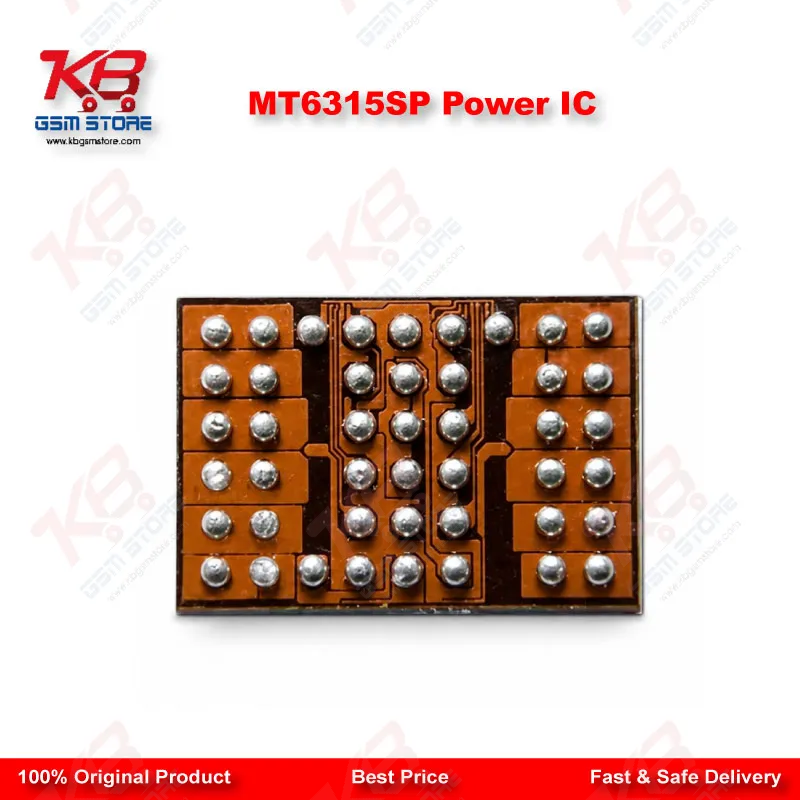

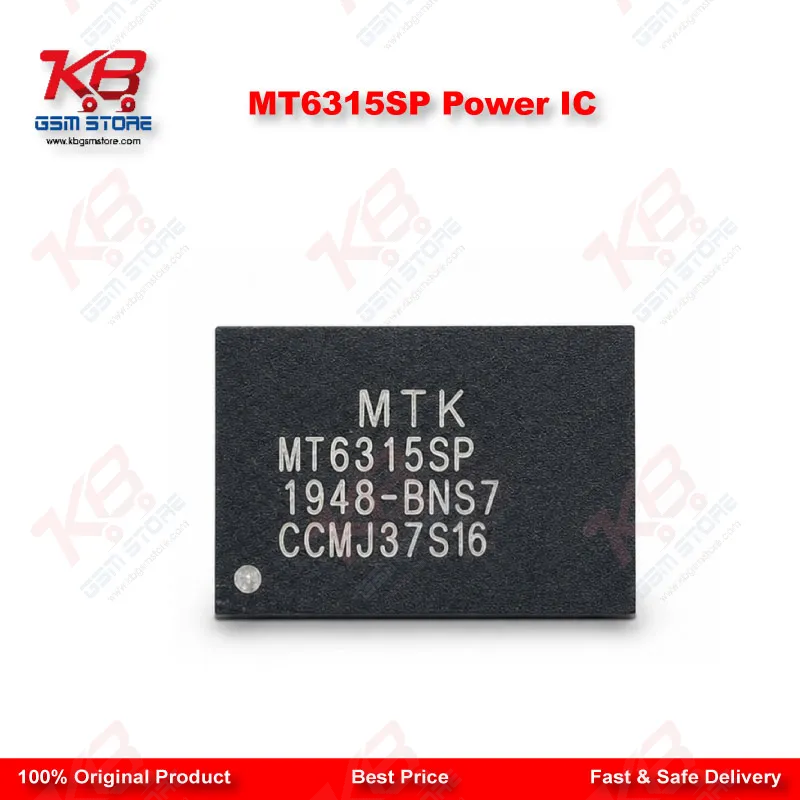

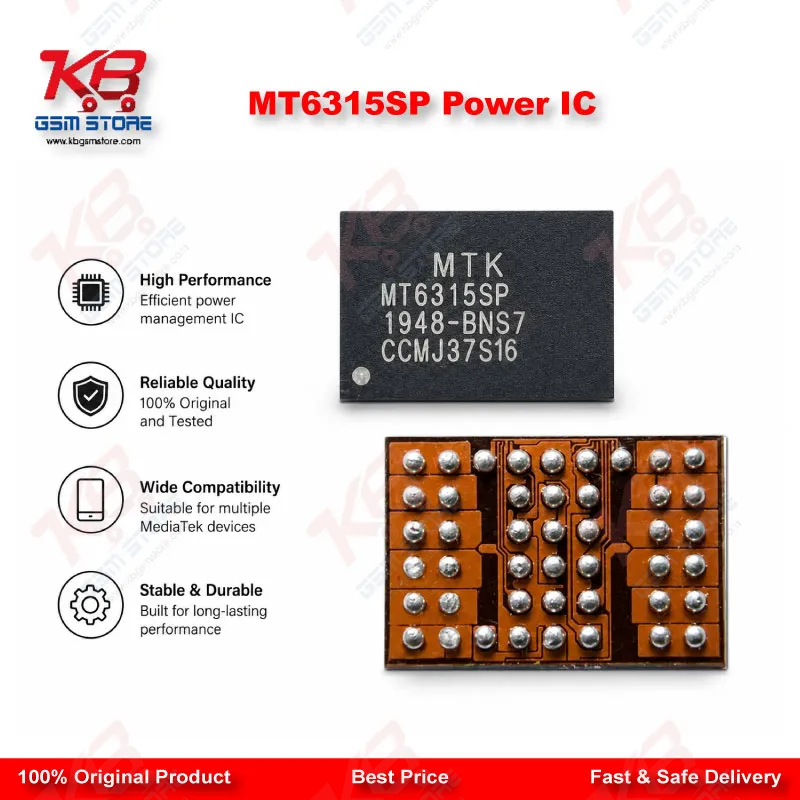

The MT6315SP Power IC is a variant marking of MediaTek's MT6315 series, a 4-phase buck converter PMIC designed specifically to regulate CPU core voltage in MediaTek Dimensity-powered smartphones. On your repair bench, this chip sits between the battery power rail and the application processor, converting the main supply into precisely stepped-down voltages that the CPU cores need to operate reliably under varying load conditions. Inside the package, four step-down DC/DC converters work together in a bundled 4-phase configuration. This multi-phase design spreads the current load across four channels instead of pushing everything through a single regulator, which reduces heat concentration on one point of the board and improves transient response when the CPU jumps between idle and full-load states. For your workflow, this matters because a single damaged phase inside the IC can create partial CPU instability rather than a full dead phone, making diagnosis trickier than a straightforward short. The output voltage range runs from 0.4V to 1.19375V, adjustable in 6.25mV increments. This fine step resolution supports Dynamic Voltage Scaling (DVS), letting the processor request exact voltage levels for each performance state through the SRCLKEN pin or the SPMI/I2C-compatible communication interface. When you see a device stuck on hang on logo after a software marna attempt, or a phone that boots but crashes under load, checking the communication lines and voltage rails tied to this IC should be part of your diagnostic sequence before jumping to CPU reball. MediaTek houses the MT6315 die in a compact 45-pin WLCSP package measuring 2.35 × 3.44 mm. This ultra-small footprint keeps board space minimal but also means reballing and IC change work on this chip demands a steady hand, a quality microscope, and correct stencil selection — standard board-level rework skills apply here, not specialized flash tools. The device includes built-in fault flags that report status information back to the system, and it manages output slew rate during startup to control inrush current and prevent voltage overshoot, which protects the downstream CPU from power-up stress. Regarding the "SP" suffix specifically: MediaTek issues the MT6315 family under several ending letter codes (TP, SP, PP, QP, RP, NP, GP, FP, BP, OP) that correspond to production lot, test grade, or packaging batch markings rather than different electrical designs. Functionally, these variants share the same 4-phase buck converter architecture, voltage range, and pinout, and they get treated interchangeably as CPU power IC replacements in the repair market. Genuine, correctly-marked replacements matter because counterfeit or mismarked ICs create hardware fault symptoms that mimic board damage. Operating temperature spans -30°C to +85°C, giving the chip enough thermal headroom for real-world phone use, including devices running warm under sustained gaming or camera-heavy workloads. For your repair bench, always confirm the exact marking on the removed chip matches your replacement before soldering, since mismatched variants across the MT6315 family can cause voltage sequencing errors even when the package looks identical. This IC finds regular use in dead phone recovery, CPU boot loop issue diagnosis, power rail testing, and board-level rework where the CPU shows no response despite a confirmed good battery and charging path. Pair it with a hot air station rated for fine-pitch WLCSP work and a stable, ESD-safe workstation for consistent results.
