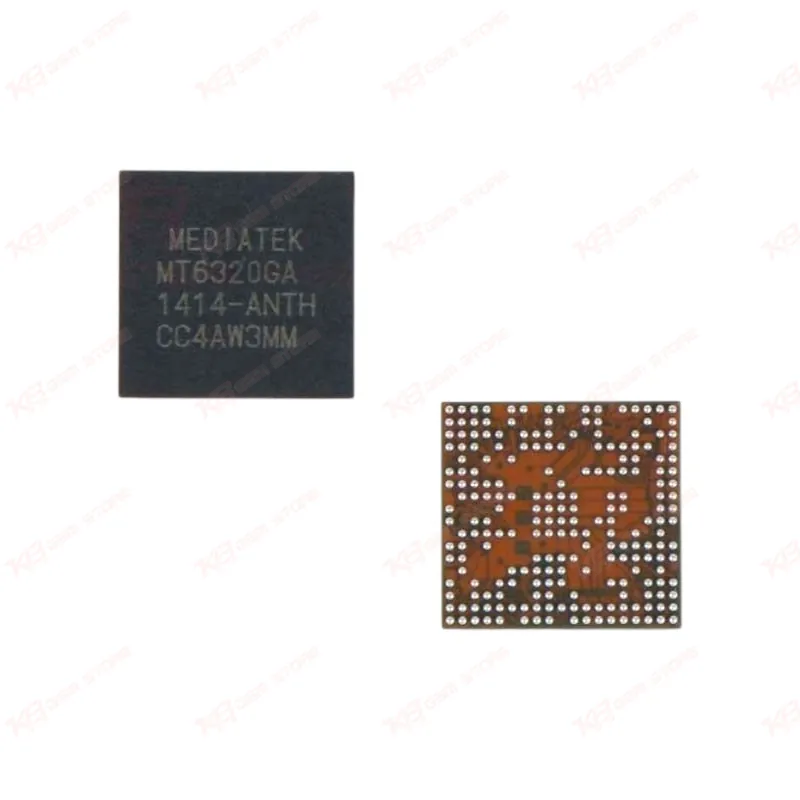

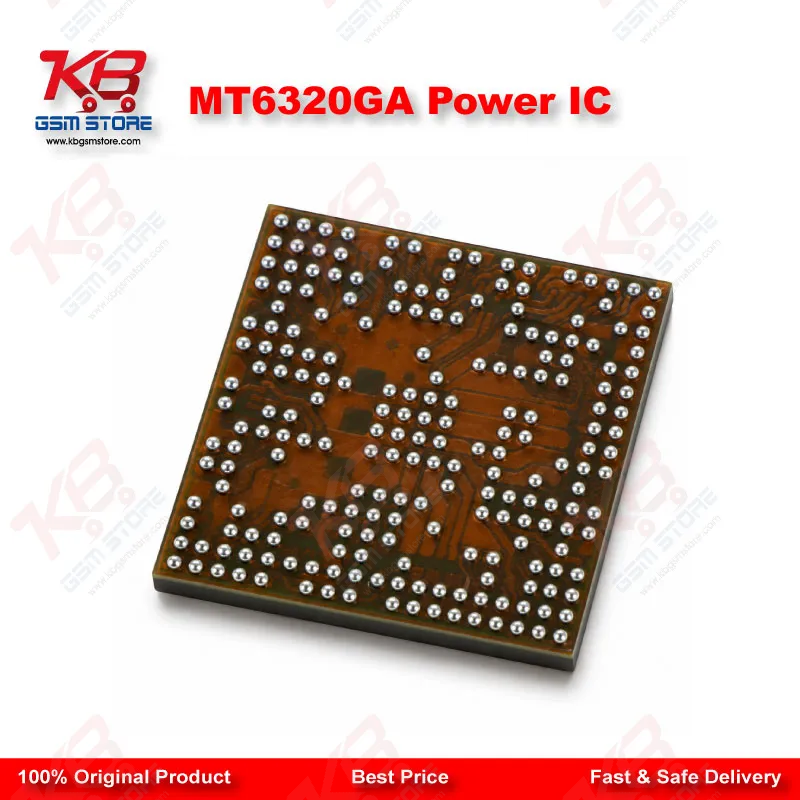

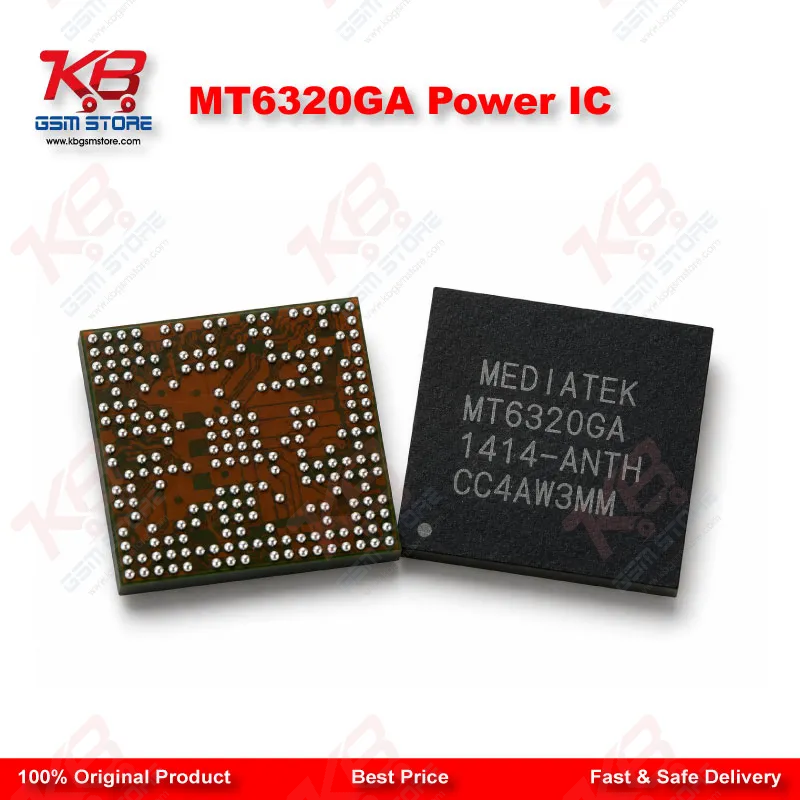

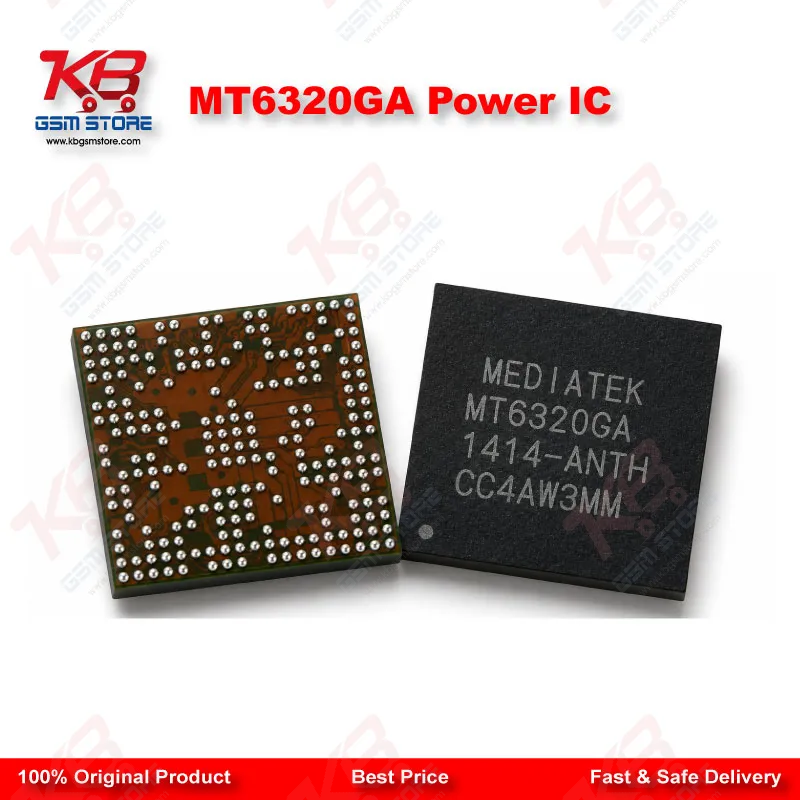

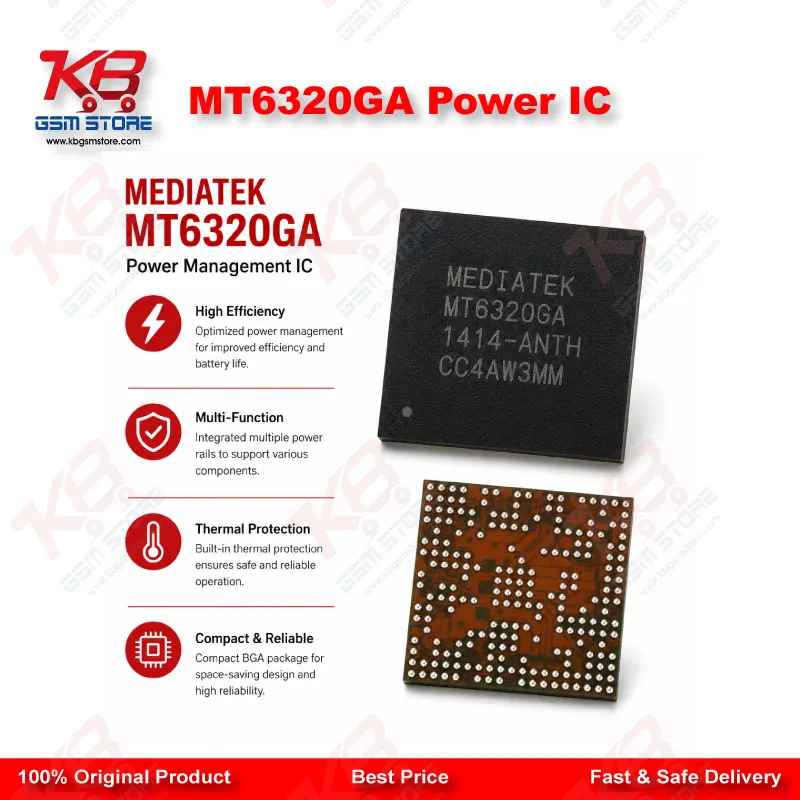

When a phone comes into your workshop completely dead — no charging light, no logo, nothing on the display — the power IC is one of the first suspects on your bench, right alongside the charging IC and the battery connector. The MT6320GA is MediaTek's power management chip for its MT6589-based platform, and it sits at the center of that suspicion list because it's responsible for feeding regulated voltage to the CPU, memory, and other core sections of the board.You'll recognize this IC by its position on boards from devices like the Sony C2305, Lenovo A3000-H tablet, Lenovo A820, ZTE V967S, Lenovo S6000-H tablet, Huawei G610-U00, Huawei G700-U20, and the TCL Y900. These share the same MT6589 platform family, and the MT6320GA does the same job on each of them: taking input from the battery and charging circuit and converting it into the multiple clean voltage rails the rest of the board depends on. When this IC develops a fault — usually from liquid damage, a short circuit downstream, or physical stress on the board — the symptoms are almost always dead phone, no power, or a board that draws current but never boots past the logo.Before you order this chip, confirm your diagnosis properly. Pull current on your DC power supply and check for a short first. If the board is pulling abnormal current on the main rail and heat-testing points you toward this IC's location, or if you've already isolated it through cold testing, then a power IC swap makes sense. Don't jump straight to IC replacement on every dead board — a shorted component elsewhere on the same rail can mimic power IC failure, and swapping this chip won't fix a dead-after-flash issue that's actually software-related.Replacement is BGA-level work, not solder-iron work. You'll need a hot air rework station set to the correct profile for the board's other components, flux, and either a matching stencil or careful manual balling if you're reballing rather than using a pre-balled chip. Clean the pads thoroughly after removing the old IC — leftover residue or lifted pads are the most common reason a "correct" replacement still doesn't bring the board back. Once reflowed, check continuity on the main rails before powering up, and only then move to a full power-on test.This chip is a hardware fix, and it belongs in the same workflow as your other board-repair tools — your microscope for pad inspection, your hot air station for the reflow itself, and your multimeter or power supply for pre- and post-repair verification. If you're already stocking eMMC or ISP tools for dead-phone recovery work, this IC covers the pure power-delivery side of that same repair category.Keep in mind this is a component-level part meant for technicians comfortable with BGA rework. If your shop is still building up microscope and hot air experience, practice on scrap boards before attempting a customer unit with this chip — a failed reflow on a first attempt usually does more board damage than the original fault.
