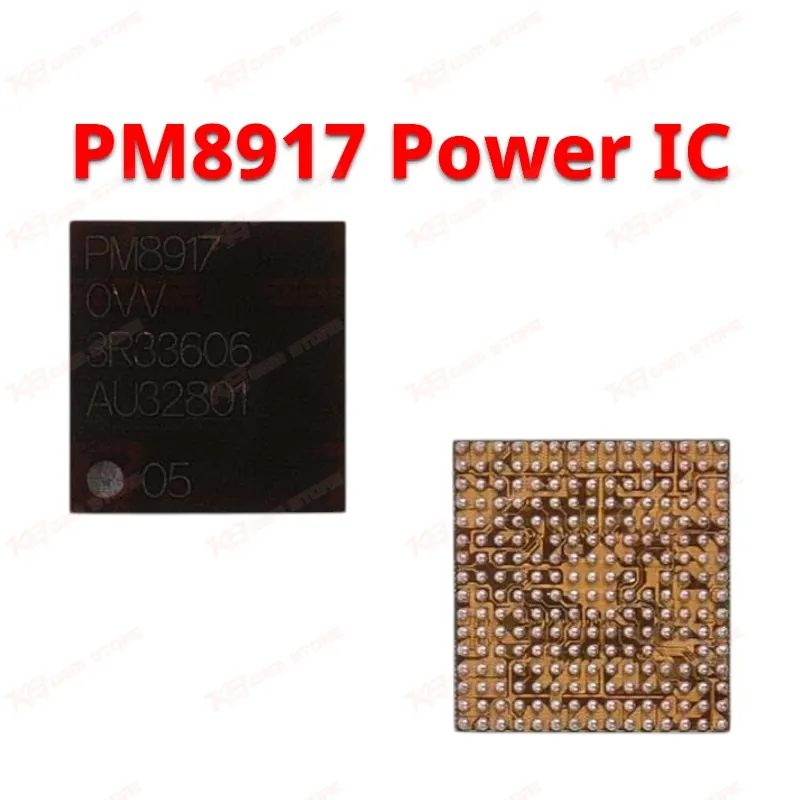

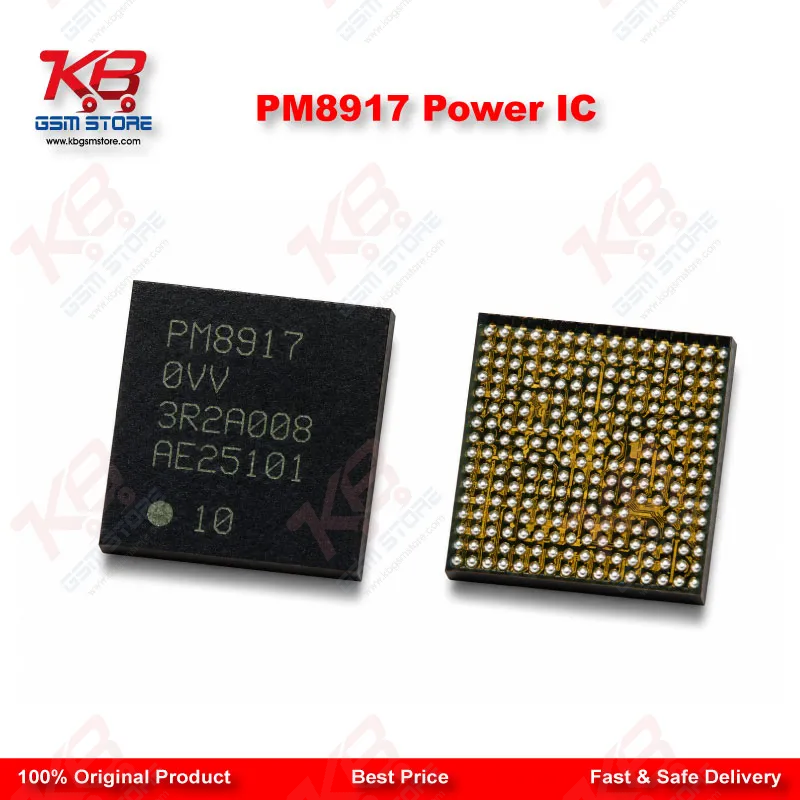

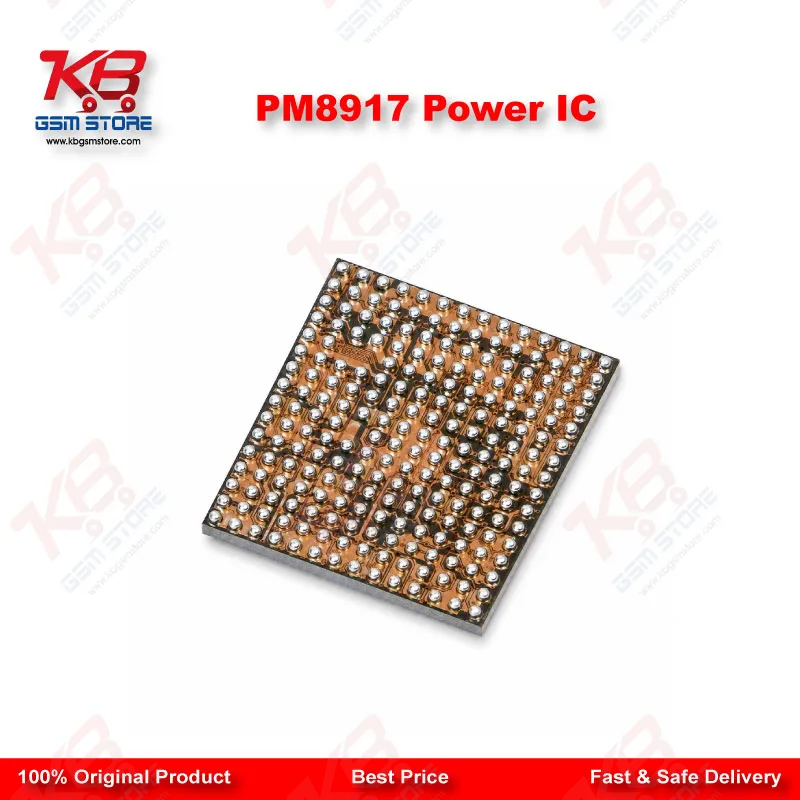

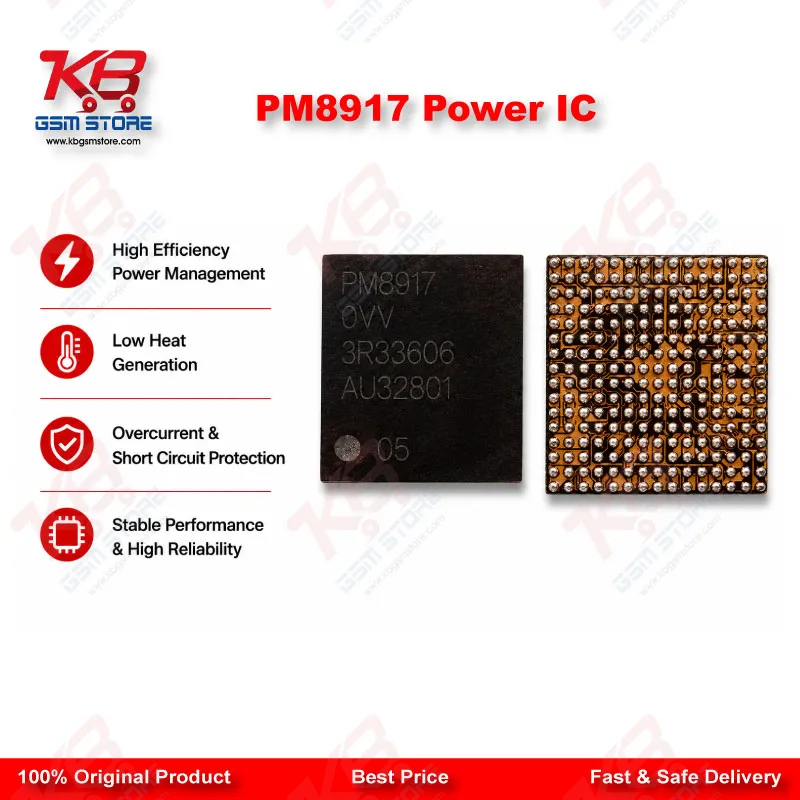

PM8917 Power IC

Jab Samsung Galaxy S4 ya Mega 6.3 board dead ho jata hai aur koi charging response nahi deta, zyada tar cases mein fault power management section mein hota hai — aur yahin PM8917 ka kaam start hota hai. Yeh Qualcomm ka original PMIC hai jo phone ke core voltage rails control karta hai, battery charging path manage karta hai, aur baseband ko stable power supply deta hai.Board repair workflow mein PM8917 ka role critical hai. Jab koi Galaxy S4 unit "dead after flash," "no power," ya "charging issue" ke sath aata hai, technician sabse pehle PMIC ke short ya open circuit ko check karta hai. Agar current draw abnormal ho ya board short show kare, PM8917 replacement zaroori ho jata hai. Yeh IC BGA package mein aata hai, is liye iska reballing aur mounting precise hot air control aur proper preheating ke sath karna padta hai — warna adjacent components affect ho sakte hain.Is chip ki job sirf charging control tak mahdood nahi. PM8917 multiple voltage domains generate karta hai jo CPU, RF section, aur display driver ko feed karte hain. Isi wajah se jab yeh IC faulty hota hai, symptoms sirf charging tak limited nahi rehte — hang on logo, random restart, aur no display jaisi complaints bhi PMIC fault se link ho sakti hain. Ek experienced technician diagnostic ke dauran multimeter se voltage rails check karta hai taake confirm ho sake ke fault IC mein hi hai, kisi doosri component mein nahi.Replacement ke waqt original Qualcomm-sourced ya verified compatible PM8917 use karna important hai, kyunke mismatch ya low-quality IC dobara short create kar sakta hai ya board ko permanently damage kar sakta hai. Workshop environment mein yeh IC un technicians ke liye stock item hota hai jo regularly Samsung S-series aur Mega series boards par kaam karte hain, kyunke PMIC failure in models mein ek common recurring issue hai.Installation ke baad, board ko power apply karne se pehle short-circuit test zaroor karna chahiye. Yeh step un cases mein especially zaroori hai jahan original fault ke sath board par koi aur damage bhi mojood ho — jaise liquid damage ya corrosion, jo PMIC ke around solder joints ko affect kar sakta hai. Proper cleaning aur flux application replacement ki success rate barhata hai. PM8917 un core components mein shamil hai jo Samsung repair ecosystem ki backbone hain. Chahe aap ek independent repair shop chala rahe hon ya ek service center mein kaam kar rahe hon, is IC ka stock rakhna Galaxy S4 aur related models ke liye fast turnaround ensure karta hai — customer ko wapis ek working device dene ke liye jiska charging aur power system fully functional ho.
